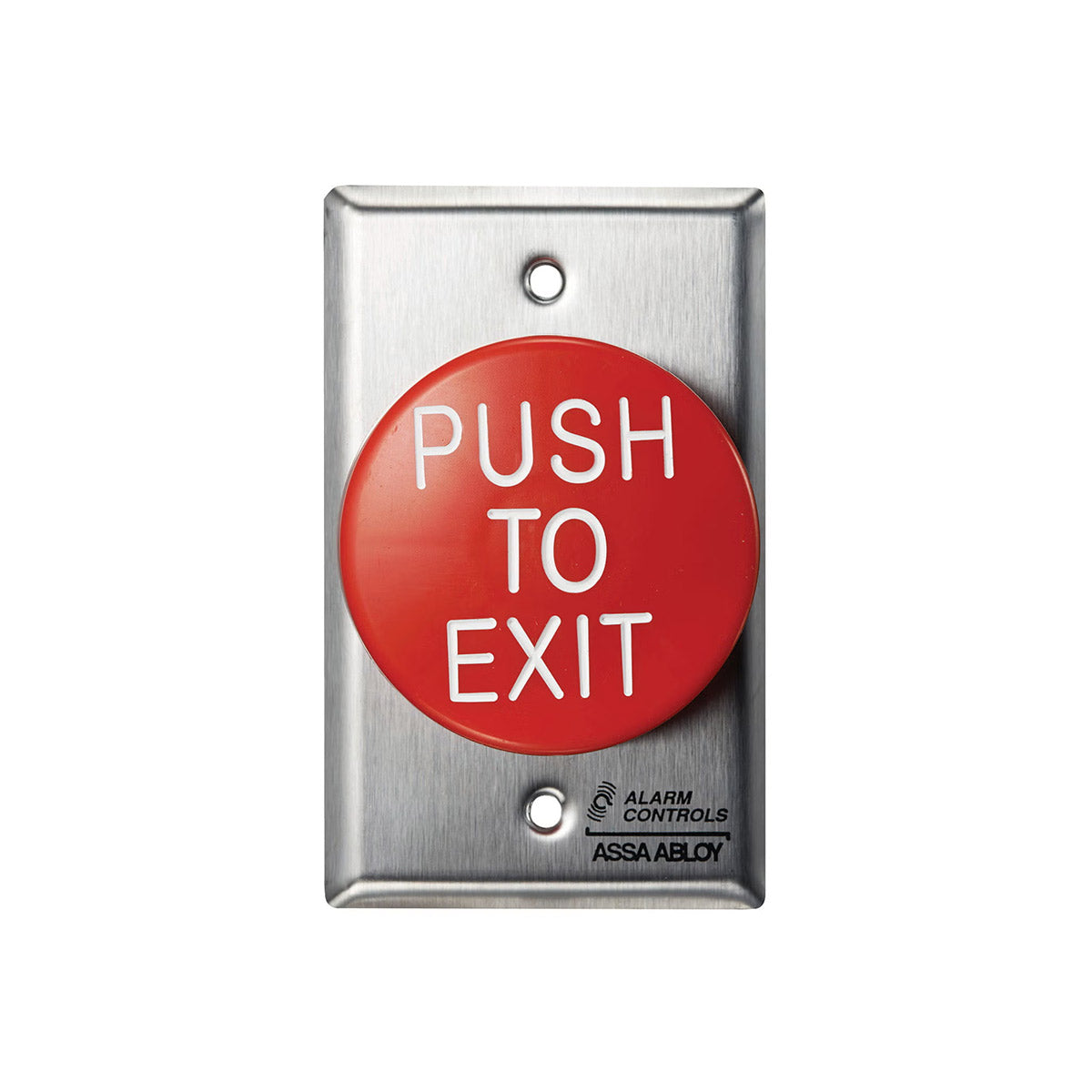

Alarm Controls TS-60 Request to Exit Station with Pneumatic Timer
Keep doors unlocked for a preset period with the Alarm Controls TS-60 Request to Exit Station. Designed for access control applications, the TS-60 features an extra-large 2-1/2" red mushroom push button with "PUSH TO EXIT" engraving for clear, easy-to-follow egress instructions. Its adjustable pneumatic timer allows the door to remain unlocked from 2 to 60 seconds before automatically relocking, making it ideal for commercial buildings, offices, healthcare facilities, schools, and other controlled-access environments.
Constructed with a durable 430 stainless steel single gang wall plate, the TS-60 is built for reliable everyday operation. An optional TS-60302 model is available with a 302 stainless steel weather-resistant plate for applications requiring additional environmental protection.
Key Features
- Adjustable pneumatic timer with 2 to 60 second relay delay
- Extra-large 2-1/2" red mushroom push button for fast, easy activation
- Button engraved "PUSH TO EXIT" in white for clear exit identification
- Durable 430 stainless steel single gang wall plate
- Automatically relocks the door when the timer expires
- Ideal for access control and request-to-exit applications
- Optional TS-60302 weather-resistant model with 302 stainless steel faceplate
Specifications
Electrical
- Contact Configuration: 1 Normally Open (N/O), 1 Normally Closed (N/C)
- Contact Rating: 10A at 120 VDC
- Switch Depth Behind Plate: 2-1/4"
- Timer Accuracy: ±10% repeatability
Timer
- Pneumatic Timer Adjustment: 2–60 seconds
Operating Temperature
- +15°F to 120°F (-9°C to 49°C)
Construction
- Wall Plate: 430 Stainless Steel
- Optional Weather-Resistant Plate: 302 Stainless Steel (TS-60302)
- Button Size: 2-1/2" Red Mushroom
- Mounting: Single Gang
Ideal Applications
- Commercial Buildings
- Office Access Control Systems
- Healthcare Facilities
- Educational Institutions
- Retail Stores
- Industrial Facilities
- Controlled Entry & Exit Doors
