Alarm Controls TS-6 & TS-8 Request to Exit Stations with LED Indicators

SKU: TS-6
$ 85.15

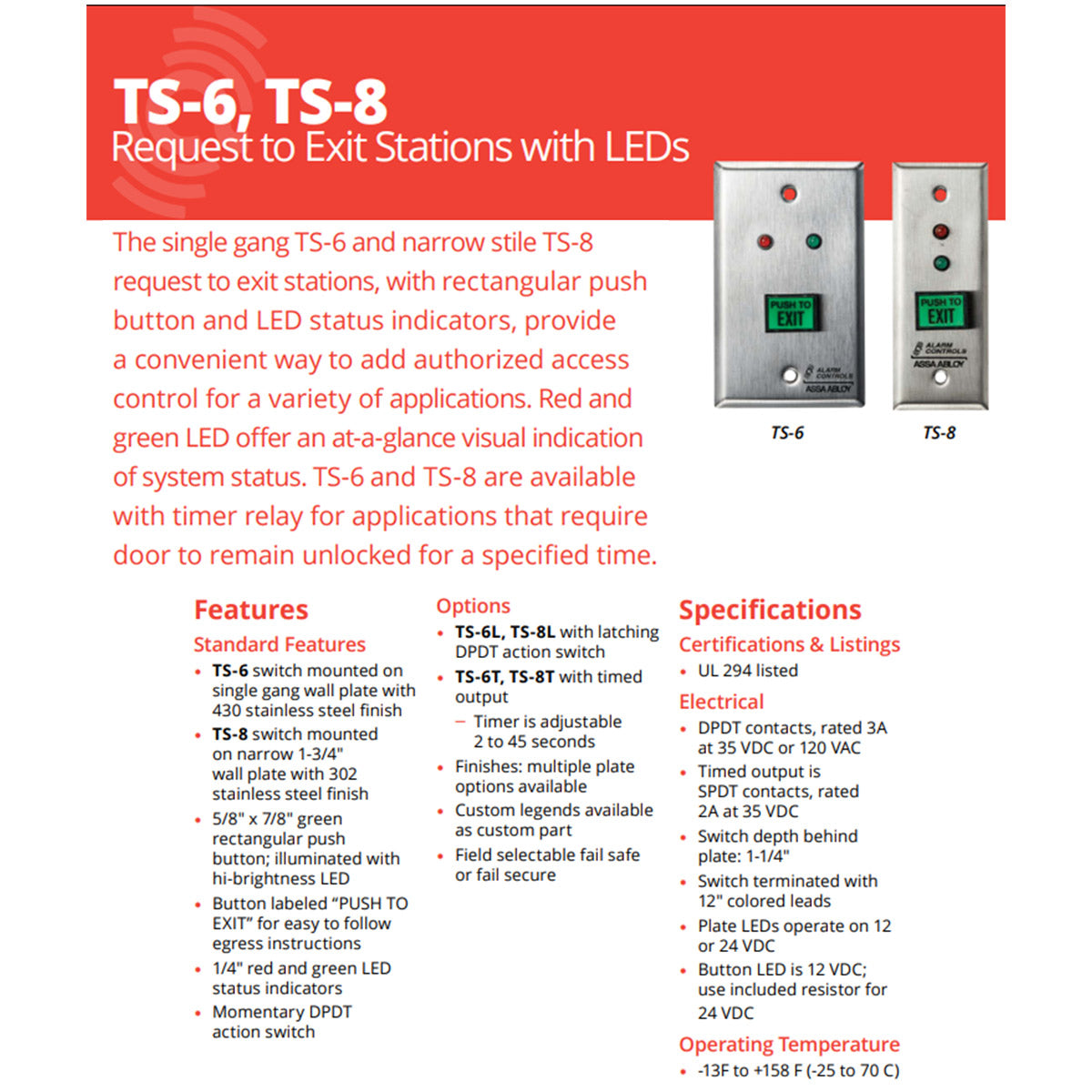

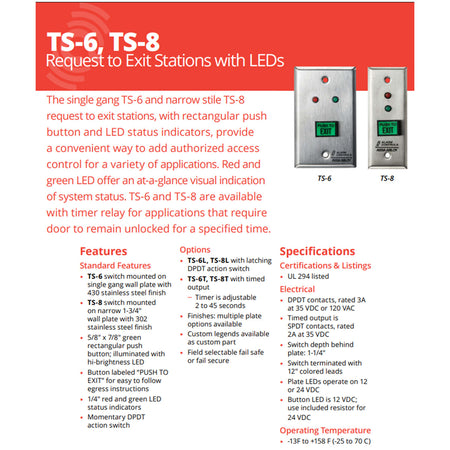

TS-6 & TS-8 Request to Exit Stations with LED Status Indicators

Improve access control and simplify door operation with the TS-6 and TS-8 Request to Exit Stations. Designed for commercial access control systems, these illuminated exit stations feature a durable stainless steel faceplate, an illuminated green push button, and dual LED status indicators for instant visual confirmation of door and lock status.

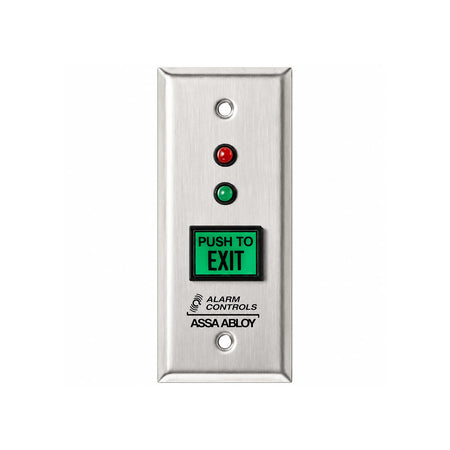

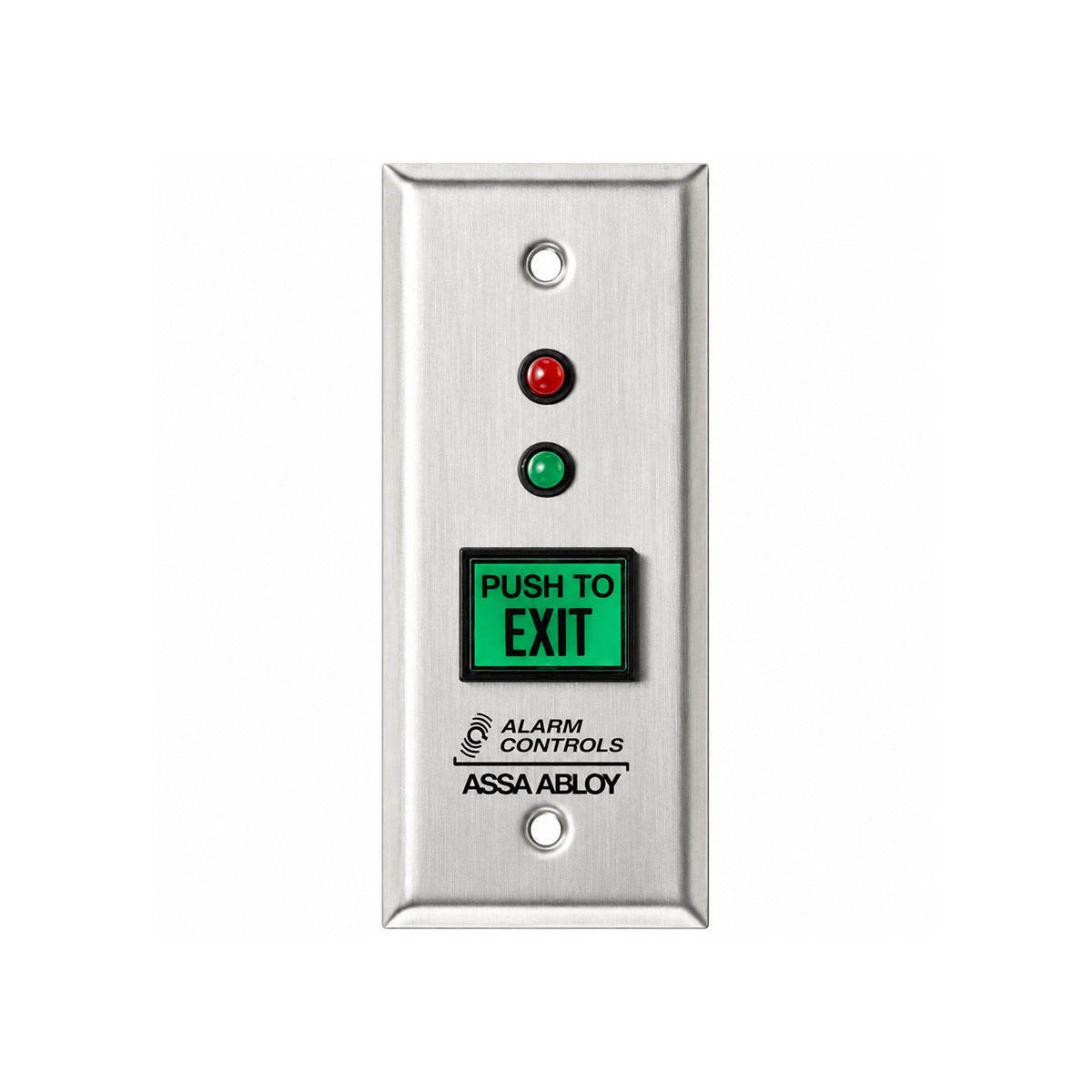

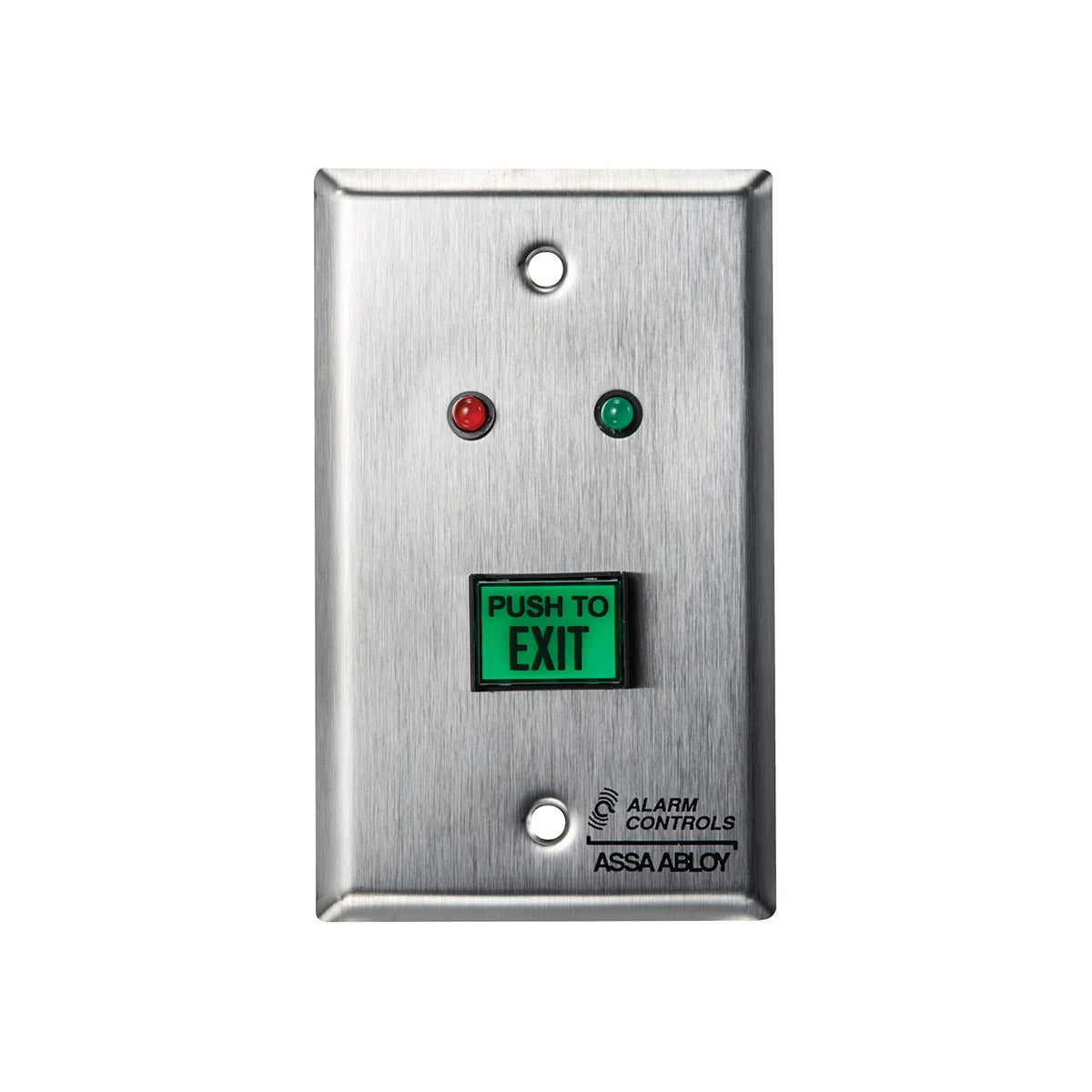

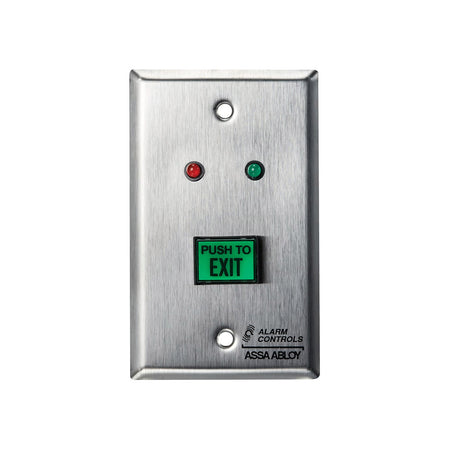

The TS-6 is designed for standard single-gang installations, while the TS-8 features a narrow stile plate ideal for aluminum storefront doors and other narrow frame applications. Both models provide reliable request-to-exit functionality for offices, schools, healthcare facilities, retail stores, industrial buildings, and other controlled access environments.

For installations requiring additional functionality, the TS-6 and TS-8 are also available with latching or adjustable timed output configurations, allowing the door to remain unlocked for a programmable period between 2 and 45 seconds.

Features

  • Available in TS-6 (single gang) and TS-8 (narrow stile) configurations
  • Illuminated 5/8" × 7/8" green rectangular PUSH TO EXIT button
  • High-brightness button LED for excellent visibility
  • Dual red and green LED status indicators for at-a-glance system monitoring
  • Durable stainless steel faceplates
    • TS-6: 430 stainless steel single-gang plate
    • TS-8: 302 stainless steel 1-3/4" narrow stile plate
  • Momentary DPDT action switch
  • Ideal for access control, electric locks, magnetic locks, and electric strikes
  • UL 294 Listed
  • Compatible with 12 or 24 VDC LED operation
  • Wide operating temperature range for dependable performance

Available Options

  • TS-6L / TS-8L – Latching DPDT action switch
  • TS-6T / TS-8T – Adjustable electronic timer (2–45 seconds)
  • Field-selectable Fail Safe or Fail Secure operation (timed models)
  • Multiple architectural plate finishes
  • Custom engraved legends available

Specifications

Certifications

  • UL 294 Listed

Electrical

  • DPDT contacts rated 3A @ 35 VDC or 120 VAC
  • Timed models: SPDT contacts rated 2A @ 35 VDC
  • Plate LED operation: 12 or 24 VDC
  • Button LED: 12 VDC (24 VDC operation using included resistor)
  • 12" color-coded wire leads
  • Switch depth behind plate: 1-1/4"

Operating Temperature

  • -13°F to 158°F (-25°C to 70°C)

Ideal Applications

  • Commercial office buildings
  • Retail storefronts
  • Schools and universities
  • Healthcare facilities
  • Government buildings
  • Controlled access entry systems
  • Aluminum storefront doors (TS-8)
  • Standard framed doors (TS-6)

Why Choose the TS-6 & TS-8?

The TS-6 and TS-8 combine durable construction, illuminated operation, and clear LED status indication into a dependable request-to-exit solution. With optional latching and timed models, these stations provide the flexibility needed for virtually any commercial access control installation while maintaining reliable day-to-day performance.
