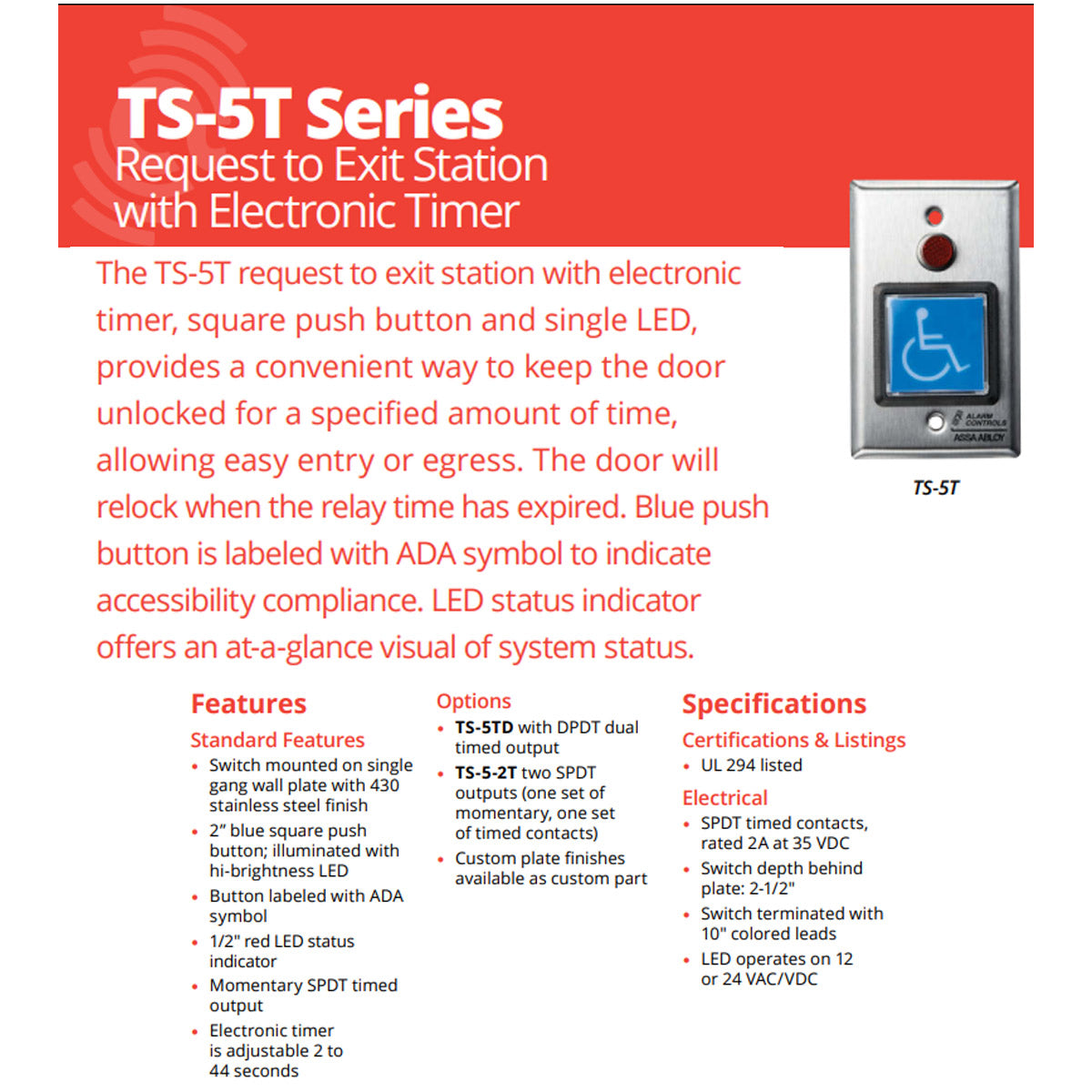

Alarm Controls TS-5T Series Request to Exit Station with Electronic Timer
The Alarm Controls TS-5T Series Request to Exit Station is a timer-controlled exit solution designed for access control systems that require a door to remain unlocked for a programmable period after activation. Featuring an illuminated 2" blue ADA-compliant push button, red LED status indicator, and an adjustable electronic timer, the TS-5T provides secure, convenient, and code-conscious entry and egress for commercial applications.
Once the push button is pressed, the built-in electronic timer activates the relay, unlocking the door for a user-selectable period of 2 to 44 seconds. When the timer expires, the relay automatically resets and the door securely relocks. This makes the TS-5T ideal for installations using electromagnetic locks, electric strikes, automatic doors, and other controlled access systems.
Constructed with a durable 430 stainless steel single-gang wall plate, the TS-5T is built for long-lasting performance while offering excellent visibility through its illuminated ADA-marked push button and bright red LED system status indicator.
Key Features
- Built-in adjustable electronic timer (2–44 seconds)
- Illuminated 2" blue square push button
- Button labeled with ADA accessibility symbol
- Bright 1/2" red LED status indicator
- Momentary SPDT timed output
- Durable 430 stainless steel single-gang wall plate
- LED operates on 12 or 24 VAC/VDC
- Color-coded 10" wire leads for simplified installation
- UL 294 Listed for access control applications
Available Options
- TS-5TD – DPDT dual timed output
- TS-5-2T – Dual SPDT outputs with one momentary output and one timed output
- Custom wall plate finishes available as special order
Specifications
| Specification | Details |
|---|---|
| Output Type | SPDT Timed Output |
| Timer Range | Adjustable 2–44 Seconds |
| Contact Rating | 2A @ 35 VDC |
| Push Button | 2" Blue Square, Illuminated |
| Button Label | ADA Accessibility Symbol |
| Status Indicator | 1/2" Red LED |
| Plate Material | 430 Stainless Steel |
| Plate Style | Single-Gang |
| Wiring | 10" Color-Coded Leads |
| Switch Depth | 2-1/2" |
| LED Voltage | 12 or 24 VAC/VDC |
| Certification | UL 294 Listed |
Ideal Applications
The TS-5T Series is well suited for:
- Access-controlled commercial doors
- Electromagnetic lock systems
- Electric strike installations
- Automatic door operators
- Healthcare facilities
- Schools and universities
- Government buildings
- Office complexes
- Retail and public buildings
Its adjustable unlock time provides convenient passage while ensuring the door automatically returns to a secure locked state after the programmed interval.
Why Choose the Alarm Controls TS-5T Series?
The Alarm Controls TS-5T combines ADA accessibility, illuminated operation, visual status indication, and an adjustable electronic timer into one professional-grade exit station. Its programmable timed relay eliminates the need for external timing devices in many installations, simplifying system design while delivering reliable, UL 294-listed performance for modern access control systems.
