Alarm Controls TS-50 Request to Exit Station
The Alarm Controls TS-50 Request to Exit Station is designed to provide reliable and highly visible egress control for commercial access control systems. Featuring an extra-large 2-1/2" mushroom push button, the TS-50 offers an oversized activation surface for fast and easy operation, making it ideal for high-traffic facilities and ADA-conscious applications.
Mounted on a durable 402 stainless steel double-gang wall plate, the TS-50 is clearly labeled "PUSH TO EXIT" for intuitive operation. Its momentary action switch delivers dependable performance for releasing magnetic locks, electric strikes, and other electronic door locking devices. Available with red, black, or green mushroom buttons, along with multiple faceplate finishes and custom screening options, the TS-50 can be tailored to meet a wide range of installation requirements.
Features
- Extra-large 2-1/2" mushroom push button for easy activation
- Durable 402 stainless steel double-gang wall plate
- Clearly labeled "PUSH TO EXIT" for simple egress instructions
- Momentary action switch
- Compatible with magnetic locks, electric strikes, and access control systems
- Multiple button color options available
- Multiple plate finish options
- Custom screening available for specialized applications
- Heavy-duty commercial construction
Specifications
| Specification | Details |
|---|---|
| Product Type | Request to Exit Station |
| Button Size | 2-1/2" Mushroom Push Button |

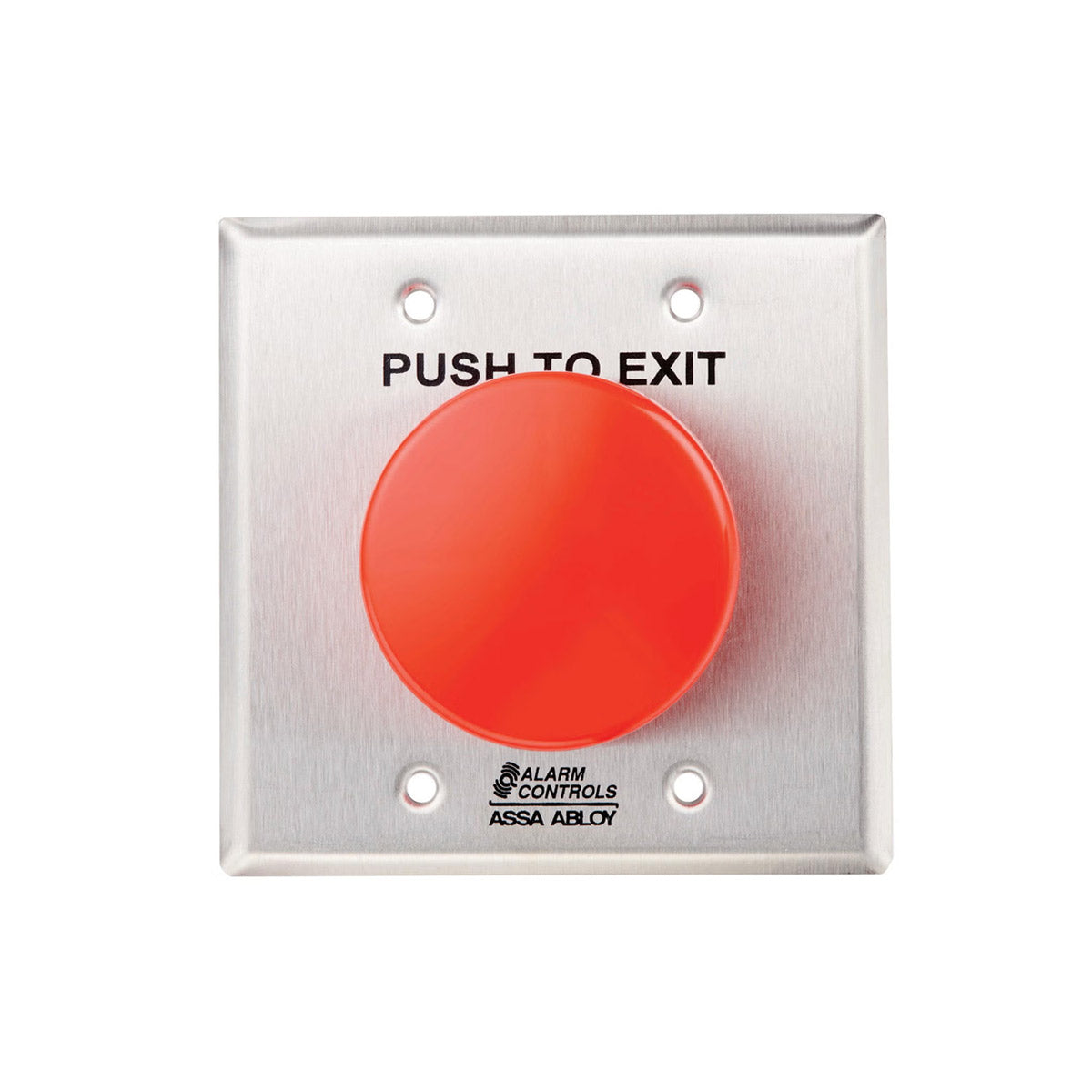

| Standard Button Color | Red |
| Available Button Colors | Red, Black (TS-50B), Green (TS-50G) |
| Faceplate | 402 Stainless Steel |
| Plate Size | Double Gang |
| Plate Marking | PUSH TO EXIT |
| Switch Action | Momentary |
| Contacts | One Normally Open (N/O) and One Normally Closed (N/C) |
| Contact Rating | 10A @ 35 VDC or 120 VAC |
| Terminal Type | Screw Terminals |
| Switch Depth Behind Plate | 2" |
| Operating Temperature | -13°F to +158°F (-25°C to +70°C) |
Available Options

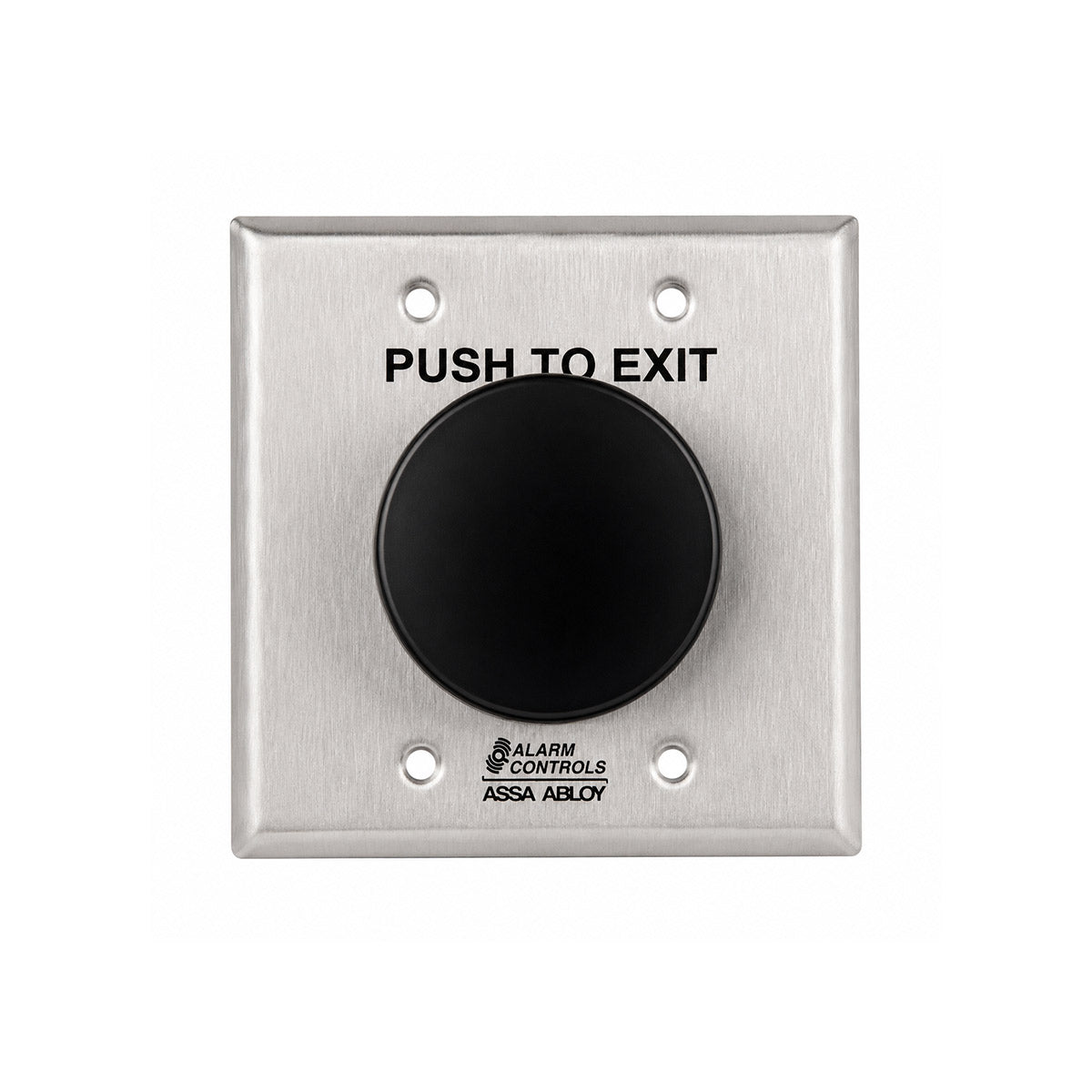

- TS-50B – Black 2-1/2" mushroom push button

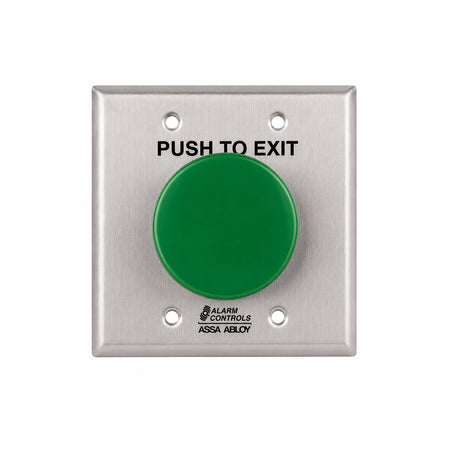

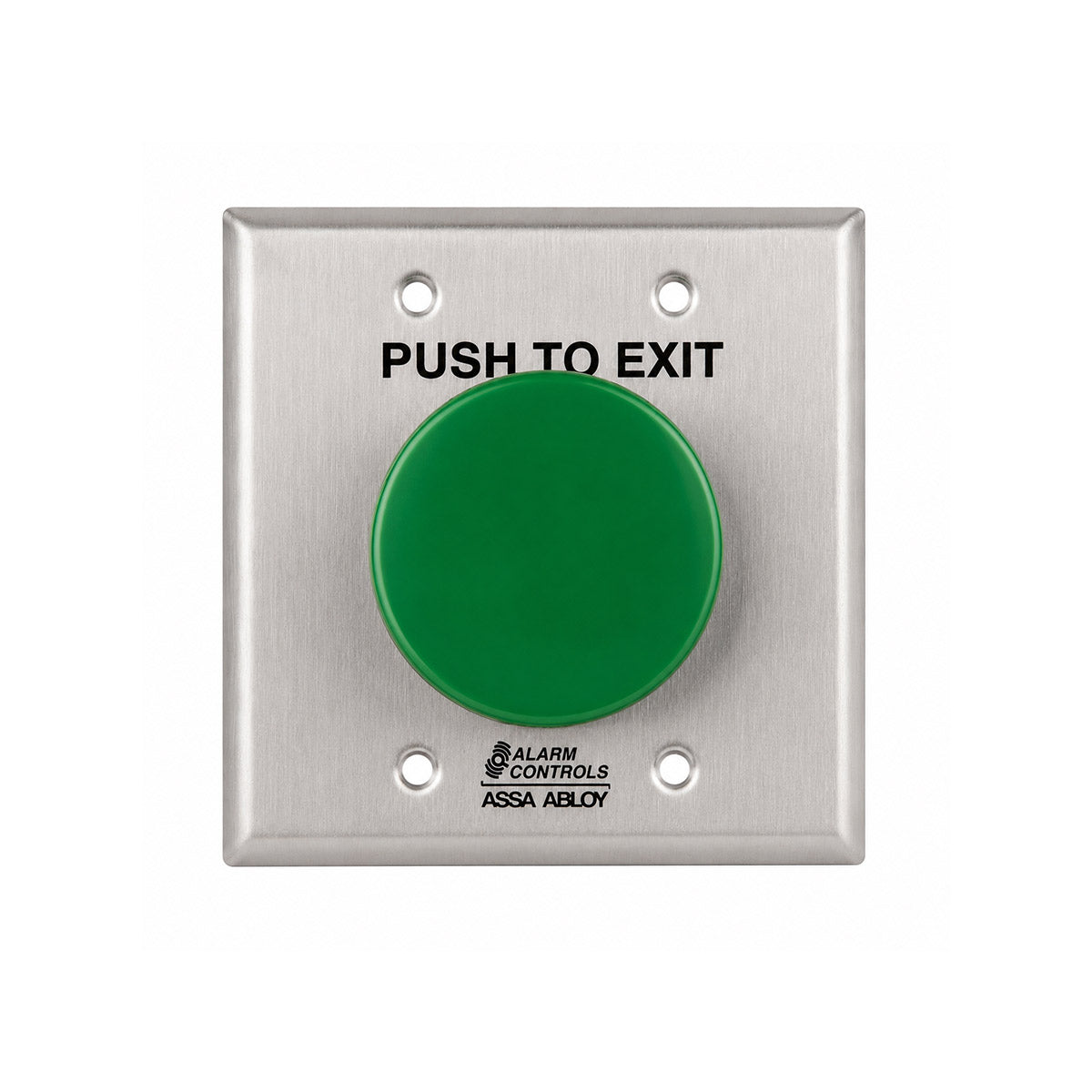

- TS-50G – Green 2-1/2" mushroom push button
- Multiple stainless steel plate finish options
- Custom engraved or screened faceplates available
Ideal Applications
- Commercial office buildings
- Schools and universities
- Healthcare facilities
- Industrial and manufacturing sites
- Government buildings
- Retail establishments
- Access-controlled entry and exit doors
- Magnetic lock and electric strike systems
