Alarm Controls TS-5 Request to Exit Station

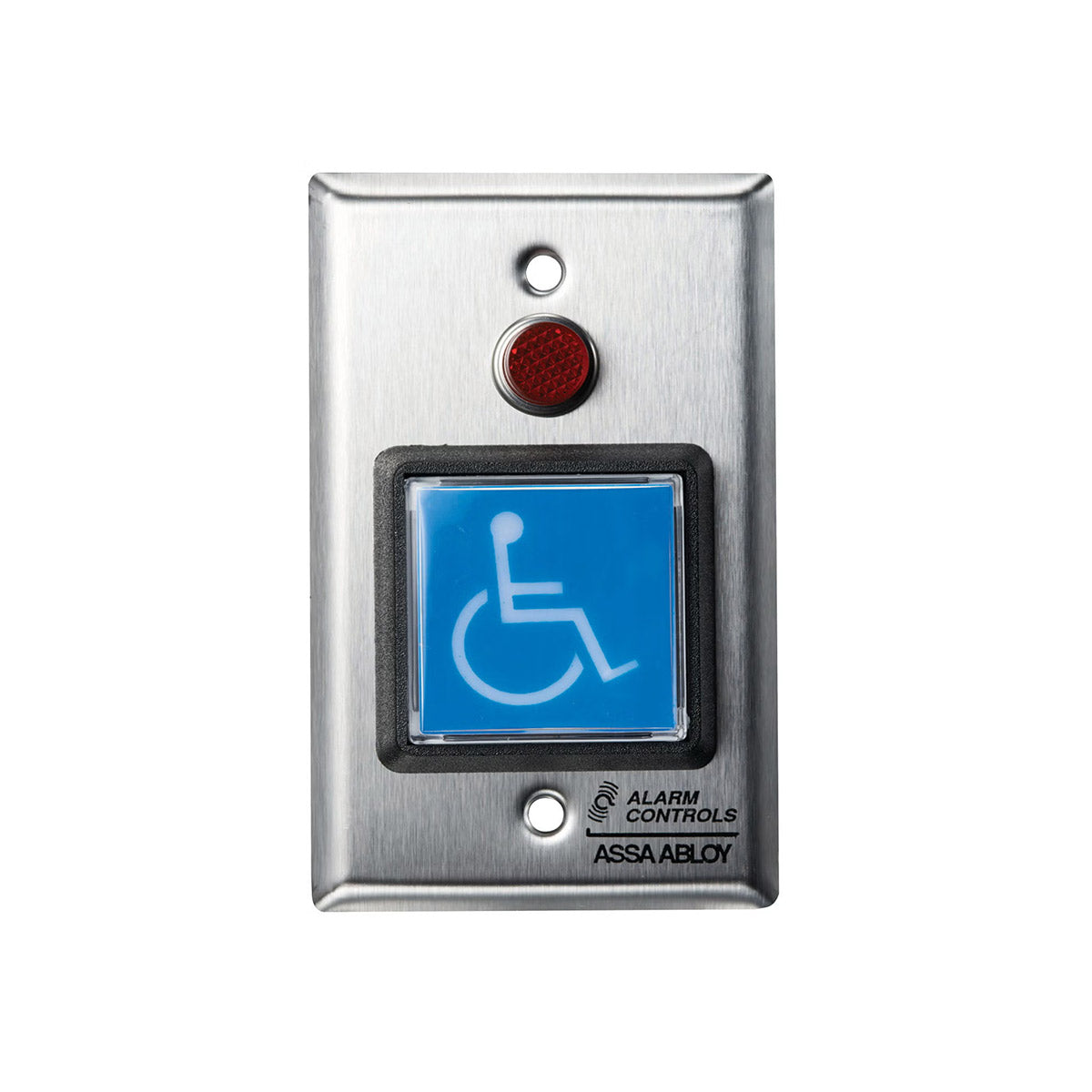

The Alarm Controls TS-5 Request to Exit Station is a durable, ADA-compliant access control switch designed for reliable egress in commercial, institutional, and industrial applications. Featuring a 2" illuminated blue push button with the ADA accessibility symbol and a bright red LED status indicator, the TS-5 provides clear visual guidance while allowing authorized exit through access-controlled doors.
Constructed with a rugged 430 stainless steel single-gang wall plate, the TS-5 is ideal for integration with electromagnetic locks, electric strikes, delayed egress systems, and other access control installations. The illuminated push button and status LED improve visibility in low-light environments while offering instant system status at a glance.
Key Features
- ADA-compliant 2" illuminated blue square push button
- Button marked with the ADA accessibility symbol
- Bright 1/2" red LED status indicator
- Durable 430 stainless steel single-gang wall plate
- Momentary SPDT action switch
- Illuminated push button operates on 12 or 24 VAC/VDC
- Color-coded 10" wire leads for easy installation
- Compact 1-1/2" switch depth fits standard electrical boxes
- UL 294 Listed for access control applications
Available Options
- TS-5-2 – Momentary DPDT output
- Multiple wall plate finish options available

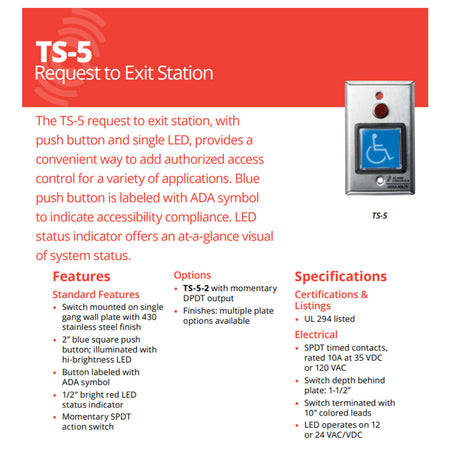

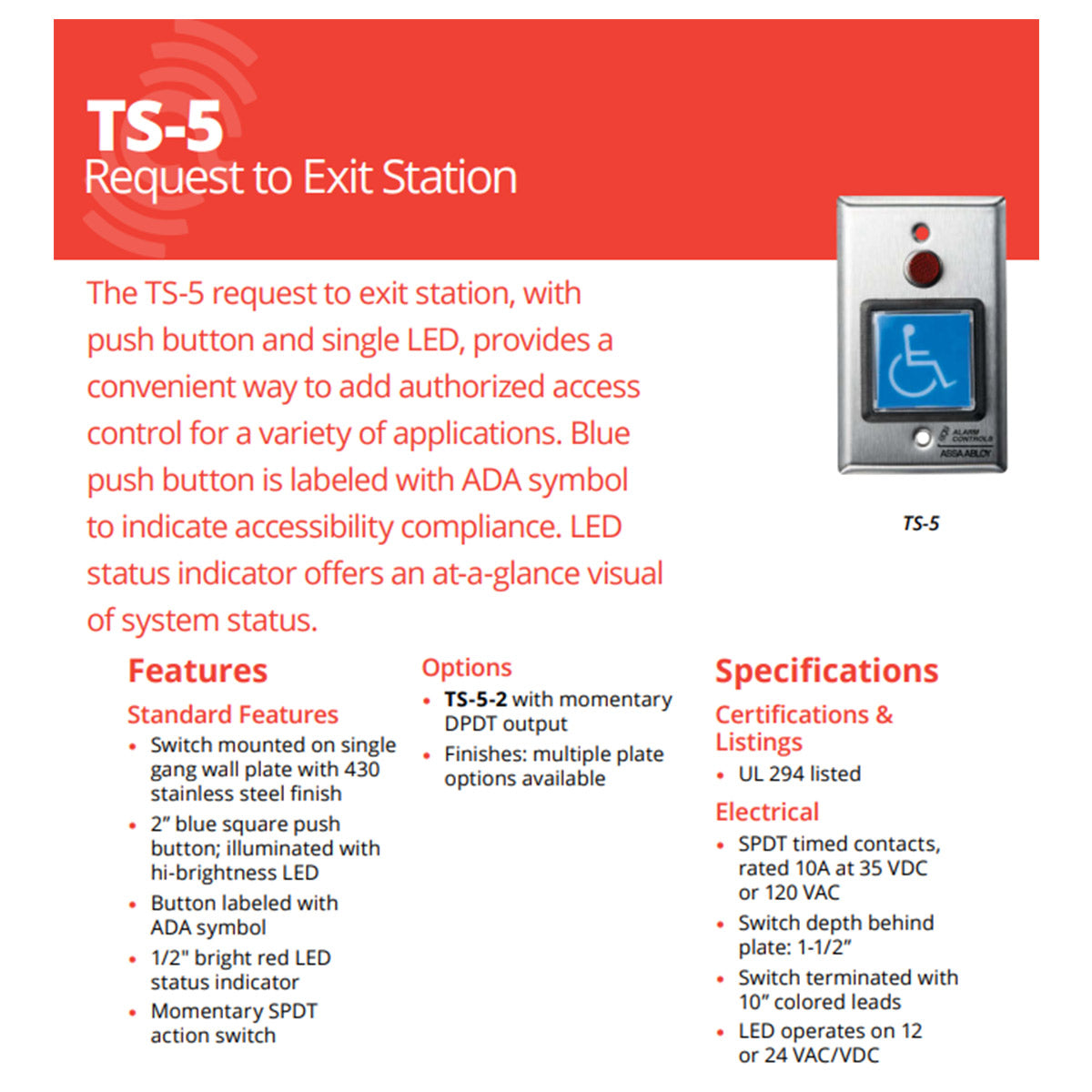

Specifications
| Specification | Details |
|---|---|
| Switch Type | Momentary SPDT |
| Contact Rating | 10A @ 35 VDC or 120 VAC |
| Push Button | 2" Blue Square, Illuminated |
| Status Indicator | 1/2" Bright Red LED |
| Plate Material | 430 Stainless Steel |
| Plate Style | Single-Gang |
| Wiring | 10" Color-Coded Leads |
| Switch Depth | 1-1/2" |
| LED Voltage | 12 or 24 VAC/VDC |
| Certification | UL 294 Listed |
Ideal Applications
The Alarm Controls TS-5 is designed for use with:
- Commercial office buildings
- Healthcare facilities
- Educational campuses
- Government buildings
- Retail stores
- Access-controlled entry and exit doors
- Electromagnetic lock systems
- Electric strike installations
Its ADA-compliant illuminated button and LED status indicator make it an excellent choice wherever reliable, code-conscious request-to-exit operation is required.
Why Choose the Alarm Controls TS-5?
The TS-5 combines ADA accessibility, illuminated operation, and visual status indication in a rugged stainless steel design. With dependable UL 294 performance, easy installation, and compatibility with a wide range of access control systems, it provides a professional solution for secure and convenient door egress.
