Alarm Controls TS-4 Request to Exit Station

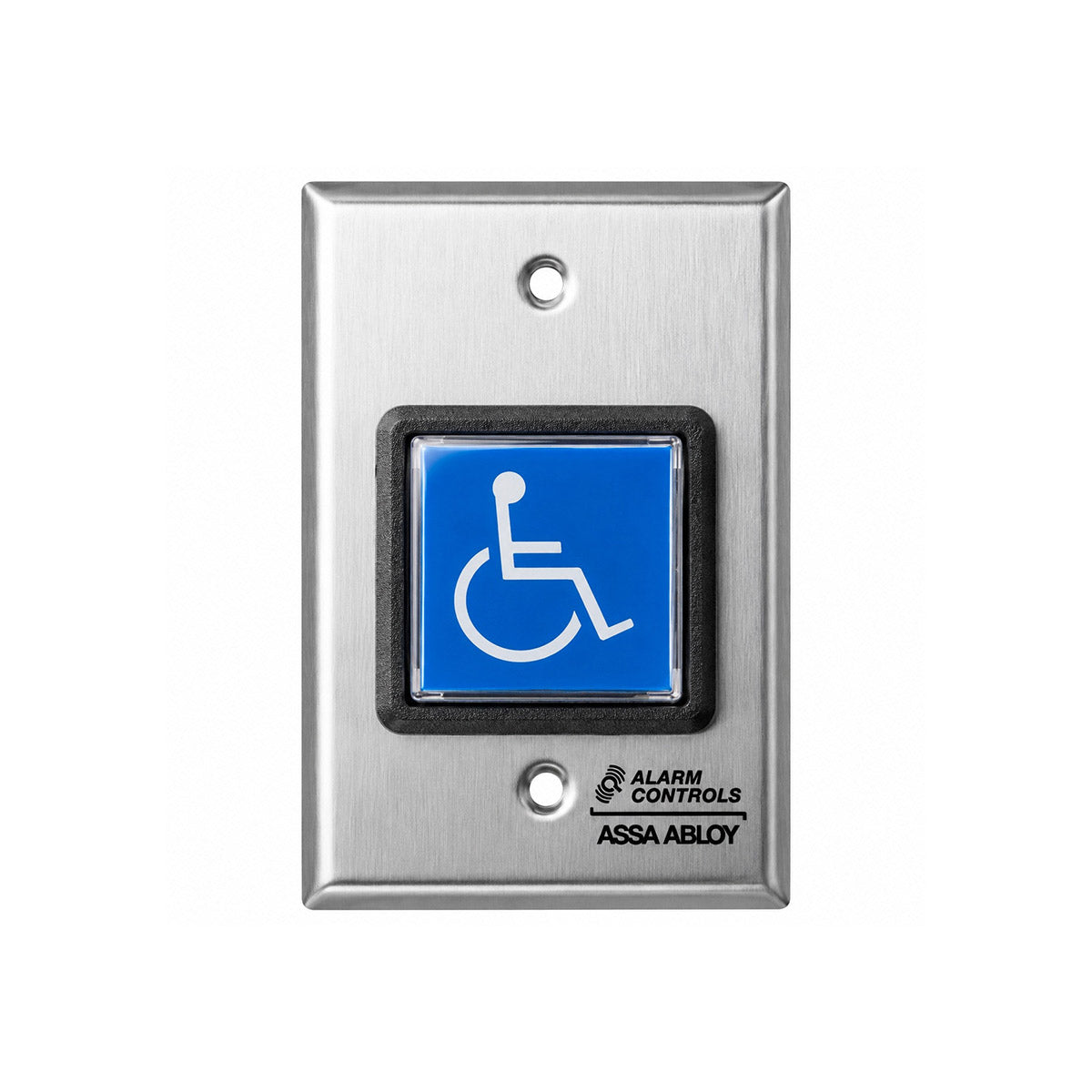

The Alarm Controls TS-4 Request to Exit Station is an ADA-friendly exit control solution designed for access control systems in commercial, institutional, and public facilities. Featuring a large 2-inch illuminated blue square push button marked with the ADA accessibility symbol, the TS-4 provides a clear and intuitive method for authorized door release while enhancing accessibility and ease of use.
Constructed with a durable 430 stainless steel single-gang wall plate, the TS-4 combines long-lasting performance with a clean, professional appearance. Its momentary SPDT switch and bright LED illumination make it ideal for use with electric locks, magnetic locks, and other access control applications.
Key Features
- Large 2" illuminated blue square push button
- ADA accessibility symbol for clear identification
- High-brightness LED illumination for improved visibility
- Momentary SPDT action switch
- Durable 430 stainless steel single-gang wall plate
- Compatible with 12 or 24 VAC/VDC LED operation
- UL 294 Listed for access control applications
- Available in multiple architectural plate finishes
Ideal Applications
The TS-4 is an excellent choice for:
- ADA-compliant commercial entrances
- Office buildings
- Healthcare facilities
- Schools and universities
- Government buildings
- Retail stores
- Hotels and hospitality
- Access-controlled interior and exterior doors
Available Options
Select the configuration that best fits your installation:
- TS-4-2 – Momentary DPDT output
- Multiple decorative wall plate finishes available

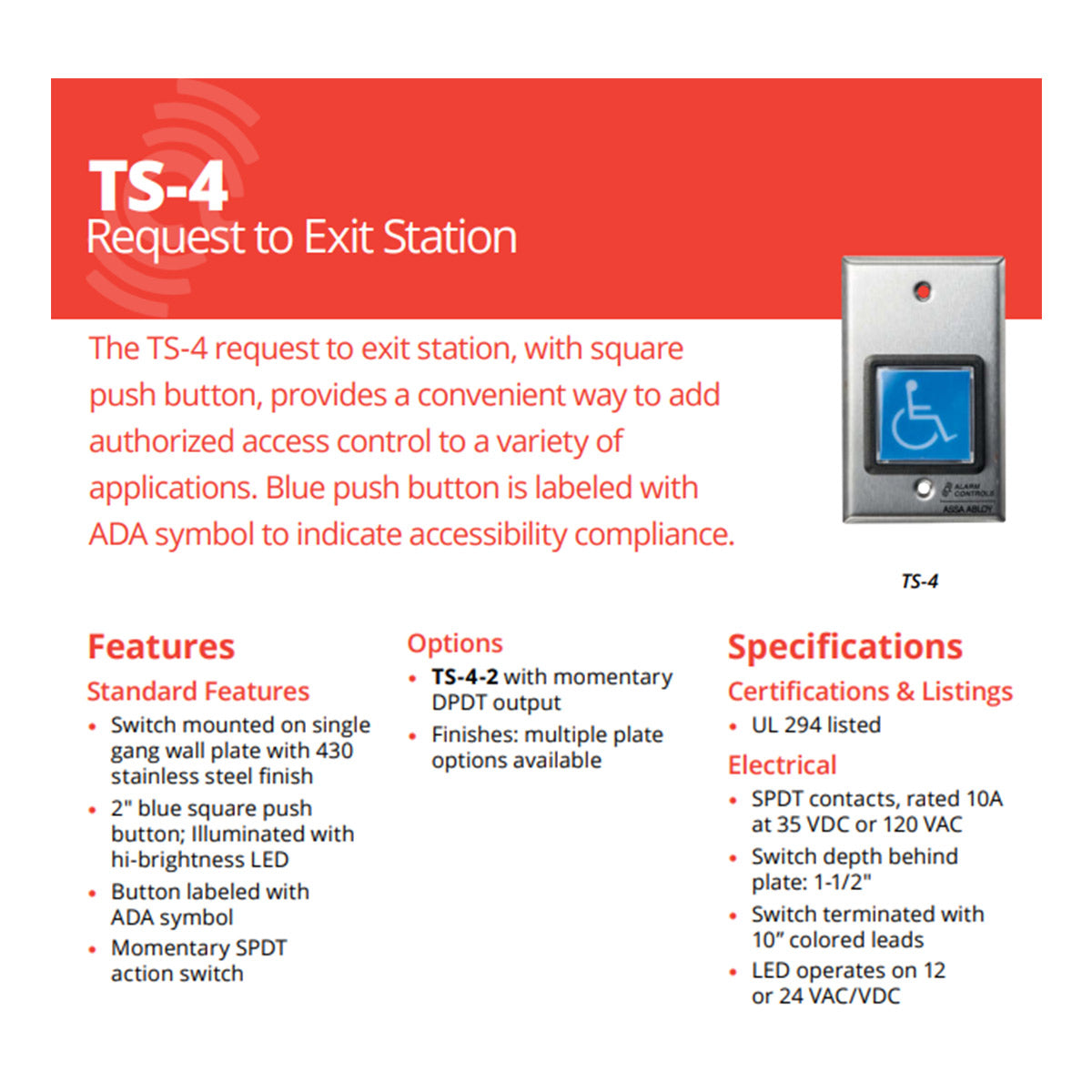

Technical Specifications
Certifications
- UL 294 Listed
Electrical
- SPDT momentary contacts
- Contact Rating: 10A @ 35 VDC or 120 VAC
- LED Operating Voltage: 12 or 24 VAC/VDC
- 10" color-coded wire leads
- Switch depth behind plate: 1-1/2"
Construction
- Single-gang wall plate
- 430 stainless steel finish
- Illuminated blue square push button with ADA symbol
Why Choose the Alarm Controls TS-4?
The TS-4 offers a dependable and highly visible request-to-exit solution for facilities that prioritize accessibility and ease of operation. The illuminated blue ADA-marked push button provides immediate recognition for users, while the rugged stainless steel construction and UL 294 certification ensure reliable performance in demanding access control environments. With flexible output options and compatibility with most electric locking systems, the TS-4 is a trusted choice for professional security installations.
