Alarm Controls TS-3T Timed Request to Exit Station | Push to Exit Button

SKU: TS-3T
$ 150.80

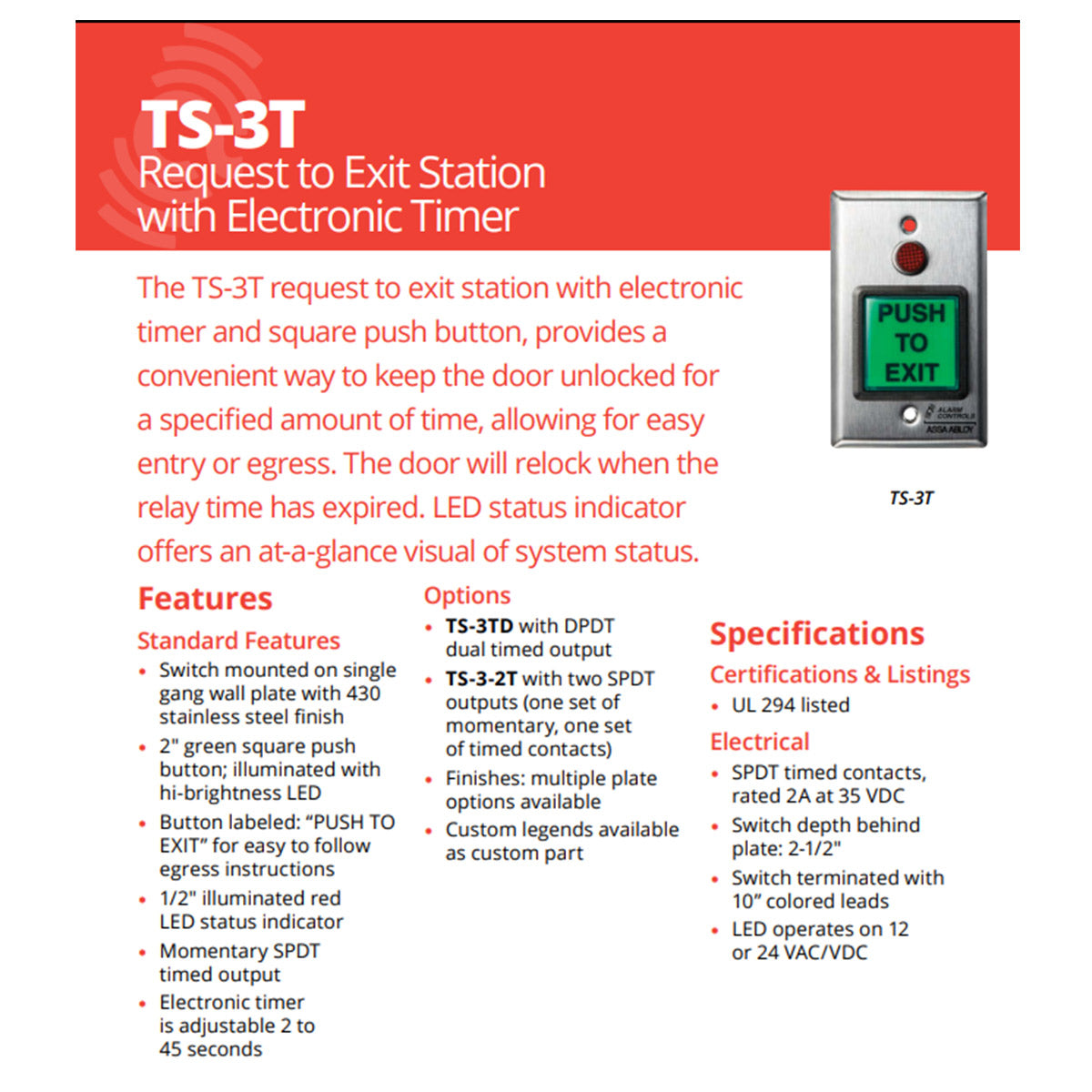

Alarm Controls TS-3T Request to Exit Station with Electronic Timer

The Alarm Controls TS-3T Request to Exit Station with Electronic Timer is a reliable and user-friendly exit control solution designed for access control systems requiring a timed door release. Featuring a large illuminated green 2-inch square "PUSH TO EXIT" button, built-in adjustable electronic timer, and a bright red LED status indicator, the TS-3T allows doors to remain unlocked for a programmable period before automatically relocking.

Ideal for commercial buildings, offices, healthcare facilities, schools, and secured entrances, the TS-3T simplifies controlled egress while providing clear visual feedback for users and system operators.

Key Features

  • Large 2" illuminated green square push button for high visibility
  • Clearly marked "PUSH TO EXIT" legend for intuitive operation
  • Built-in adjustable electronic timer (2–45 seconds)
  • Door automatically relocks after the programmed timer expires
  • Bright 1/2" red LED status indicator for instant system status
  • Momentary SPDT timed relay output
  • Durable 430 stainless steel single-gang wall plate
  • LED compatible with 12 or 24 VAC/VDC
  • UL 294 Listed for access control applications
  • Available with multiple plate finishes and custom engraved legends

Ideal Applications

The TS-3T is perfect for:

  • Commercial office buildings
  • Access-controlled entry and exit doors
  • Healthcare facilities
  • Educational campuses
  • Government buildings
  • Retail stores
  • Warehouses
  • Industrial facilities

Available Options

Choose the configuration that best fits your installation:

  • TS-3TD – DPDT dual timed output
  • TS-3-2T – Dual SPDT outputs (one momentary and one timed)
  • Multiple decorative plate finishes
  • Custom legends available for specialized applications

Technical Specifications

Certifications

  • UL 294 Listed

Electrical

  • SPDT timed contacts
  • Contact Rating: 2A @ 35 VDC
  • Adjustable timer: 2–45 seconds
  • LED Operating Voltage: 12 or 24 VAC/VDC
  • 10" color-coded wire leads
  • Switch depth behind plate: 2-1/2"

Construction

  • Single-gang wall plate
  • 430 stainless steel finish
  • Illuminated green square push button
  • Red LED status indicator

Why Choose the Alarm Controls TS-3T?

Unlike standard exit buttons, the TS-3T combines an illuminated exit station with an integrated electronic timer, eliminating the need for a separate timing module in many applications. The adjustable relay timing ensures doors remain unlocked only as long as needed, improving convenience while maintaining security. Its rugged stainless steel construction, UL listing, and flexible configuration options make it an excellent choice for professional access control installations.
