Alarm Controls TS-36 Request to Exit Station

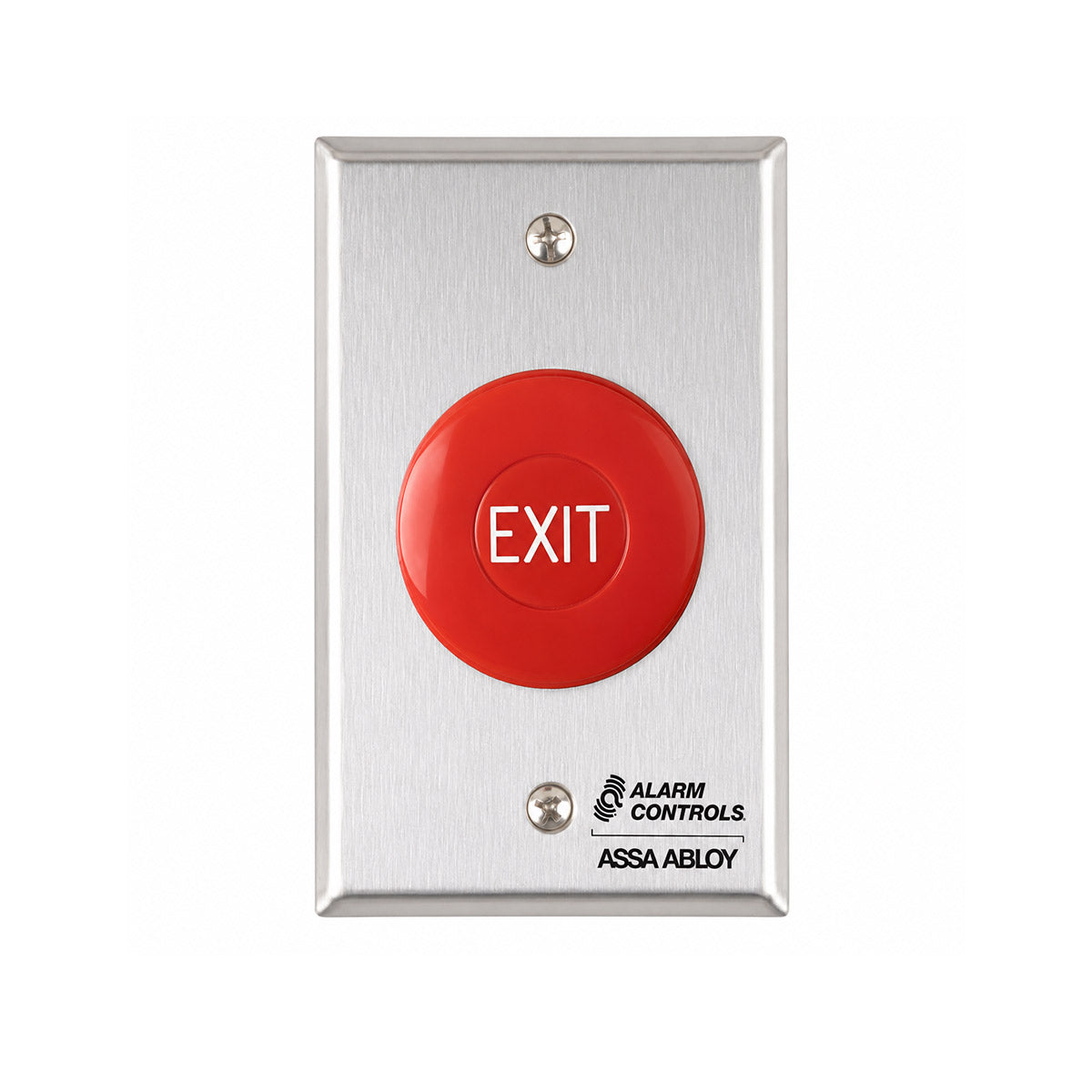

The Alarm Controls TS-36 Request to Exit Station is a durable and reliable access control solution designed for secure egress applications. Featuring a large 1-1/2" red mushroom push button engraved with "EXIT" in white lettering, the TS-36 provides clear, highly visible operation for authorized door release. Its momentary action switch remains active only while the button is depressed, making it ideal for electric locks, magnetic locks, electric strikes, and other access control systems requiring controlled egress.
Constructed with a 430 stainless steel single-gang wall plate, the TS-36 offers long-lasting performance in commercial, institutional, industrial, and office environments. An optional 302 stainless steel weather-resistant faceplate is available for applications requiring enhanced corrosion resistance.
Features
- Large 1-1/2" red mushroom push button
- Button engraved "EXIT" with white fill for clear identification
- Momentary action switch remains active while the button is pressed
- Mounted on a 430 stainless steel single-gang wall plate
- Ideal for access control, door release, and egress applications
- Heavy-duty commercial-grade construction
- Compatible with magnetic locks, electric strikes, and door controllers
- UL 294 listed components
Specifications
| Specification | Details |
|---|---|
| Product Type | Request to Exit Station |
| Button Type | 1-1/2" Red Mushroom Push Button |
| Button Marking | EXIT (White Filled Engraving) |
| Action | Momentary |
| Faceplate | 430 Stainless Steel |
| Plate Size | Single Gang |
| Contacts | One Normally Open (N/O) and One Normally Closed (N/C) |
| Contact Rating | 10A @ 35 VDC or 120 VAC |
| Certification | UL 294 Listed Components |
Available Option
- TS-36302 – Weather-resistant 302 stainless steel faceplate for enhanced durability in demanding environments.
Ideal Applications
- Commercial buildings
- Office facilities
- Schools and universities
- Healthcare facilities
- Industrial buildings
- Access-controlled entry and exit doors
- Electric strike and magnetic lock systems
