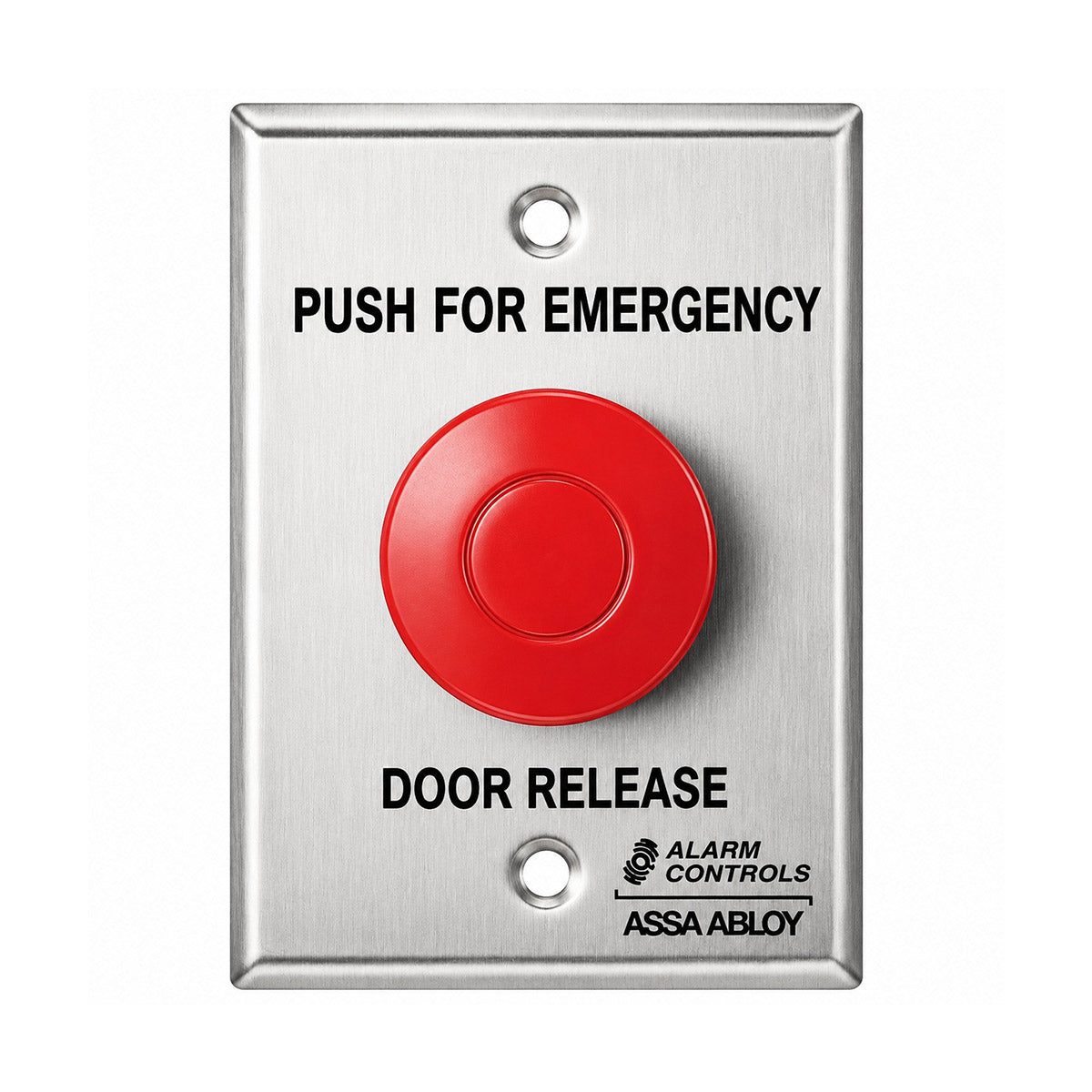

Alarm Controls TS-32 Latching Panic Station
The Alarm Controls TS-32 Latching Panic Station is a durable emergency door release device designed for access control, emergency egress, and security applications. Featuring an alternate-action latching push button, the TS-32 remains in its activated or deactivated state until manually pressed again, making it ideal for systems requiring a maintained emergency release signal.
Constructed with a rugged stainless steel faceplate and an IP65 weather-resistant rating, the TS-32 is suitable for both indoor and outdoor installations. The large 1-1/2" mushroom button is easy to locate and operate during emergencies, while the clearly marked "PUSH FOR EMERGENCY DOOR RELEASE" message ensures quick identification when every second counts.
Compatible with electric locks, magnetic locks, and access control systems, the TS-32 provides dependable performance in commercial buildings, healthcare facilities, schools, industrial sites, and other secured environments.
Key Features
- Alternate-action latching push button stays activated or deactivated until pressed again
- Large 1-1/2" mushroom button for fast emergency operation
- Single-gang stainless steel faceplate
- Weather-resistant construction rated to IP65
- Clearly labeled "PUSH FOR EMERGENCY DOOR RELEASE"
- One Normally Open (N/O) and one Normally Closed (N/C) latching contact
- Heavy-duty contacts rated for 10A at 35VDC or 120VAC
- Screw terminal wiring for quick installation
- Compatible with access control systems, maglocks, electric strikes, and emergency door release applications
- UL and CSA certified components
Available Options
- TS-32 – Red mushroom button

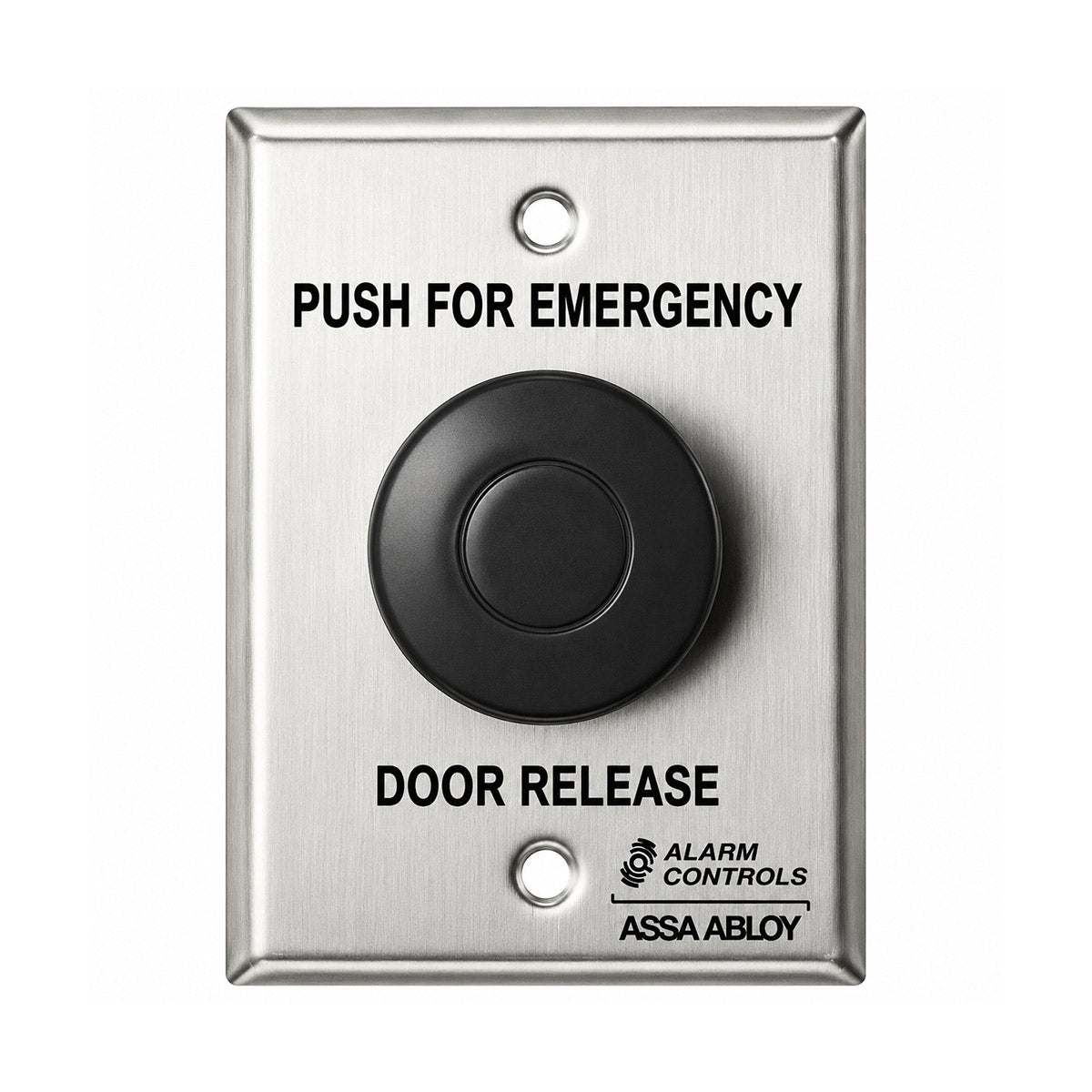

- TS-32B – Black mushroom button

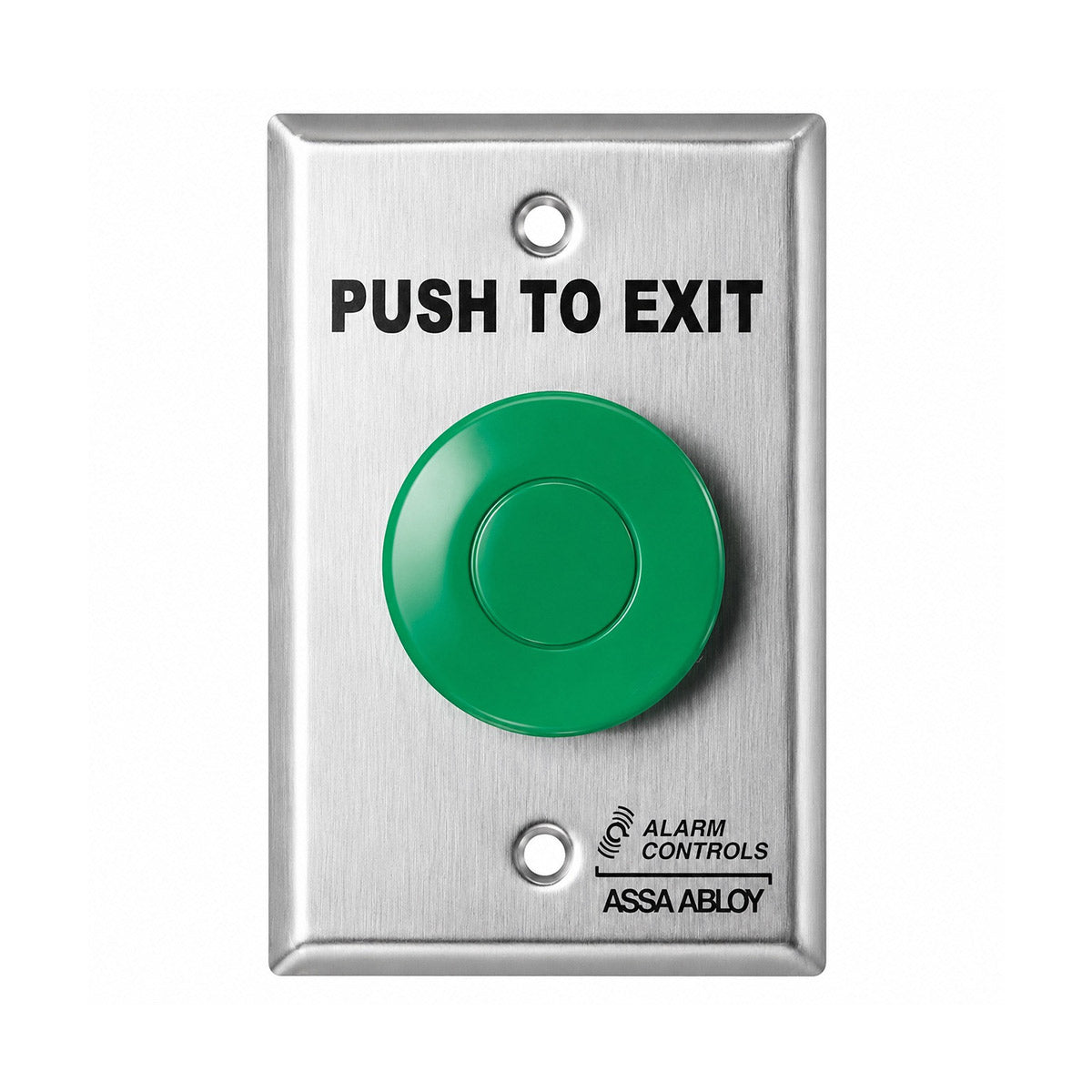

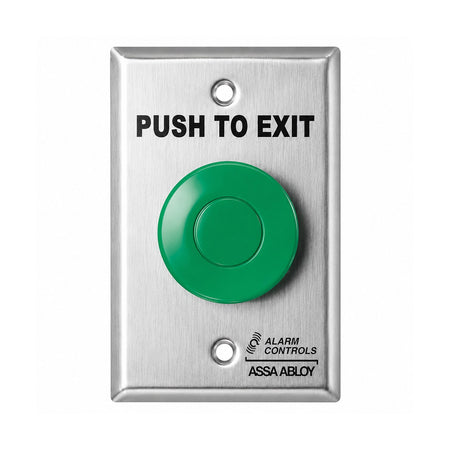

- TS-32G – Green mushroom button

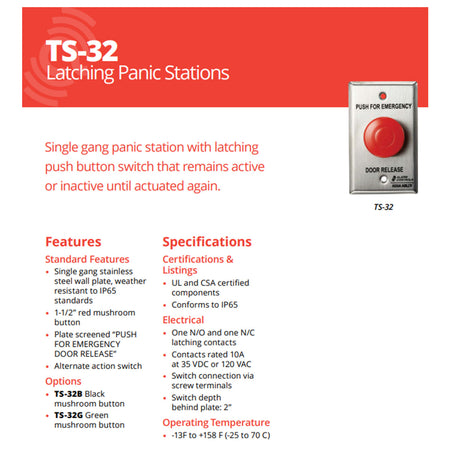

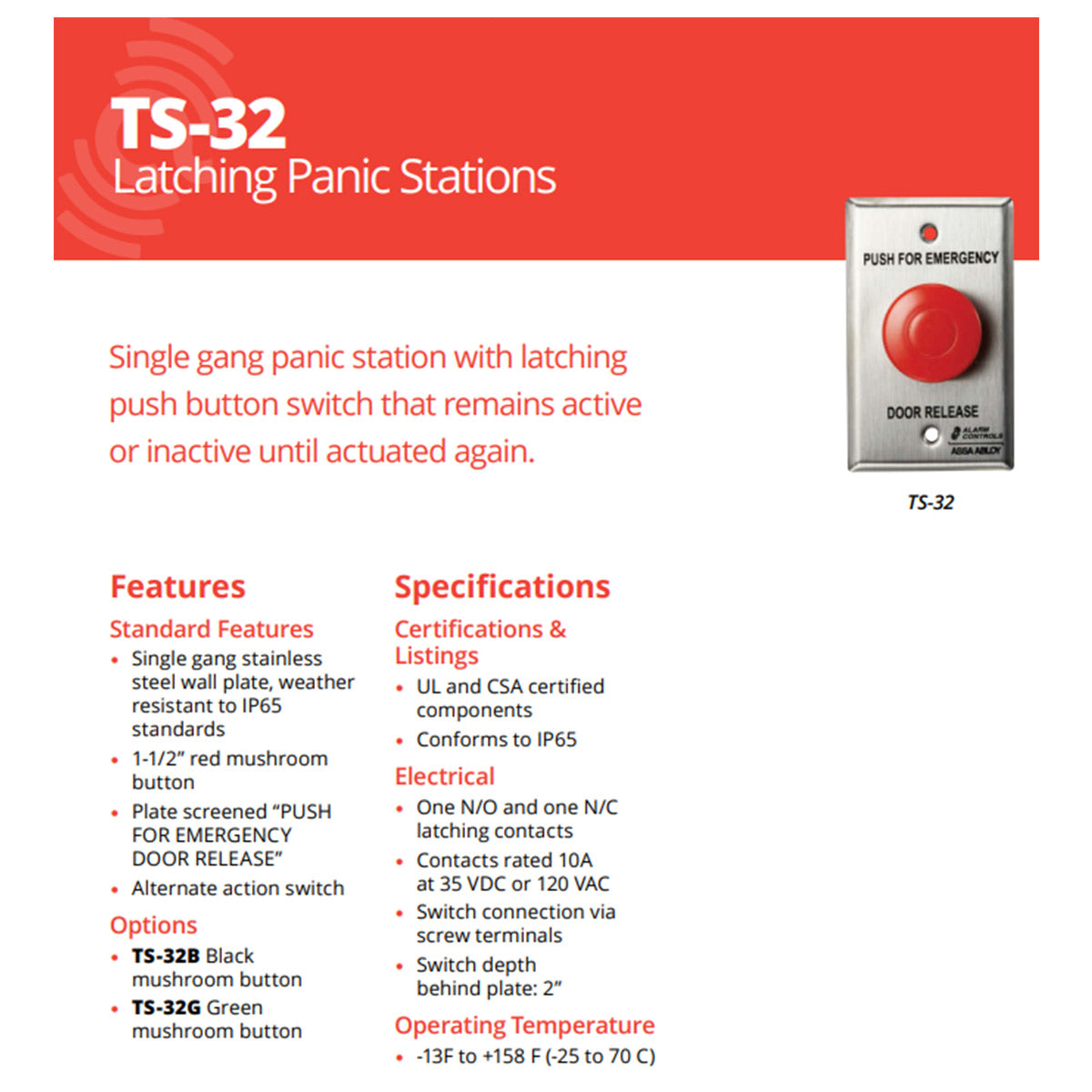

Technical Specifications
| Specification | Details |
|---|---|
| Plate Type | Single-gang stainless steel |
| Protection Rating | IP65 weather resistant |
| Button Size | 1-1/2" mushroom button |
| Switch Type | Alternate-action latching |
| Contact Configuration | 1 N/O and 1 N/C |
| Contact Rating | 10A @ 35VDC or 120VAC |
| Wiring | Screw terminals |
| Switch Depth Behind Plate | 2" |
| Operating Temperature | -13°F to 158°F (-25°C to 70°C) |
| Certifications | UL and CSA certified components |
Ideal Applications
- Emergency door release
- Access control systems
- Electromagnetic lock (Maglock) release
- Electric strike systems
- Commercial buildings
- Healthcare facilities
- Educational institutions
- Industrial and warehouse facilities
- Government and public buildings
