Alarm Controls TS-27 Request to Exit Station
The Alarm Controls TS-27 Request to Exit Station is a durable narrow stile exit button designed for commercial access control applications. Featuring a large 1-1/2" mushroom push button and a rugged 302 stainless steel narrow stile wall plate, the TS-27 provides a reliable and highly visible method for authorized egress on aluminum storefronts and other narrow frame door systems.
Clearly labeled "PUSH TO EXIT", the TS-27 is ideal for controlling electric strikes, electromagnetic locks (maglocks), automatic door operators, and other electronic locking devices. For applications requiring the door to remain unlocked for a preset period, the TS-27T timed model offers an adjustable relay from 2 to 45 seconds.
Key Features
- Large 1-1/2" mushroom push button for quick and easy activation
- Narrow stile 302 stainless steel wall plate
- Clearly marked "PUSH TO EXIT" legend
- Heavy-duty momentary action switch
- Ideal for aluminum storefront and narrow stile door applications
- Screw terminal wiring for fast, secure installation
- Compatible with electric locks, magnetic locks, and access control systems
Available Options

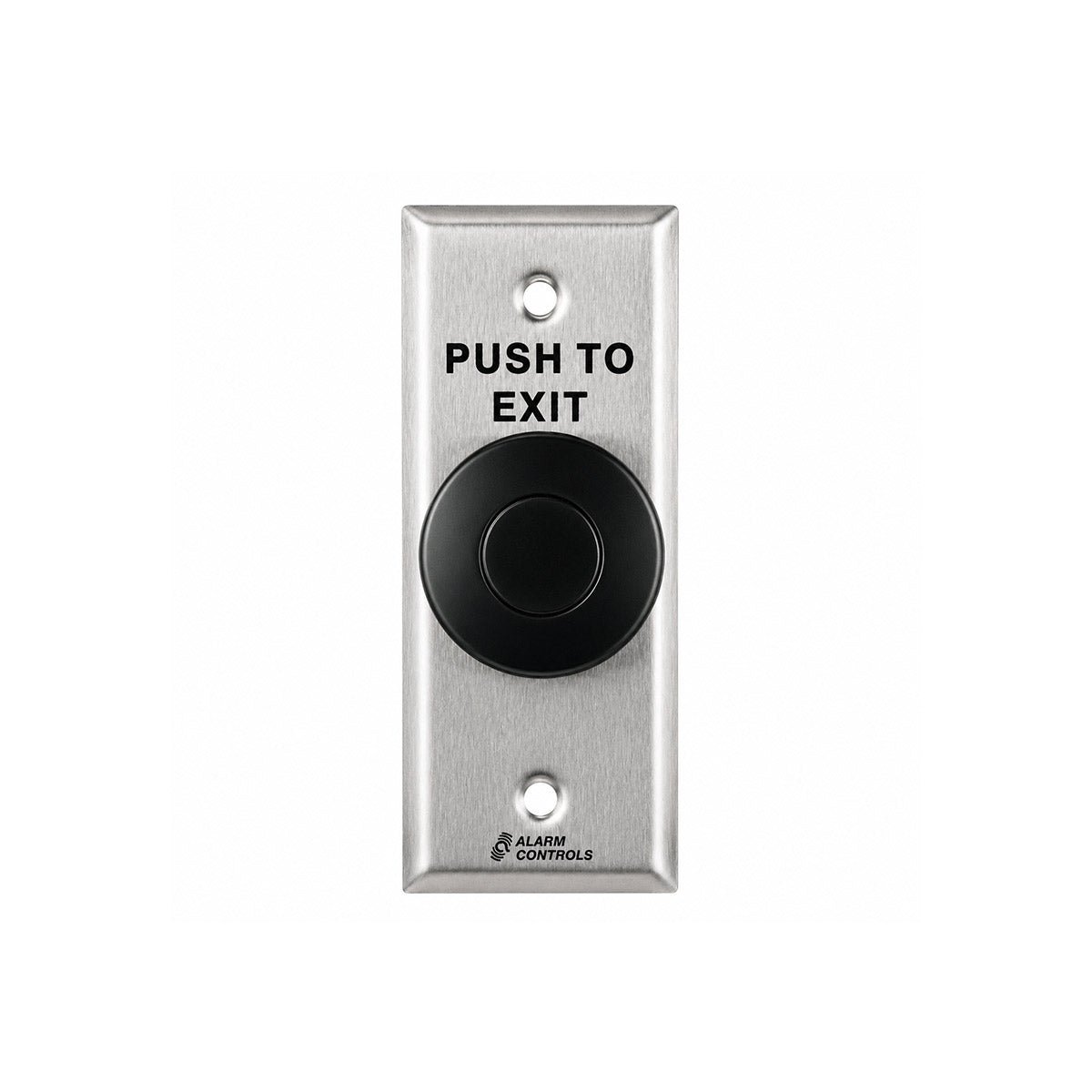

- TS-27B – Black mushroom push button

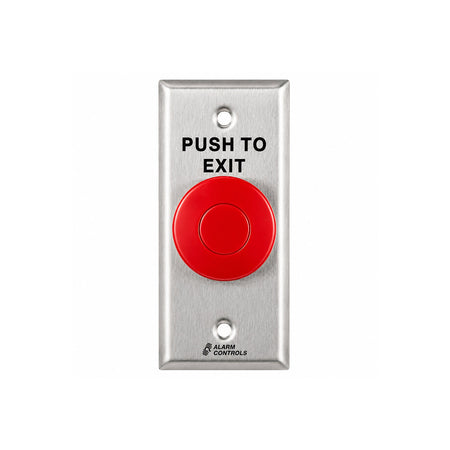

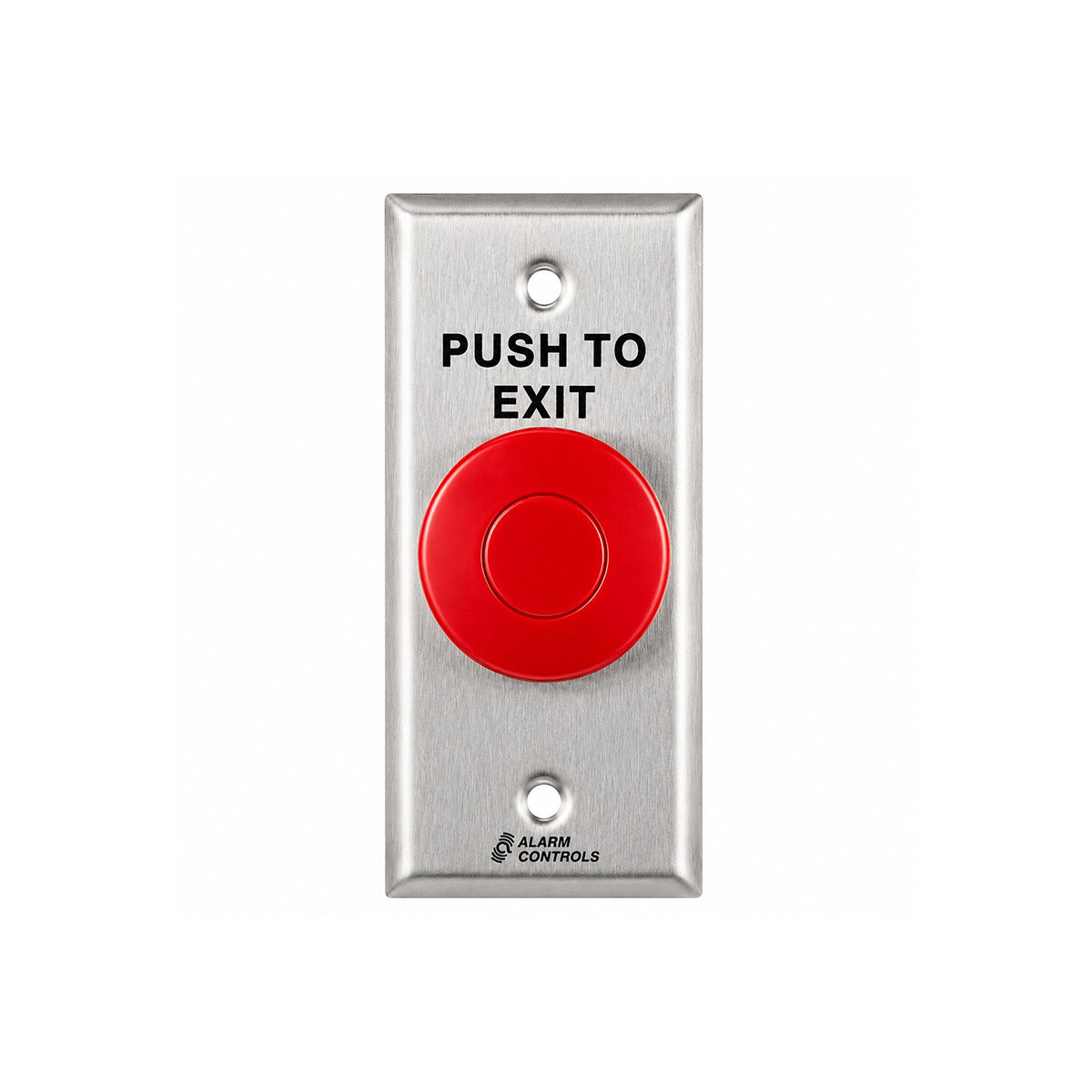

- TS-27R – Red mushroom push button
- TS-27T – Adjustable timed output (2–45 seconds)
- Multiple stainless steel plate finish options
- Custom plate screening available for specialized applications
Certifications & Listings
- UL 294 Listed
- CSA Certified
Electrical Specifications
- One Normally Open (N/O) and one Normally Closed (N/C) contact
- Contact rating: 10A @ 35 VDC or 120 VAC
- Screw terminal connections
- Switch depth behind plate: 2-1/2"
Operating Temperature
- -13°F to +158°F (-25°C to 70°C)
Ideal Applications
The Alarm Controls TS-27 is an excellent choice for:
- Commercial access control systems
- Aluminum storefront doors
- Narrow stile door frames
- Office buildings
- Retail stores
- Healthcare facilities
- Educational institutions
- Government buildings
- Electric strike and maglock installations
- Automatic door release systems
Why Choose the Alarm Controls TS-27?
The Alarm Controls TS-27 combines a space-saving narrow stile design with a large, easy-to-activate mushroom push button, making it ideal for commercial door applications where reliability and durability are essential. With UL 294 certification, CSA approval, optional timed operation, and multiple button color choices, the TS-27 delivers dependable request-to-exit performance for virtually any access control installation.
