Alarm Controls TS-25 & TS-26 Emergency Door Release Station with LED & Audible Alarm
The Alarm Controls TS-25 and TS-26 Emergency Door Release Stations provide a reliable and secure method of releasing locked exit doors during emergency situations while maintaining controlled access. Designed for use with electromagnetic locks and access control systems, these emergency release stations combine a highly visible illuminated push button with an integrated audible alarm to provide clear indication when the station has been activated.

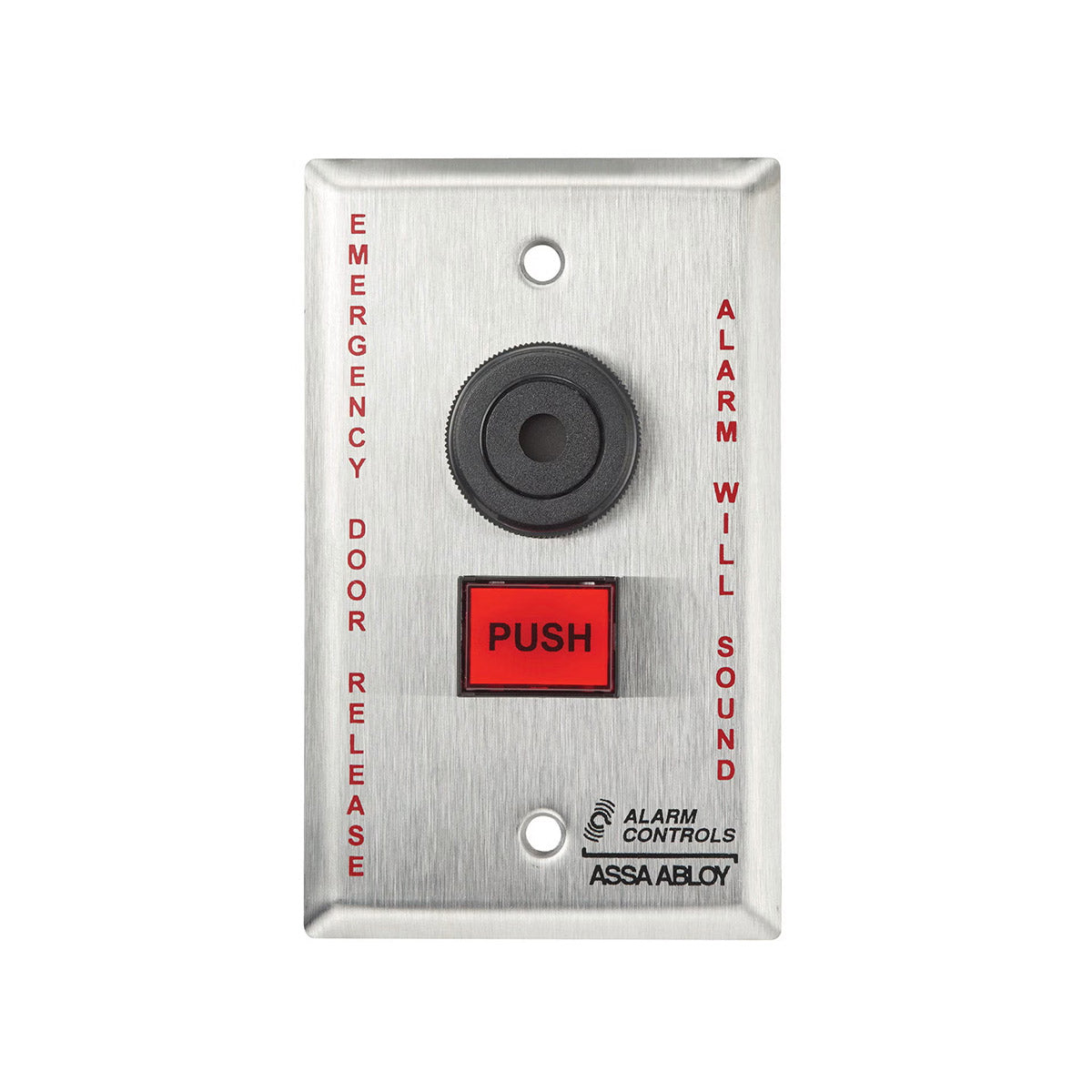

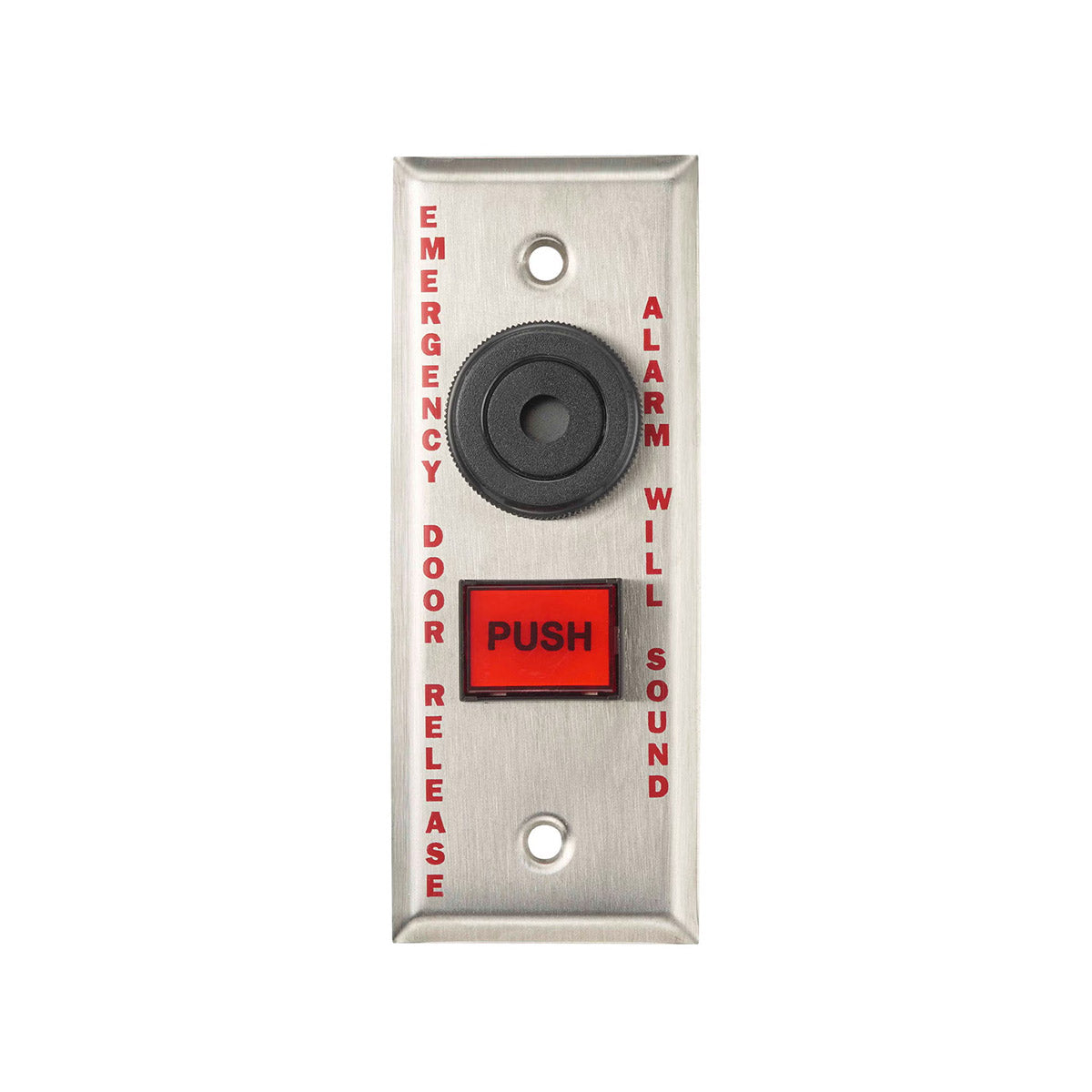

The TS-25 is mounted on a standard single-gang wall plate with a durable 430 stainless steel finish, while the TS-26 is designed for narrow stile door frames and features a 1-3/4" wide 302 stainless steel wall plate. Both models are clearly labeled "EMERGENCY DOOR RELEASE – ALARM WILL SOUND" for immediate recognition during emergency situations.
With an illuminated high-brightness LED push button, built-in 85 dB piezo buzzer, and alternating DPDT action switch, the TS-25 and TS-26 deliver dependable performance for commercial, institutional, healthcare, and industrial access control applications.
Key Features
- Emergency door release station for access control systems
- TS-25: Standard single-gang wall plate with 430 stainless steel finish
- TS-26: Narrow 1-3/4" wall plate with 302 stainless steel finish
- Plate clearly screened:
- "EMERGENCY DOOR RELEASE – ALARM WILL SOUND"
- High-brightness LED illuminated push button
- Button illuminates when the unit enters the alarm state
- Integrated 85 dB piezo buzzer for audible notification
- Alternating DPDT action switch
- Compatible with 12 or 24 VAC/VDC operation
- Available in multiple architectural plate finishes
Specifications
Electrical
- Operating Voltage: 12 or 24 VAC/VDC
- Contact Rating: 3A at 35 VDC or 120 VAC
- Switch terminated with colored leads for simplified installation
Ideal Applications
- Emergency door release systems
- Electromagnetic lock installations
- Commercial office buildings
- Healthcare and medical facilities
- Schools and universities
- Government and municipal buildings
- Industrial and warehouse facilities
- Controlled access entry systems
Why Choose the Alarm Controls TS-25 & TS-26?
The Alarm Controls TS-25 and TS-26 provide an effective emergency release solution that enhances both life safety and access control. Featuring a bright LED illuminated button, integrated 85 dB alarm, and durable stainless steel construction, these stations offer dependable performance for emergency egress applications while seamlessly integrating into modern access control systems.
