Alarm Controls TS-15 & TS-16 Pneumatic Timed Request to Exit Station

SKU: TS-16
$ 252.85

Alarm Controls TS-15 & TS-16 Request to Exit Station with Pneumatic Timer

The Alarm Controls TS-15 and TS-16 Request to Exit Stations with Pneumatic Timer provide a dependable, power-free solution for timed door egress in access control applications. Equipped with a pneumatic push button timer, these stations temporarily unlock a door for 2 to 60 seconds, allowing safe and convenient entry or exit before automatically relocking.

The TS-15 is designed for narrow stile aluminum door frames with a 1-3/4" 302 stainless steel wall plate, while the TS-16 features a standard single-gang 430 stainless steel wall plate for conventional installations. Since the timer operates pneumatically, no external power is required, making these stations ideal for reliable, low-maintenance operation.

Key Features

  • Adjustable pneumatic timer with 2 to 60 second delay
  • No external power required for timer operation
  • Compact 1/4" push button with protective guard ring
  • Clearly marked "PUSH TO EXIT" for intuitive operation
  • Automatic door relocking after the preset time expires
  • Pneumatic timer rated for up to 1 million operations
  • Durable stainless steel wall plates for long-lasting performance
  • Pre-wired with 10" colored leads for easy installation
  • UL 294 Listed for access control system applications

Models Available

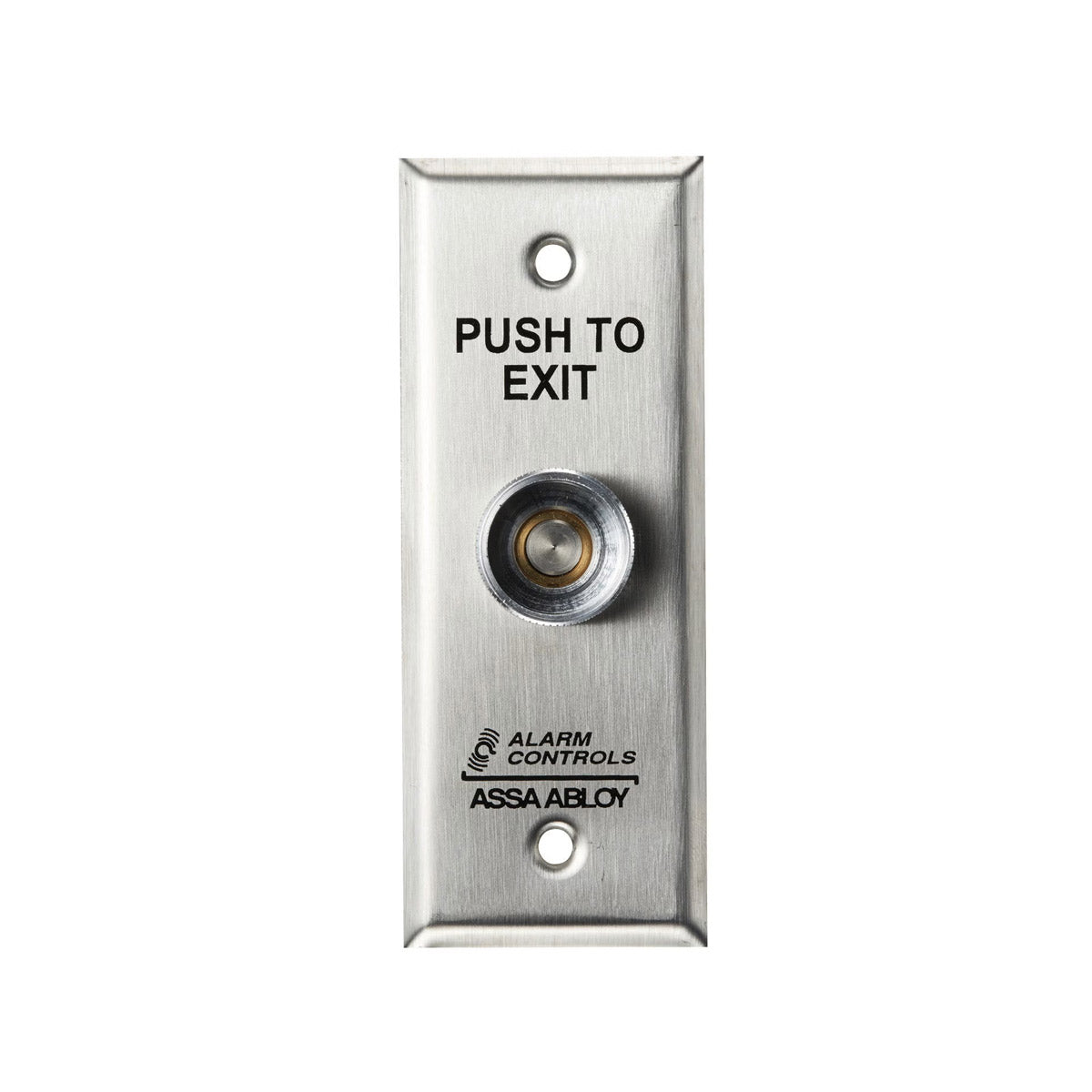

  • TS-15 – Narrow 1-3/4" wall plate with 302 stainless steel finish

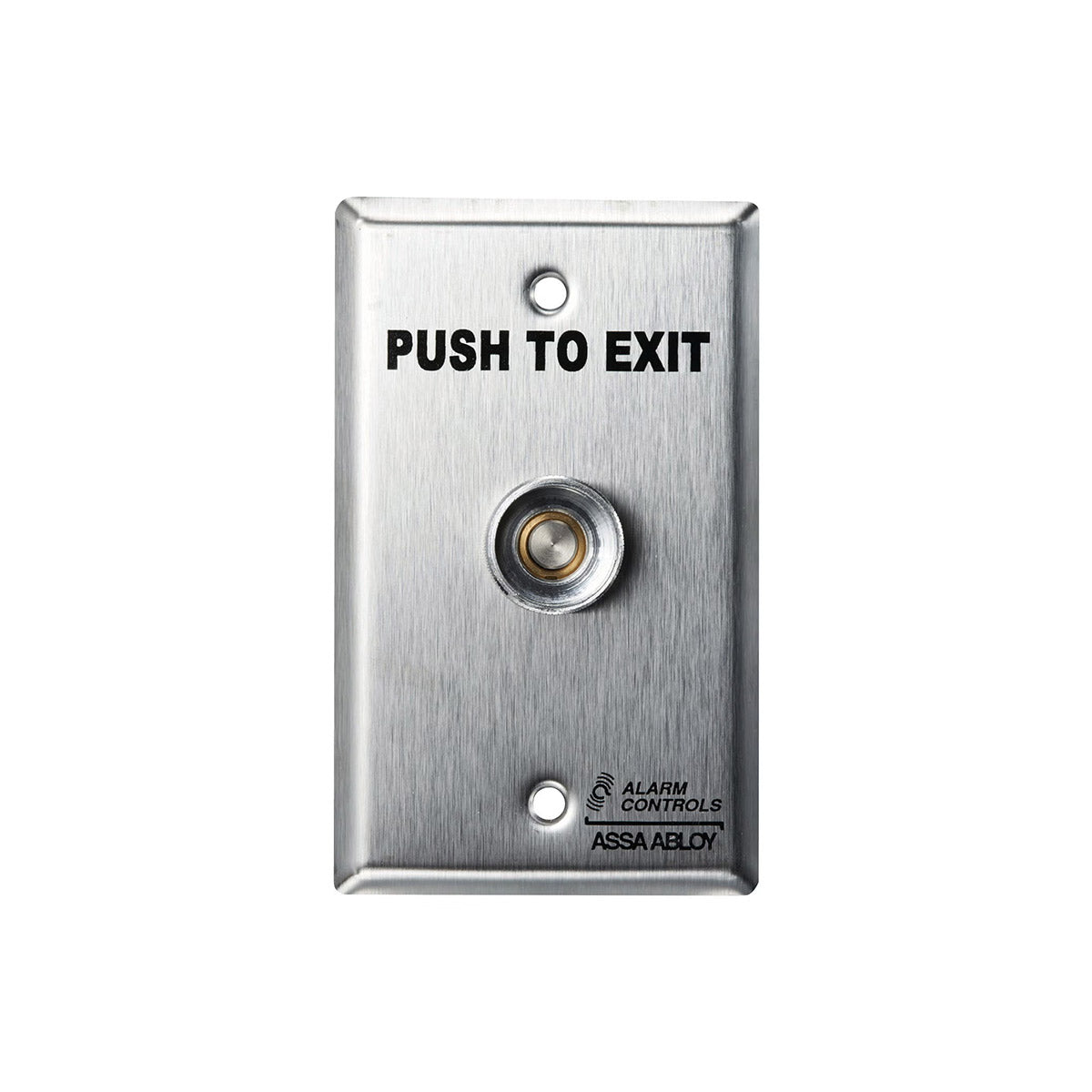

  • TS-16 – Single-gang wall plate with 430 stainless steel finish

Available Options

  • TS-16302 – Single-gang weather-resistant 302 stainless steel wall plate
  • Custom engraved or screened plate wording available

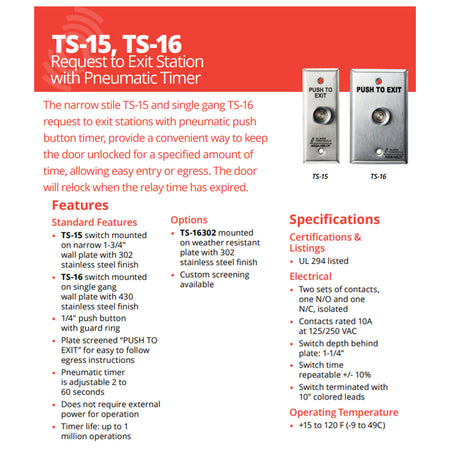

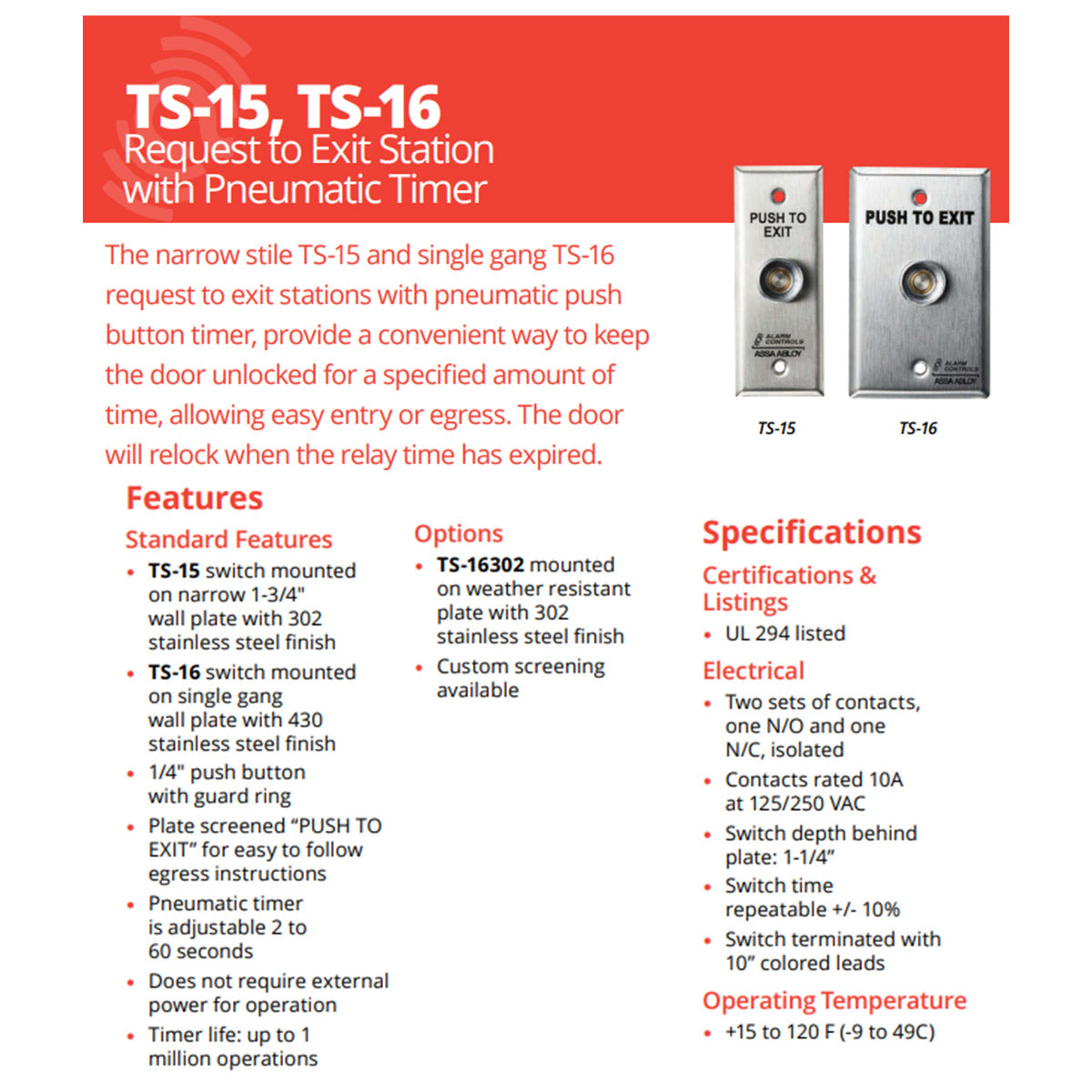

Specifications

Certifications & Listings

  • UL 294 Listed

Electrical

  • Two isolated contact sets:
    • One Normally Open (N/O)
    • One Normally Closed (N/C)
  • Contact Rating: 10A at 125/250 VAC
  • Switch Depth Behind Plate: 1-1/4"
  • Timing Accuracy: ±10% repeatability
  • Wiring: 10" colored lead wires

Timer

  • Pneumatic timer
  • Adjustable delay: 2 to 60 seconds
  • Requires no external power
  • Rated for up to 1 million operations

Operating Temperature

  • +15°F to 120°F (-9°C to 49°C)

Ideal Applications

The TS-15 and TS-16 are ideal for access-controlled openings where a reliable timed unlock function is needed, including:

  • Commercial office buildings
  • Retail stores
  • Schools and universities
  • Healthcare facilities
  • Industrial buildings
  • Aluminum storefront doors
  • Interior access control systems

Why Choose the Alarm Controls TS-15 & TS-16?

Designed for durability and dependable performance, the TS-15 and TS-16 combine a mechanical pneumatic timer with rugged stainless steel construction to provide a simple, maintenance-friendly solution for timed door release. With no external power required, UL 294 certification, and a timer rated for up to one million cycles, these request-to-exit stations are an excellent choice for reliable commercial access control installations.
