Alarm Controls TS-14 Pneumatic Timed Request to Exit Station | Push to Exit Button

SKU: TS-14
$ 295.10

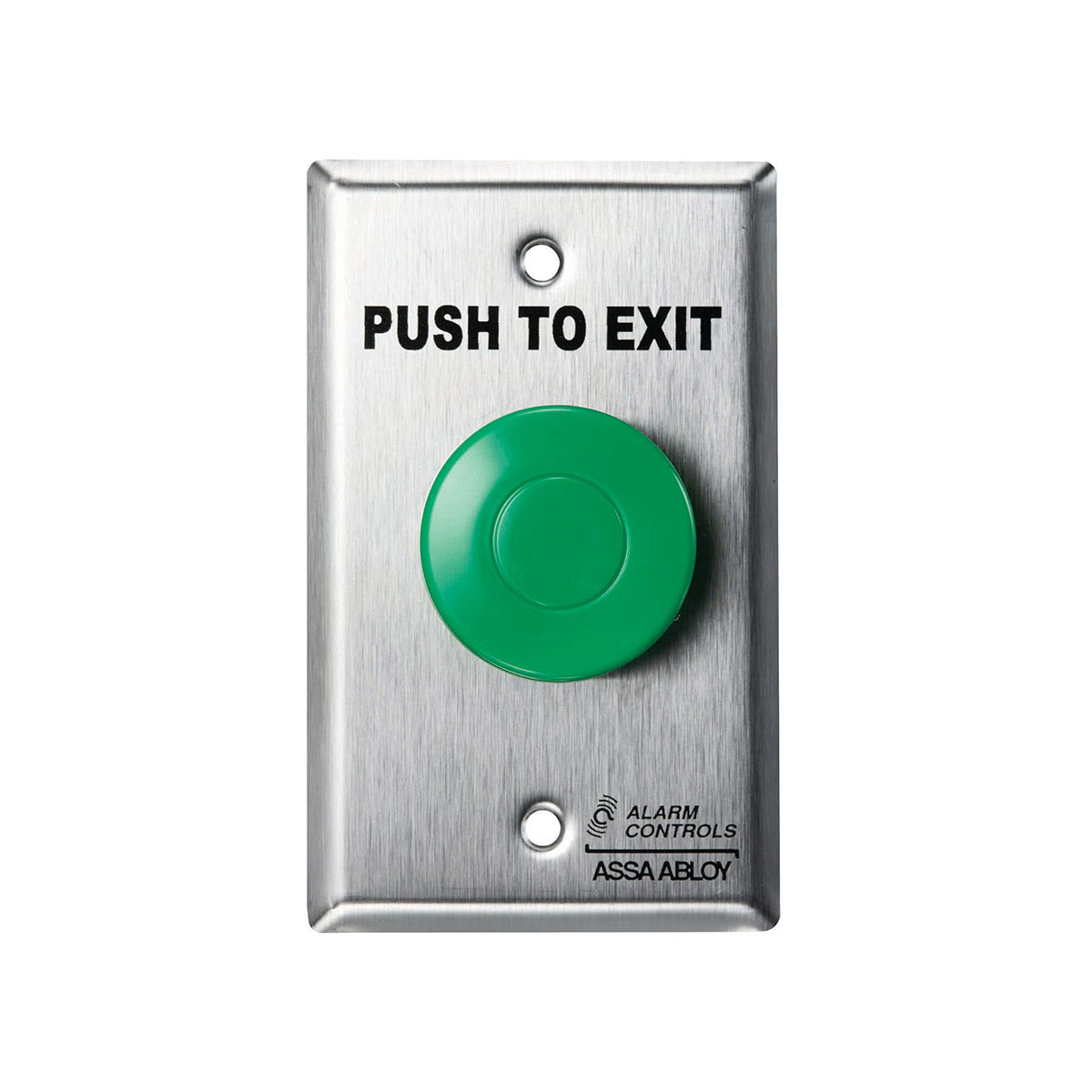

Alarm Controls TS-14 Request to Exit Station with Pneumatic Timer

The Alarm Controls TS-14 Request to Exit Station with Pneumatic Timer provides a simple, reliable solution for controlled door egress without requiring an external power source. Featuring a 1-1/2" green mushroom push button and an adjustable pneumatic timer, the TS-14 temporarily unlocks the door for 2 to 60 seconds, allowing safe and convenient entry or exit before automatically relocking.

Constructed with a durable 430 stainless steel single-gang wall plate, the TS-14 is ideal for commercial buildings, schools, healthcare facilities, offices, and other access-controlled environments where dependable timed egress is required.

Key Features

  • Adjustable pneumatic timer with 2 to 60 second delay
  • No external power required for timer operation
  • Large 1-1/2" green mushroom push button
  • Clearly marked "PUSH TO EXIT" for easy operation
  • Durable 430 stainless steel single-gang wall plate
  • Automatic door relocking after the preset time expires
  • Reliable mechanical timing for consistent performance
  • Easy installation with pre-wired 10" colored leads

Available Options

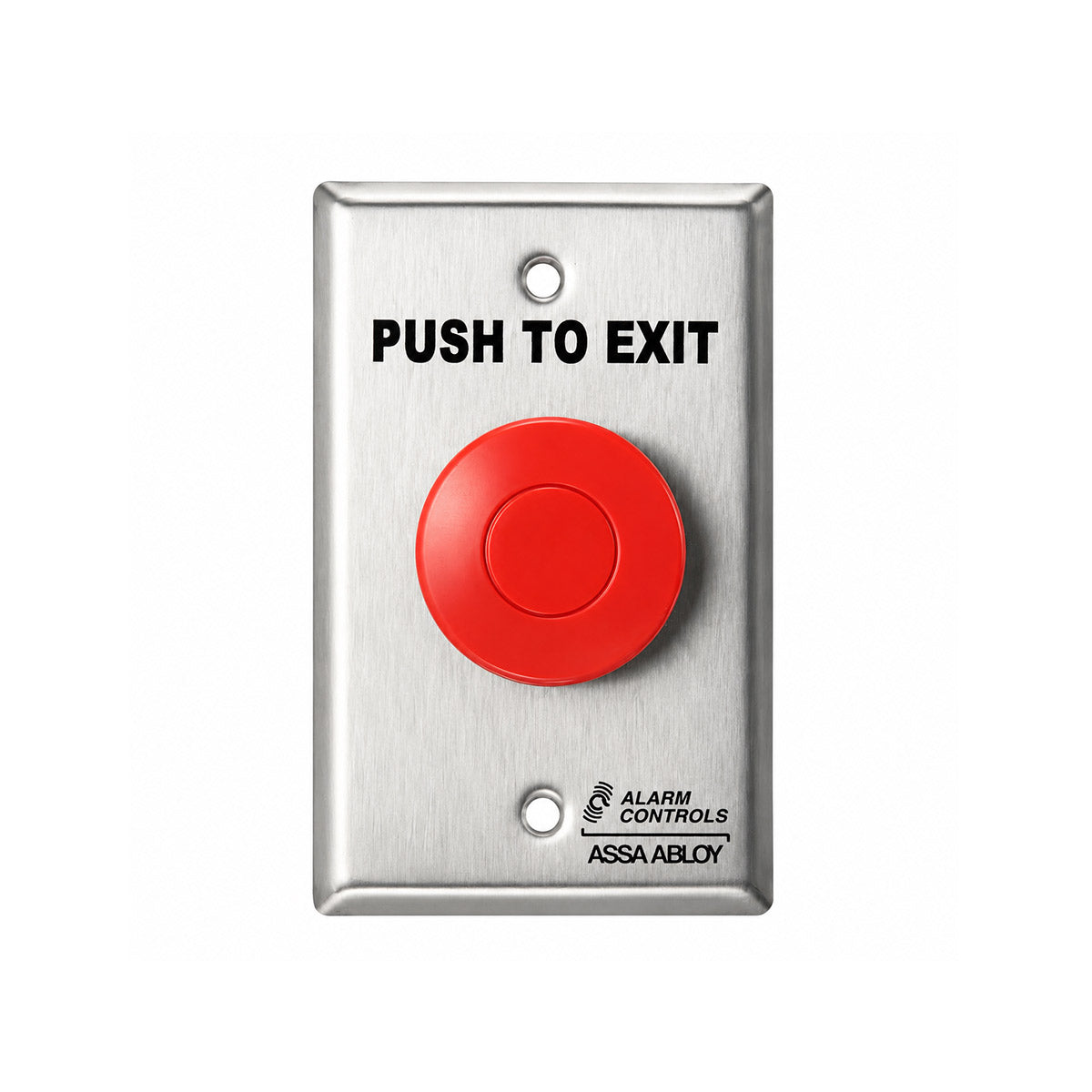

  • TS-14R – Red mushroom push button

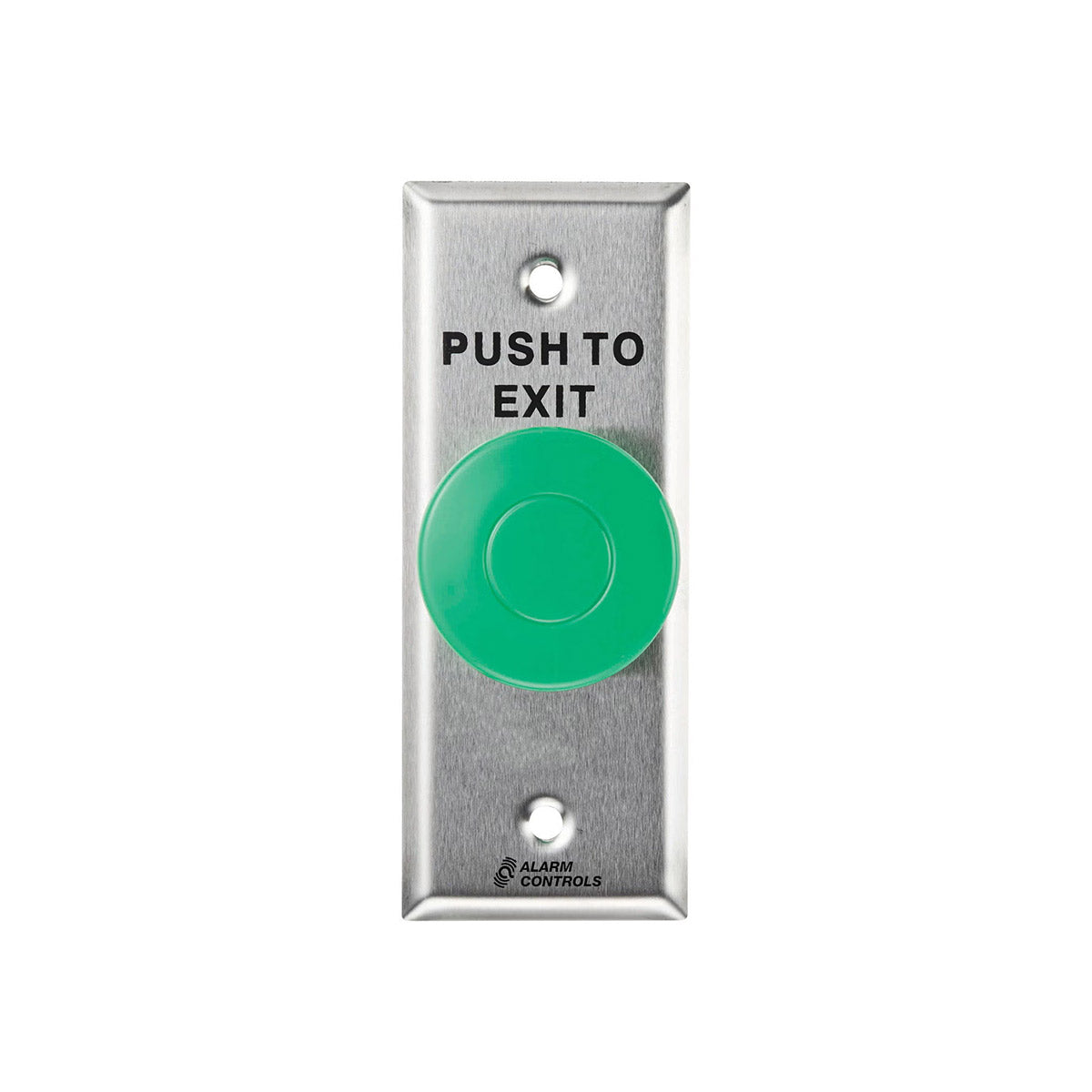

  • TS-14N – Narrow 1-3/4" wall plate with 302 stainless steel finish

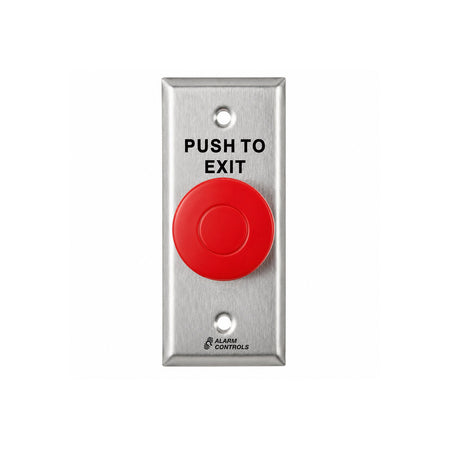

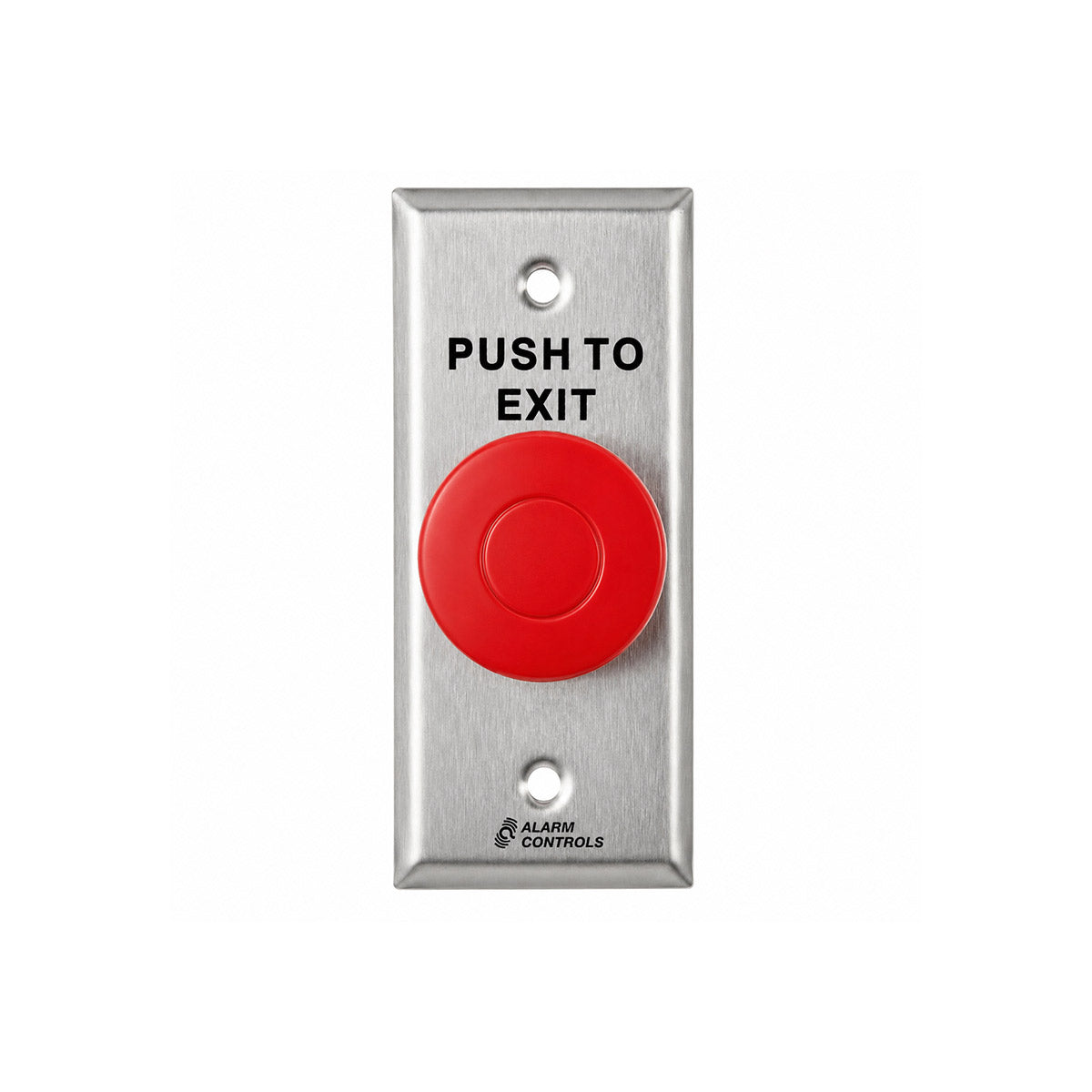

  • TS-14NR – Narrow wall plate with red mushroom push button
  • TS-14302 – Weather-resistant 302 stainless steel wall plate
  • Multiple architectural plate finishes available
  • Custom engraved or screened plate wording available

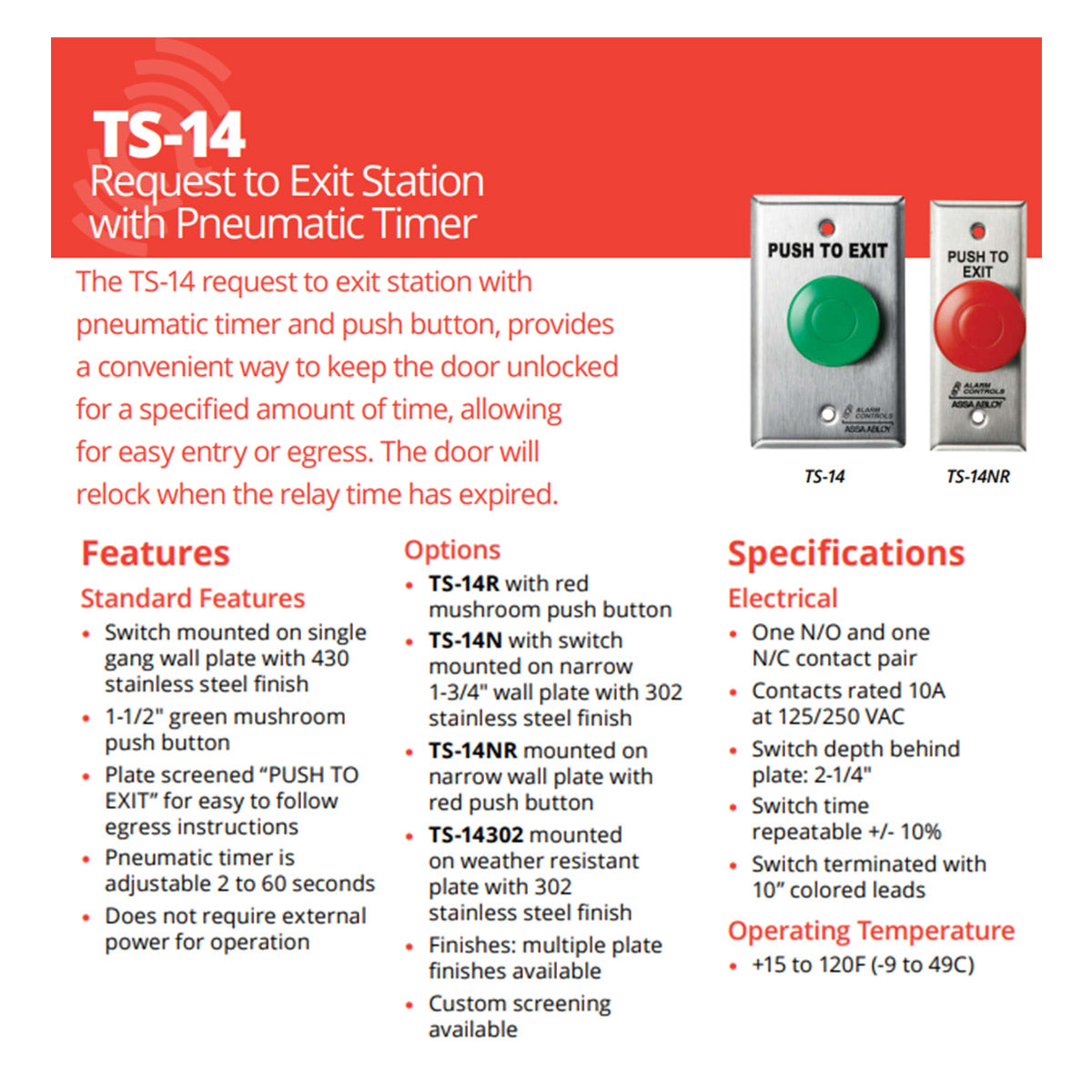

Specifications

Electrical

  • Contacts: One Normally Open (N/O) and One Normally Closed (N/C)
  • Contact Rating: 10A at 125/250 VAC
  • Switch Depth Behind Plate: 2-1/4"
  • Timing Accuracy: ±10% repeatability
  • Wiring: 10" colored lead wires

Timer

  • Pneumatic timer
  • Adjustable delay: 2 to 60 seconds
  • Requires no external power

Operating Temperature

  • +15°F to 120°F (-9°C to 49°C)

Ideal Applications

The TS-14 is designed for access control systems requiring a timed unlock period, including:

  • Commercial office buildings
  • Healthcare facilities
  • Educational institutions
  • Retail stores
  • Industrial facilities
  • Access-controlled interior doors
