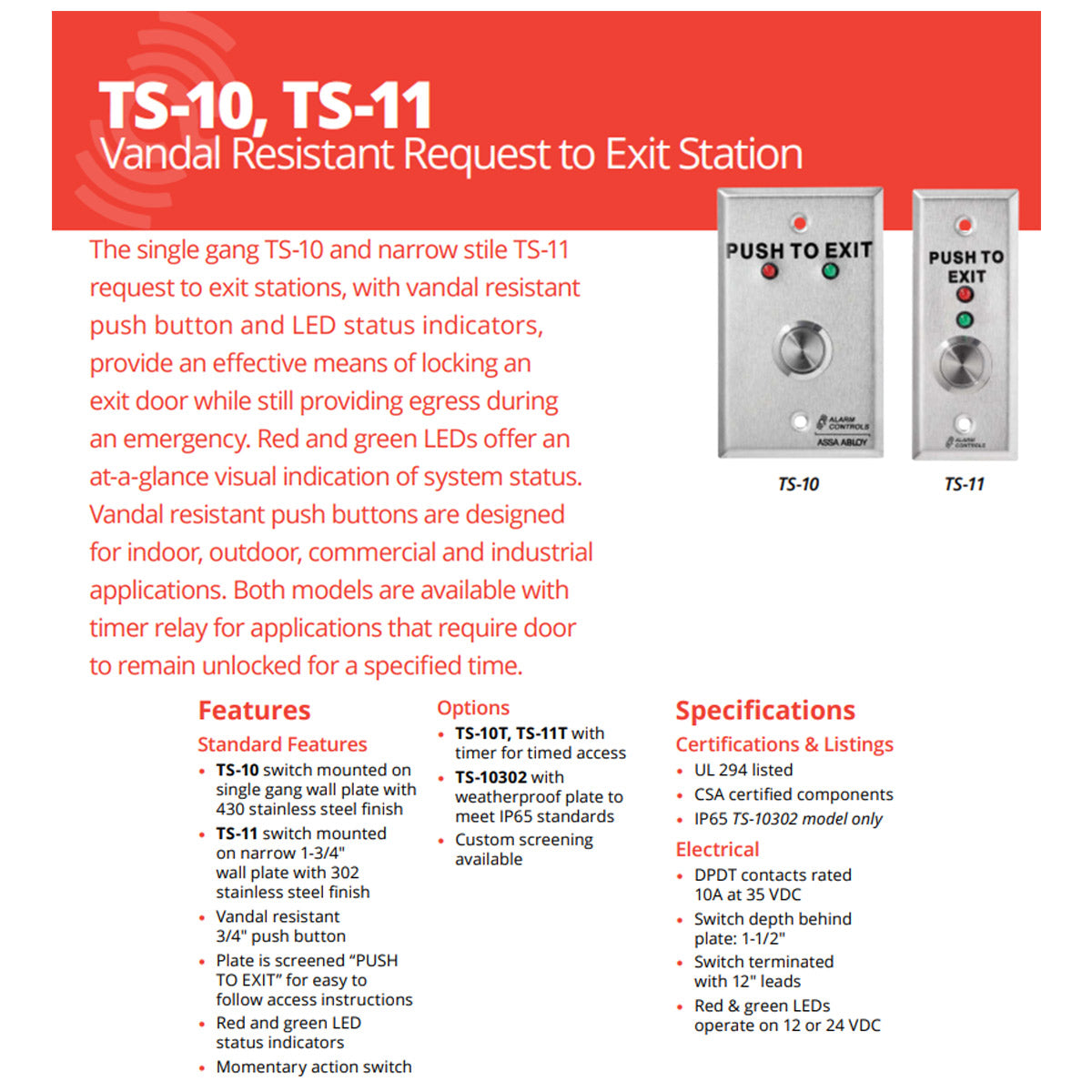

Alarm Controls TS-10 & TS-11 Vandal Resistant Request to Exit Station
The Alarm Controls TS-10 (single gang) and TS-11 (narrow stile) Vandal Resistant Request to Exit Stations are engineered for high-security access control applications where durability and reliability are essential. Featuring a rugged 3/4" vandal-resistant push button and red/green LED status indicators, these exit stations provide dependable request-to-exit functionality while offering instant visual feedback on system status.
Designed for commercial, industrial, indoor, and outdoor environments, the TS-10 and TS-11 are ideal for facilities requiring secure egress without compromising durability. Both models are available with an optional timer relay that keeps the door unlocked for a preset period before automatically relocking. The TS-10302 model includes a weatherproof faceplate that meets IP65 standards for harsh environments.
Key Features
- Heavy-duty 3/4" vandal-resistant push button for demanding applications
- Red and green LED status indicators provide clear visual system status
- Faceplate screened with "PUSH TO EXIT" for easy-to-follow exit instructions
- Momentary action switch for reliable request-to-exit operation

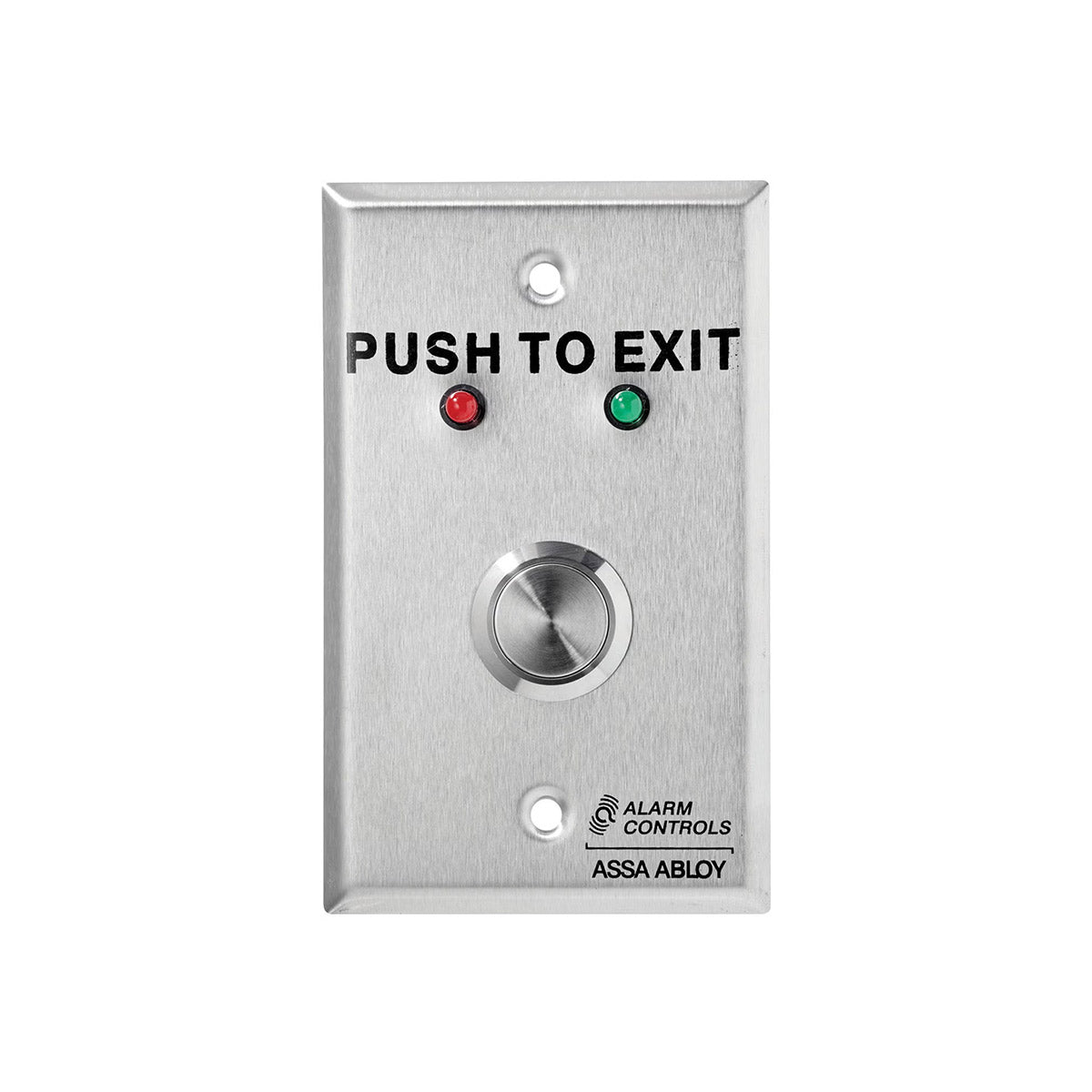

- TS-10: Single gang 430 stainless steel wall plate

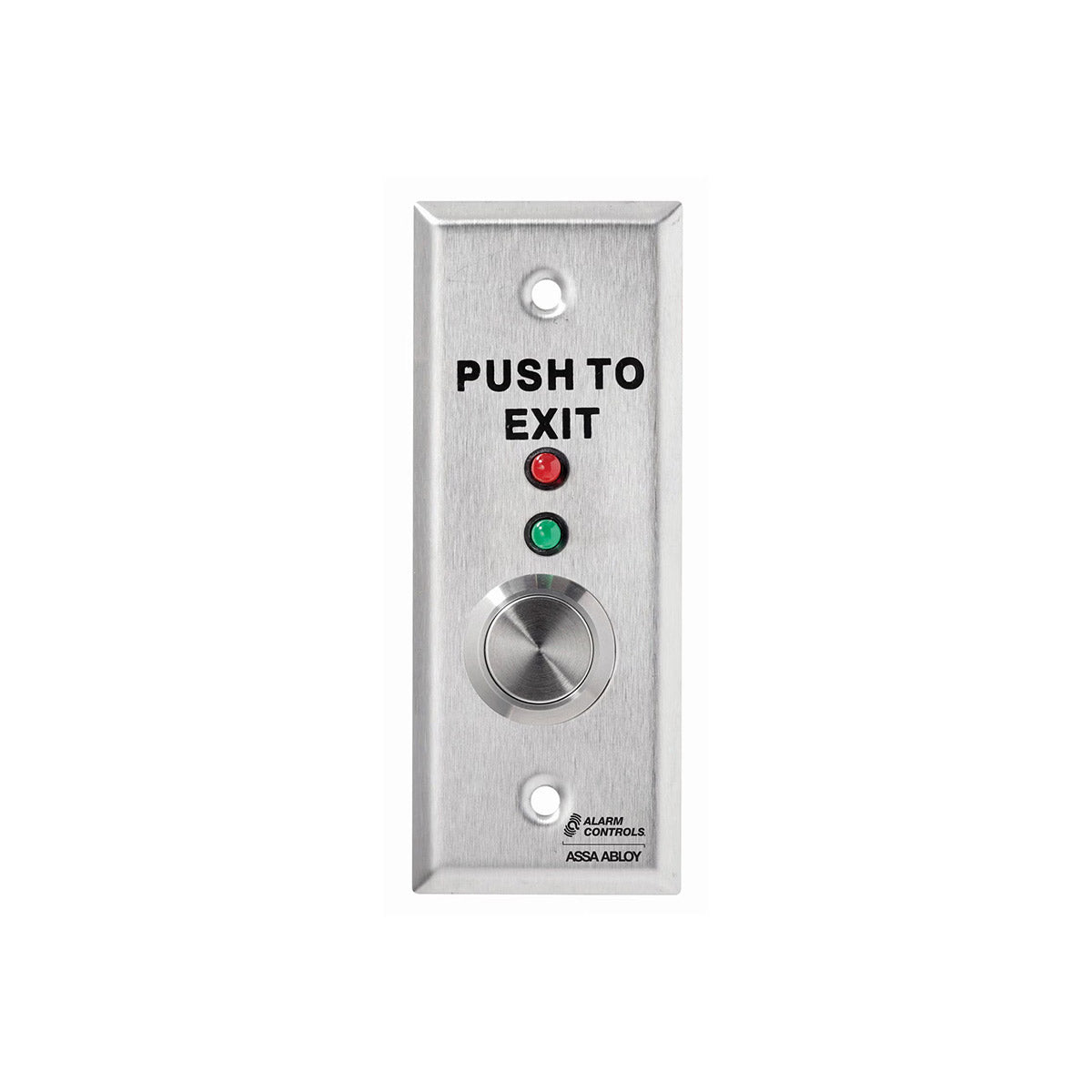

- TS-11: Narrow 1-3/4" 302 stainless steel wall plate
- Optional TS-10T and TS-11T timed models for controlled door release
- Optional TS-10302 weatherproof model rated IP65
- Custom faceplate screening available for specialized applications
Specifications
Certifications & Listings
- UL 294 Listed
- CSA Certified Components
- IP65 Rated (TS-10302 Weatherproof Model Only)
Electrical
- DPDT Contacts
- Contact Rating: 10A at 35 VDC
- Switch Depth Behind Plate: 1-1/2"
- Pre-wired with 12" leads
- Red and Green LEDs operate on 12 or 24 VDC
Construction
- TS-10: 430 Stainless Steel Single Gang Plate
- TS-11: 302 Stainless Steel Narrow Stile Plate
- 3/4" Vandal-Resistant Push Button
- Screened "PUSH TO EXIT" Faceplate
Available Models
| Model | Description |
|---|---|
| TS-10 | Single gang vandal resistant request to exit station |
| TS-11 | Narrow stile vandal resistant request to exit station |
| TS-10T | Single gang model with timer relay |
| TS-11T | Narrow stile model with timer relay |
| TS-10302 | Weatherproof IP65-rated single gang model |
Ideal Applications
- Commercial Office Buildings
- Industrial Facilities
- Schools & Universities
- Healthcare Facilities
- Government Buildings
- Parking Facilities
- Exterior Access Control Doors
- High-Traffic Entry & Exit Points
