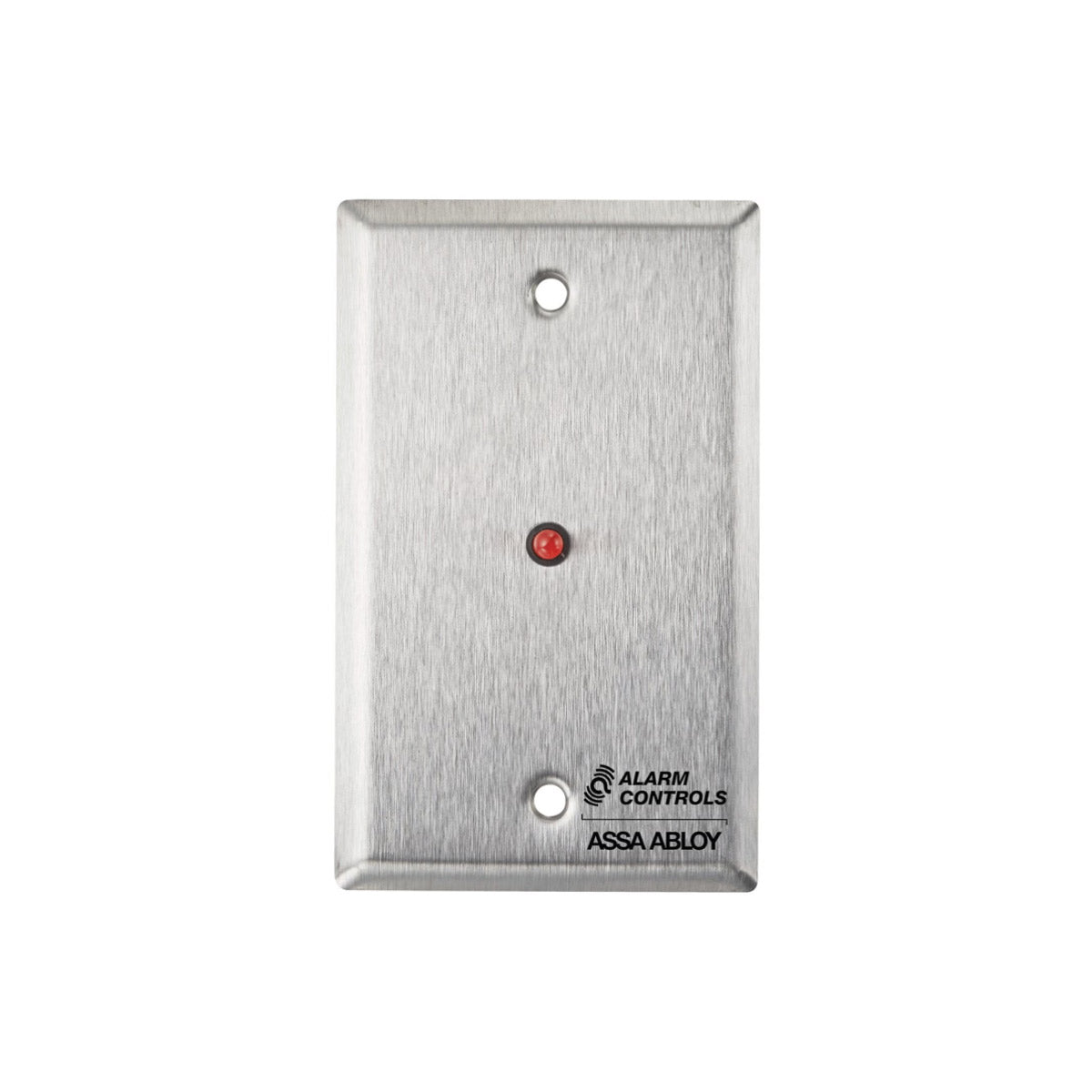

The Alarm Controls RP-28 Remote Wall Plate is a durable visual status indicator designed for access control, alarm, security, and door control applications. The standard RP-28 features a 1/4" red LED mounted on a stainless steel single-gang wall plate, providing a clear and highly visible indication of system or device status.
A variety of options are available to accommodate different installation requirements, including larger 1/2" LEDs, bi-color and flashing LEDs, slimline plates, and weatherproof configurations. With multiple plate finishes available, the RP-28 can be customized to suit a wide range of commercial and industrial installations.
Features
- Bright 1/4" red LED status indicator
- Durable stainless steel wall plate
- Single-gang configuration
- LED operates on 12 or 24 VDC
- Flying leads for convenient electrical connections
- Multiple LED sizes and styles available
- Slimline and weatherproof plate options
- Multiple plate finishes available
- Ideal for access control and security status indication
Available Options
- RP-28 – 1/4" red LED on single-gang stainless steel wall plate
- RP-28L – 1/2" red LED
- RP-28BI – 1/4" bi-colored LED
- RP-28FLASHING – 1/4" flashing LED
- RP-28SL – 1-1/2" slimline plate
- RP-28302 – Waterproof 302 plate
- RP-28L302 – Weatherproof 302 plate with 1/2" LEDs
- Multiple plate finishes available
Specifications
| Specification | Details |
|---|---|
| Plate Dimensions | 2-3/4" W x 4-1/2" H |
| Standard LED | 1/4" red LED |
| LED Voltage | 12 or 24 VDC |
| 1/4" LED Current Draw | 8 mA @ 12 VDC; 12 mA @ 24 VDC |
| 1/2" LED Current Draw | 9 mA @ 12 VDC; 19 mA @ 24 VDC |
| LED Connection | Flying leads |
| Standard Plate | Stainless steel single gang |
| Options | Red, bi-color, flashing, slimline, waterproof/weatherproof |
Applications
The Alarm Controls RP-28 is ideal for providing clear visual indication in access control systems, security systems, alarm panels, door control applications, and other low-voltage installations. Weatherproof configurations are available for applications requiring additional environmental protection.
Choose the RP-28 series for a reliable, highly visible LED status indicator with flexible plate and LED configurations.
