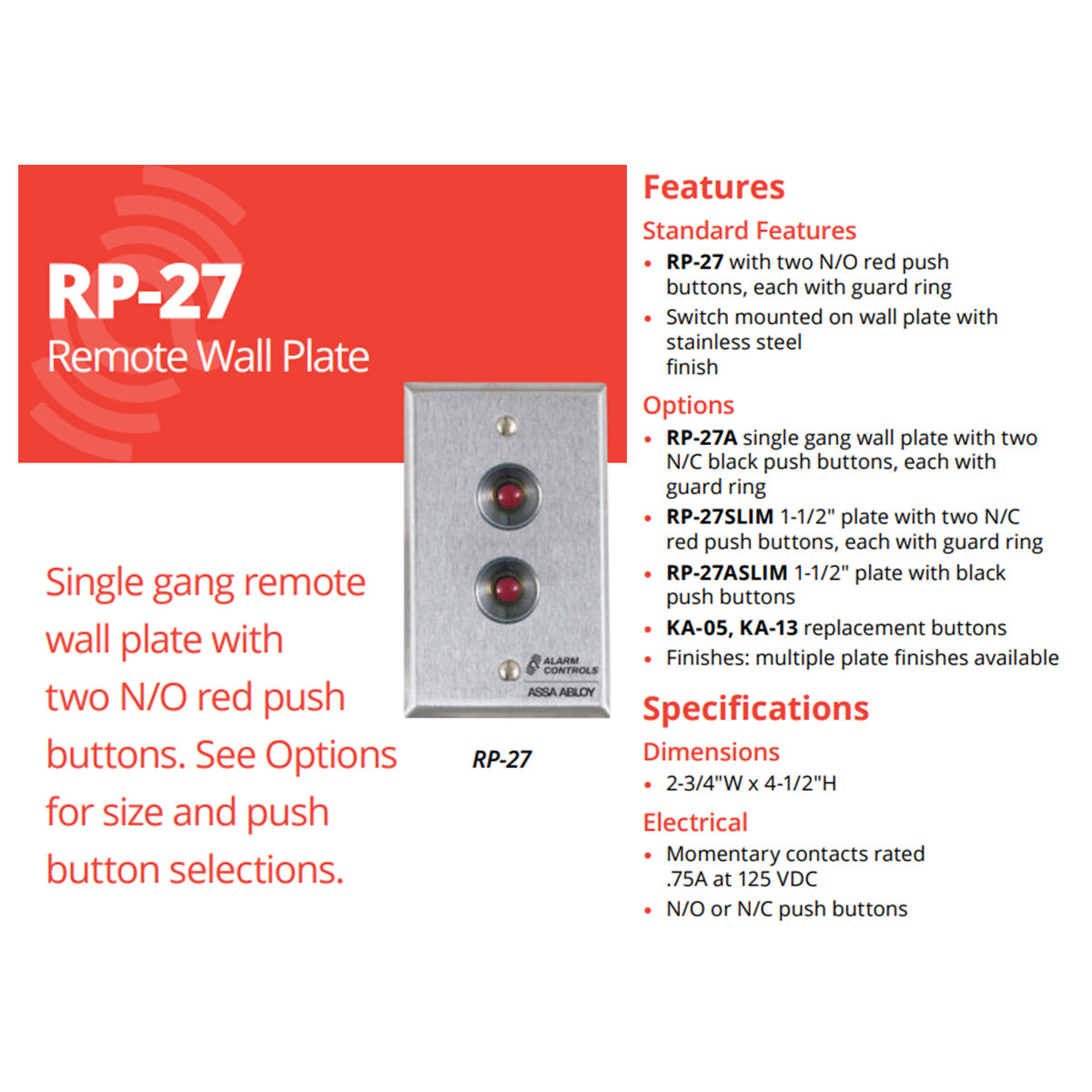

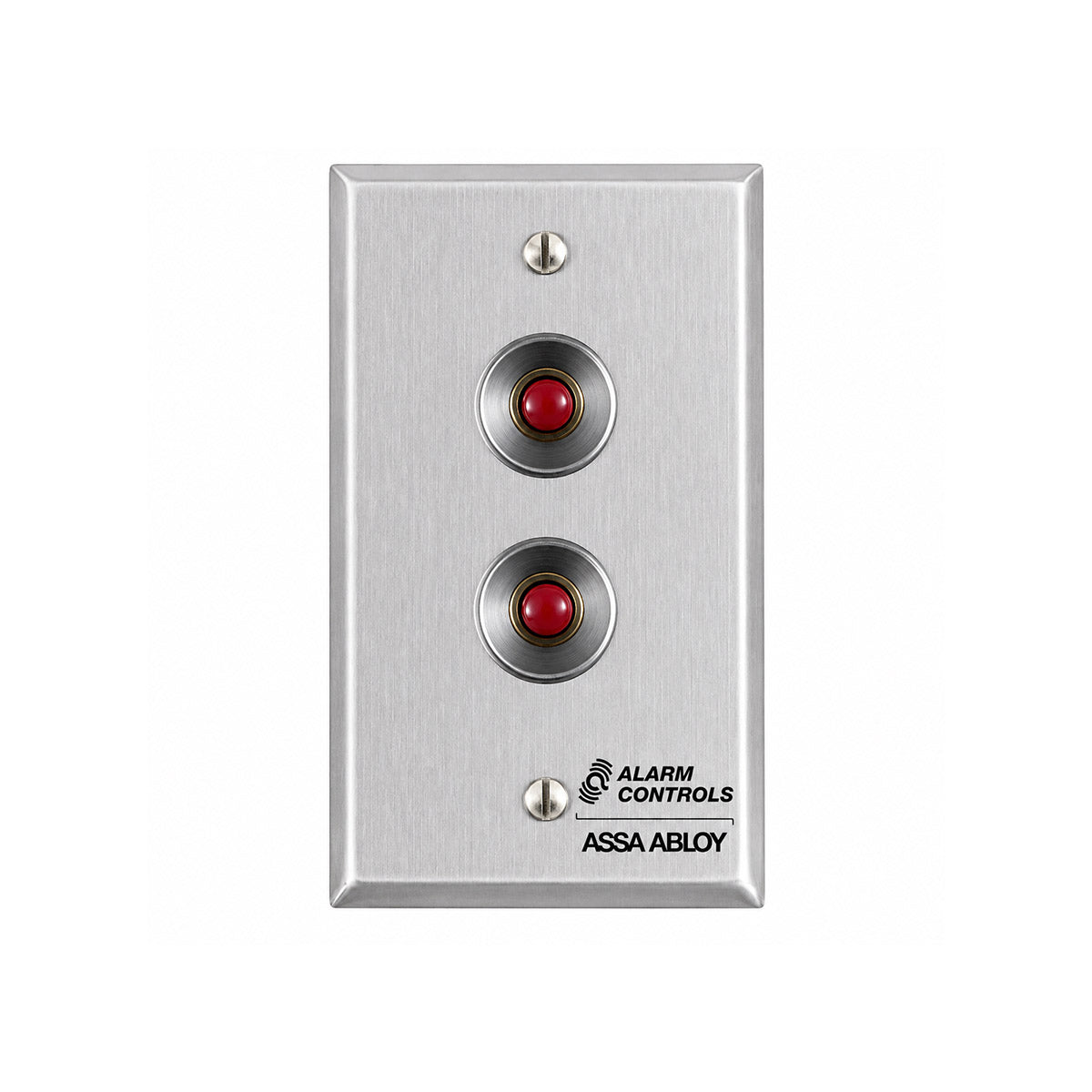

The Alarm Controls RP-27 Remote Wall Plate is a durable, professional remote switching station featuring two normally open (N/O) red push buttons, each protected by a guard ring. Designed for commercial and industrial access control applications, the RP-27 provides convenient dual-button control for door release, alarm, request-to-exit, and other low-voltage switching applications.
Each momentary push button is mounted on a rugged stainless steel wall plate, providing a clean appearance and reliable performance in demanding environments. Multiple configurations are available, including single-gang and slimline versions with N/O or N/C push button options.
Features
- Two momentary N/O red push buttons
- Each push button includes a protective guard ring
- Durable stainless steel wall plate
- Available in single-gang and 1-1/2" slimline configurations
- N/O and N/C push button options
- Multiple plate finishes available
- Replacement buttons available
- Ideal for access control, door release, alarm, and request-to-exit applications
Available Options
- RP-27 – Two N/O red push buttons with guard rings
- RP-27A – Single-gang wall plate with two N/C black push buttons and guard rings
- RP-27SLIM – 1-1/2" slimline plate with two N/C red push buttons and guard rings
- RP-27ASLIM – 1-1/2" slimline plate with two black push buttons
- KA-05 / KA-13 – Replacement push buttons
- Multiple plate finishes available
Specifications
| Specification | Details |
|---|---|
| Plate Dimensions | 2-3/4" W x 4-1/2" H |
| Standard Buttons | Two N/O red push buttons |
| Alternate Buttons | N/O or N/C |
| Button Style | Momentary with guard rings |
| Contact Rating | 0.75A at 125 VDC |
| Plate Finish | Stainless steel |
| Plate Options | Single gang and 1-1/2" slimline |
Applications
The Alarm Controls RP-27 is ideal for commercial and industrial installations requiring two protected push-button controls in a single wall station. It can be used for access control, door release systems, alarm controls, request-to-exit applications, and other low-voltage switching requirements.
With multiple button configurations and plate finishes available, the RP-27 series offers a flexible solution for professional access control installations.
