The Alarm Controls RP-24 and RP-25 Remote Key Switch Plates are slimline remote key switch plates designed for access control, security, and door control applications. Their compact 1-1/2" design provides a clean, professional installation while incorporating a tamper switch for added security.
The RP-24 features a back plate with a single “D” hole for use with Ace locks, while the RP-25 features a double “D” hole designed for Medeco locks. Both models include a stainless steel slimline face plate and an aluminum back plate with a normally open (N/O) tamper switch.
Features
- Slimline 1-1/2" wide stainless steel face plate
- Aluminum back plate with N/O tamper switch

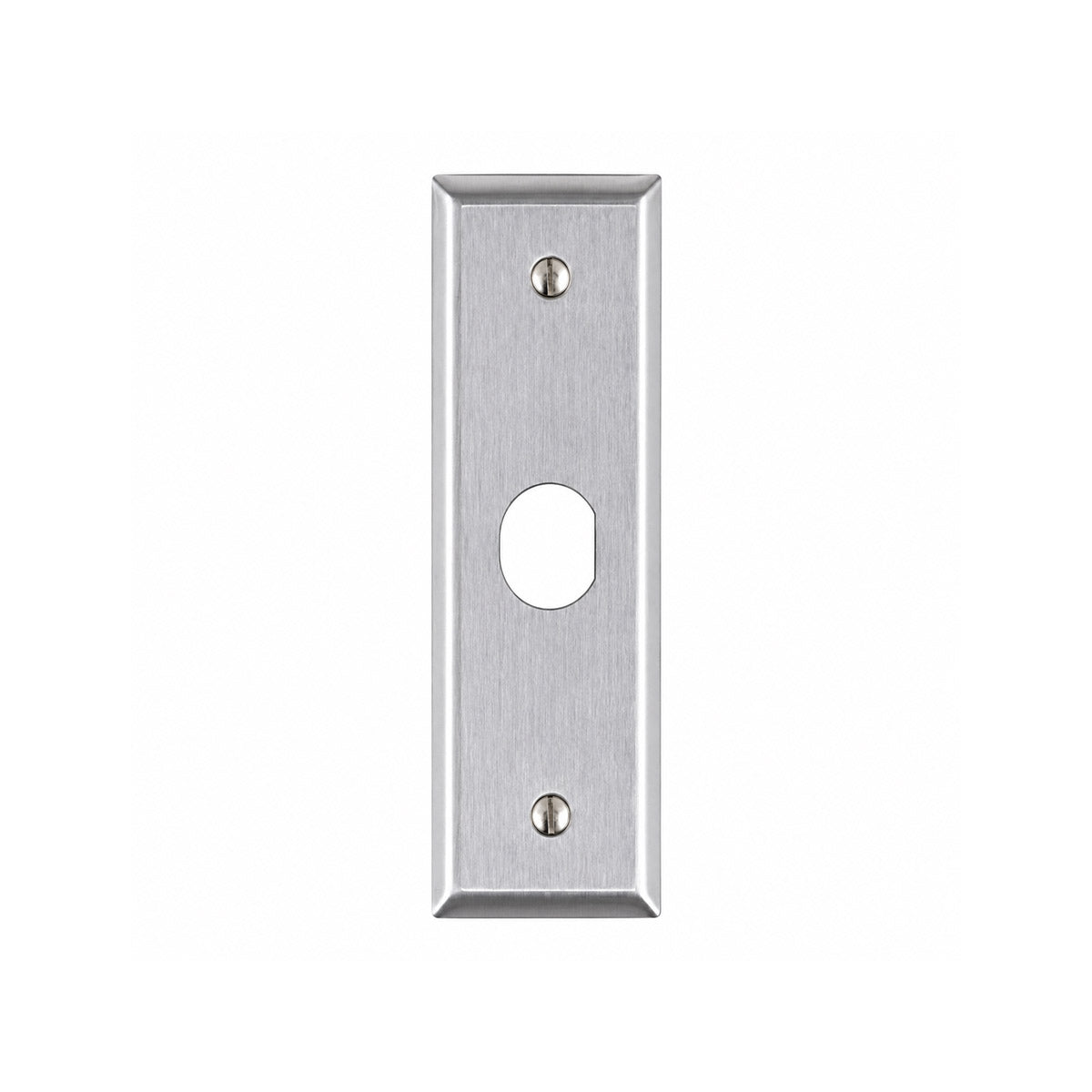

- RP-24: Single “D” hole for Ace lock

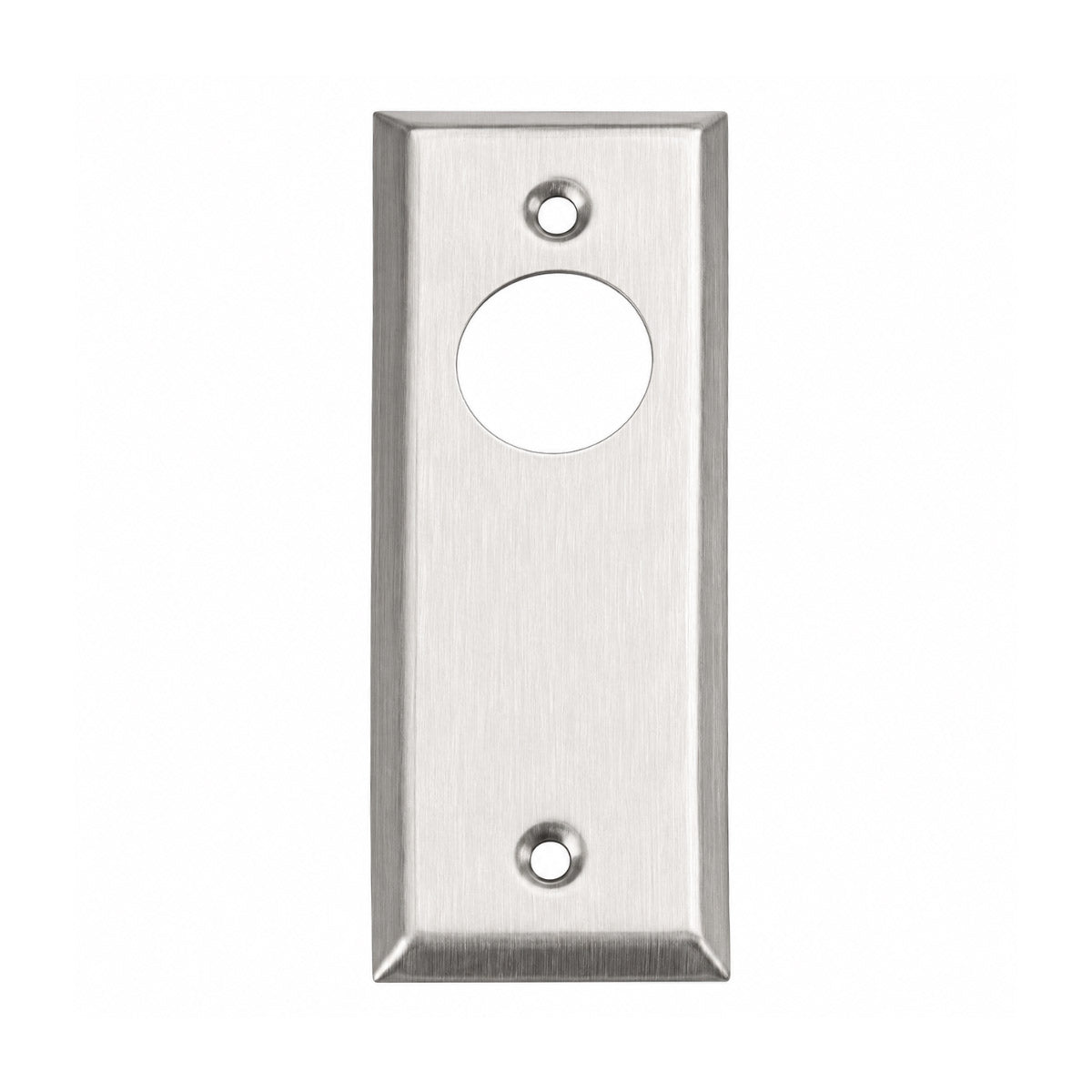

- RP-25: Double “D” hole for Medeco lock
- Ideal for access control and remote door control applications
- Multiple plate finishes available
- Custom screening available
Options
- RP-24SG – Single gang stainless steel plate
- KA-105, KA-108 – Key switches for RP-24
- KA-109, KA-110 – Key switches for RP-25
- 426 – Back box
- Multiple plate finishes
- Custom screening
Specifications
| Specification | Details |
|---|---|
| Plate Width | 1-1/2" |
| Plate Height | 4-1/2" |
| Tamper Switch | N/O |
| Contact Rating | 0.75A @ 125 VDC |
| RP-24 Lock Opening | Single “D” hole for Ace lock |
| RP-25 Lock Opening | Double “D” hole for Medeco lock |
| Face Plate | Stainless steel |
| Back Plate | Aluminum |
Applications
The RP-24 and RP-25 are well suited for commercial access control systems, security doors, restricted areas, and remote locking applications where a compact, durable key switch plate is required.
Choose the RP-24 for Ace lock compatibility or the RP-25 for Medeco lock installations.
