Alarm Controls RP-09 Remote Wall Plate
The Alarm Controls RP-09 Remote Wall Plate is a versatile single-gang remote wall plate designed for applications requiring clear visual status indication. Featuring 1/4" red and green LEDs mounted horizontally, the RP-09 provides an easy-to-read indication of system or access control status.
The stainless steel wall plate offers a clean, professional appearance for commercial, industrial, institutional, and access control installations. Multiple configurations are available, including larger LEDs and slimline plates, allowing the RP-09 series to accommodate a variety of installation requirements.
Key Features
- Single-gang remote wall plate
- Durable stainless steel finish
- 1/4" red and green LED status indicators
- LEDs mounted horizontally on standard RP-09
- Multiple plate sizes and LED configurations available
- LEDs supplied with flying leads
- Multiple plate finishes available
Available Options

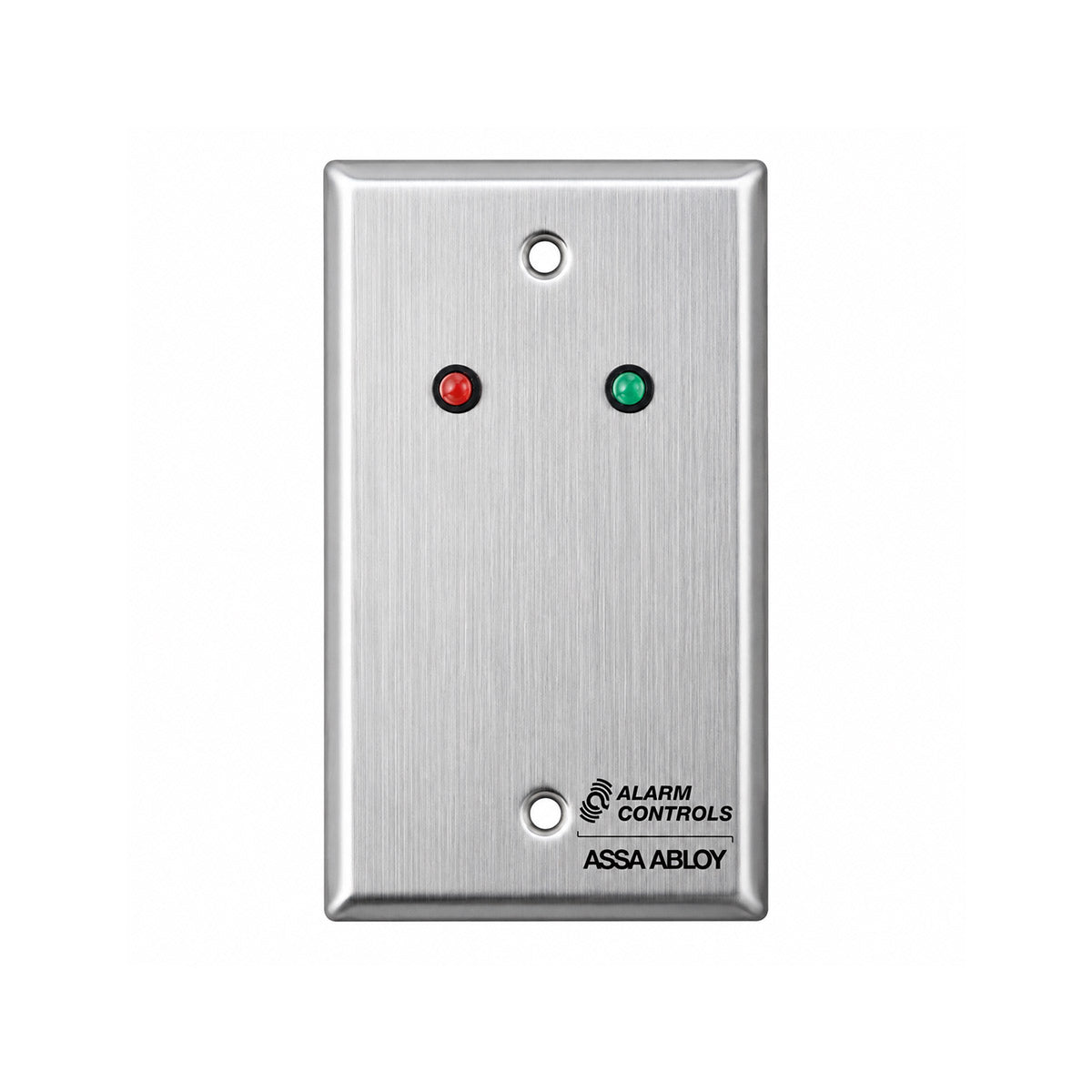

- RP-09 – 1/4" red and green LEDs, horizontally mounted

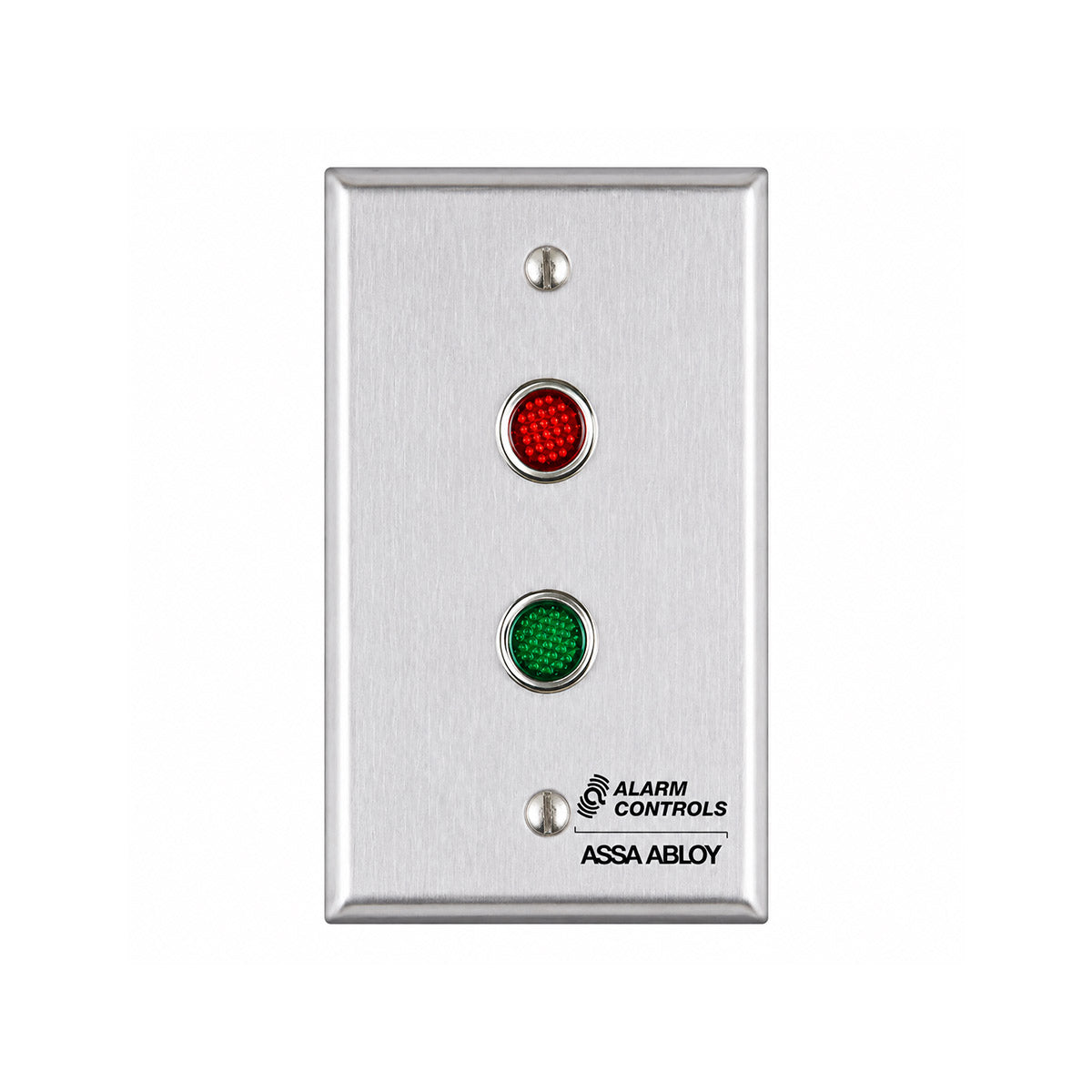

- RP-09L – 1/2" red and green LEDs, vertically mounted
- RP-09SLIMLINE – 1/4" red and green LEDs on a 1-1/2" wall plate
- RP-09LSLIMLINE – 1/2" red and green LEDs on a 1-1/2" wall plate

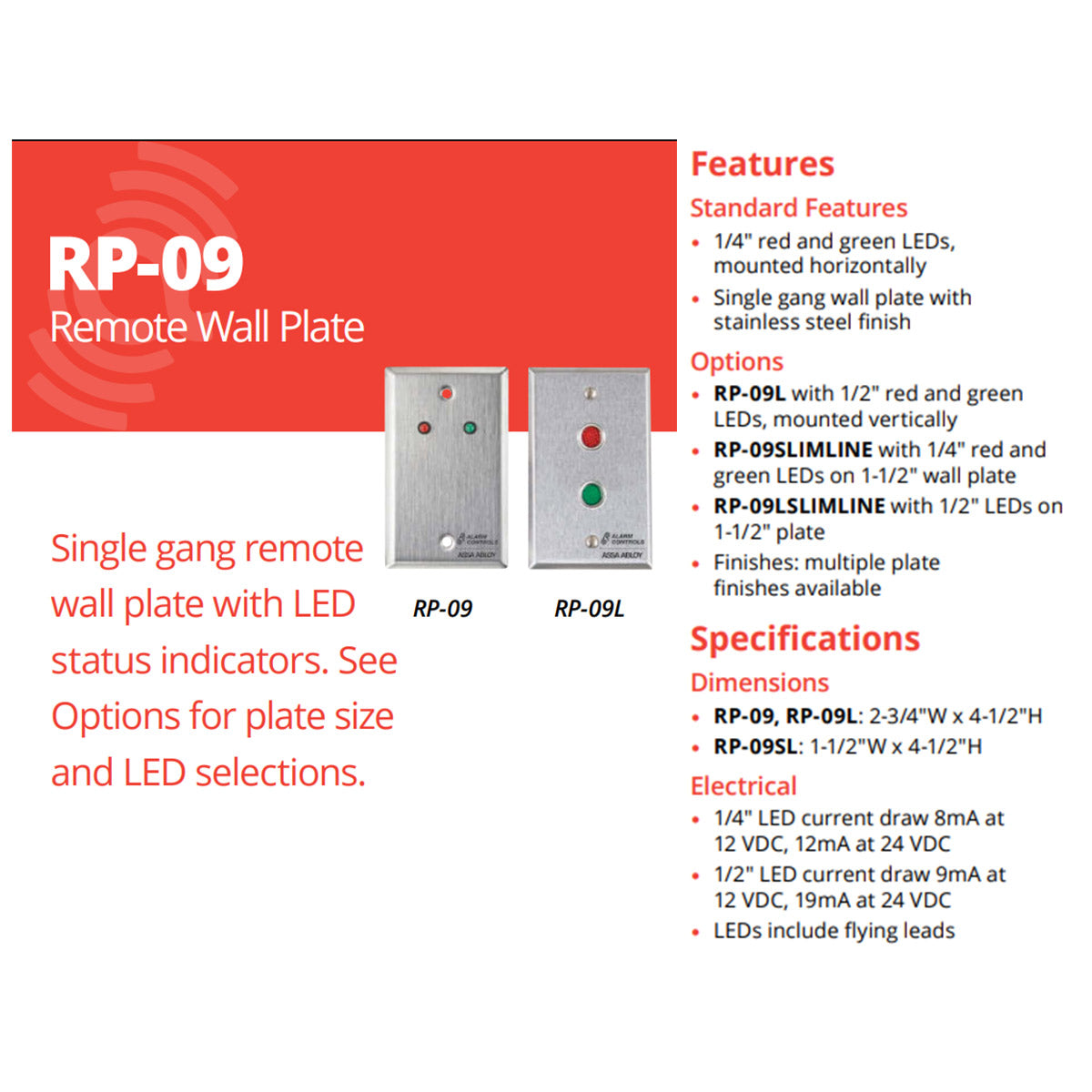

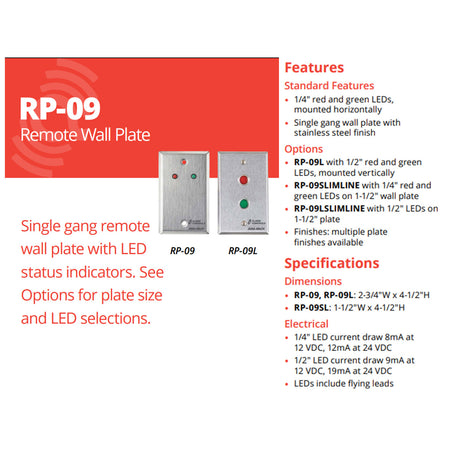

Specifications
Dimensions
- RP-09 / RP-09L: 2-3/4"W x 4-1/2"H
- RP-09SLIMLINE / RP-09LSLIMLINE: 1-1/2"W x 4-1/2"H
Electrical
- 1/4" LED: 8 mA at 12 VDC; 12 mA at 24 VDC
- 1/2" LED: 9 mA at 12 VDC; 19 mA at 24 VDC
- LEDs include flying leads
Applications
The Alarm Controls RP-09 Remote Wall Plate is ideal for access control systems, security applications, door monitoring, remote status indication, and commercial or industrial installations where reliable and highly visible LED indicators are required.
