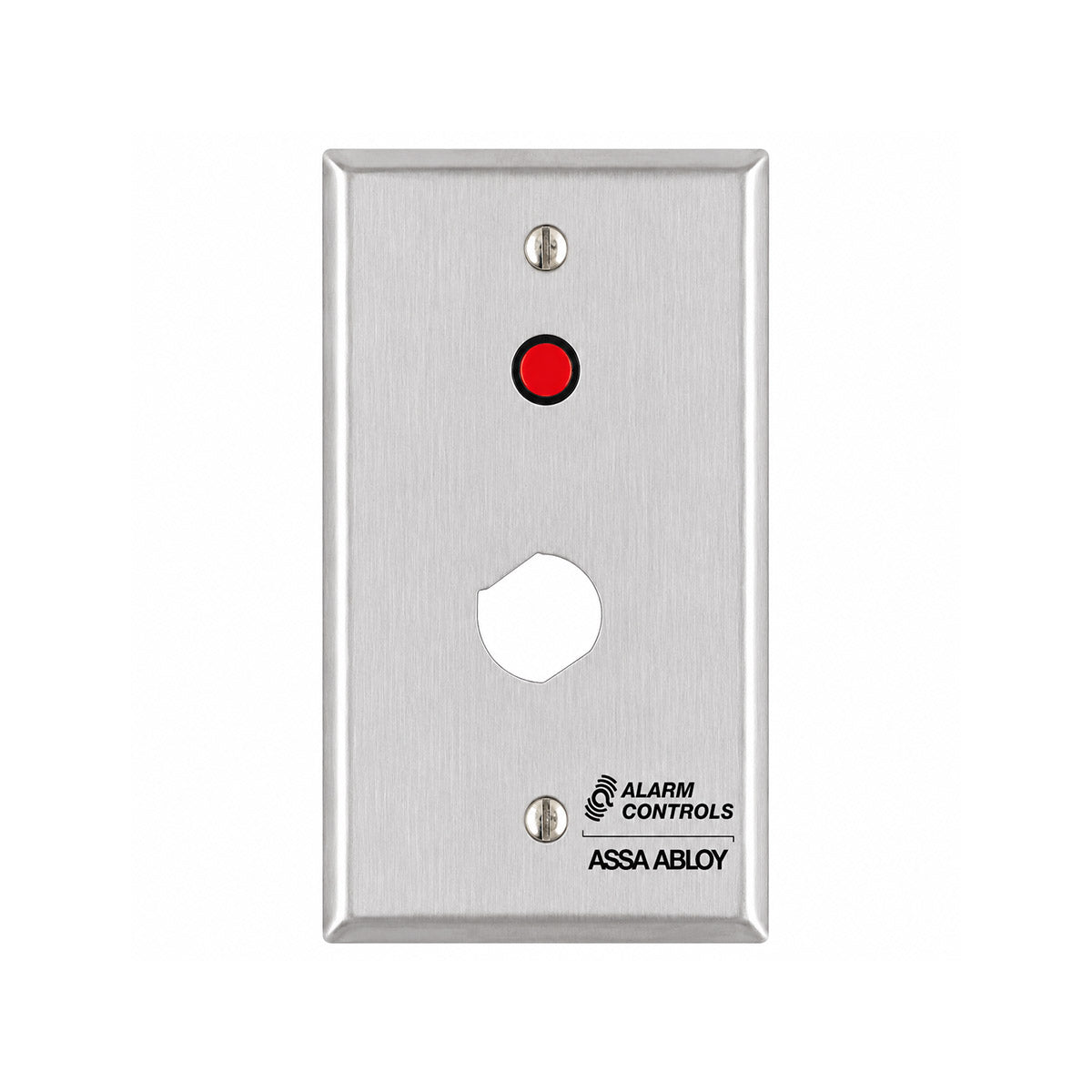

Alarm Controls RP-08 Remote Wall Plate
The Alarm Controls RP-08 Remote Wall Plate is a durable, single-gang remote wall plate designed for access control and remote door release applications. Featuring a double “D” hole for Medeco locks and a highly visible 1/4" red LED status indicator, the RP-08 provides a clean and professional solution for remote key switch installations.
Constructed with a stainless steel finish, the RP-08 is ideal for commercial, industrial, and institutional applications where reliable access control and clear status indication are required. The plate is compatible with Alarm Controls KA-109 and KA-110 key switches for added installation flexibility.
Key Features
- Single-gang remote wall plate
- Durable stainless steel finish
- Double “D” hole for Medeco lock
- 1/4" red LED status indicator
- Compatible with KA-109 and KA-110 key switches
- Multiple plate finishes available
- Includes 6" red and black leads
- Suitable for remote access control and door release applications

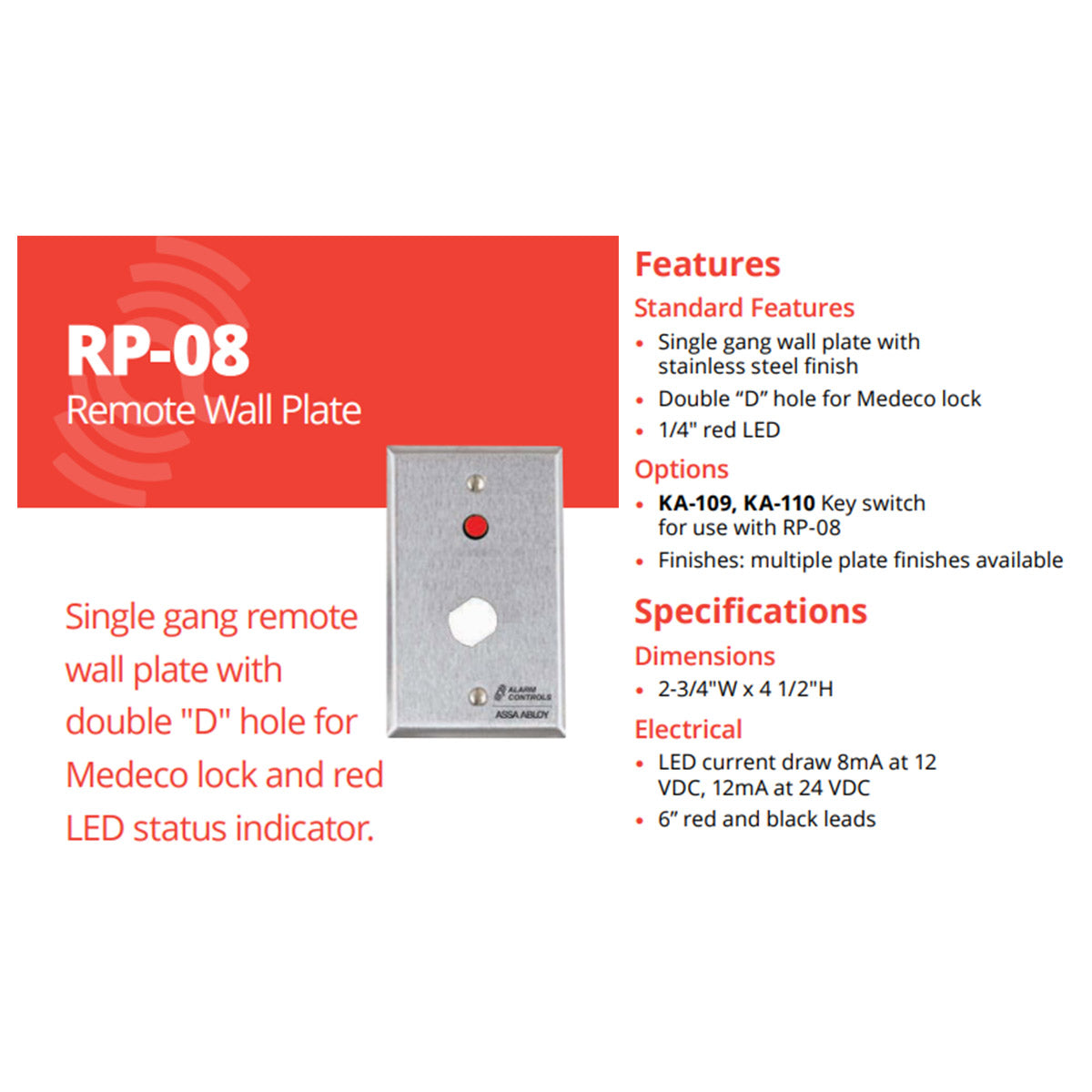

Specifications
Dimensions
- Width: 2-3/4"
- Height: 4-1/2"
Electrical
- LED current draw: 8 mA at 12 VDC
- LED current draw: 12 mA at 24 VDC
- Leads: 6" red and black
Compatible Options
- KA-109 Key Switch
- KA-110 Key Switch
Applications
The Alarm Controls RP-08 is well suited for commercial access control systems, remote door release applications, security systems, and controlled-entry installations requiring a durable wall-mounted key switch plate with visual status indication.
