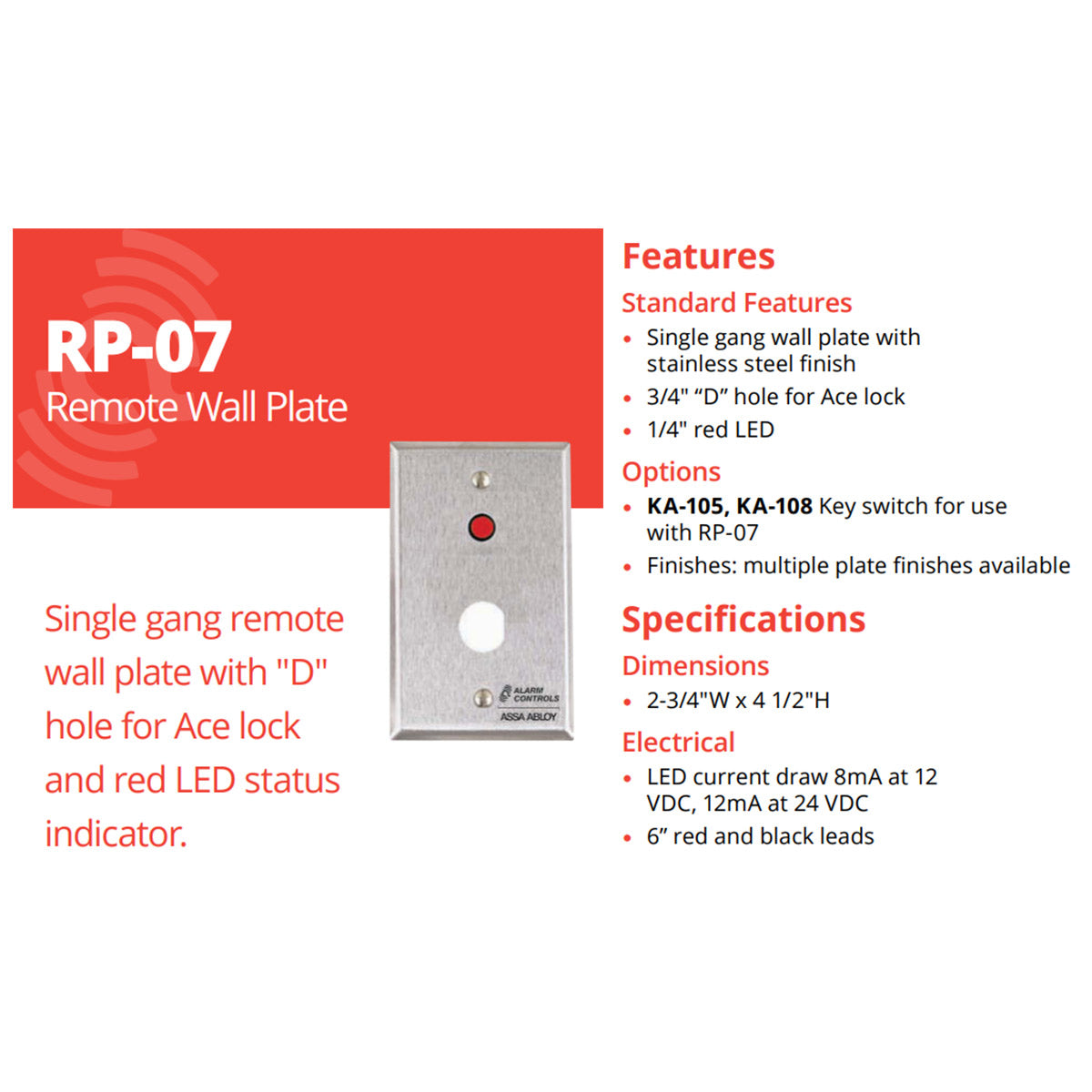

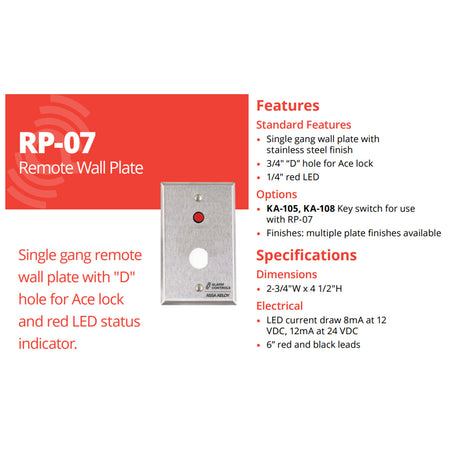

Alarm Controls RP-07 Remote Wall Plate

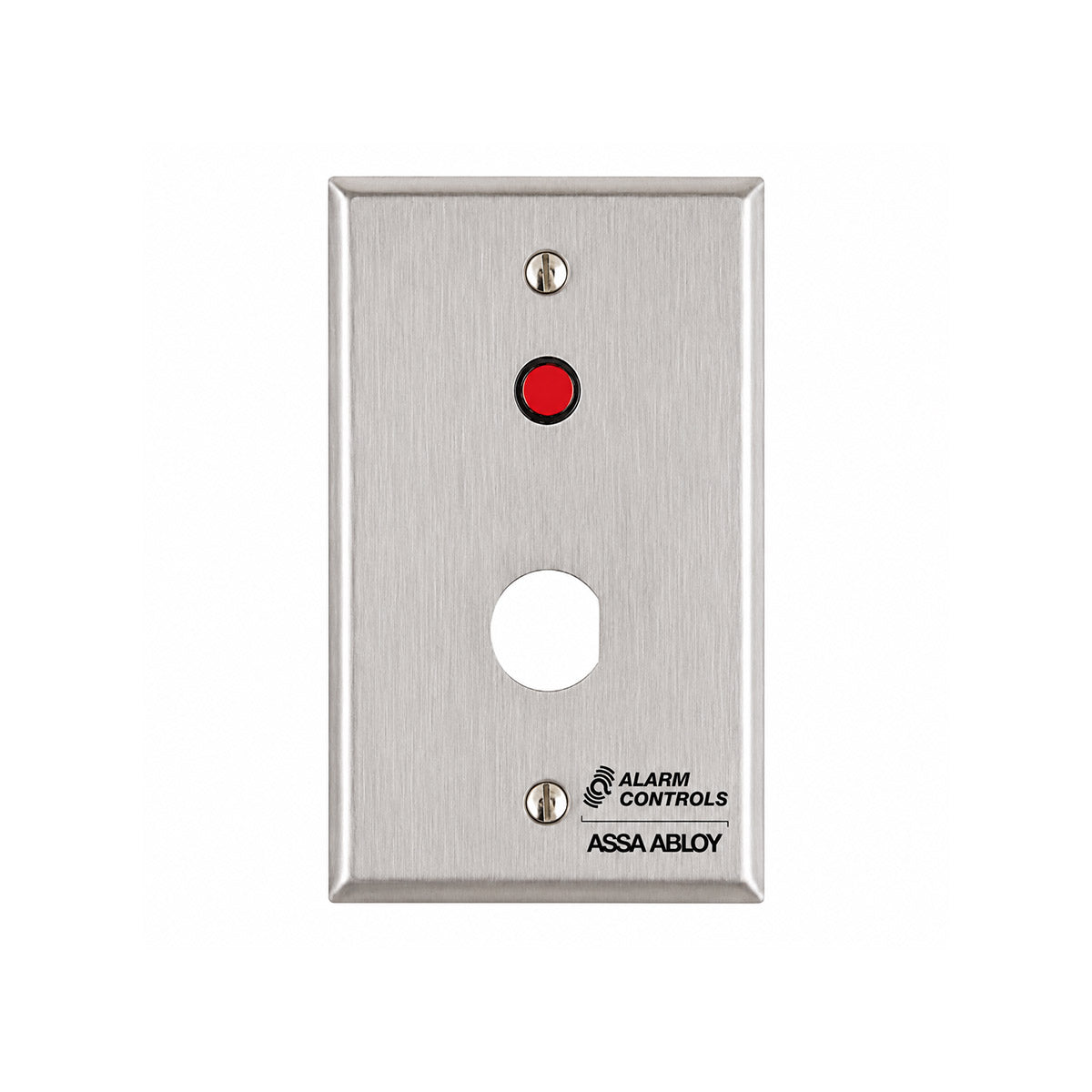

The Alarm Controls RP-07 Remote Wall Plate is a durable, single-gang remote wall plate designed for access control and door release applications. Featuring a 3/4" “D” hole for an Ace lock and a highly visible 1/4" red LED status indicator, the RP-07 provides a clean, professional solution for remote key switch installations.
Constructed with a stainless steel finish, the RP-07 is suitable for commercial, industrial, and institutional access control systems. It is compatible with Alarm Controls KA-105 and KA-108 key switches, providing flexible installation options for a variety of applications.
Key Features
- Single-gang remote wall plate
- Durable stainless steel finish
- 3/4" “D” hole for Ace lock
- 1/4" red LED status indicator
- Compatible with KA-105 and KA-108 key switches
- Multiple plate finishes available
- Supplied with 6" red and black leads
- Ideal for access control and remote door release applications
Specifications
Dimensions
- Width: 2-3/4"
- Height: 4-1/2"
Electrical
- LED current draw: 8 mA at 12 VDC
- LED current draw: 12 mA at 24 VDC
- Leads: 6" red and black
Compatible Options
- KA-105 Key Switch
- KA-108 Key Switch
Applications
The Alarm Controls RP-07 is ideal for commercial access control, remote door release, security systems, and controlled-entry applications where a compact and durable wall-mounted key switch plate is required.
