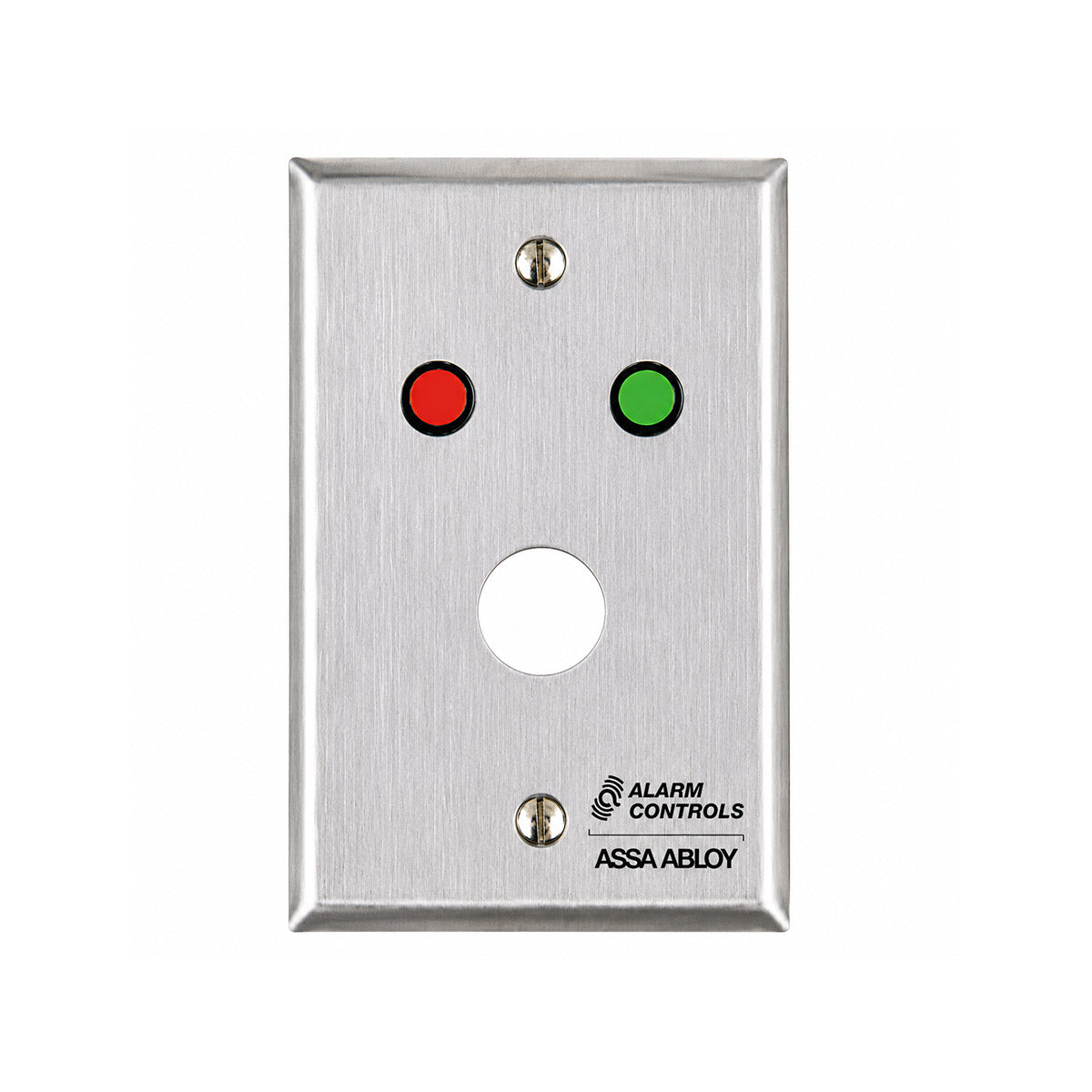

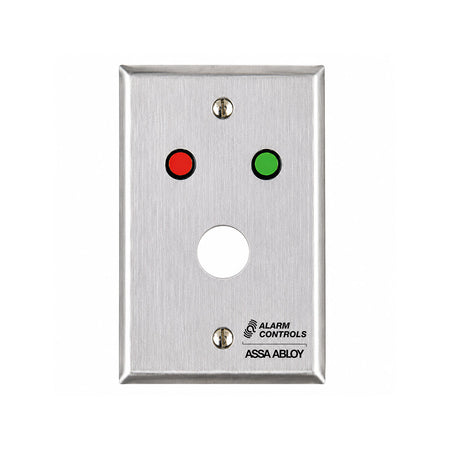

Alarm Controls RP-06 Remote Wall Plate
The Alarm Controls RP-06 Remote Wall Plate is a single gang remote key switch plate designed for access control, security, and remote door release applications. Featuring a durable stainless steel finish, a double “D” hole for a Medeco lock, and red and green LED status indicators, the RP-06 provides a clean and professional solution for controlled-entry installations.
Its compact single gang design is ideal for commercial and industrial applications where reliable key-operated access control and clear visual status indication are required.
Features
- Single gang remote wall plate
- Stainless steel finish
- Double “D” hole for Medeco lock
- 1/4" red and green LED status indicators
- 6" red and black leads
- Compact design for easy installation
- Multiple plate finishes available
Options & Accessories
- KA-109 / KA-110 – Key switches for use with RP-06
- Multiple plate finishes available

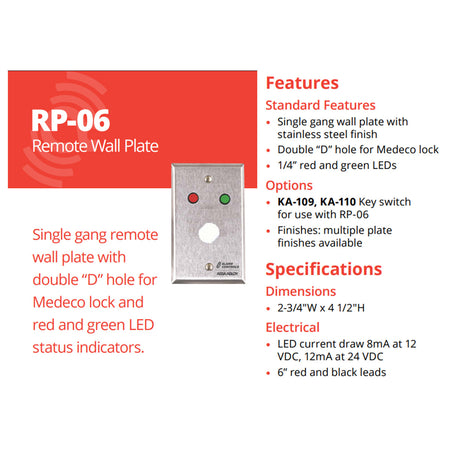

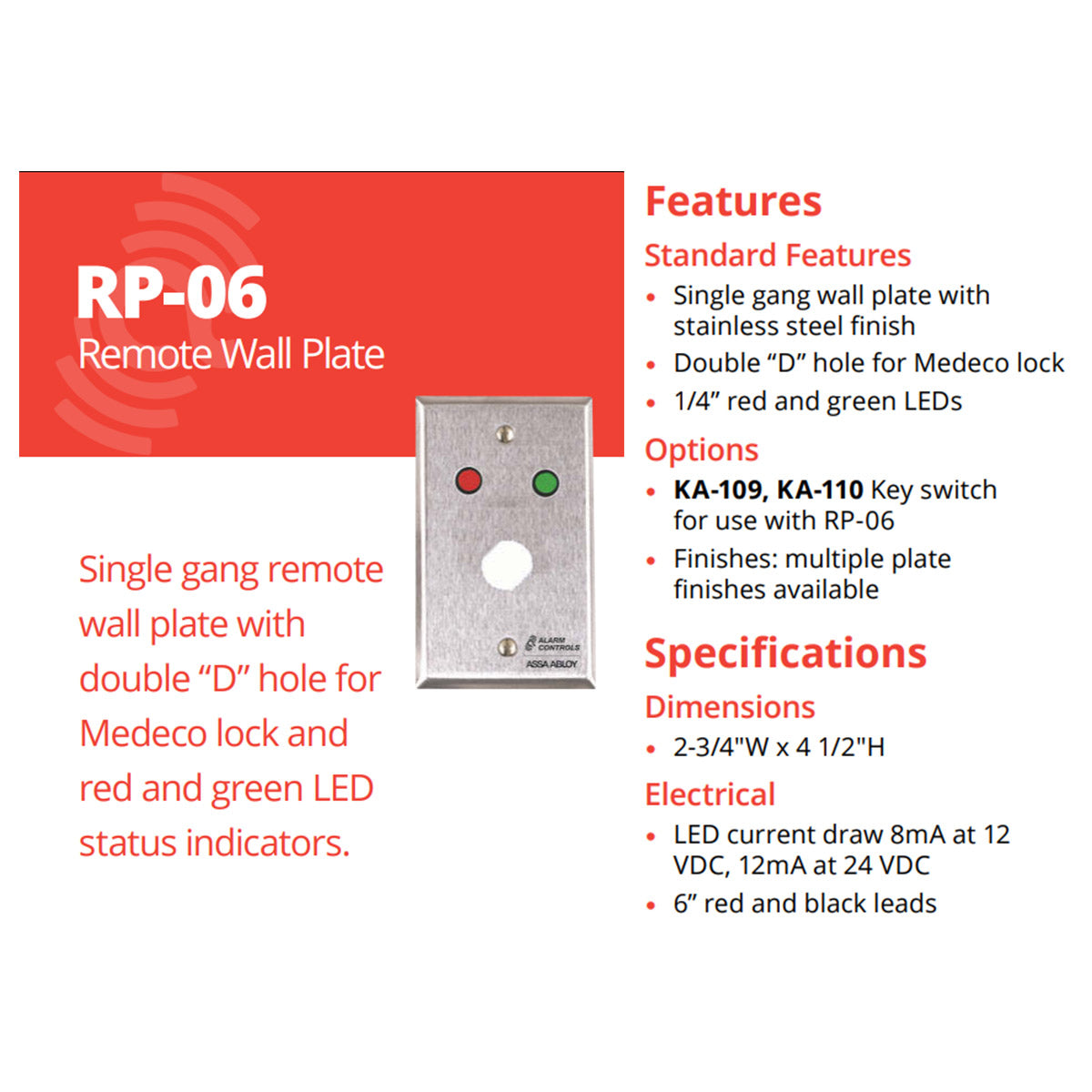

Specifications
| Specification | Details |
|---|---|
| Model | RP-06 |
| Dimensions | 2-3/4"W x 4-1/2"H |
| Plate Type | Single gang |
| Standard Finish | Stainless steel |
| Lock Hole | Double “D” hole for Medeco lock |
| LED Indicators | 1/4" red and green |
| LED Current Draw | 8 mA @ 12 VDC; 12 mA @ 24 VDC |
| Leads | 6" red and black |
Applications
The Alarm Controls RP-06 is ideal for commercial access control systems, security doors, remote door release, restricted-entry areas, and industrial installations requiring a Medeco-compatible key switch plate with visual status indicators.
Professional Key Switch Access Control
The RP-06 Remote Wall Plate combines a durable stainless steel faceplate with a Medeco-compatible double “D” opening and dual LED indicators. Its compact single gang design makes it a practical choice for professional access control and security installations.
