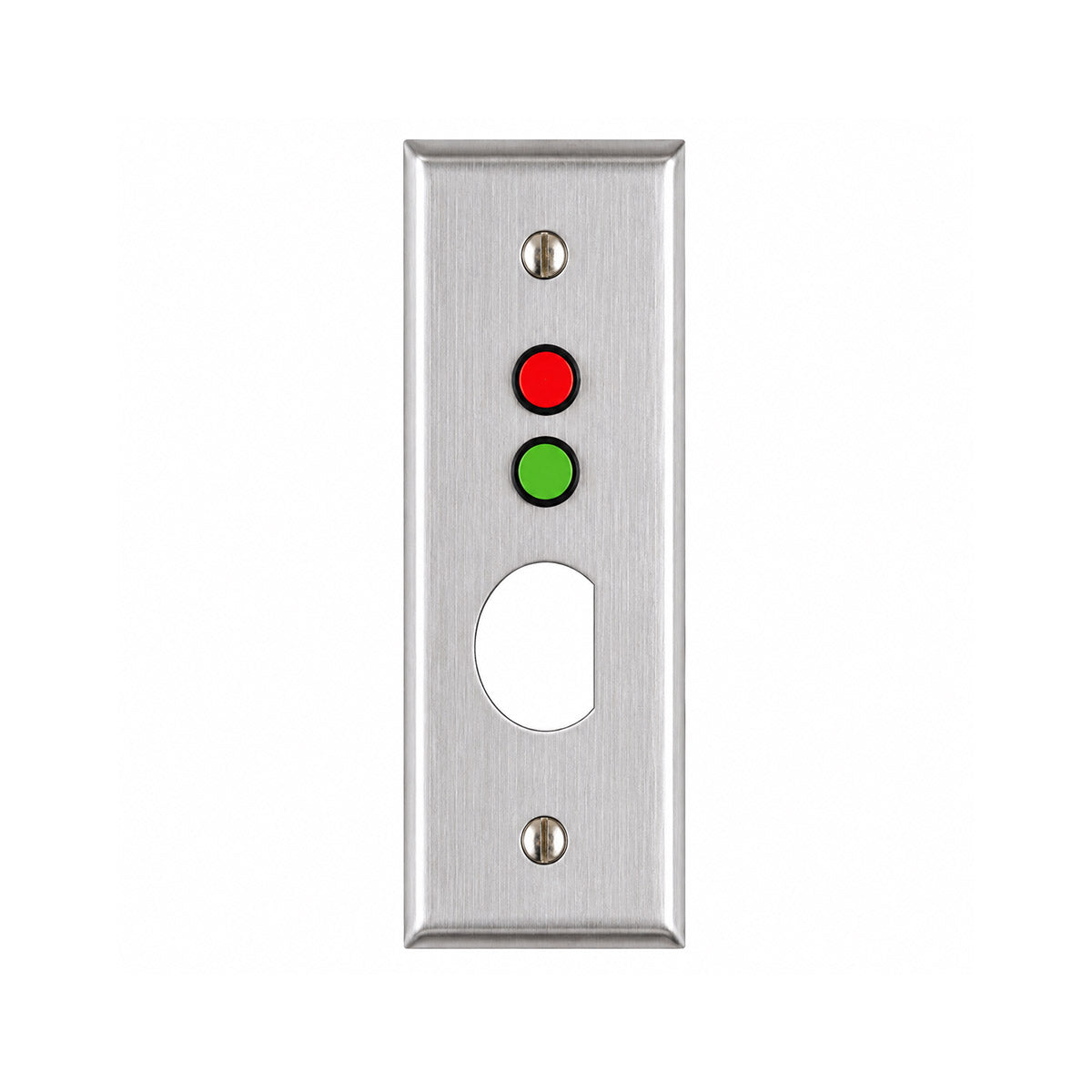

The Alarm Controls RP-03 Remote Key Switch Plate is a slimline remote key switch station designed for secure access control, door release, and security applications. The compact 1-1/2" stainless steel faceplate features a 3/4" “D” hole for an Ace lock, dual red and green LED status indicators, and a normally closed (N/C) tamper switch for added security.
Designed for a clean, professional installation, the RP-03 combines a durable stainless steel front plate with an aluminum back plate. Multiple key switch, tamper switch, and mounting options are available to accommodate different access control requirements.
Features
- Slimline 1-1/2" stainless steel front plate
- Aluminum back plate for durability
- 3/4" “D” hole for Ace lock
- Red and green 1/4" LED status indicators
- Built-in N/C tamper switch
- Compact design for space-conscious installations
- 6" red and black leads
- Suitable for access control and remote door release applications
Options & Accessories
- RP-03M – 3/4" double “D” hole for Medeco lock with N/C tamper switch
- RP-03A – N/O tamper switch
- RP-03MA – 3/4" double “D” hole for Medeco lock with N/O tamper switch
- KA-105, KA-108 – Key switches for use with RP-03
- KA-109, KA-110 – Key switches for M version
- RP-03SG – Single gang version
- 426 – Back box
- Custom screening available

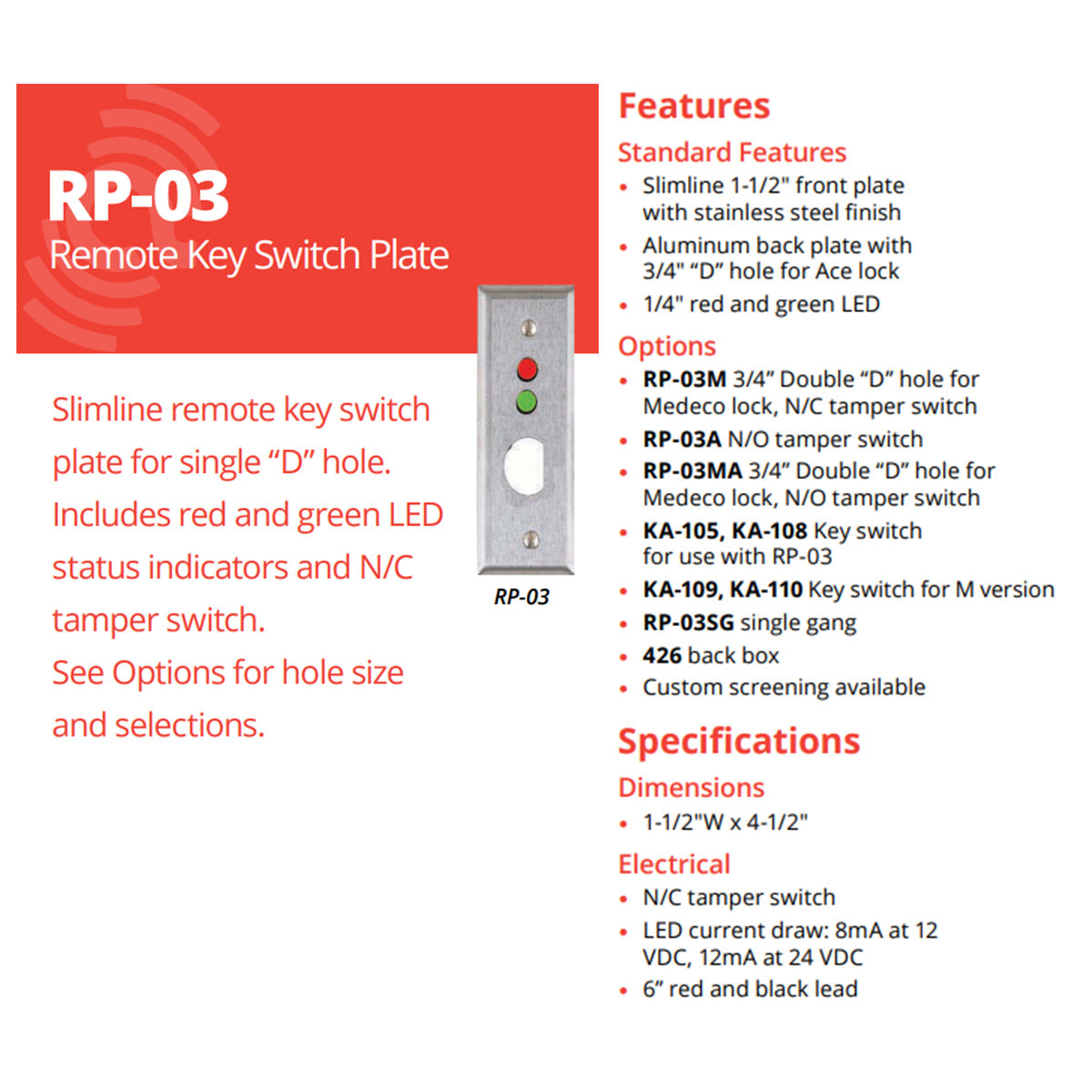

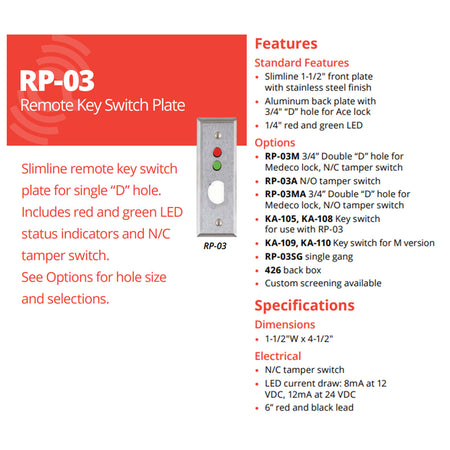

Specifications
| Specification | Details |
|---|---|
| Model | RP-03 |
| Dimensions | 1-1/2"W x 4-1/2"H |
| Front Plate | Stainless steel |
| Back Plate | Aluminum |
| Lock Hole | 3/4" “D” hole for Ace lock |
| LED Indicators | 1/4" red and green |
| Tamper Switch | N/C standard |
| LED Current Draw | 8 mA @ 12 VDC; 12 mA @ 24 VDC |
| Leads | 6" red and black |
Applications
The Alarm Controls RP-03 is ideal for commercial access control systems, security doors, remote door release, restricted-entry areas, and industrial installations requiring a compact key switch station with visual status indication and tamper protection.
Reliable Slimline Access Control
The RP-03 provides a professional and space-saving solution for remote key switch applications. With dual LED indicators, a stainless steel faceplate, tamper protection, and multiple configuration options, it offers the flexibility needed for a wide range of commercial and security installations.
