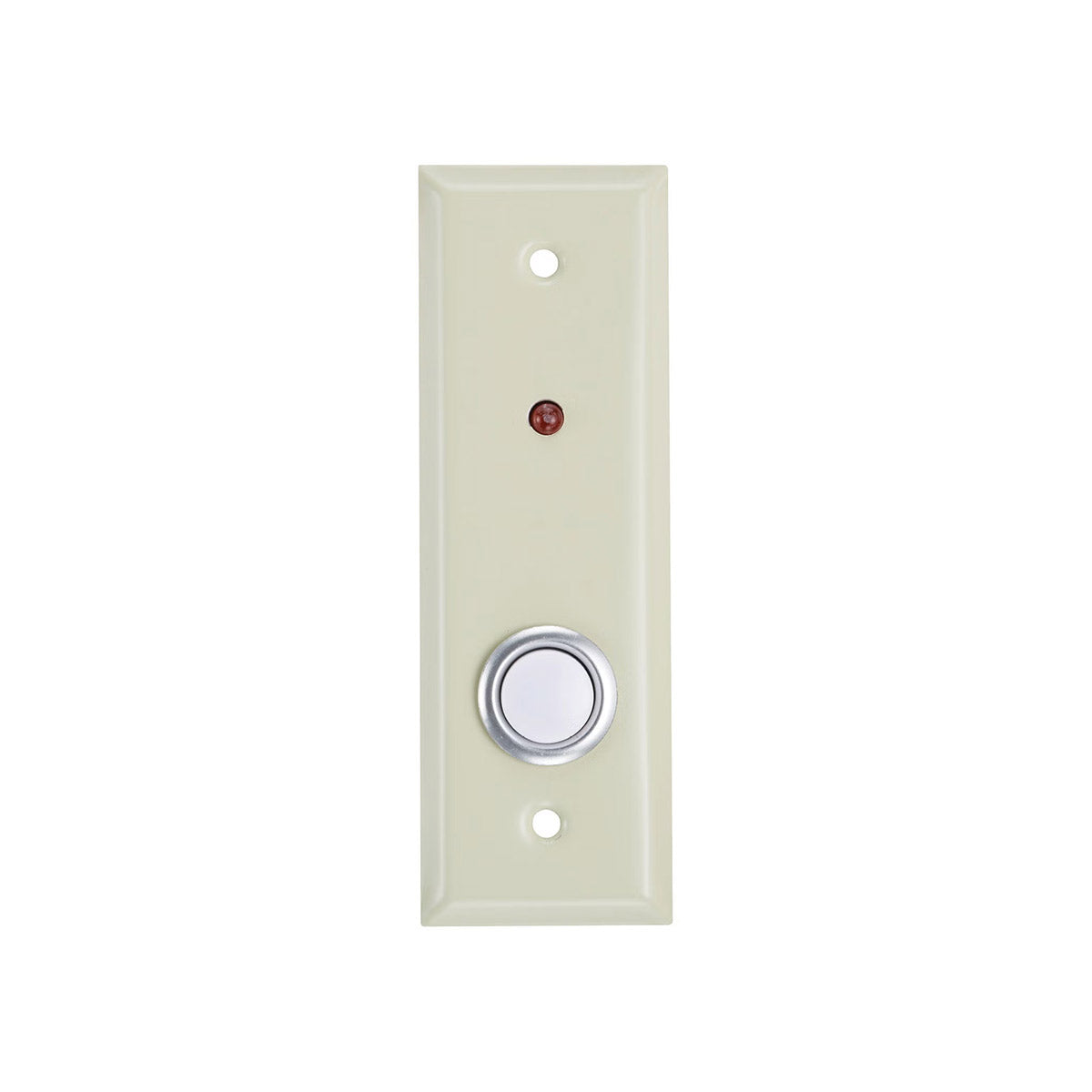

The Alarm Controls RP-02 Remote Key Switch Plate is a slimline remote control station designed for convenient access control and door release applications. Featuring a compact 1-1/2" ivory-finished faceplate, white flush push button, and red LED status indicator, the RP-02 provides a clean, professional appearance for commercial, industrial, and access control installations.
Its slim profile makes it ideal for installations where space is limited, while the integrated LED provides clear visual status indication. The RP-02 includes an aluminum back plate and is supplied with 6" red and black leads for straightforward wiring.
Features
- Slimline 1-1/2" front plate with ivory finish
- White flush push button for discreet operation
- 1/4" red LED status indicator
- Durable aluminum back plate
- Normally Open (N/O) push button
- Compact design for space-conscious installations
- 6" red and black wire leads
- Suitable for access control and remote door release applications
Options & Accessories
- RP-02SS – Stainless steel front plate finish
- 426 – Back box
- 450 – Replacement push button
- Custom screening available

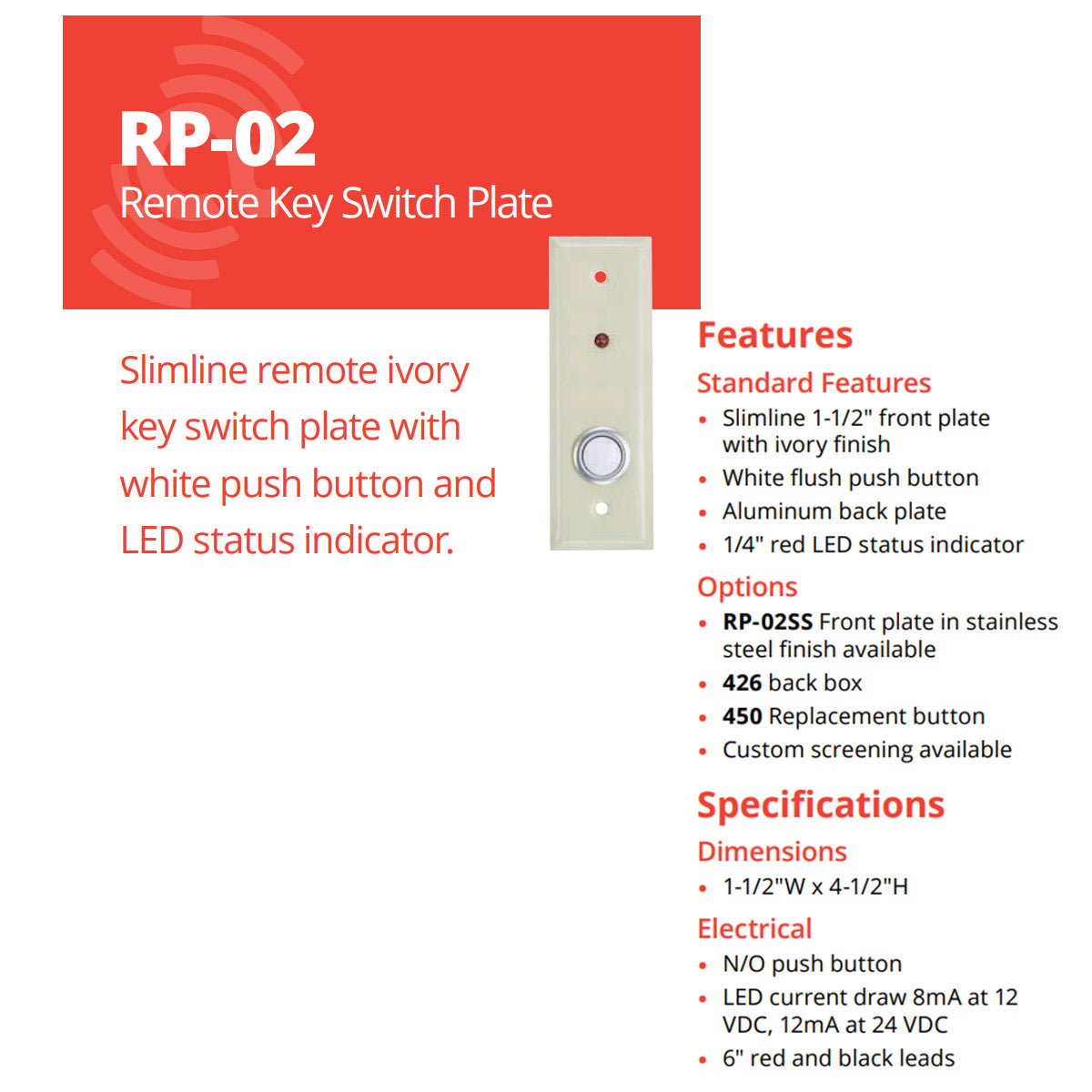

Specifications
| Specification | Details |
|---|---|
| Model | RP-02 |
| Dimensions | 1-1/2"W x 4-1/2"H |
| Faceplate Finish | Ivory |
| Push Button | White, flush, N/O |
| LED Indicator | 1/4" red |
| LED Current Draw | 8 mA @ 12 VDC; 12 mA @ 24 VDC |
| Back Plate | Aluminum |
| Leads | 6" red and black |
| Stainless Steel Option | RP-02SS |
Applications
The Alarm Controls RP-02 is well suited for access control systems, remote door release, request-to-exit applications, commercial doors, security systems, and controlled-entry installations where a compact remote switch station is required.
Why Choose the RP-02?
With its slimline design, flush push button, and highly visible LED status indicator, the RP-02 combines convenient operation with a clean, professional installation. The optional stainless steel faceplate and available back box provide additional flexibility for different installation requirements.
