Alarm Controls PN, PT, PS & PD Series Vandal Resistant Push Plates

$ 0.00

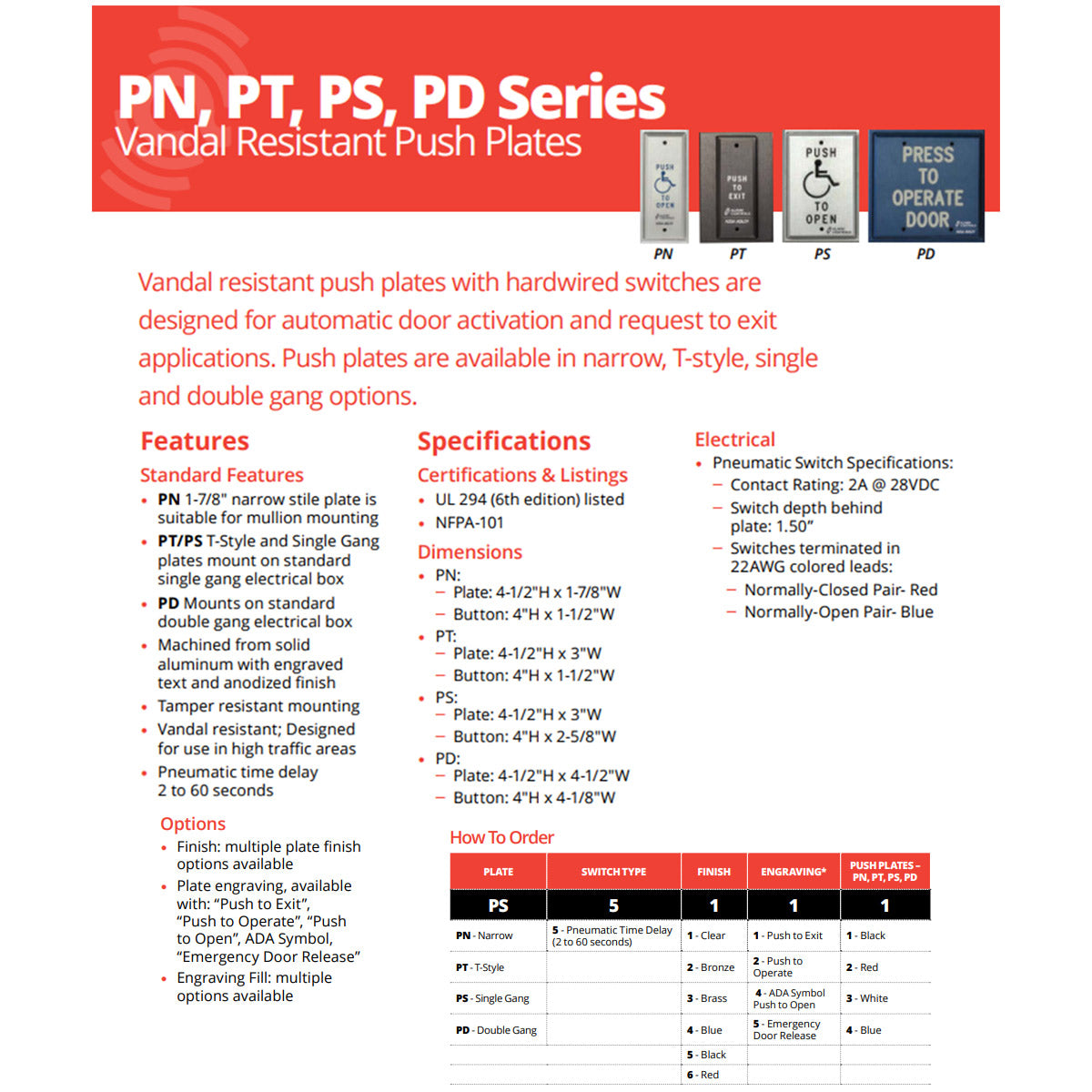

Alarm Controls PN, PT, PS & PD Series Vandal Resistant Push Plates

The Alarm Controls PN, PT, PS, and PD Series Vandal Resistant Push Plates are heavy-duty activation devices designed for automatic door operators, request-to-exit systems, and access control applications. Constructed from solid anodized aluminum with engraved text, these durable push plates are built to withstand high-traffic environments while providing reliable, long-lasting performance.

Available in narrow stile, T-style, single gang, and double gang configurations, the PN, PT, PS, and PD Series accommodate a wide variety of installation requirements. Each push plate features a built-in pneumatic time delay adjustable from 2 to 60 seconds, allowing doors to remain activated for a controlled period without requiring electrical timing circuits.

Ideal for commercial buildings, healthcare facilities, schools, retail stores, and ADA-compliant entrances, these vandal-resistant push plates combine rugged construction with flexible mounting options and customizable engraving.

Key Features

  • Heavy-duty vandal-resistant push plate for automatic door activation
  • Ideal for request-to-exit (REX) and automatic door operator applications
  • Machined from solid aluminum with durable anodized finish
  • Engraved lettering for long-lasting visibility
  • Tamper-resistant mounting hardware
  • Built-in pneumatic time delay adjustable from 2–60 seconds
  • Designed for high-traffic commercial environments
  • Available in multiple plate finishes
  • Multiple engraving and engraving fill options available

Available Models

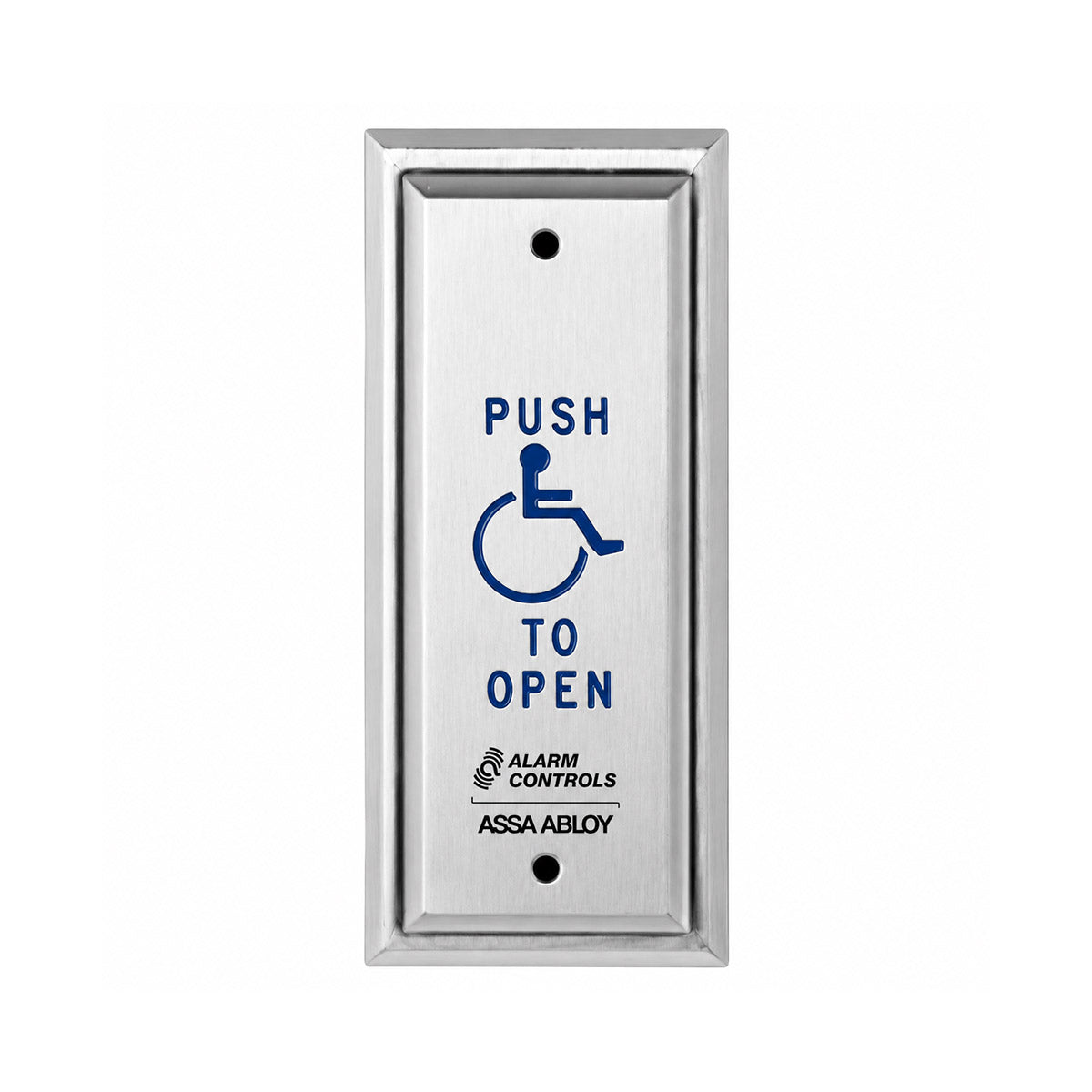

PN Series – Narrow Stile

  • 1-7/8" narrow stile plate
  • Ideal for mullion mounting

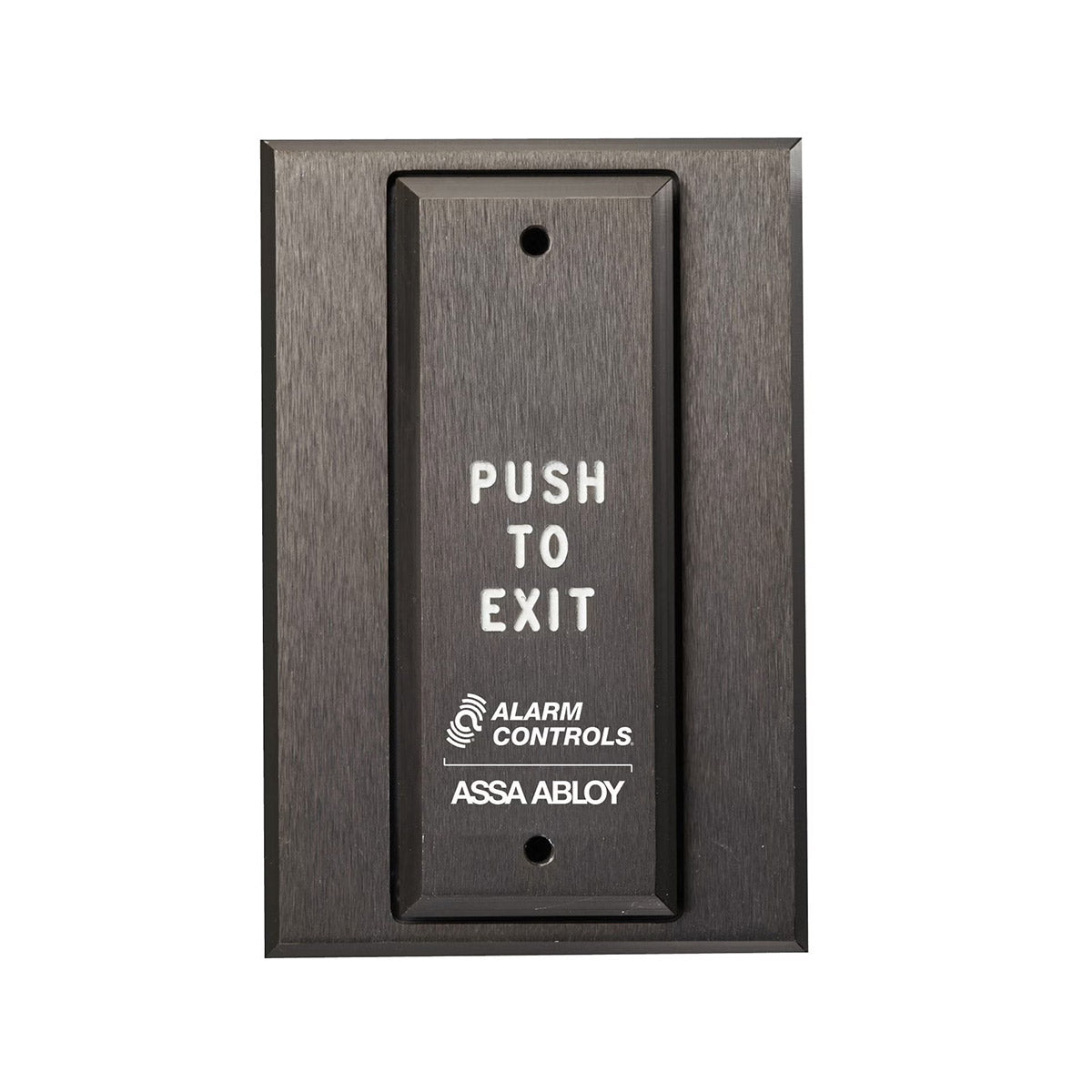

PT Series – T-Style

  • Mounts to a standard single gang electrical box

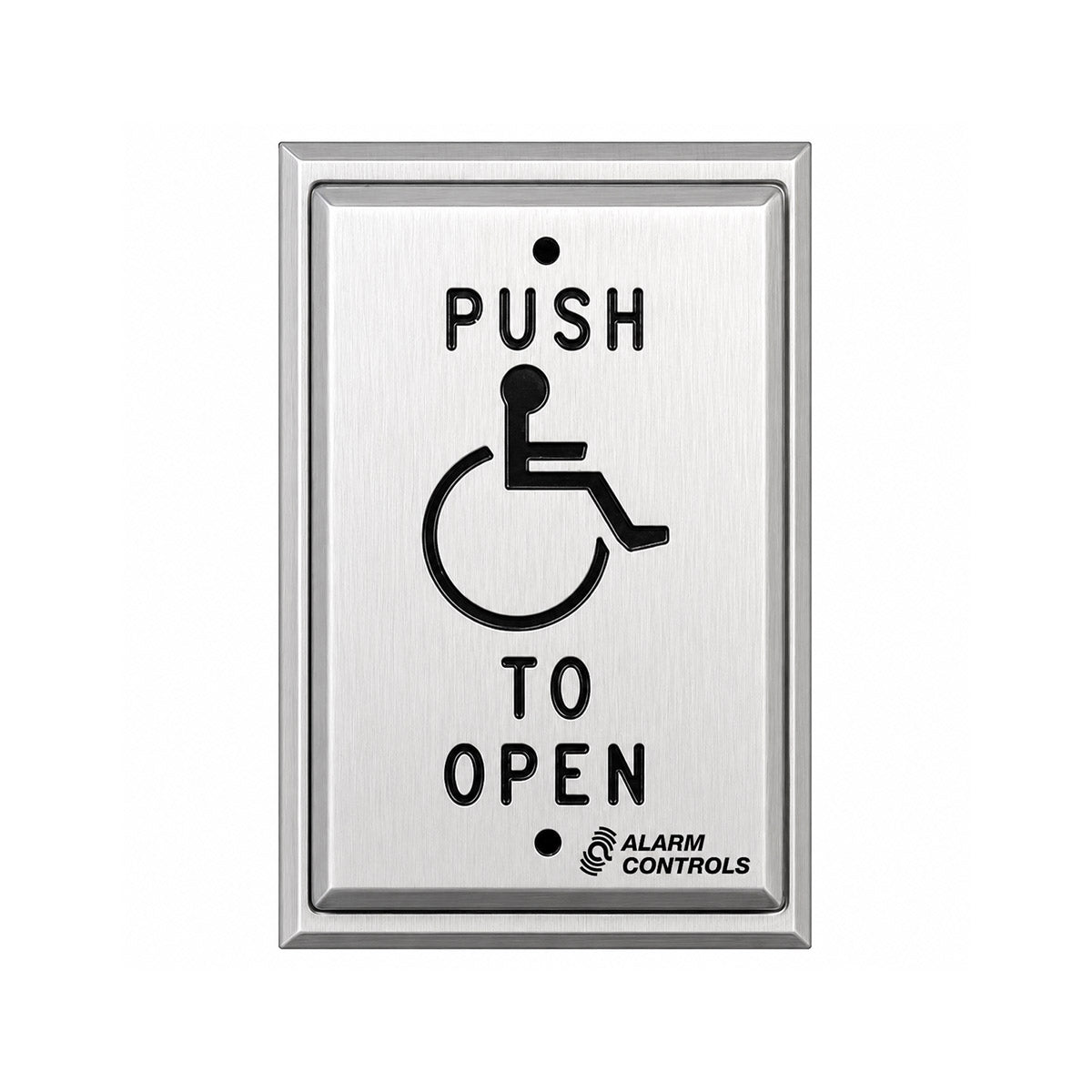

PS Series – Single Gang

  • Mounts to a standard single gang electrical box

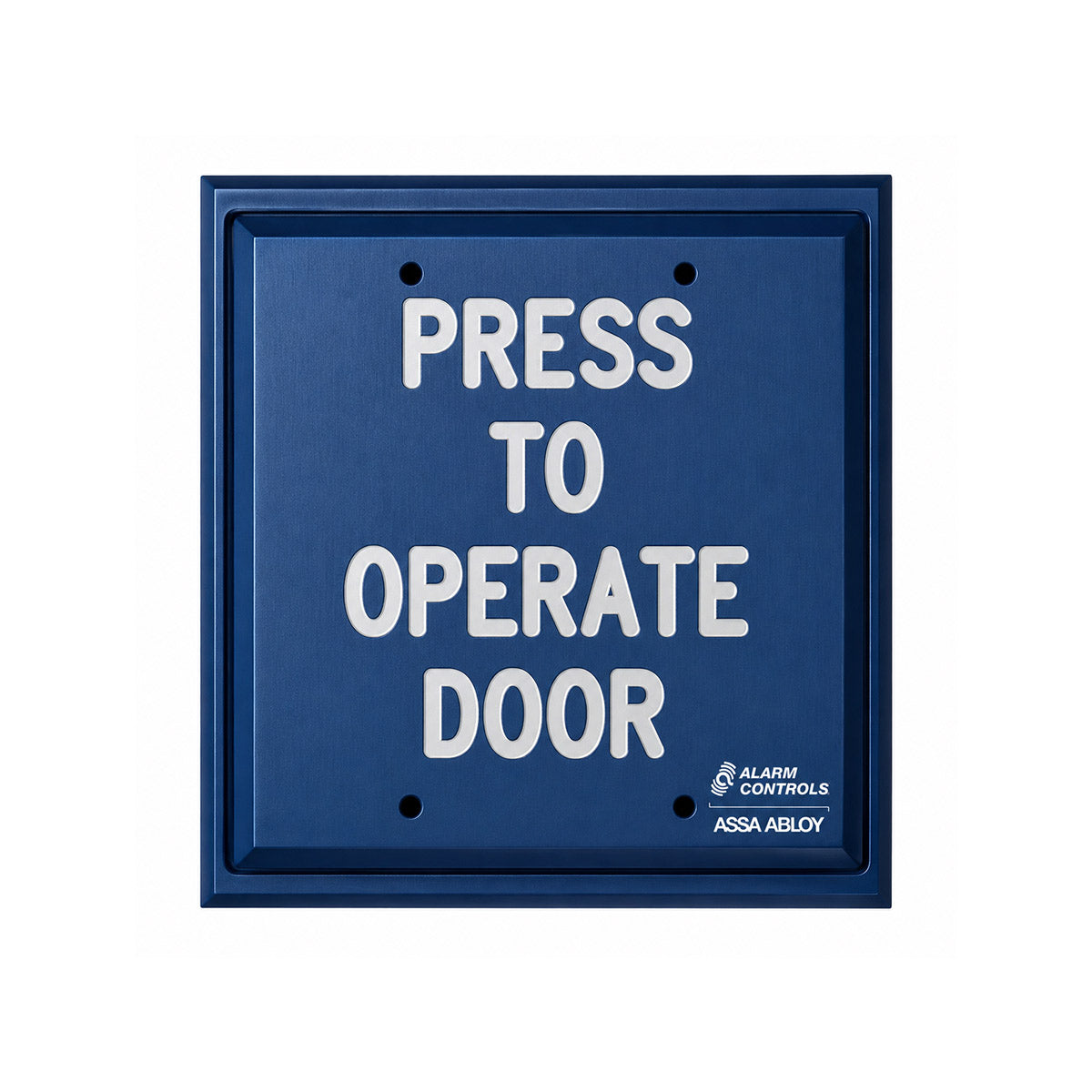

PD Series – Double Gang

  • Mounts to a standard double gang electrical box

Available Engraving Options

Choose from a variety of factory-engraved legends, including:

  • Push to Exit
  • Push to Operate
  • Push to Open
  • ADA Symbol
  • Emergency Door Release

Custom engraving fill colors and multiple plate finish options are also available.

Specifications

Certifications & Listings

  • UL 294 (6th Edition) Listed
  • Complies with NFPA 101

Electrical

Pneumatic Switch Specifications

  • Contact Rating: 2A @ 28 VDC
  • Switch depth behind plate: 1.50"
  • 22 AWG color-coded leads:
    • Normally Closed (N/C): Red
    • Normally Open (N/O): Blue

Dimensions

PN Series

  • Plate: 4-1/2" H × 1-7/8" W
  • Button: 4" H × 1-1/2" W

PT Series

  • Plate: 4-1/2" H × 3" W
  • Button: 4" H × 1-1/2" W

PS Series

  • Plate: 4-1/2" H × 3" W
  • Button: 4" H × 2-5/8" W

PD Series

  • Plate: 4-1/2" H × 4-1/2" W
  • Button: 4" H × 4-1/8" W

Ideal Applications

The Alarm Controls PN, PT, PS, and PD Series are ideal for:

  • Automatic door operators
  • ADA-compliant entrances
  • Request-to-exit (REX) systems
  • Access control installations
  • Healthcare facilities
  • Schools and universities
  • Office buildings
  • Retail stores
  • Government facilities
  • High-traffic commercial entrances

Why Choose the Alarm Controls PN, PT, PS & PD Series?

Designed for durability and dependable operation, the PN, PT, PS, and PD Series provide a reliable solution for automatic door activation and request-to-exit applications. Their vandal-resistant solid aluminum construction, adjustable pneumatic time delay, tamper-resistant mounting, and multiple size and engraving options make them an excellent choice for demanding commercial environments.
DESCRIPTION TAG: Shop Alarm Controls PN, PT, PS & PD Series Vandal Resistant Push Plates. Solid aluminum construction, pneumatic 2–60 second time delay, tamper-resistant design, UL 294 Listed, and ideal for automatic door and request-to-exit applications.
