Alarm Controls NTS Touchless Request to Exit Station with Wave-to-Open Sensor
The Alarm Controls NTS No Touch Request to Exit Station provides a hygienic, hands-free solution for door egress and access control activation. Using advanced wireless sensing technology, the NTS allows users to unlock doors or activate connected devices with a simple wave of the hand—eliminating the need for physical contact and reducing the risk of cross-contamination.
Designed for healthcare facilities, laboratories, schools, offices, restrooms, and other high-traffic environments, the NTS features a vandal-resistant stainless steel faceplate, adjustable sensing distance, and a bi-color Halo LED for clear visual status indication. Its programmable relay timer and multiple mounting options make it an ideal choice for new installations and retrofit access control systems.
Key Features
- Touchless "Wave to Open" request-to-exit station
- Hygienic, hands-free operation reduces surface contact
- Durable stainless steel vandal-resistant faceplate
- Sensor detection range up to 4 inches
- Bi-color Halo LED status indicators
- Screen printed "Wave To Open"
- Adjustable relay time delay from 1 to 35 seconds
- Operates on 12 VDC or 24 VDC
- Ideal for electromagnetic locks, electric strikes, and automatic door systems

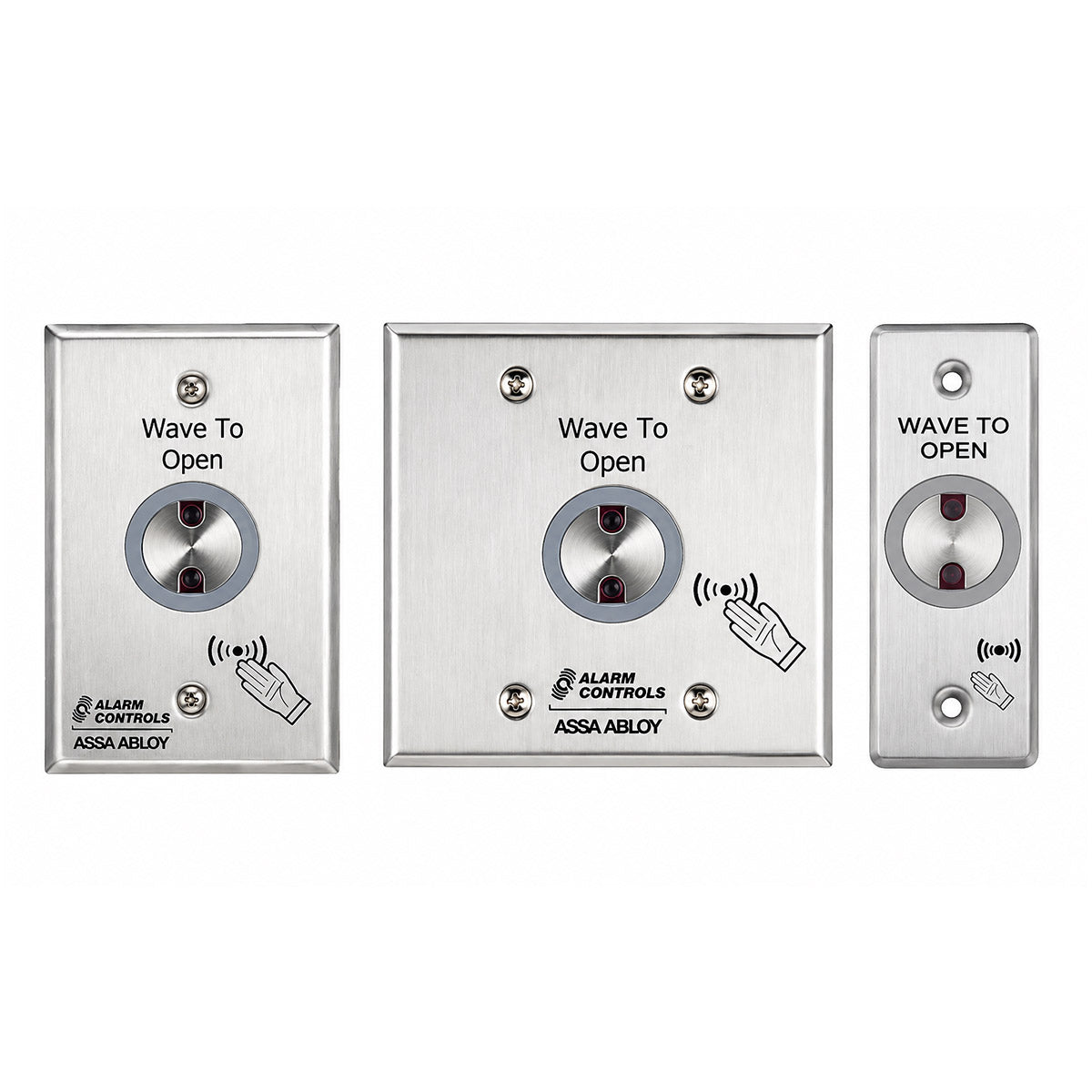

Available Models

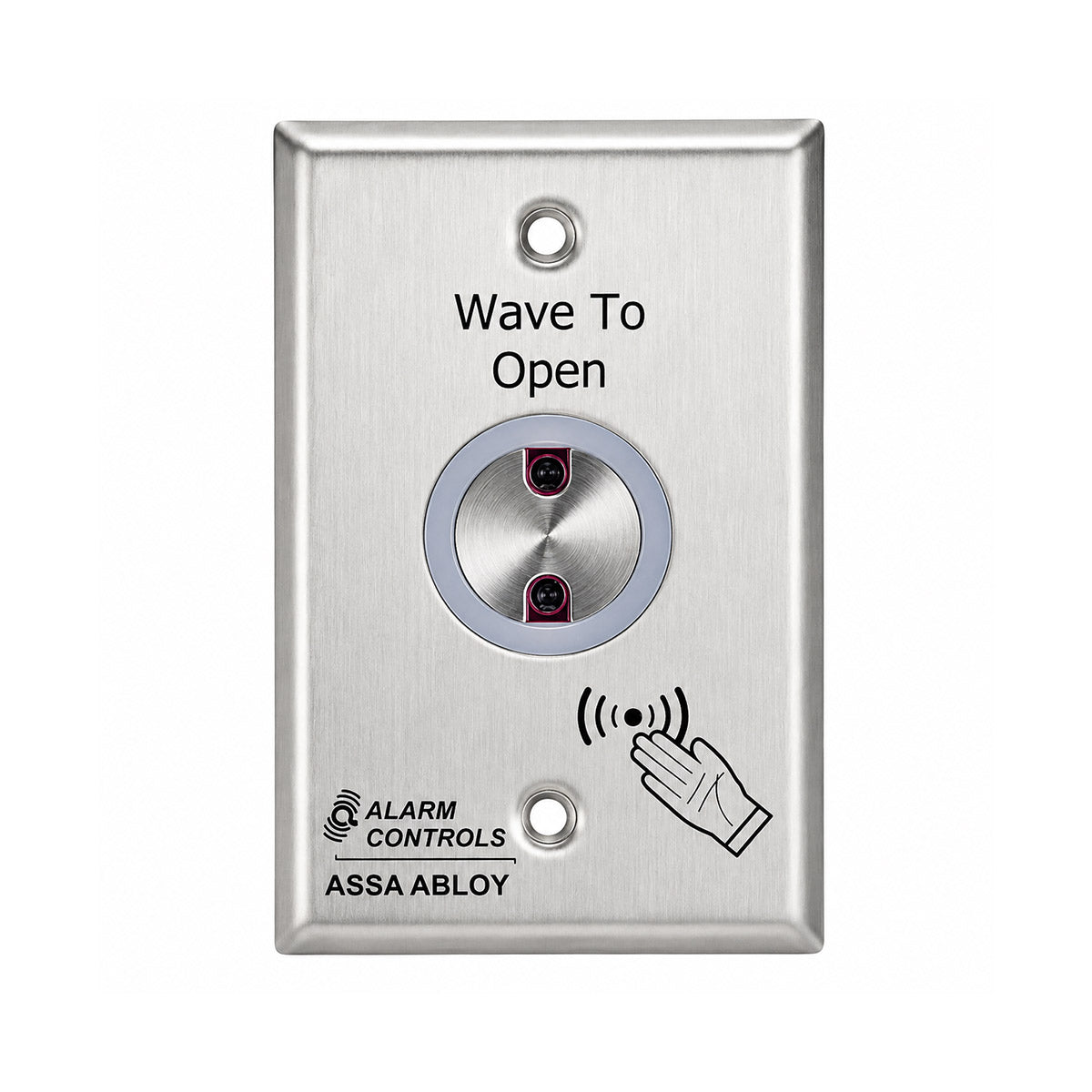

- NTS-1 – Single gang wall plate (4.5" H × 2.75" W)
- NTS-2 – Double gang wall plate (4.5" H × 4.5" W)

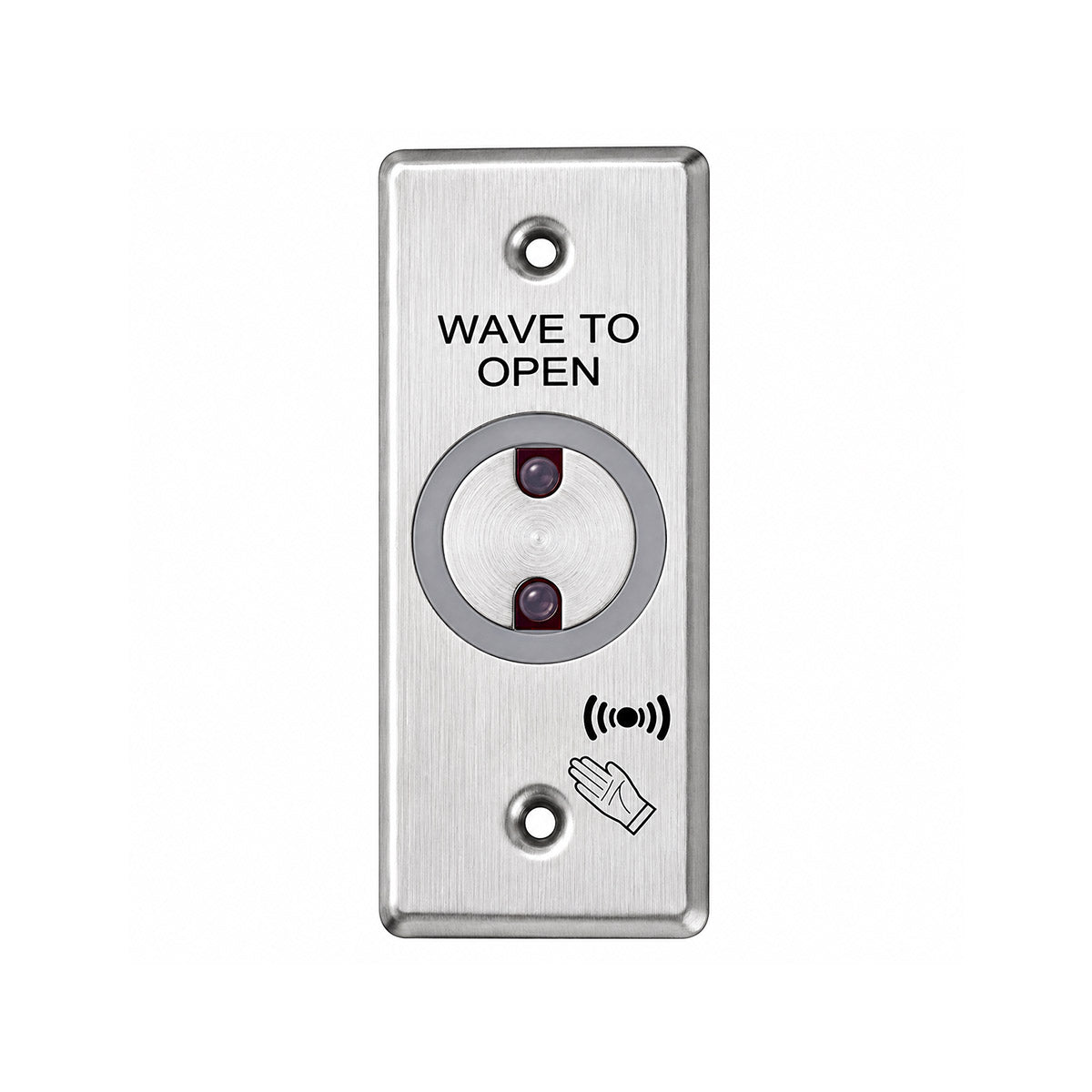

- NTS-3 – Narrow stile wall plate (4.5" H × 1.75" W)
Available Accessories (Sold Separately)
- SMB-01 / SMB-01A – Single gang surface mounting box
- SMB-3 / SMB-3D – Narrow stile surface mounting box
- 30203 – Single gang weather-resistant surface mount back box
Specifications
Certifications & Listings
- CE Certified
Electrical
- Operating Voltage: 12 VDC or 24 VDC
- SPDT relay rated 2A at 30 VDC/VAC
Operating Temperature
- -13°F to 131°F (-25°C to 55°C)
Ideal Applications
- Hospitals and healthcare facilities
- Medical clinics and laboratories
- Public restrooms
- Schools and universities
- Office buildings
- Clean rooms
- Commercial access control systems
- Automatic door operators
- Retail and hospitality facilities
Why Choose the Alarm Controls NTS?
The Alarm Controls NTS No Touch Request to Exit Station delivers reliable touch-free operation while helping maintain cleaner, safer environments. With its adjustable sensing range, vandal-resistant construction, Halo LED status indicators, and flexible mounting options, the NTS is an excellent solution for modern access control systems where convenience, hygiene, and durability are essential.
