Alarm Controls NTB Series Battery Powered No Touch Request to Exit Stations
Upgrade your access control system with the Alarm Controls NTB Series Battery Powered No Touch Request to Exit Stations, a hygienic, touch-free solution designed for modern commercial, healthcare, educational, and public facilities. Using advanced infrared sensing technology, the NTB Series activates door release with a simple wave of the hand, eliminating the need for physical contact while providing reliable, code-compliant egress.
Designed as a direct replacement for traditional request-to-exit push buttons, the NTB Series installs using existing wiring, making it an affordable and convenient upgrade for both new and retrofit applications. Battery-powered operation offers maximum installation flexibility, while an optional 12/24 VDC hardwired power input is available for continuous operation.
Ideal for swinging and sliding door applications, the vandal-resistant stainless steel faceplate, adjustable activation settings, and field-configurable LED indicators make the NTB Series a dependable solution for demanding commercial environments.
Key Features
- Touch-free infrared activation with a simple hand wave
- Battery powered for easy installation (2 AA alkaline batteries included)
- Optional 12 or 24 VDC hardwired power input
- Direct replacement for traditional request-to-exit push buttons
- Stainless steel vandal-resistant faceplate
- Adjustable sensor detection range up to 4 inches for precise activation
- Built-in obstruction detection for reliable operation
- Field-configurable bi-color (red/green) LED status indicators
- Adjustable relay time delay from 1–10 seconds
- Selectable audible tones (enable/disable via jumper)
- Wired communication for dependable performance
- Plate engraved with "WAVE TO OPEN"
- Compatible with swinging and sliding door applications
- Low battery LED status indicator
Available Models

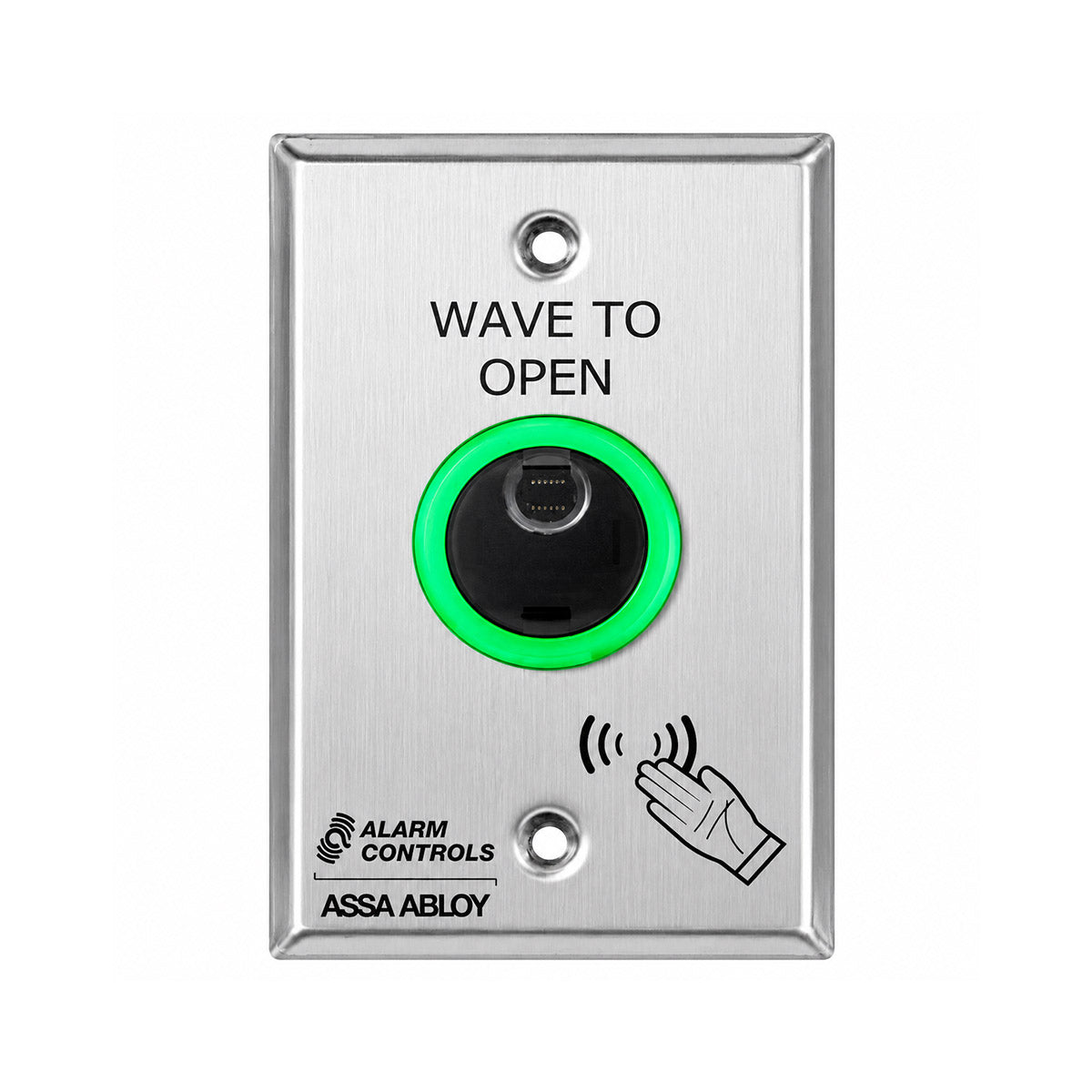

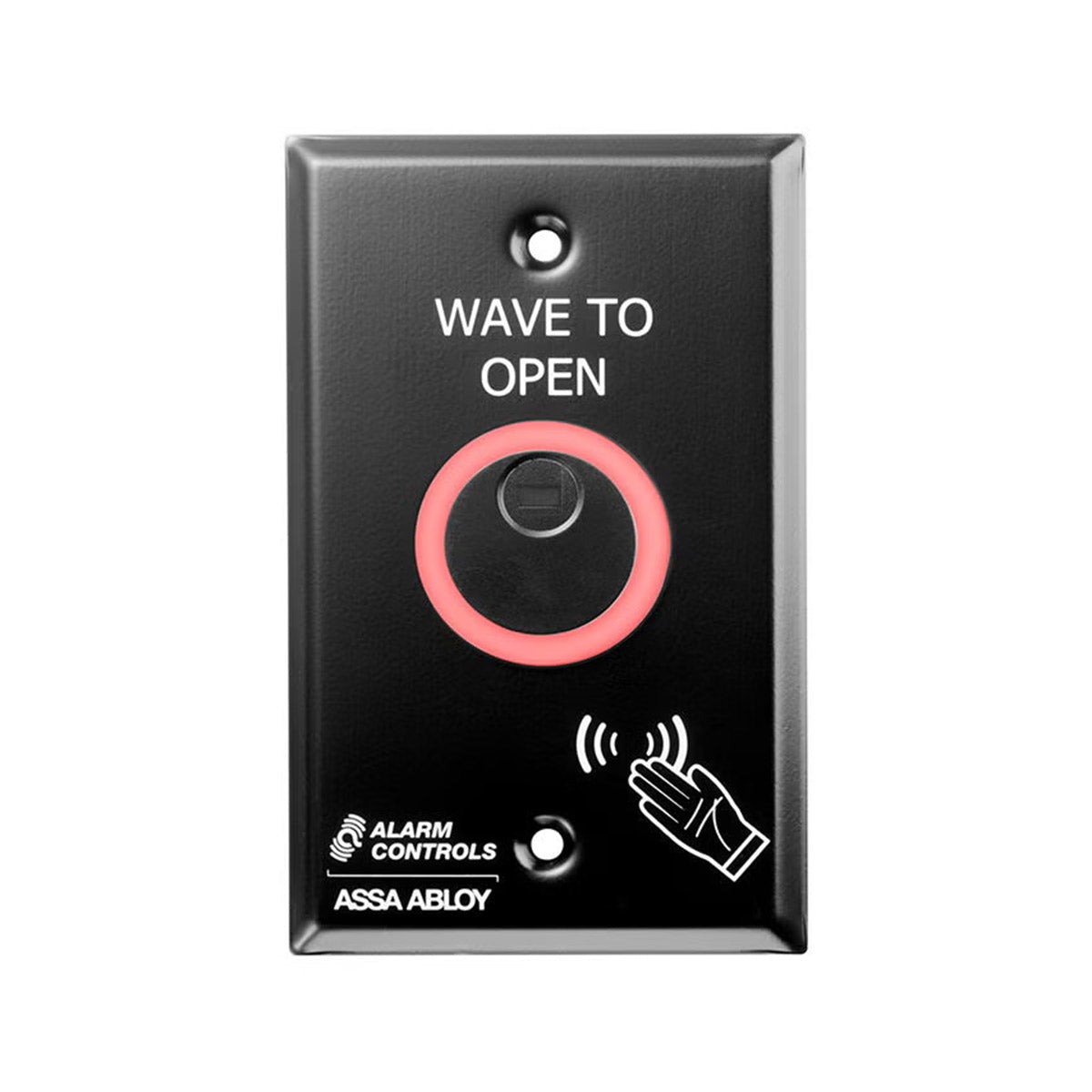

- NTB-1 – Single Gang Wall Plate

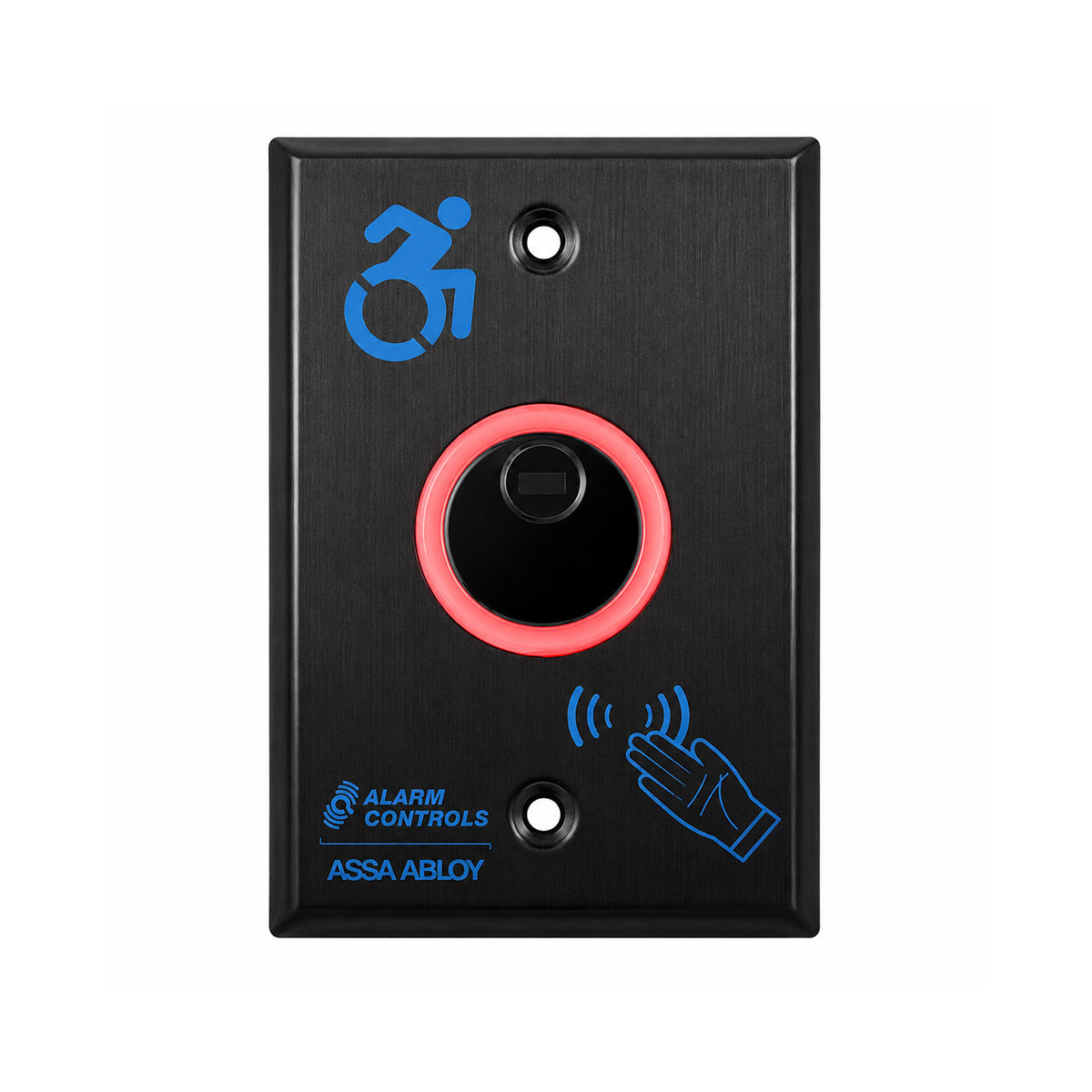

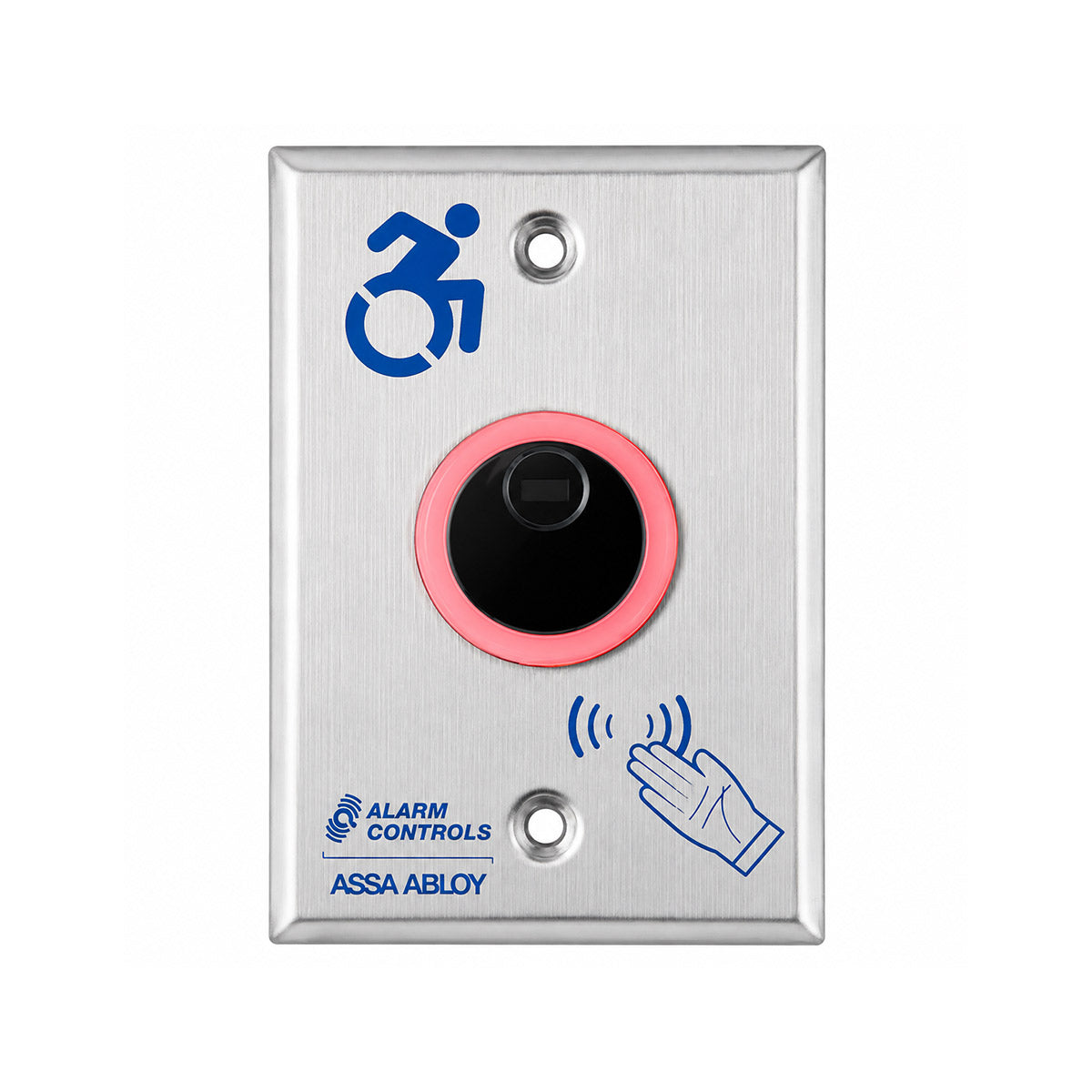

- NTB-1A – Single Gang with ADA Symbol
- NTB-2 – Double Gang Wall Plate
- NTB-2A – Double Gang with ADA Symbol
- NTB-3 – Narrow Stile Wall Plate
- NTB-3A – Narrow Stile with ADA Symbol
Available Finishes
- Stainless Steel (Standard)
- Black (BK)
Available Accessories (Sold Separately)
- SMB-01 / SMB-01A Single Gang Surface Mounting Box
- SMB-3 / SMB-3D Narrow Stile Surface Mounting Box
- 30203 Single Gang Weather-Resistant Surface Mount Back Box
Specifications
Certifications
- UL 294 Listed
- CE Certified
Electrical
- DPDT relay rated 2A at 30 VAC/VDC
- Powered by two AA alkaline batteries (included)
- Optional 12 or 24 VDC hard-powered operation
Operating Temperature
- -13°F to 131°F (-25°C to 55°C)
Ideal Applications
The Alarm Controls NTB Series is perfect for:
- Healthcare facilities
- Hospitals and laboratories
- Schools and universities
- Office buildings
- Retail stores
- Clean rooms
- Automatic door systems
- Commercial access control installations
- Touch-free egress and entry applications
Why Choose the Alarm Controls NTB Series?
The NTB Series provides a fast, cost-effective upgrade from traditional push buttons to modern touch-free operation. With flexible battery or hardwired power options, adjustable activation settings, vandal-resistant construction, and code-compliant performance, it delivers dependable hands-free access while helping reduce surface contact in high-traffic environments.
