Alarm Controls MP-28, MP-29, MP-30 & MP-31 Mini Remote Wall Plates

The Alarm Controls MP-28, MP-29, MP-30, and MP-31 Mini Remote Wall Plates provide compact LED status indication for access control, security, and door automation systems. Designed with a miniature polished chrome-plated brass faceplate, these wall plates deliver a clean, professional appearance while fitting into space-constrained installations.

Available with red, green, bi-colored, or blue LEDs, the MP Series makes it easy to display door status, lock status, system conditions, or other visual indicators. Each unit includes mounting screws for fast installation and operates on 12 or 24 VDC, making them compatible with a wide range of access control and low-voltage systems.

Key Features

• Compact miniature remote LED wall plates
• Polished chrome-plated brass faceplate for a professional finish
• Available LED color options:

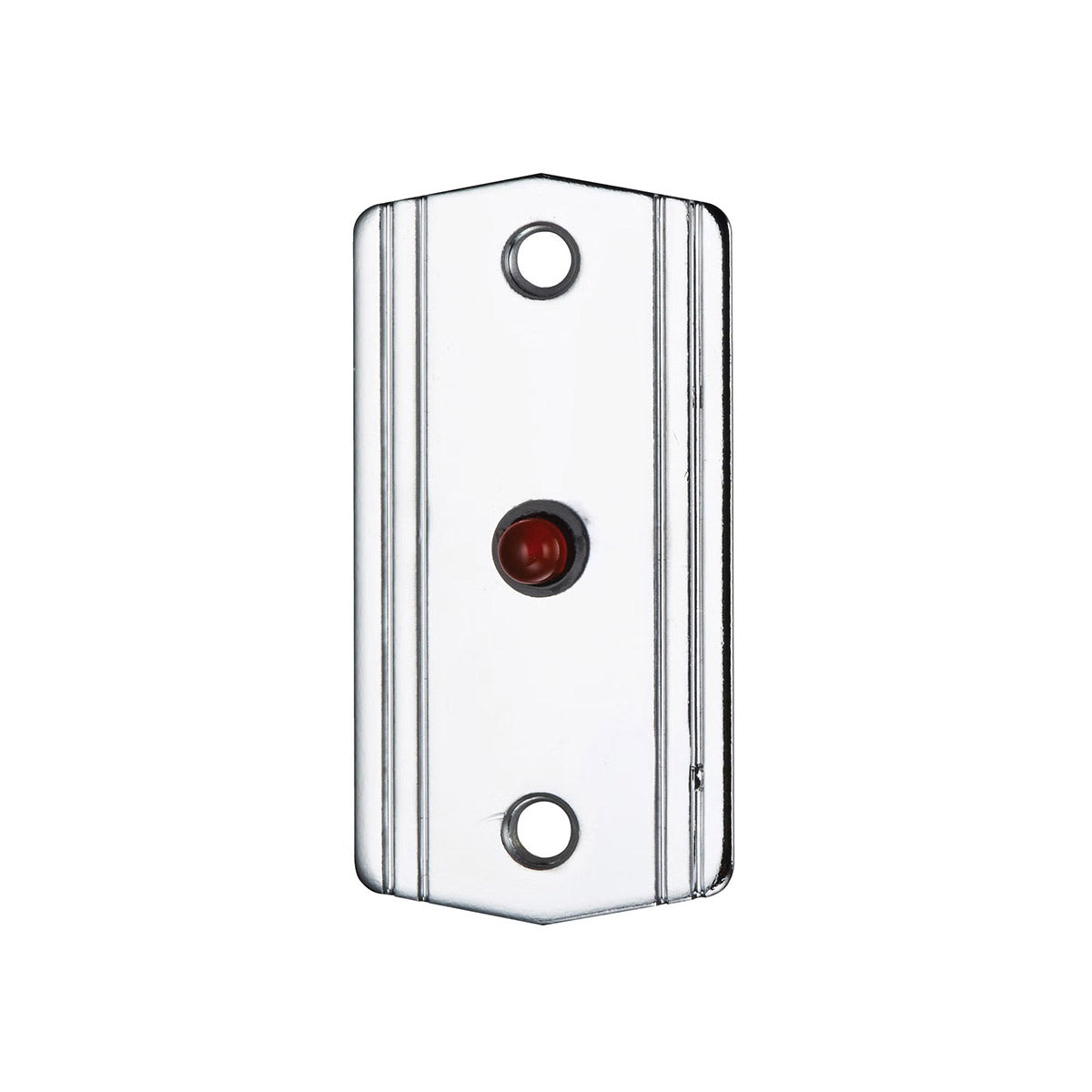

  • MP-28 – 1/4" Red LED

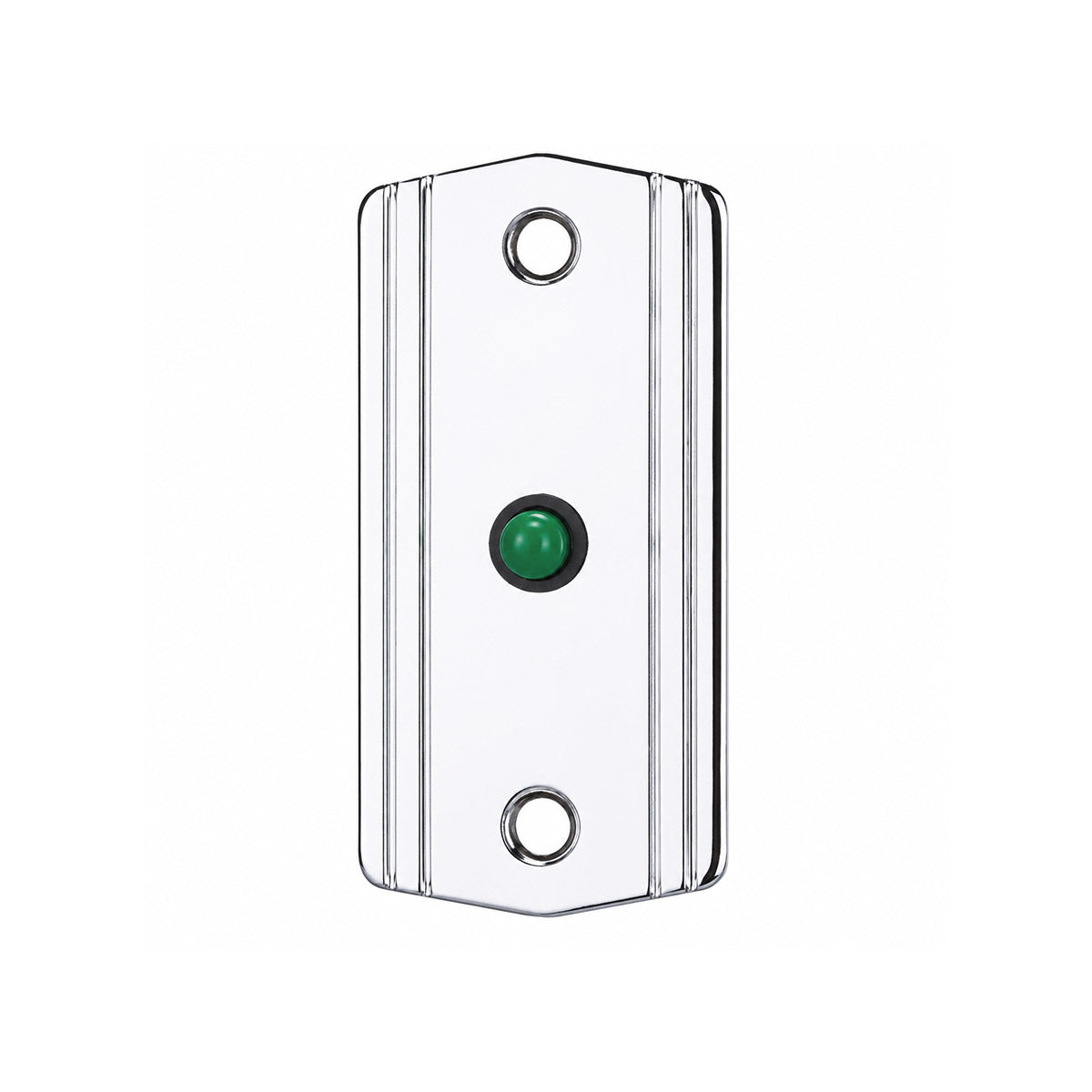

  • MP-29 – 1/4" Green LED
  • MP-30 – 1/4" Bi-Colored LED
  • MP-31 – 1/4" Blue LED
• Operates on both 12 VDC and 24 VDC
• LEDs include flying leads for easy wiring
• Mounting screws included
• Ideal for access control, security, and door status indication

Available Options

• L Option – Upgrade to a 1/2" LED for increased visibility
  • Available on MP-28, MP-29, and MP-31
  • Not available on the MP-30 bi-colored LED model

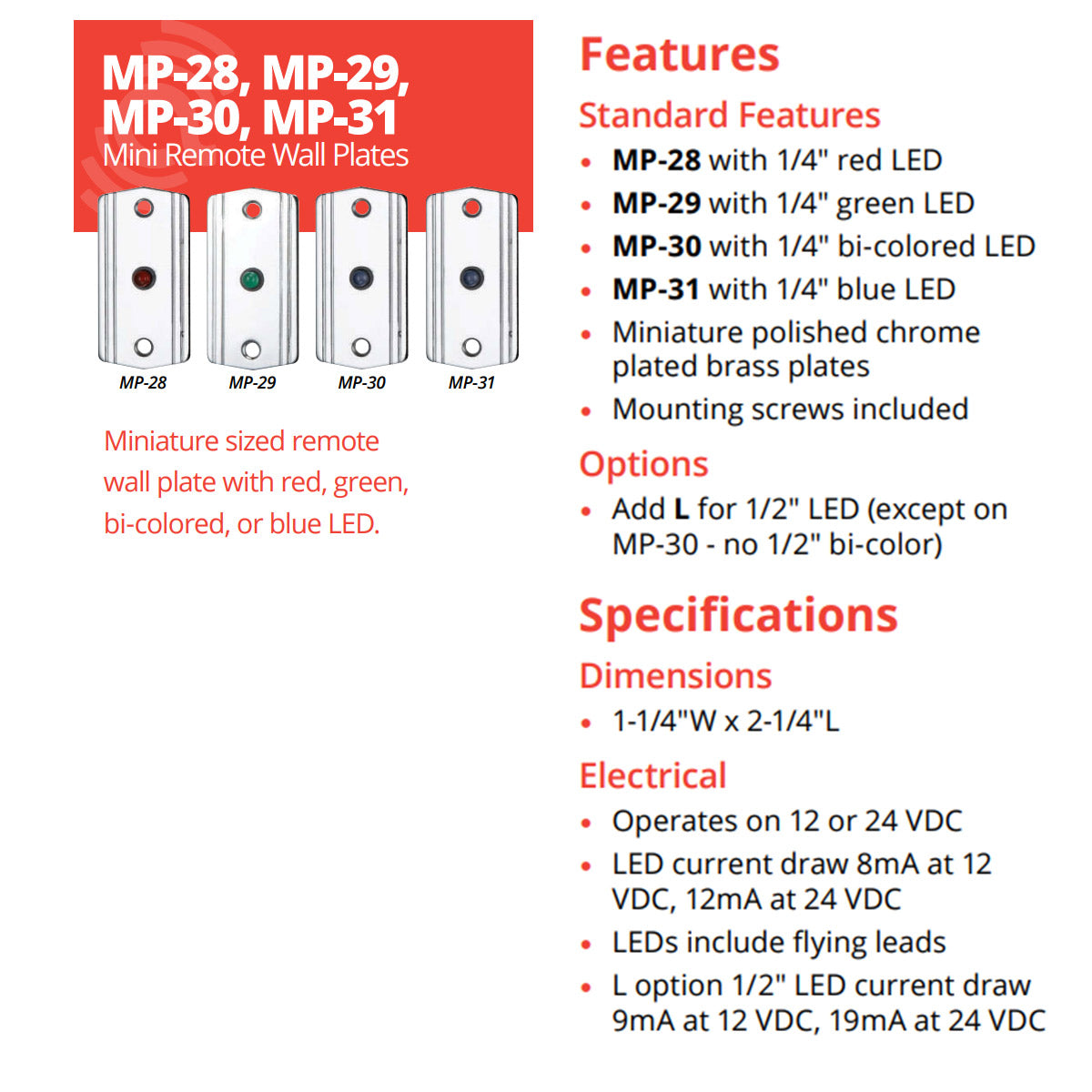

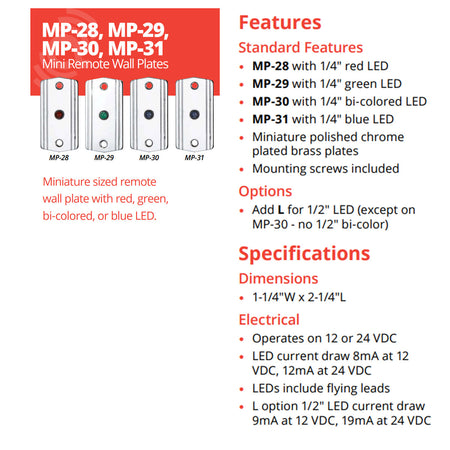

Specifications

Dimensions

• 1-1/4" W × 2-1/4" L

Electrical

• Operating Voltage: 12 or 24 VDC
• Standard 1/4" LED Current Draw:
  • 8mA @ 12 VDC
  • 12mA @ 24 VDC
• Optional 1/2" LED (L Option) Current Draw:
  • 9mA @ 12 VDC
  • 19mA @ 24 VDC
• LEDs supplied with flying leads

Ideal Applications

• Access control systems
• Door status indication
• Lock status monitoring
• Security control panels
• Automatic door systems
• Commercial and industrial facilities

Why Choose the Alarm Controls MP Series?

The MP-28 through MP-31 Mini Remote Wall Plates provide reliable visual status indication in a compact, durable package. With multiple LED color options, dual-voltage compatibility, and an optional larger LED for enhanced visibility, they are an excellent choice for professional access control and security installations.
