Alarm Controls Jumbo Push Plates with Hardwired Switch
Product Description
The Alarm Controls Jumbo Push Plates with Hardwired Switches are engineered for reliable automatic door activation and request-to-exit (REX) applications in high-traffic commercial, institutional, and healthcare environments. Featuring a large 5-1/2" x 5-1/2" steel push plate, these durable actuators provide an easy-to-see, easy-to-use activation surface for ADA-compliant door systems.
Constructed from machined steel with screened lettering, these push plates are available with multiple activation messages and finish options to match a wide range of architectural requirements. Models equipped with a pneumatic time delay provide adjustable activation from 2 to 60 seconds without requiring electrical power for the timing function, making them dependable and energy efficient.
Ideal for automatic door operators, access control systems, and request-to-exit installations where durability and consistent performance are essential.
Key Features
- Heavy-duty machined steel construction with screened text
- Large 5-1/2" x 5-1/2" push plate for easy activation
- Designed for high-traffic commercial environments
- Hardwired switch for automatic door activation and request-to-exit applications
- Fits standard double gang electrical boxes
- Pneumatic time delay adjustable from 2–60 seconds
- Timing function operates without electrical power
- Repeatable timing accuracy of approximately ±10%
- Durable construction for long-term reliability
Available Options
Screened Plate Text

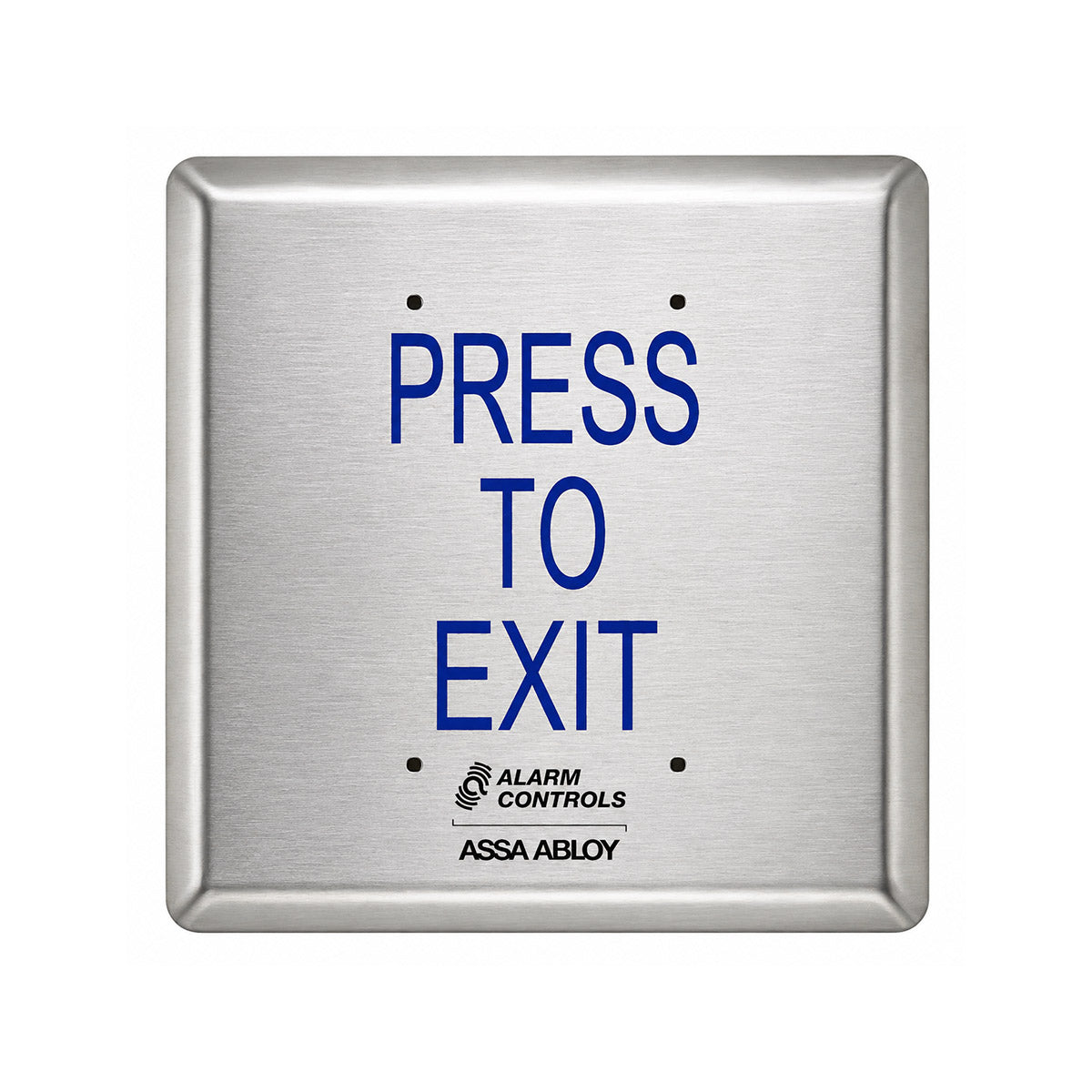

- Press to Exit

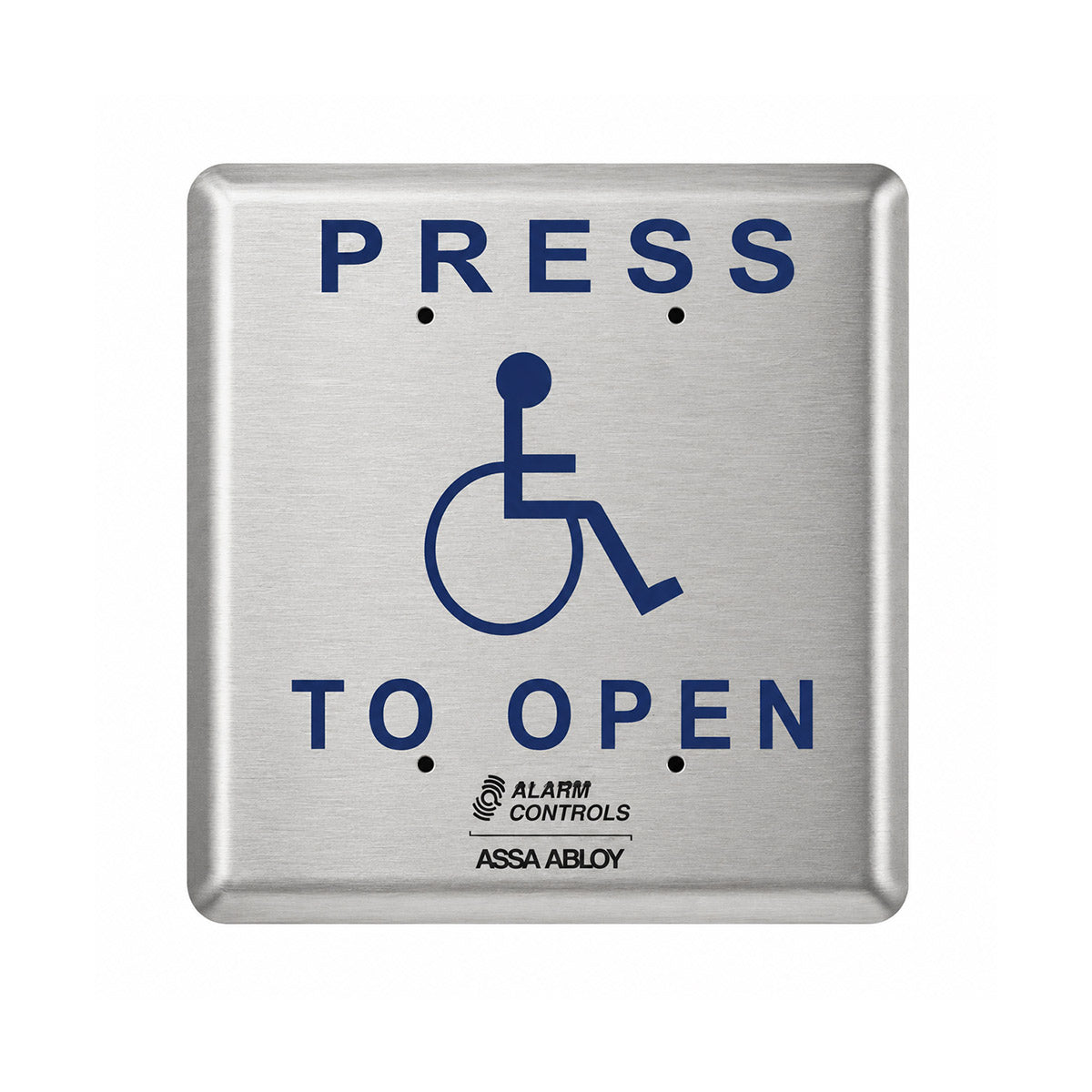

- Press to Open

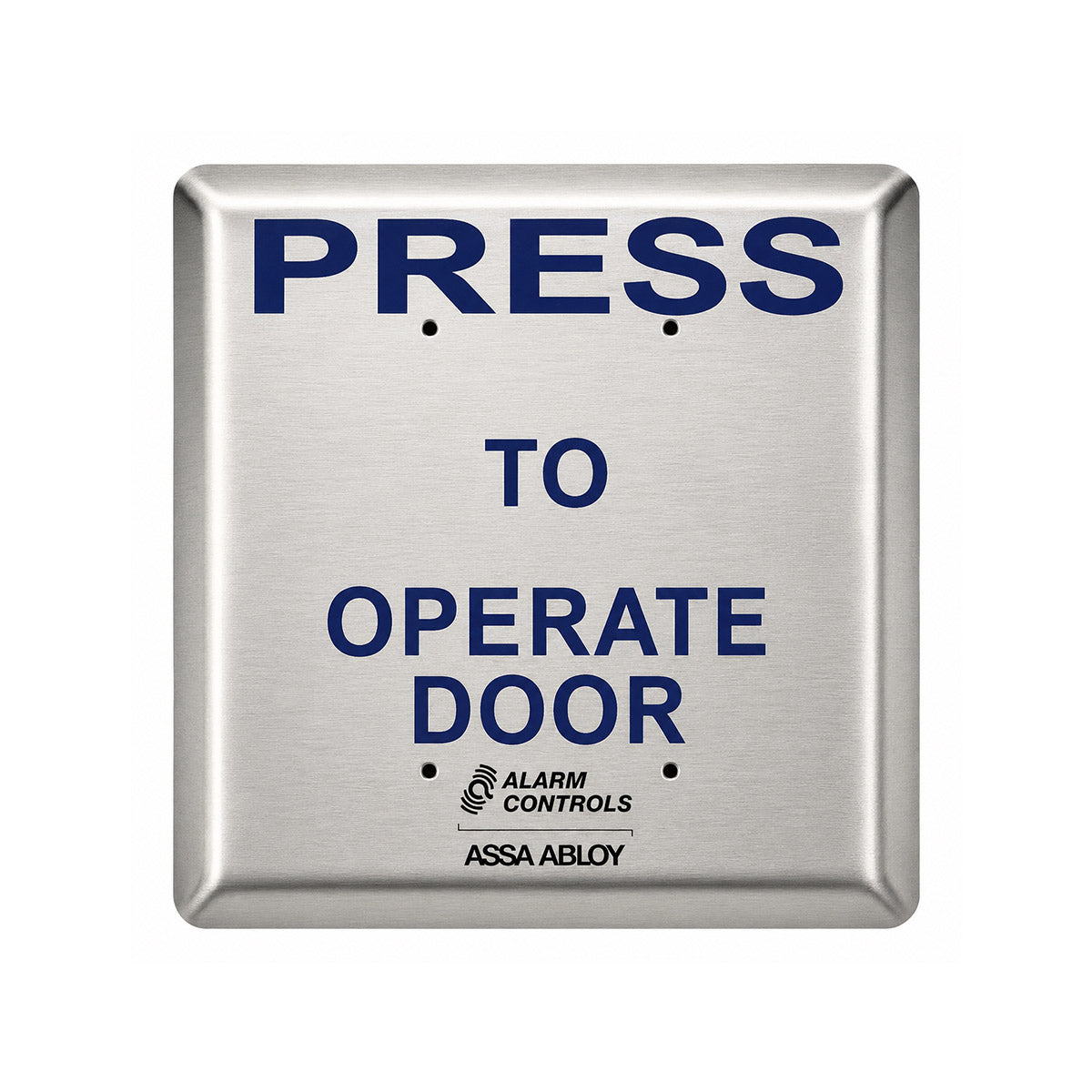

- Press to Operate
Plate Finishes
- 302 Satin Stainless Steel
- Blue Painted Steel

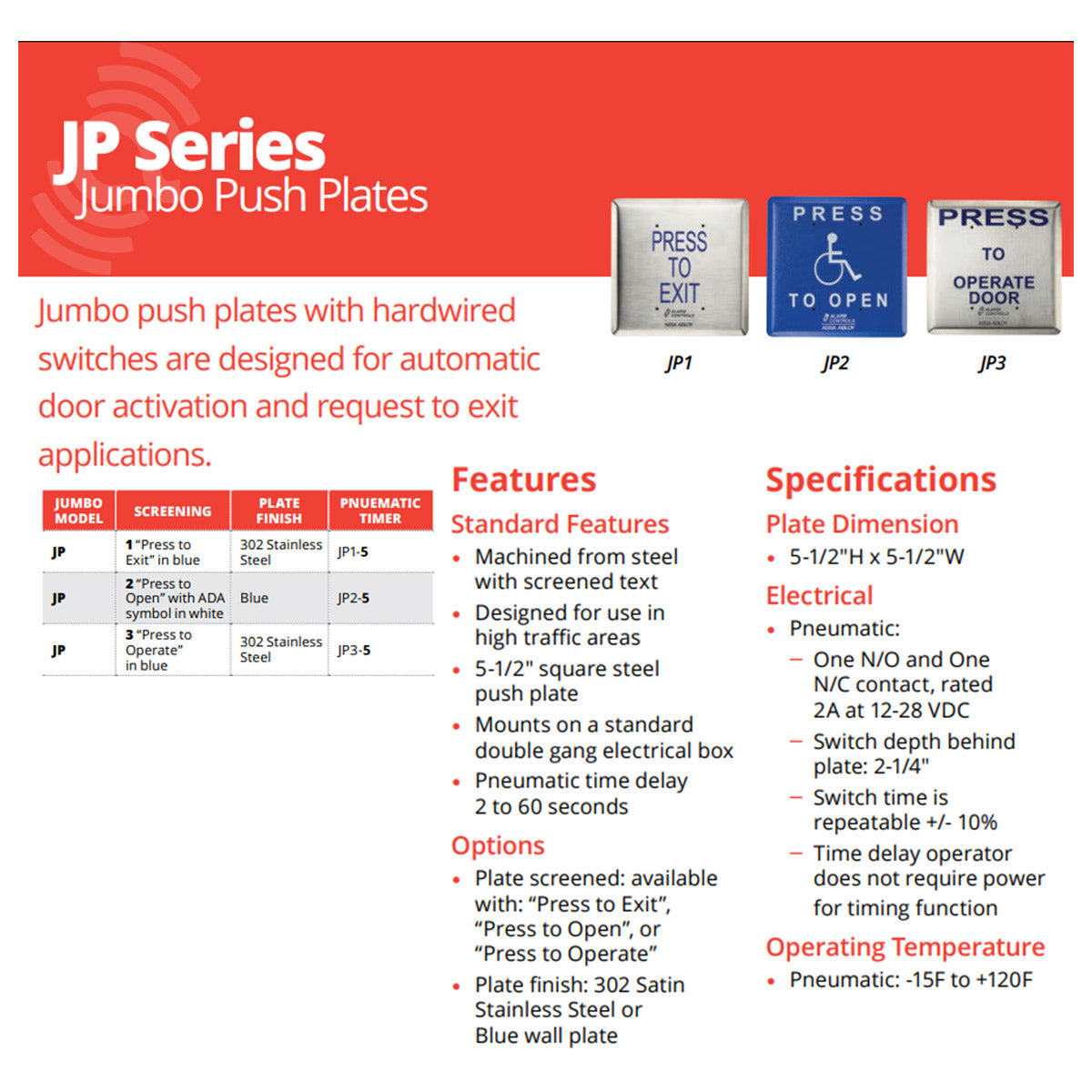

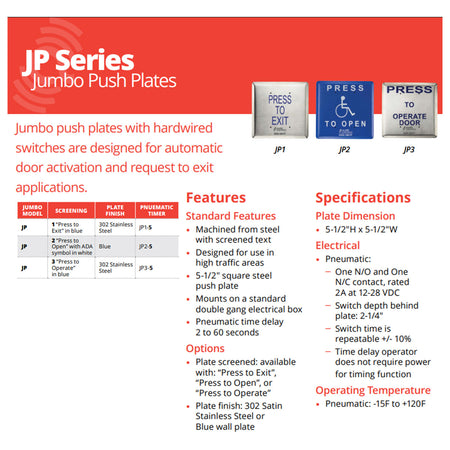

Specifications
Plate Dimensions
- 5-1/2" H × 5-1/2" W
Electrical (Pneumatic Models)
- One Normally Open (N/O) contact
- One Normally Closed (N/C) contact
- Contact Rating: 2A @ 12–28 VDC
- Switch depth behind plate: 2-1/4"
- Adjustable pneumatic delay: 2–60 seconds
- Timing accuracy: ±10%
- No power required for timing operation
Operating Temperature
- -15°F to +120°F
Ideal Applications
- Automatic door operators
- ADA door activation
- Request-to-Exit (REX) systems
- Healthcare facilities
- Schools and universities
- Office buildings
- Retail stores
- Government facilities
- High-traffic commercial entrances
Why Choose Alarm Controls Jumbo Push Plates?
Alarm Controls Jumbo Push Plates combine rugged steel construction, a large activation surface, and dependable pneumatic timing to deliver reliable performance in demanding access control and automatic door applications. With multiple plate messages and finish options available, they provide an attractive, long-lasting solution for virtually any commercial installation.
