Alarm Controls EXP Hazardous Environment Request to Exit Stations
The Alarm Controls EXP Series Hazardous Environment Request to Exit Stations are engineered for reliable operation in hazardous industrial environments where flammable gases, vapors, or combustible dust may be present. Built with a rugged heavy-duty cast NEMA Type 7 enclosure, these explosion-resistant stations provide safe and dependable manual door release activation for demanding commercial and industrial applications.
Designed for hazardous locations requiring code-compliant access control, the EXP Series features a durable 2-inch push button with high-visibility black epoxy lettering. Available with either "PUSH TO EXIT" or "PANIC" labeling, these stations are ideal for chemical plants, refineries, manufacturing facilities, grain processing operations, and other classified environments.
Key Features
- Explosion-resistant request to exit station for hazardous environments
- Heavy-duty cast NEMA Type 7 enclosure
- Large 2" diameter push button for easy activation
- Durable black epoxy silk-screened button labeling
- Momentary action switch
- One Normally Open (N/O) and One Normally Closed (N/C) contact
- Custom button screening available
- Built for harsh commercial and industrial applications

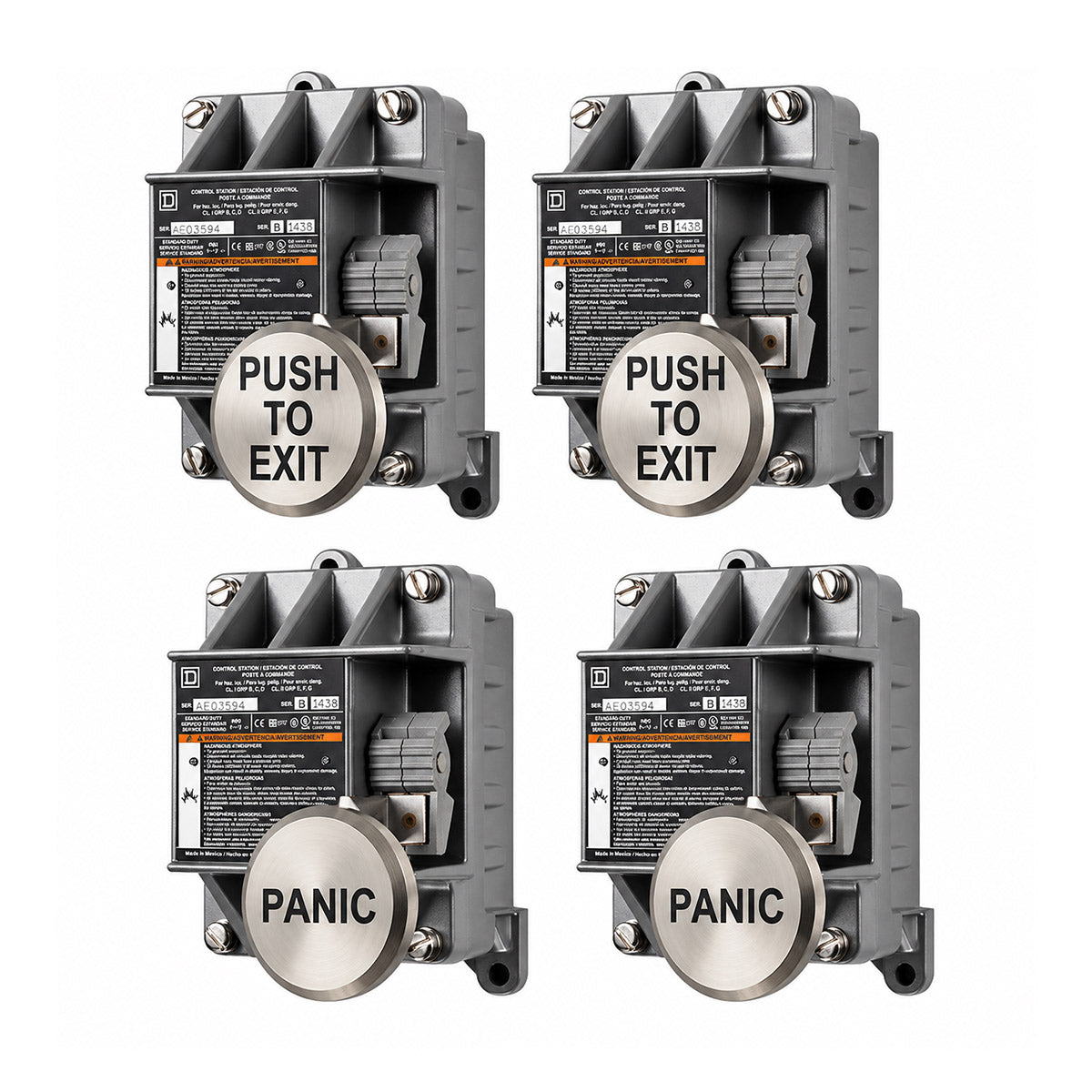

Available Models

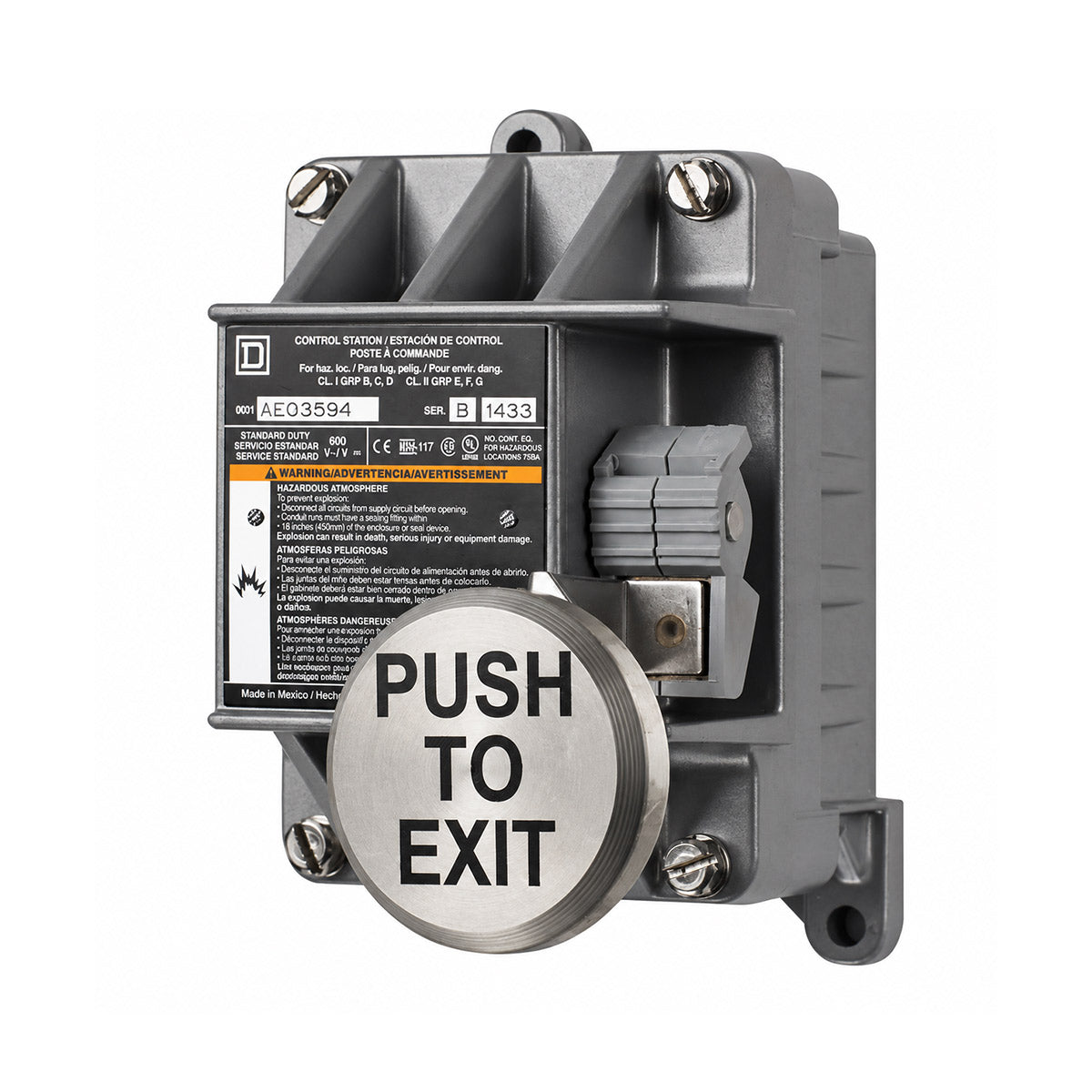

- EXP-1 – Momentary action switch with "PUSH TO EXIT" button

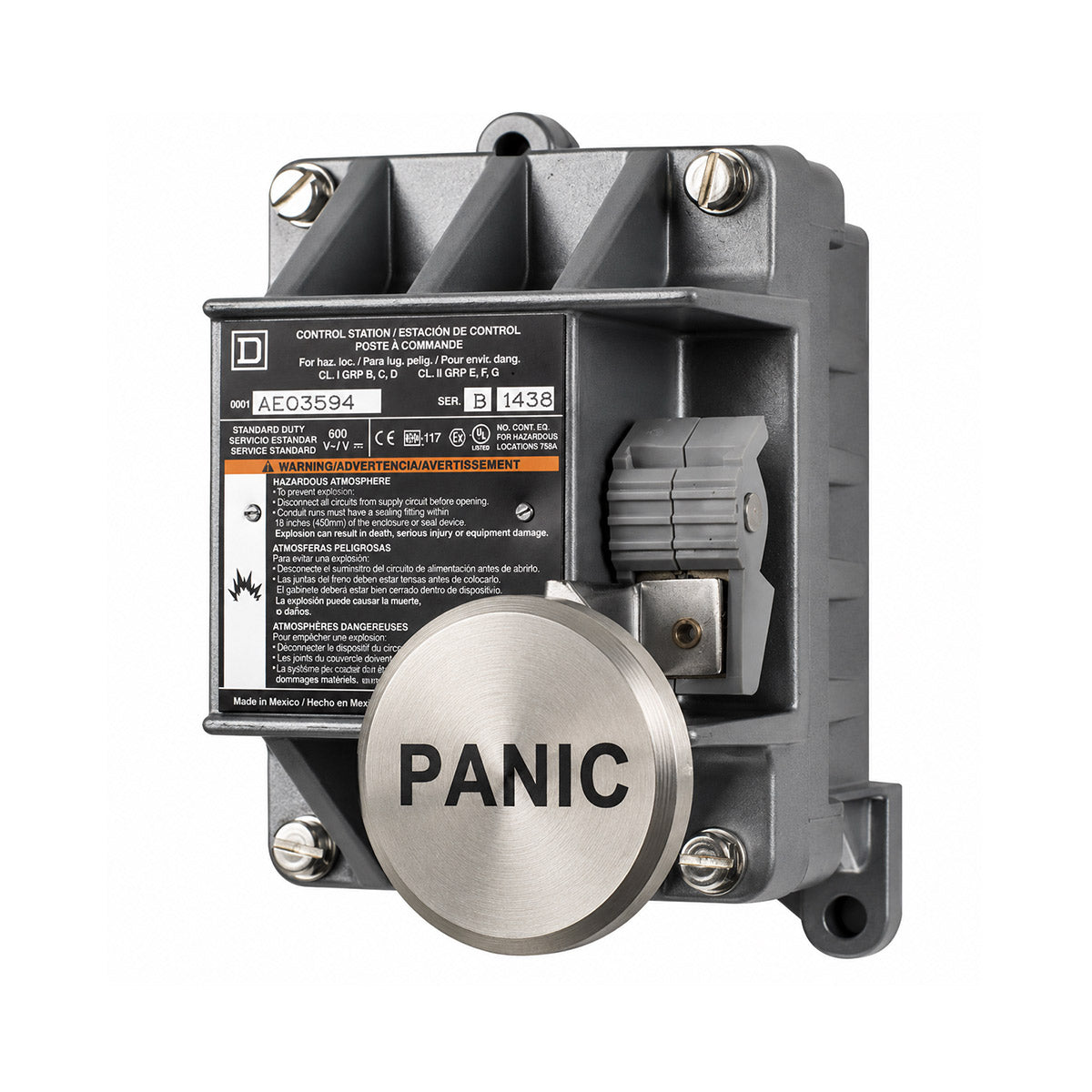

- EXP-15 – Momentary action switch with "PANIC" button
Ideal Applications
The Alarm Controls EXP Series is ideal for hazardous locations including:
- Chemical processing plants
- Oil & gas facilities
- Petroleum refineries
- Grain elevators and processing plants
- Paint and solvent storage facilities
- Industrial manufacturing plants
- Mining operations
- Classified hazardous environments
Specifications
Certifications & Listings
- Conforms to Class I, Division I & II, Groups B, C, D
- Conforms to Class II, Groups E, F, G
- UL and ULC Approved for Hazardous Locations
Electrical
- Contacts rated 5A at 35 VDC or 120 VAC
- One Normally Open (N/O) and One Normally Closed (N/C) contact
- 1/2"-14 NPT pipe thread connection
Dimensions
- Height: 6-1/2"
- Width: 4"
- Depth: 4-1/2"
Why Choose the Alarm Controls EXP Series?
When safety and reliability are critical, the Alarm Controls EXP Series delivers dependable performance in hazardous environments. Its explosion-resistant construction, UL and ULC approvals, and heavy-duty NEMA Type 7 enclosure make it an excellent choice for facilities requiring secure, code-compliant request-to-exit stations in classified locations.
