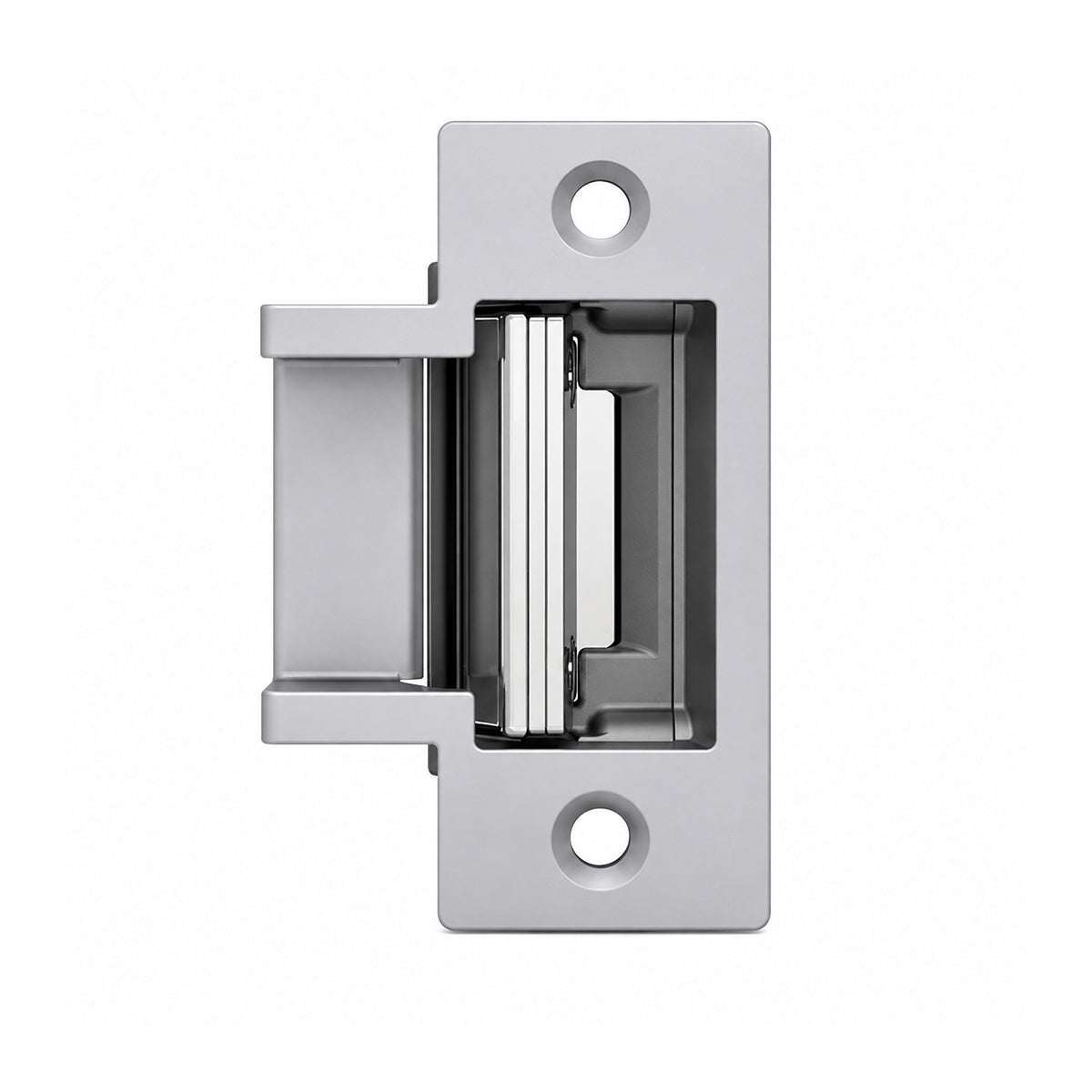

Alarm Controls AES-300 Flexible Electric Strike
The Alarm Controls AES-300 Flexible Electric Strike combines a compact design, easy installation, and horizontal adjustability for reliable access control in retrofit and space-constrained applications. Its small 1-3/16" body eliminates the need to cut out the existing dust box, helping simplify installation while reducing the amount of door frame modification required.
Designed for use with 5/8" cylindrical locksets with up to 5/8" latch throw and no deadbolt, the AES-300 features up to 1/4" horizontal adjustment for easier alignment and installation. The non-handed design allows the strike to be installed on either right- or left-handed applications.
Ideal for commercial access control, door security, and retrofit installations, the AES-300 provides a practical electric strike solution where installation space is limited.
Key Features
- Compact 1-3/16" body for installations with limited space
- Up to 1/4" horizontal adjustability for flexible door and latch alignment
- Designed for 5/8" cylindrical locksets
- Accommodates latch throws up to 5/8"
- Non-handed design for left- or right-handed applications
- Small body design helps eliminate the need to cut out the dust box
- Excellent choice for retrofit and replacement applications
- Fail-secure operation
- Available for 12 or 24 VAC/VDC
- UL 1034 Listed for burglary-resistant electric locking mechanisms
Specifications
| Specification | Details |
|---|---|
| Strike Body Depth | 1-3/16" |
| Lockset Type | Cylindrical |
| Maximum Latch Throw | 5/8" |
| Horizontal Adjustment | Up to 1/4" |
| Handing | Non-handed |
| Operation | Fail Secure |
| Holding Force | 1,000 lb |
| Dynamic Strength | 50 lb |
| Operating Voltage | 12 or 24 VAC/VDC |
| Current Draw – 12V DC | 200 mA |
| Current Draw – 24V DC | 100 mA |
| Current Draw – 12V AC | 200 mA |
| Current Draw – 24V AC | 100 mA |
| Certification | UL 1034 |
Ideal for Retrofit Applications
The AES-300 electric strike is an excellent choice when upgrading existing mechanical locks to electronic access control. Its compact footprint and horizontal adjustability make installation easier in applications where conventional electric strikes may require additional frame preparation.
Upgrade your existing cylindrical lockset with the Alarm Controls AES-300 for a compact, adjustable, and retrofit-friendly access control solution.
