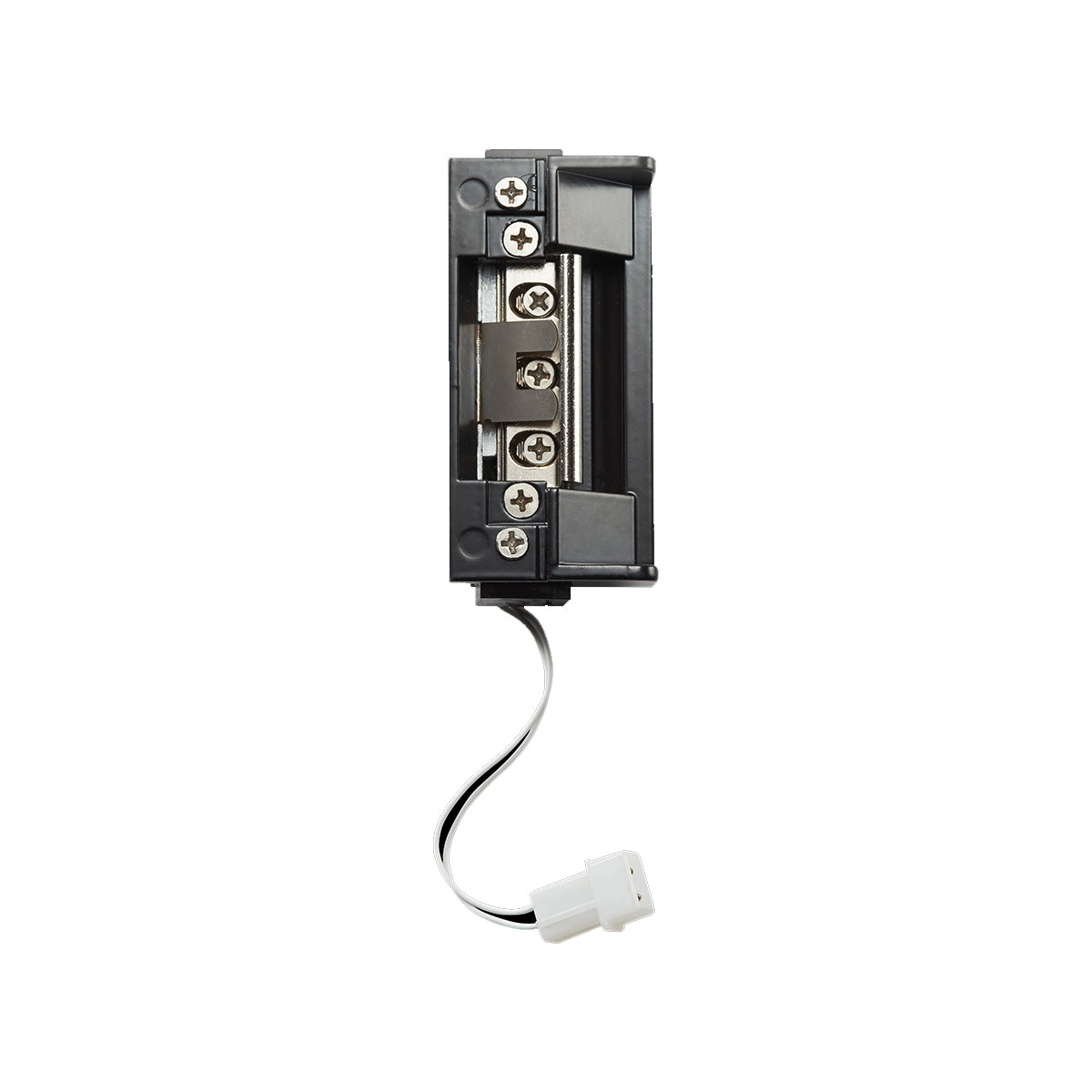

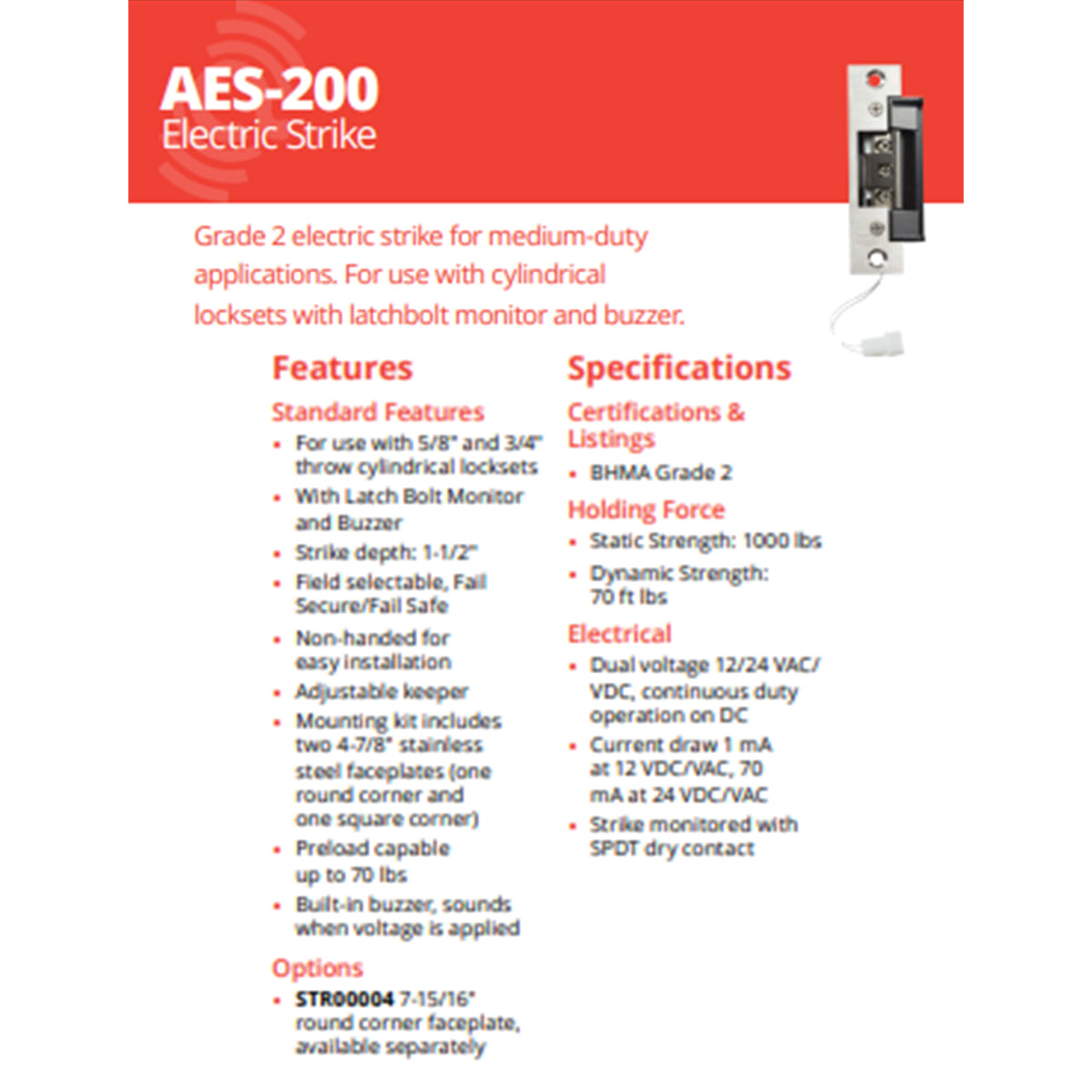

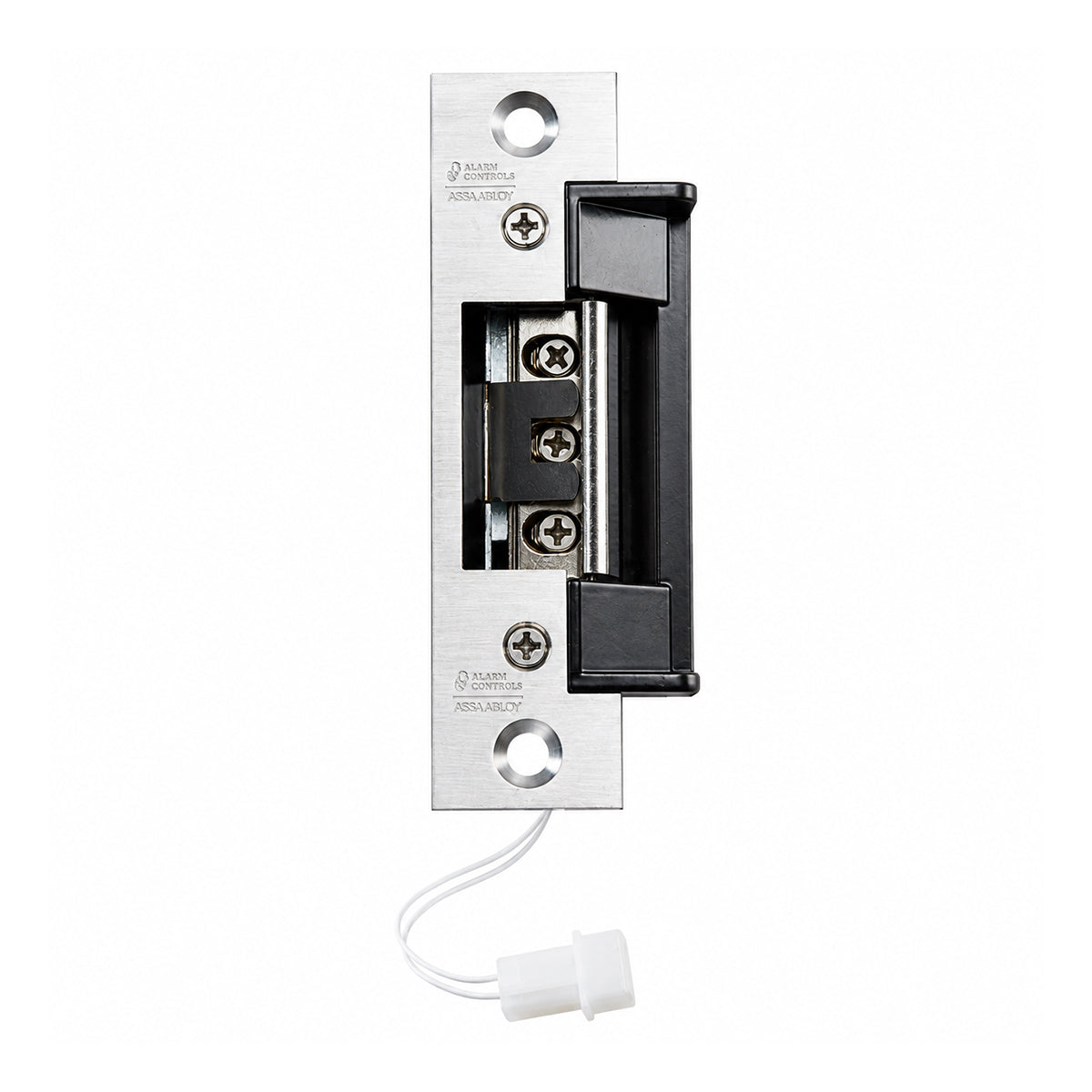

Grade 2 Electric Strike with Latch Bolt Monitor & Buzzer
Designed for medium-duty access control applications, this Grade 2 Electric Strike provides reliable electronic locking for doors equipped with cylindrical locksets. The strike features an integrated Latch Bolt Monitor (LBM) for door status monitoring and a built-in buzzer that sounds when voltage is applied, making it ideal for controlled-access and security applications.
With a field-selectable fail-safe or fail-secure configuration, adjustable keeper, and non-handed design, this electric strike offers installation flexibility for a wide range of commercial door applications. It accommodates 5/8" and 3/4" throw cylindrical locksets and supports preload of up to 70 lbs.
Key Features
- Grade 2 electric strike designed for medium-duty commercial applications
- Built-in buzzer sounds when voltage is applied
- Integrated Latch Bolt Monitor (LBM) provides lock/latch status monitoring
- Field-selectable fail-safe or fail-secure operation
- Compatible with 5/8" and 3/4" throw cylindrical locksets
- Adjustable keeper accommodates varying door and latch conditions
- Non-handed design for left- or right-hand door installations
- Supports up to 70 lbs of preload
- 1-1/2" strike body depth for standard frame installations
-

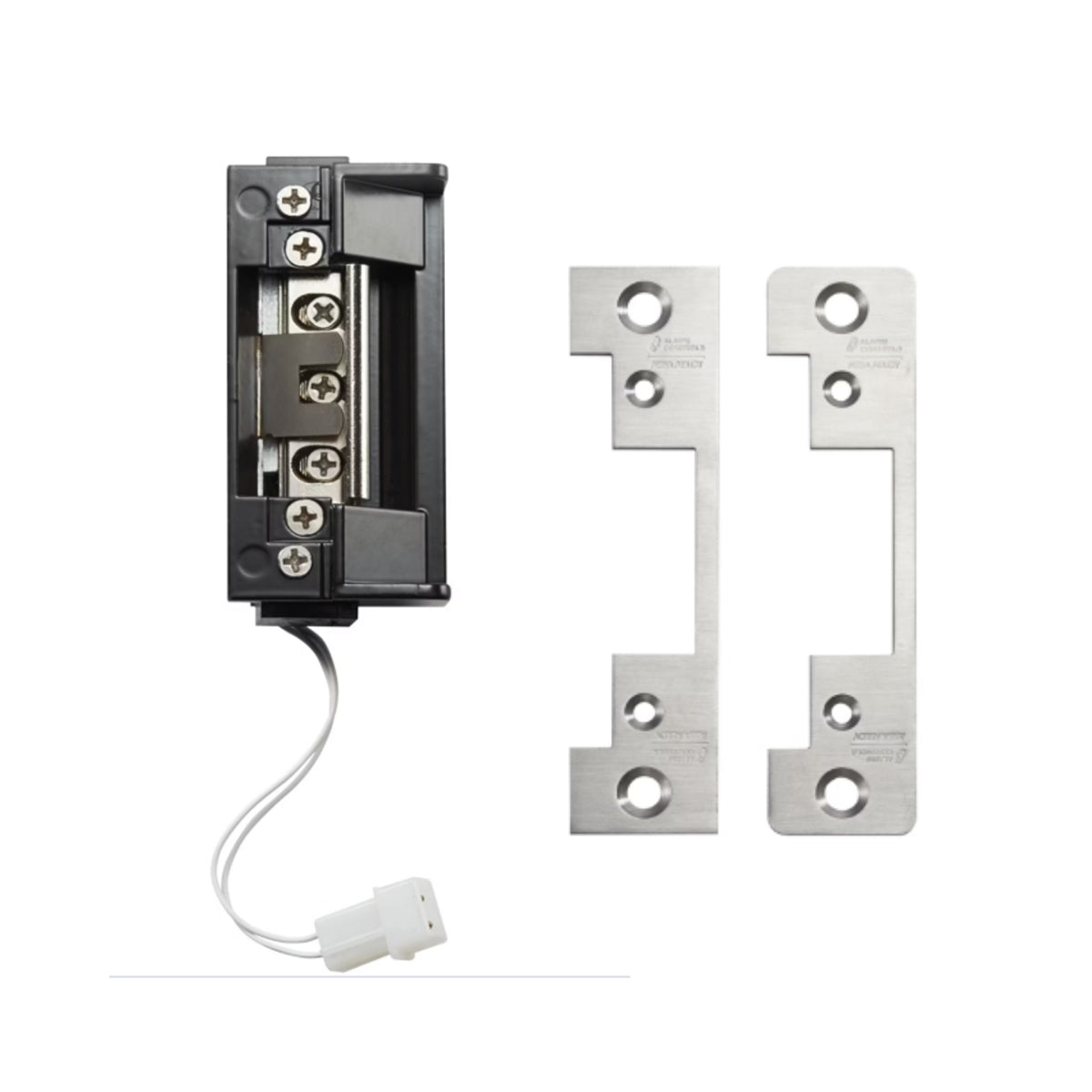

Mounting kit includes two 4-7/8" stainless steel faceplates
- One round-corner faceplate
- One square-corner faceplate
- Suitable for aluminum, metal, and wood door frames
- Hardwired for dependable access control integration
Strength & Durability
| Specification | Details |
|---|---|
| Holding Force | 1,000 lbs |
| Dynamic Strength | 70 ft-lbs |
| Endurance | 500,000 cycles |
| Grade | Grade 2 |
| Fail-Safe / Fail-Secure | Field selectable |
| Preload Capability | Up to 70 lbs |
Electrical Specifications
| Specification | Details |
| Operating Voltage | Dual voltage, 12/24 VAC/VDC |
| 12V AC Current | 200 mA |
| 24V AC Current | 70 mA |
| 24V DC Current | 70 mA |
| DC Operation | Continuous duty |
| Power Connection | Hardwired |
Application & Installation
| Specification | Details |
| Frame Materials | Aluminum, metal, wood |
| Handing | Non-handed |
| Latchbolt Accommodation | 5/8" and 3/4" throw |
| Mounting | Surface mounting; cutting required |
| Strike Body Depth | 1-1/2" |
| Faceplate Size | 4-7/8" |
Ideal for Commercial Access Control
This Grade 2 electric door strike is an excellent choice for commercial access control systems, office buildings, retail facilities, schools, multi-tenant properties, and other medium-duty applications requiring dependable electric locking and latch monitoring. The combination of LBM monitoring, built-in audible buzzer, adjustable keeper, and selectable fail-safe/fail-secure operation provides flexible security and access control functionality in a compact strike design.
