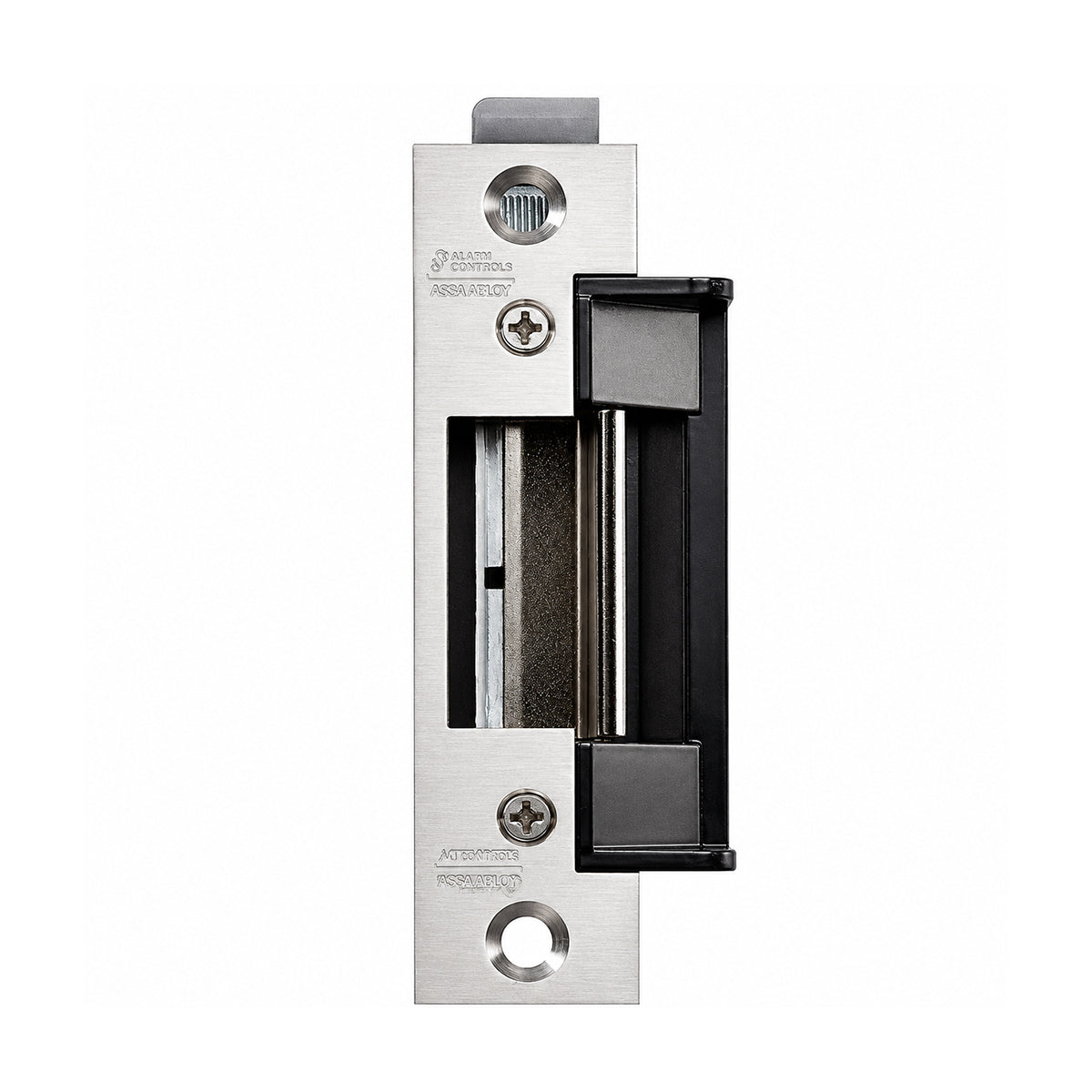

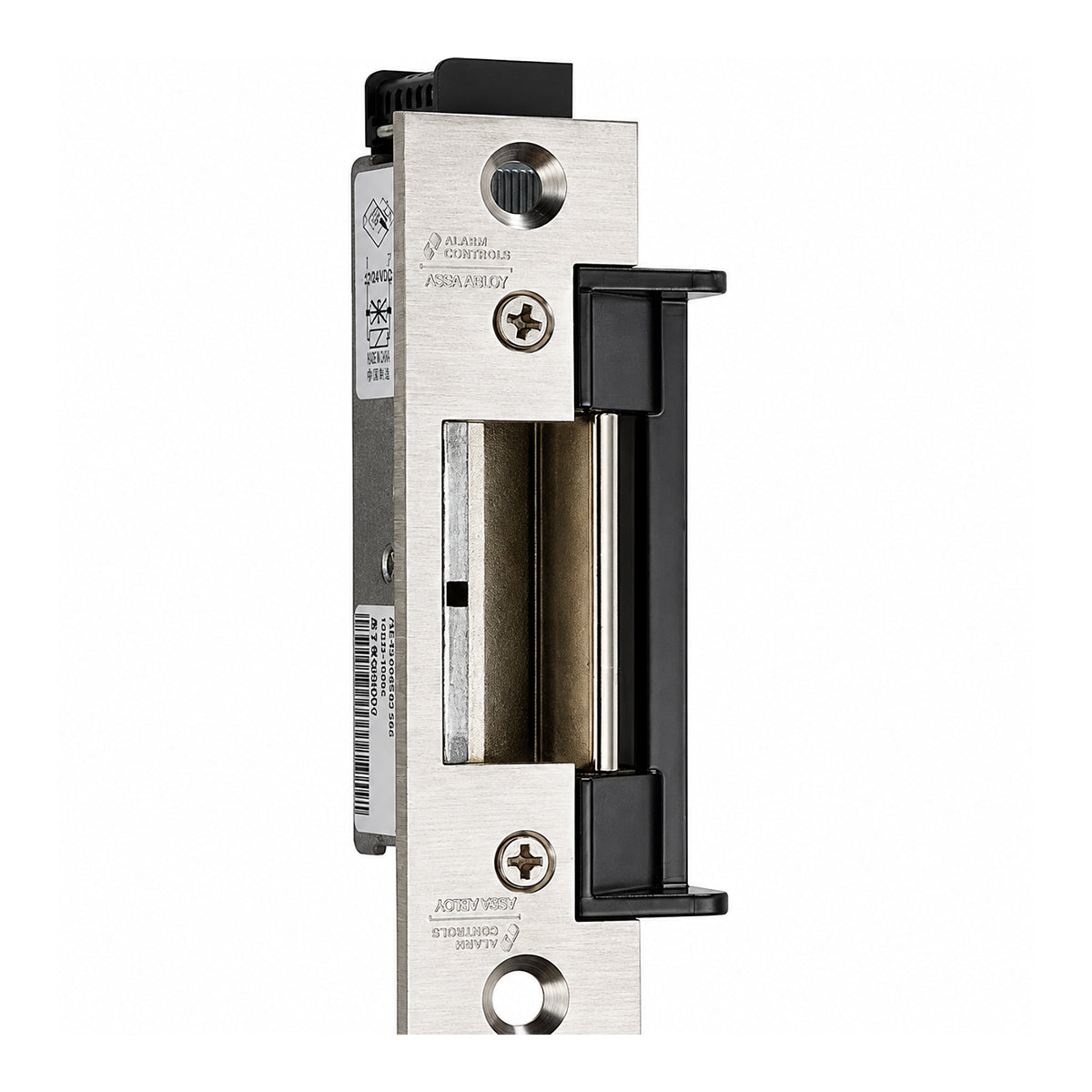

Alarm Controls AES-100 Electric Strike
The Alarm Controls AES-100 Electric Strike is a heavy-duty, Grade 1 electric strike designed for use with cylindrical locksets, mortise latches, and mortise exit devices. Built for demanding commercial access control applications, the AES-100 combines a 1,500 lb holding force, durable construction, and field-selectable fail-safe or fail-secure operation for flexible installation.
Its non-handed design simplifies installation, while the included stainless steel faceplates accommodate both round-corner and square-corner applications.
Key Features
- Grade 1 electric strike for commercial access control applications
- Compatible with 5/8" and 3/4" throw cylindrical locksets
- Suitable for cylindrical locksets, mortise latches, and mortise exit devices
- 1-1/2" strike body depth for versatile installation
- Field-selectable fail-safe or fail-secure operation
- Non-handed design for easy installation
- 1,500 lb holding force for reliable security
- 70 ft-lbs dynamic strength
- Rated for 500,000 cycles of endurance
- Dual-voltage operation: 12/24 VAC/VDC
- Continuous-duty operation on DC
-

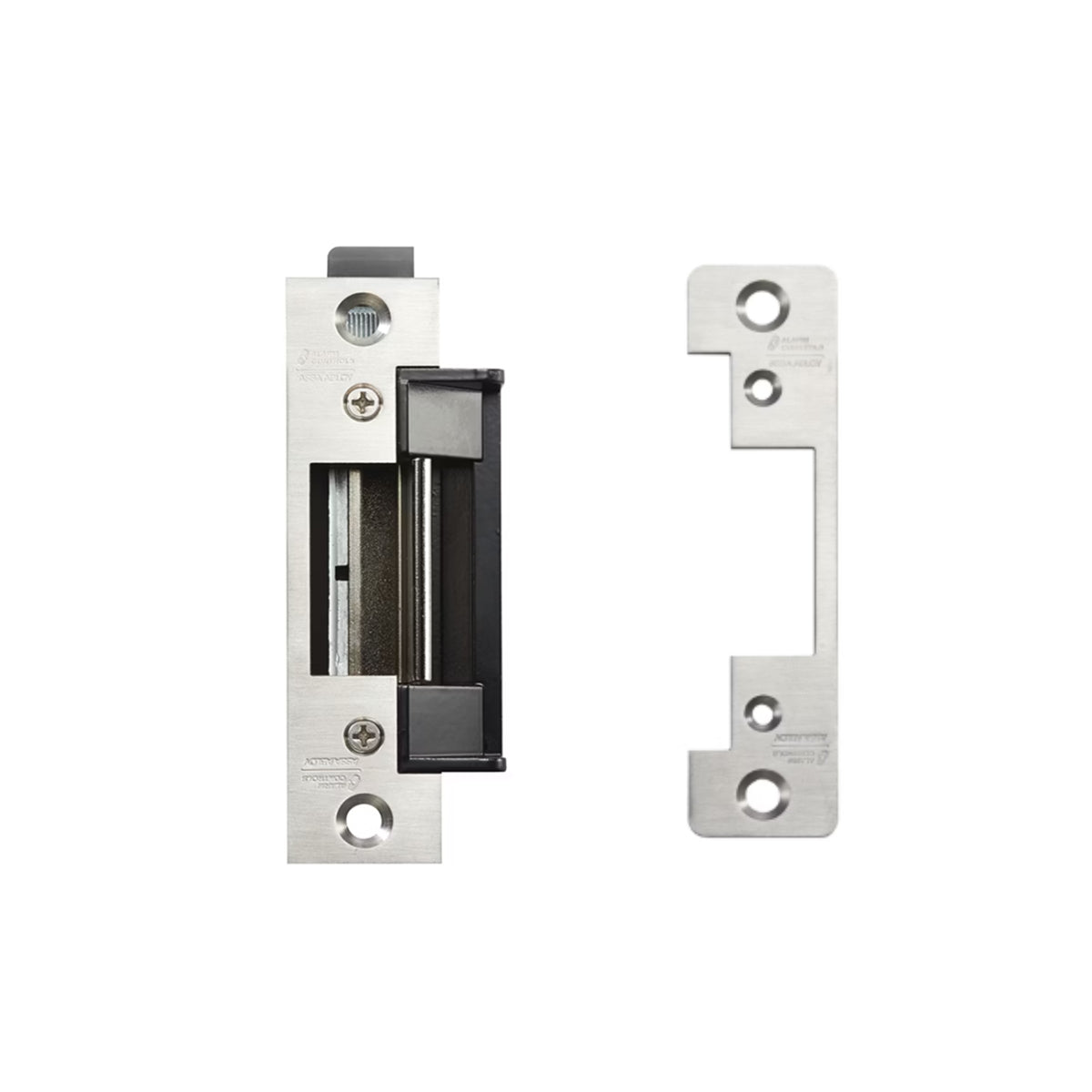

Includes two 4-7/8" stainless steel faceplates
- One round-corner faceplate
- One square-corner faceplate
- Designed for surface mounting with required frame preparation
- Compatible with aluminum, metal, and wood frames
- UL 1034 Listed for burglary-resistant electric locking mechanisms

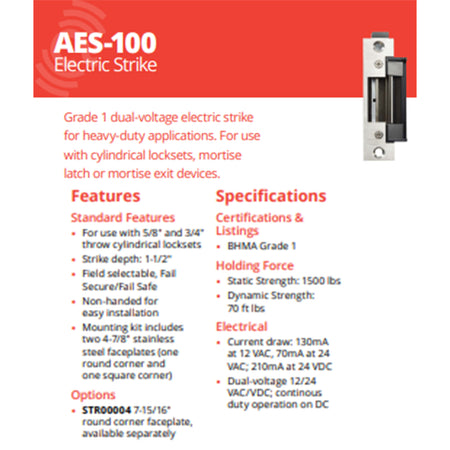

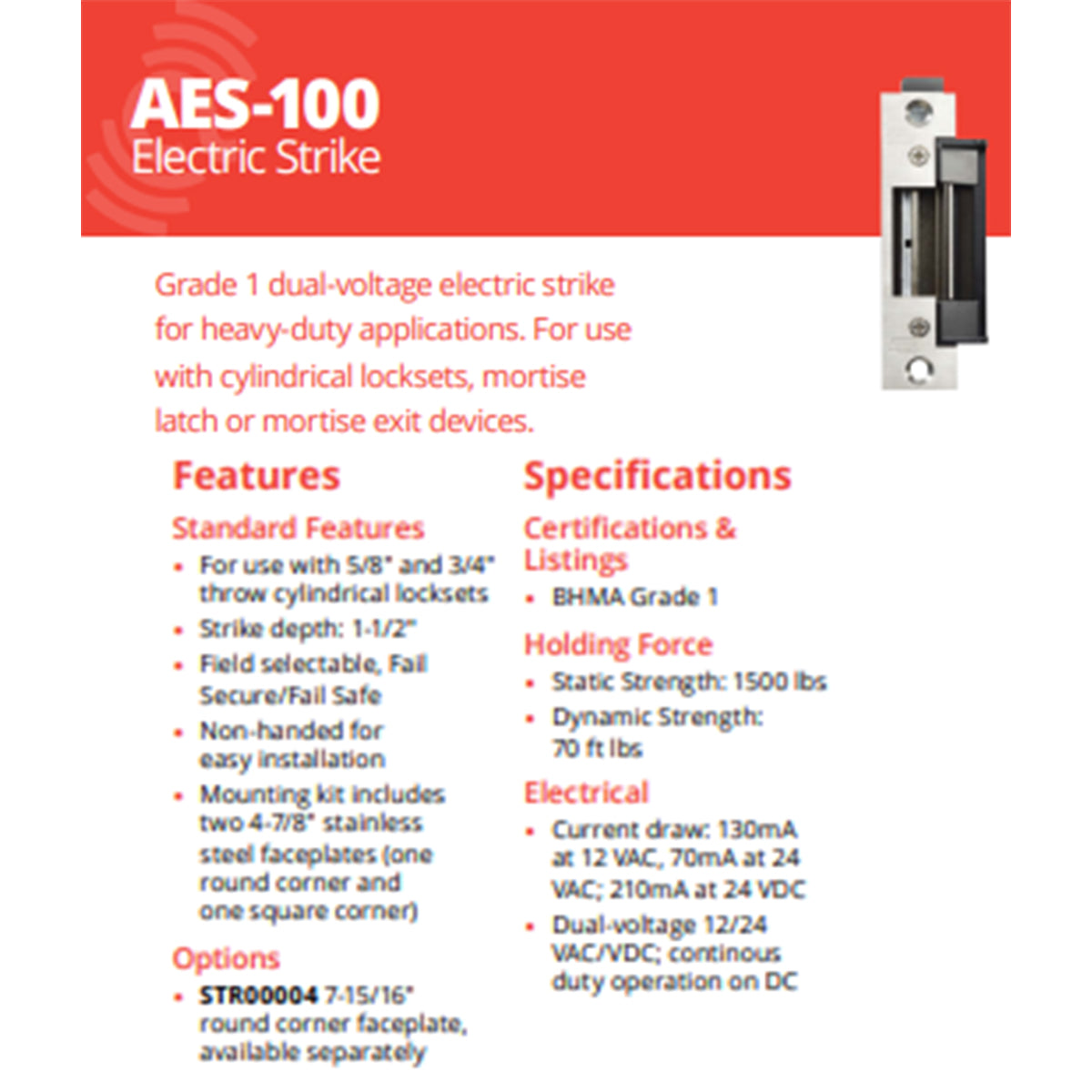

Technical Specifications
| Specification | Details |
|---|---|
| Model | AES-100 |
| Grade | Grade 1 |
| Holding Force | 1,500 lbs |
| Dynamic Strength | 70 ft-lbs |
| Endurance | 500,000 cycles |
| Operation | Field-selectable Fail Safe / Fail Secure |
| Voltage | 12/24 VAC/VDC |
| Current – 12V AC | 130 mA |
| Current – 24V AC | 70 mA |
| Current – 24V DC | 105 mA |
| Latchbolt Accommodation | 5/8" – 3/4" |
| Strike Body Depth | 1-1/2" |
| Faceplate Length | 4-7/8" |
| Handing | Non-handed |
| Frame Compatibility | Aluminum, metal, wood |
| Mounting | Surface mount; cutting required |
| Power Source | Hardwired |
| Certification | UL 1034 |
Reliable Electric Locking for Commercial Applications
With its Grade 1 construction, high holding force, field-selectable operating mode, and flexible 12/24V power requirements, the Alarm Controls AES-100 is an excellent choice for integrating electric locking into commercial doors and access control systems. Its included stainless steel faceplates and non-handed design help simplify installation across a variety of frame and door configurations.
