Bracket mounted, single magnetic lock with 1200 lbs holding force that can be easily installed without special tools and used with any access control system.

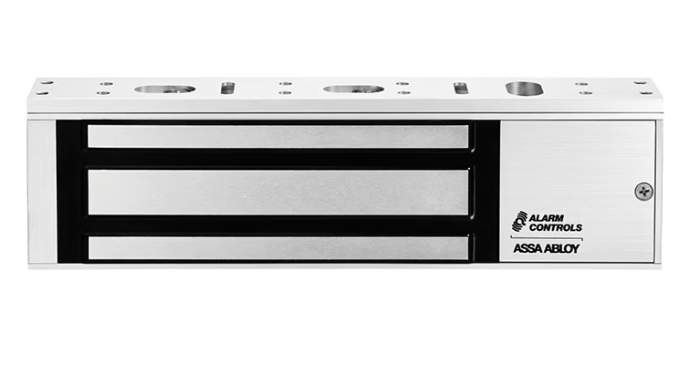

1200S - 1200 Pound Single Door Magnetic Lock, 12 or 24 VDC, UL & ULC Dark Bronze

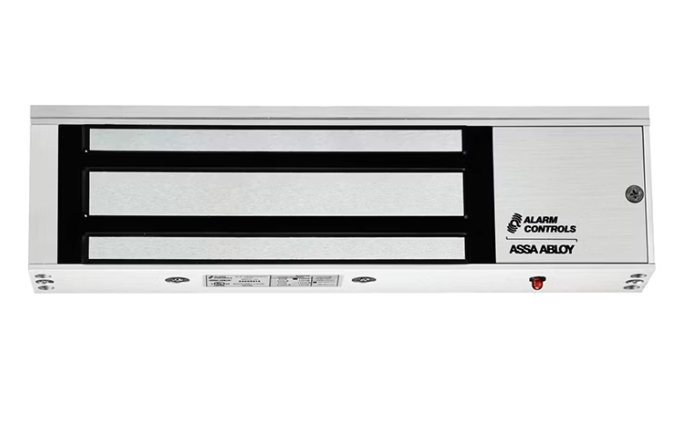

1200L - 1200 Pound Single Door Magnetic Lock with LED Indicator, 12 or 24 VDC, UL & ULC
1200LB - 1200 Pound Single Door Magnetic Lock with Indicating LED, Bond Sensor and Door Status Sensor, 12 or 24 VDC, UL & ULC

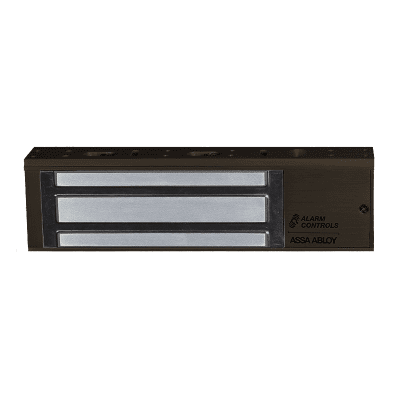

1200SDURO - 1200 Pound Single Door Magnetic Lock, 12 or 24 VDC, UL & ULC
1200LDURO - 1200 Pound Single Door Magnetic Lock with LED Indicator, 12 or 24 VDC, UL & ULC Dark Bronze
1200LBDURO - 1200 Pound Single Door Magnetic Lock with Indicating LED, Bond Sensor and Door Status Sensor, 12 or 24 VDC, UL & ULC ULC Dark Bronze
Product Overview
Product Features
- Built-in arc suppression
- Instant release, no hysteresis
- Self drilling TEC screws
- Non-aluminum parts are plated to resist corrosion
- E-Z mount system, no special tools required
- Can be used with any access control system
- Limited lifetime warranty
- CAN/ULC-S104 Listed
- CE Certified
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- UL 294 recognized component
- Holding Force (lbs) : 1200
- Magnet Height (in) : 2-7/8"
- Magnet Length (in) : 10-1/2"
- Armature Depth (in) : 0-9/16"
- Armature Height (in) : 2-3/8"
- Armature Length (in) : 7-3/8"
- Input Operating Voltage : 12 or 24 VDC, field selectable
- Current 12v DC : 505
- Current 24v DC : 260
- Switch : 1 SPDT - Single Pole Double Throw
- Contact Rating : 1200LB bond sensor has SPDT 3A relay contacts
- Maximum Operating Temperature (°F) : 131
- Minimum Operating Temperature (°F) : 14
- Door Type : Wood|Metal
- Fire Rated : Yes
