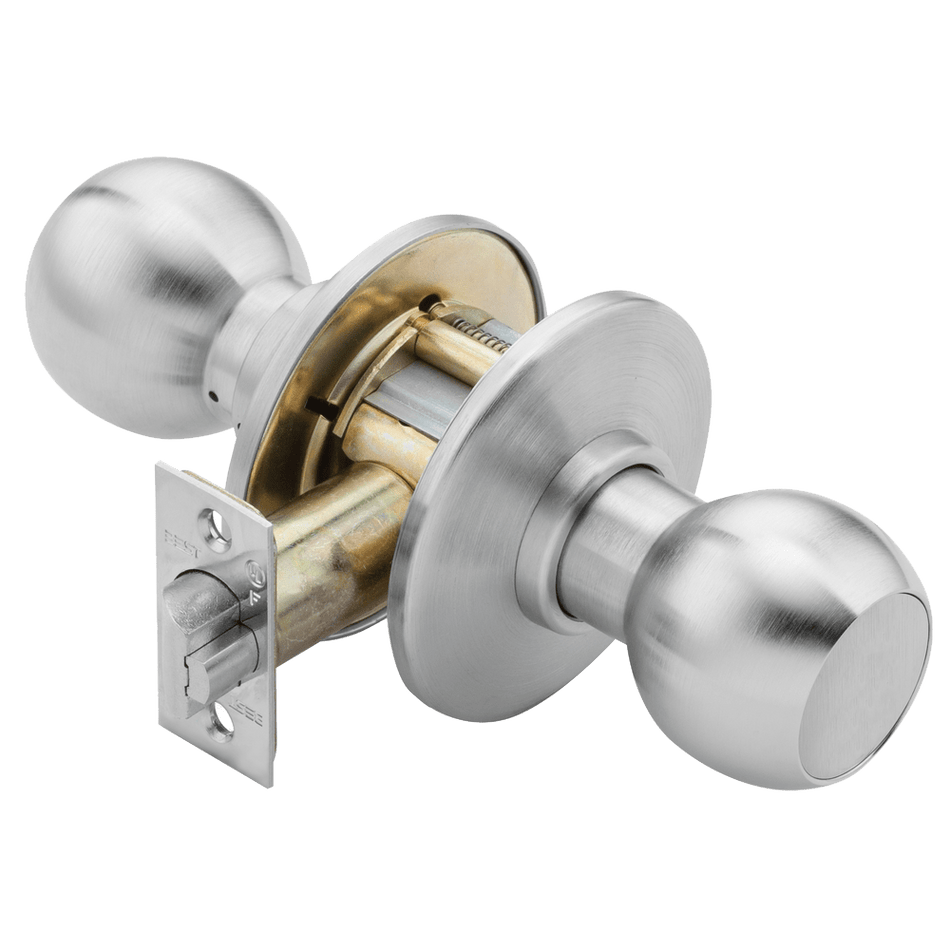

Arrow MK01 Passage Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK01 Passage:

Latch bolt operated by knob from either side at all times

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

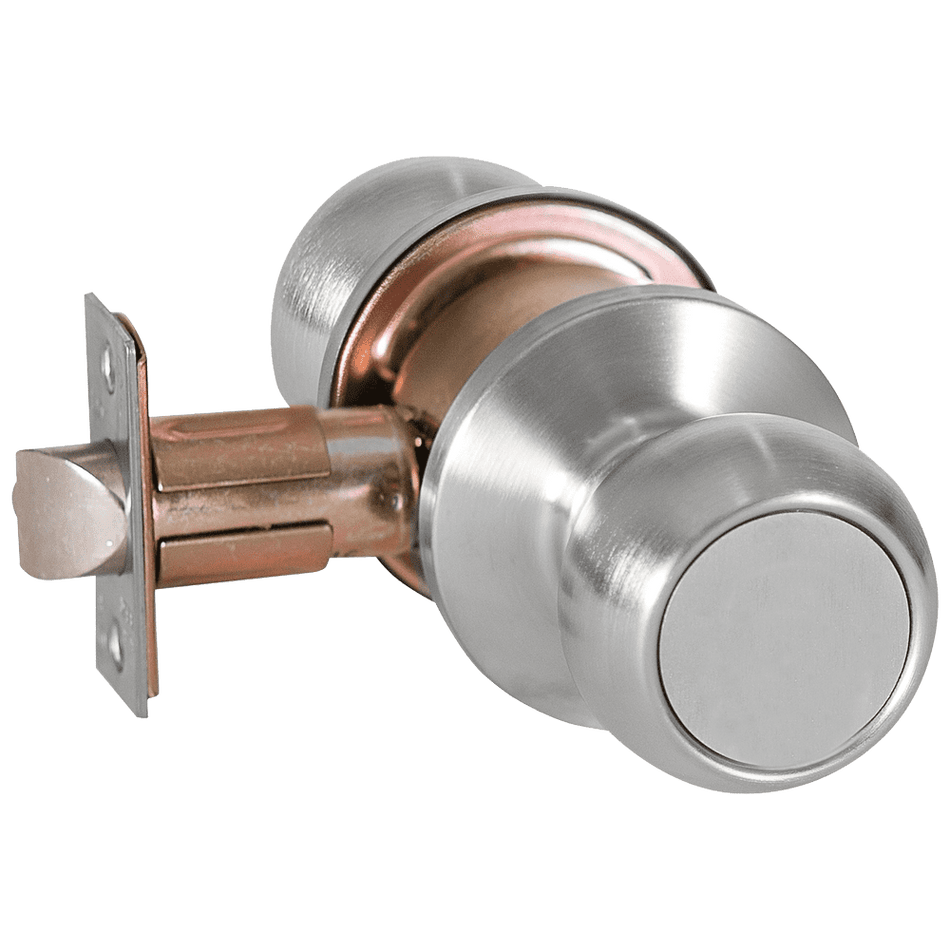

Arrow MK02 Privacy Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK02 Privacy Knob:

Latch bolt operated by knob from either side. Outside knob is locked by push button inside and unlocked by emergency release outside, operating inside knob or closing door.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK03 Communicating Passage Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK03 Communicating Passage Knob:

Dead locking latch bolt operated by knob one side only at all times.

Non removable blank trim outside.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK04 Patio Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK04 Patio Knob:

Dead locking latch bolt operated by knob from either side.

Outside knob is locked by push button inside and unlocked by operating inside knob or closing door.

Do not use on doors in rooms that have no other entrance.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK08 Single Dummy Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK08 Single Dummy  Knob:

Rigid trim for one side of door only.

Used as pull or to match active trim.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK11 Entrance or Office Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK11 Entrance or Office  Knob:

Dead locking latch bolt operated by knob from either side except when outside knob is locked by pushing turn button inside.

Key outside or operating inside knob releases turn button unlocking outside knob except when turn button has been rotated to keep outside knob locked.

Inside turn button must be manually operated to unlock outside knob.

Inside knob always operates latch bolt.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK12 Storeroom Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK12 Storeroom Knob:

Dead locking latch bolt operated by key in outside knob or by operating inside knob.

Outside knob is always inoperable.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK13 Exterior Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK13 Exterior Knob:

Dead locking latch bolt operated by knob from either side except when outside knob is locked by push button inside.

When outside knob is locked, operating key in outside knob or operating inside knob unlocks push button and retracts latch bolt.

Closing door does not release push button.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK14 Service Station Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK14 Service Station Knob:

Dead locking latch bolt operated by knob from either side except when outside knob is locked by push button inside.

Key outside, operating inside knob or closing door releases push button unlocking outside knob except when slotted push button is in a locked position.

Inside knob always operates latch bolt.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK15 Hotel Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK15 Hotel Knob:

Dead locking latch bolt operated by knob from inside at alltimes.

Outside knob always inoperable.

Latch bolt operated by key from outside except when push button inside is operated thus shutting out all keys except emergency key.

Operating push button operates outside visual indicator showing room is occupied.

Operating inside knob or closing door releases indicator and shut out feature except when shut out is activated by turning inside button with spanner key.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK17 Classroom Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK17 Classroom Knob:

Dead locking latch bolt operated by knob from either side except when outside knob is locked from outside by key.

When outside knob is locked, latch bolt is operated by inside knob.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK31 Communicating Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK31 Communicating Knob:

Dead locking latch bolt operated by knob from either side.

Turning key in either knob locks or unlocks its own knob independently.

Do not use on doors in rooms that have no other entrance.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK32 Public Entrance Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK32 Public Entrance Knob:

Dead locking latch bolt operated by knob from either side except when outside knob is locked by key from inside.

When outside knob is locked, latch bolt is retracted by key in outside knob or by operating inside knob.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK33 Asylum Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK33 Asylum Knob:

Dead locking latch bolt operated by key in knob from either side.

Both knobs always inoperable.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow MK34 Exterior Knob. Arrow MK Series offer the Security Professional simple solutions to accessibility requirements. Their clean designs, architectural finishes and available functions make them ideal for commercial applications where heavy duty grade one hardware may not be necessary.

Arrow MK34 Exterior Knob:

Dead locking latch bolt operated by key from outside or by knob from inside except when inside knob is locked by key from inside knob.

Outside knob is always inoperable.

Features

Lock Chassis: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" (53.97 mm) bore through door.

Backset: 2-3/8" (60.32 mm) standard. 2-3/4" (69.85 mm), 3-3/4" (95.25 mm) and 5" (127 mm) available.

Door Thickness: 1-3/8" (34.92 mm) to 1-3/4" (44.45 mm)

Latch: Brass with 1/2" (12.7 mm) throw. Latch housing is steel, with zinc dichromate finish for corrosion resistance. 7/8" (22.225 mm) bore in edge of door is required.

Latch Front: Brass or bronze. Standard faceplate for 2-3/8" (60.32 mm) backset measures 2-1/4" (57.15 mm) x 1" (25.40 mm), with a flat front, for 2-3/4" (69.85 mm) standard faceplate measures 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), with a beveled front 1/8" (3.17 mm) in 2" (50.8 mm).

Strike: Brass, bronze or stainless steel. Standard “T” strike measures 2-3/4" (69.85 mm) x 1-1/8" (28.57 mm). Optional ANSI A115.1 strike measures 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm). All strikes have a 1-1/4" (31.75 mm) lip to center dimension.

Handing: Reversible.

Cylinder, Standard: Solid brass 6 pin cylinder with Arrow“ A” keyway, keyed to 5 pin for stock. Can be masterkeyed, grandmaster keyed and construction masterkeyed. Conventional cylinders are also available in a variety of competitive manufacturer’s keyways. Supplied with two 5 pin brass keys for stock.

Cylinder Options: Interchangeable Core-lockset prepared for use with 6 or 7 pin interchangeable cores. Supplied less core, but packed with 6 and 7 pin tailpieces. Will accept cores as manufactured by Best,™ Falcon™ and other similar style cores. Suffix “IC” to design.

Finish: US3, US4, US5A, US10, US10B, US26, US26D.

Certification

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specifications FF-H-106C, Series 160

Arrow RK01 Passage Knob. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Arrow RK01 Passage Knob:

Latchbolt operated by knob/lever either side

Features

Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.

Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)

Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm)
doors standard.

Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions

Latch Front:  1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
(60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.

Exposed Trim: RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).

Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.

Cylinder: Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional. Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core. Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.*

Keys: 2 brass keys

Handing: Non-handed

Finishes: US3, US4, US10, US10B, US32 and US32D

Packaging: 10 per case

Warranty: Five Year Mechanical Warranty

Certification:

The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors. RL Levers conform to ADA requirements.

Arrow RK02 Privacy Knob. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Arrow RK02 Privacy Knob:

Latchbolt operated by knob/lever either side except when inside turnbutton locks outside.

Unlocked by rotating button or by using tool outside.

Features

Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.

Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)

Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm)
doors standard.

Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions

Latch Front:  1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
(60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.

Exposed Trim: RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).

Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.

Cylinder: Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional. Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core. Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.*

Keys: 2 brass keys

Handing: Non-handed

Finishes: US3, US4, US10, US10B, US32 and US32D

Packaging: 10 per case

Warranty: Five Year Mechanical Warranty

Certification:

The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors. RL Levers conform to ADA requirements.

Arrow RK08 Half Dummy Trim Knob. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Arrow RK08 Half Dummy Trim Knob:

Rigid trim for one side of door only.

Used as pull or to match active trim.

Features

Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.

Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)

Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm)
doors standard.

Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions

Latch Front:  1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
(60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.

Exposed Trim: RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).

Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.

Cylinder: Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional. Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core. Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.*

Keys: 2 brass keys

Handing: Non-handed

Finishes: US3, US4, US10, US10B, US32 and US32D

Packaging: 10 per case

Warranty: Five Year Mechanical Warranty

Certification:

The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors. RL Levers conform to ADA requirements.

Arrow RK11 Entrance Knob. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Arrow RK11 Entrance Knob:

Latchbolt operated by knob/lever either side except when outside knob/lever is locked by turn-button inside.

When outside knob/lever is locked, latchbolt operated by key outside or turning inside knob/lever.

Inside button must be manually released.

Features

Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.

Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)

Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm)
doors standard.

Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions

Latch Front:  1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
(60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.

Exposed Trim: RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).

Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.

Cylinder: Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional. Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core. Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.*

Keys: 2 brass keys

Handing: Non-handed

Finishes: US3, US4, US10, US10B, US32 and US32D

Packaging: 10 per case

Warranty: Five Year Mechanical Warranty

Certification:

The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors. RL Levers conform to ADA requirements.

Arrow RK12 Storeroom Knob. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Arrow RK12 Storeroom Knob:

Outside knob/lever always rigid.

Latchbolt operated by key in outside knob/lever, or by turning inside knob/lever.

Features

Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.

Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)

Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm)
doors standard.

Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions

Latch Front:  1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
(60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.

Exposed Trim: RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).

Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.

Cylinder: Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional. Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core. Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.*

Keys: 2 brass keys

Handing: Non-handed

Finishes: US3, US4, US10, US10B, US32 and US32D

Packaging: 10 per case

Warranty: Five Year Mechanical Warranty

Certification:

The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors. RL Levers conform to ADA requirements.

Arrow RK17 Classroom Knob. The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.

Arrow RK17 Classroom Knob:

Latchbolt operated by knob/lever either side except when key outside locks outside lever.

Inside lever always free.

Key outside locks/unlocks outside lever only.

Features

Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 1-1/8" (53.97mm) bore through door.

Backset: 2-3/8" (60.31mm) or 2-3/4" (69.85mm)

Door Thickness: Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm)
doors standard.

Latch: Brass 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions

Latch Front:  1" x 2-1/4" (25.40mm x 57.15mm) for 2-3/8" backset
(60.32.mm) or 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.

Exposed Trim: RK Roses are wrought brass 2-1/2" (63.5mm) diameter. Total projection from face of door is 2-3/4" (69.85mm).

Strike: 4-7/8" ANSI (123.83mm), 2-3/4" (69.85mm) T strike, or 2-1/4" (57.15mm) full lip strike.

Cylinder: Conventional - Solid brass 6 pin. Arrow "A" keyway standard. C keyway optional. Interchangeable Core – Lockset prepared to use with 6 or 7 pin interchangeable core. Will accept cores manufactured by Arrow, Best, Falcon, Medeco Keymark, ASSA, and others.*

Keys: 2 brass keys

Handing: Non-handed

Finishes: US3, US4, US10, US10B, US32 and US32D

Packaging: 10 per case

Warranty: Five Year Mechanical Warranty

Certification:

The RK Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors. RL Levers conform to ADA requirements.

Corbin Russwin CK4410 Passage or Closet Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

• Fine homes
• Apartments
• Motels
• Offices

Corbin Russwin CK4410 Passage or Closet:

• Latchbolt by knob either side.

• Both knobs always free.

Advantages

• Wide array of functions
• Precision manufactured mechanisms, zinc dichromated for corrosion resistance
• Stainless steel latchbolt for long life
• Adjustable latchbolts accommodates flat and beveled doors
• Stainless steel trim available

Features Handing Field reversible.

Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

Backset 2-3/4" (70mm) standard.

Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

Click on a swatch to view finish on hardware.

BHMA 605	Bright Brass
BHMA 612	Satin Bronze
BHMA 613	Dark Oxidized Satin Bronze, Oil Rubbed
BHMA 629	Bright Stainless Steel
BHMA 630	Satin Stainless Steel

Trim

Belmont
Global

• Wide array of functions
• Precision manufactured mechanisms, zinc dichromated for corrosion resistance
• Stainless steel latchbolt for long life
• Adjustable latchbolts accommodates flat and beveled doors
• Stainless steel trim available

Corbin Russwin CK4410 Privacy, Bedroom or Bathroom Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

• Fine homes
• Apartments
• Motels
• Offices

Corbin Russwin CK4410 Privacy, Bedroom or Bathroom:

• Deadlocking latchbolt by knob either side.

• Outside knob locked by push button.

• Outside knob unlocked by turning slotted button outside, by rotating inside knob, or by closing door.

• Inside knob always free.

Advantages

• Wide array of functions
• Precision manufactured mechanisms, zinc dichromated for corrosion resistance
• Stainless steel latchbolt for long life
• Adjustable latchbolts accommodates flat and beveled doors
• Stainless steel trim available

Features Handing Field reversible.

Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

Backset 2-3/4" (70mm) standard.

Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

Click on a swatch to view finish on hardware.

BHMA 605	Bright Brass
BHMA 612	Satin Bronze
BHMA 613	Dark Oxidized Satin Bronze, Oil Rubbed
BHMA 629	Bright Stainless Steel
BHMA 630	Satin Stainless Steel

Trim

Belmont
Global

• Wide array of functions
• Precision manufactured mechanisms, zinc dichromated for corrosion resistance
• Stainless steel latchbolt for long life
• Adjustable latchbolts accommodates flat and beveled doors
• Stainless steel trim available

Corbin Russwin CK4450 Half Dummy Trim Knob. An outstanding combination of value and performance. Ideal for quality residential and light commercial buildings, such as:

• Fine homes
• Apartments
• Motels
• Offices

Corbin Russwin CK4450 Half Dummy Trim:

• Knob acts as pull only; no operation.

• Knob is rigid.

Advantages

• Wide array of functions
• Precision manufactured mechanisms, zinc dichromated for corrosion resistance
• Stainless steel latchbolt for long life
• Adjustable latchbolts accommodates flat and beveled doors
• Stainless steel trim available

Features Handing Field reversible.

Door Thickness 1-3/8" (35mm) - 1-3/4" (44mm) standard.

Backset 2-3/4" (70mm) standard.

Optional: 2-3/8" (60mm), 3-3/4" (95mm) and 5" (127mm); see How to Order, page 9.

Lock Chassis Steel, zinc dichromated for corrosion resistance. Front Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm) standard.

Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).

Optional fronts available; see How to Order, page 9. Latchbolt Brass or stainless steel, 1/2" (13mm) throw.

Auxiliary Latchbolt Deadlocking latchbolt prevents manipulation when door is closed. Strike Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional strikes, lip lengths and ANSI wrought strike box available; see How to Order, page 9.

Cylinder Brass, 6-pin L4 keyway, 0-bitted standard. Keying Features Available Master keying Construction master keying Keys Two nickel silver standard. Warranty One-year limited.

Certification/Compliance ANSI/BHMA Certified and meets A156.2 Series 4000, Grade 2. Federal Meets FF-H-106C. UL-cUL UL/ULC All locks with listed for A label and lesser class single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.

Any retrofit or other field modification to a fire-rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation.

When retrofitting any portion of an existing firerated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratingsAvailable Finishes

Click on a swatch to view finish on hardware.

BHMA 605	Bright Brass
BHMA 612	Satin Bronze
BHMA 613	Dark Oxidized Satin Bronze, Oil Rubbed
BHMA 629	Bright Stainless Steel
BHMA 630	Satin Stainless Steel

Trim

Belmont
Global

• Wide array of functions
• Precision manufactured mechanisms, zinc dichromated for corrosion resistance
• Stainless steel latchbolt for long life
• Adjustable latchbolts accommodates flat and beveled doors
• Stainless steel trim available
