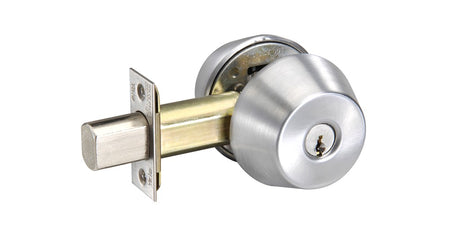

Yale D111 & D112 Cylinder x Thumbturn Deadbolt. D100 Certified ANSI/BHMA A156.5 Grade 1.
deadbolt 1" (25mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
backset The D series deadbolts are available with either 2-3/4" (70mm) or 2-3/8" (60mm) backset.
Yale D111 & D112 Cylinder x Thumbturn Deadbolt:
- Deadbolt operated by key outside, thumbturn inside.
fire listings D series deadbolts, when used in conjunction with the primary latching device, are UL - cUL listed for use with Classified steel covered composite or hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
ANSI/ BHMA Code Finish Description 605 Bright Brass, Clear Coated 606* Satin Brass, Clear Coated 612 Satin Bronze, Clear Coated 613 Dark Oxidized Satin Bronze, Oil Rubbed 613E Dark Oxidized Satin Bronze - equivalent 619 Satin Nickel Plated, Clear Coated 625 Bright Chrome Plated 626* Satin Chrome Plated
