Overview
The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others.
Architectural design elements differ between the 98 and the 99. The 98 Series device has a smooth mechanism case, while the 99 Series has a grooved mechanism case.
- Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
- Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
- A variety of field-configurable options and retrofit kits available
- ANSI/BHMA A156.3 2014 Grade 1 certified
- ANSI/UL 10C (fire-rated only)
- ANSI/UL 305
- CAN/ULC-S104 (fire-rated only)
- CAN/ULC-S132

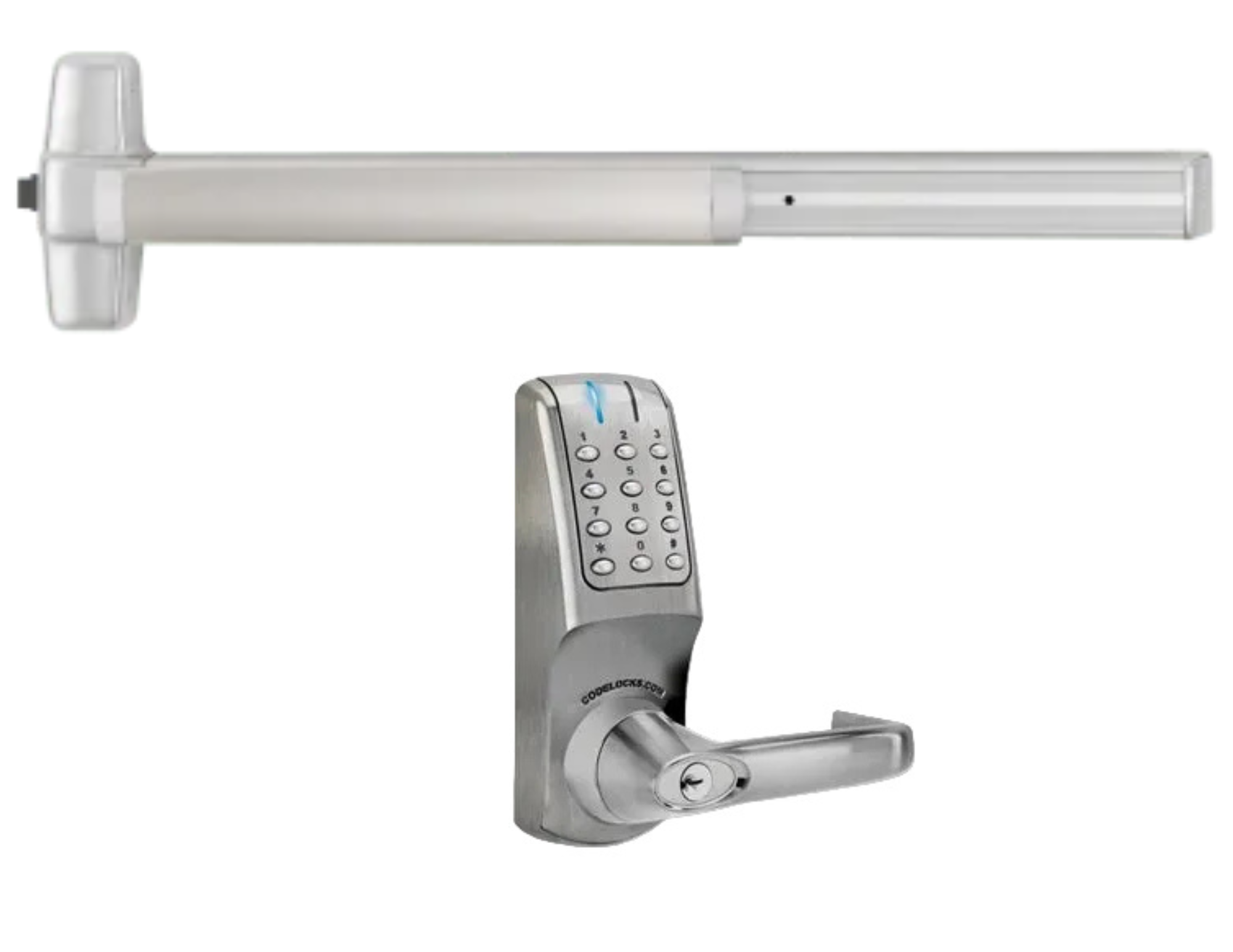

The ultimate standalone electronic door lock. Heavy duty locks for use in high traffic applications. Front plate only.
The ultimate standalone electronic door lock. Heavy duty locks for use in high traffic applications. Particularly suitable for use in health, educational, commercial and residential environments. Front plate only. Install with new or existing panic access equipment. The follower on the panic equipment must return to square to align with follower on the lock. Code Free option can also be programmed via the keypad. Now available in Solid Black finish.
Key Features
- Compatible with all Von Duprin Rim Exit Devices (not with the vertical rod devices)
- Key override and front cylinder change
- Suitable for wooden doors between 35mm - 60mm thick
- User Codes 4, 5 or 6 digits long
- Now available in Solid Black finish
- Allows up to 10 one time User Codes
- Up to 200,000 operations from 4 x AA batteries (supplied)
- Remote release connections
- Suitable for internal and external use
- Tamper time out and low battery warning
- Locked and unlocked LED indicator option
- Tested to Grade 2 ANSI A156.2 / A156.25
- UL/ULC Fire Rating 3 hours
- Brand: Codelocks
- Buttons: 3 x 4
- Code Change Method: Keypad (On Door)
- Codes: User Codes 4, 5 or 6 digits long
- Door Thickness: 35mm - 60mm (1 3⁄8" - 2 3⁄8")
- Finish: Brushed Steel, Black
- Handed: Non Handed - Locks will fit doors hung on the left or right
- Keyed Alike: Available
- Keypad: Individual stainless steel buttons
- Lock Material: Zinc Alloy
- Low Battery Warning: Red LED will flash on opening to indicate low battery
- Memory: Stores up to 80 User Codes
- Operations: Up to 200,000 per set of 4 x AA batteries
- Orientation: Vertical
- Panic Hardware By Codelocks: Panic Hardware
- Power: 4x AA
- Spindle: Two part 5⁄16" (8mm) spring loaded spindle
- Suitable For: Internal, External
- User Types: Code
