Home » Von Duprin 9827EO-F/9927EO-F - Exit Only Surface Vertical Rod Device - Fire Rated
Von Duprin

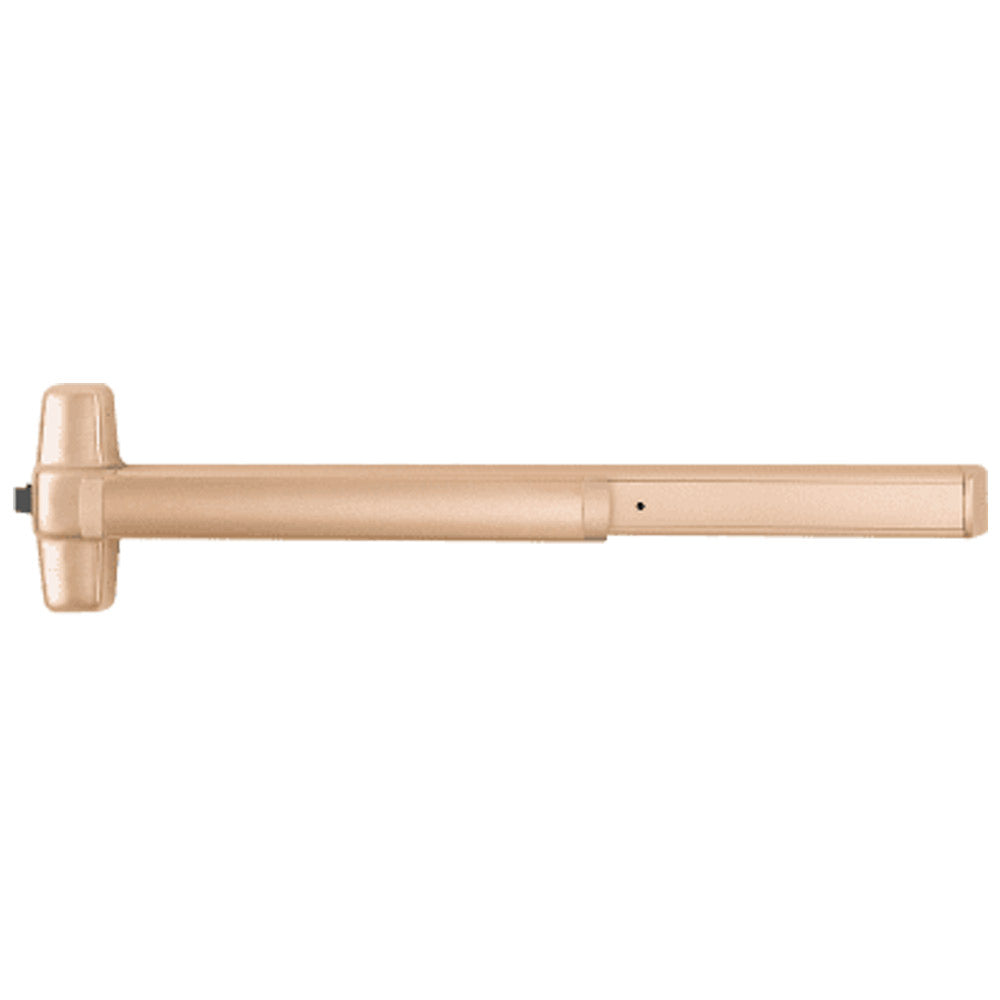

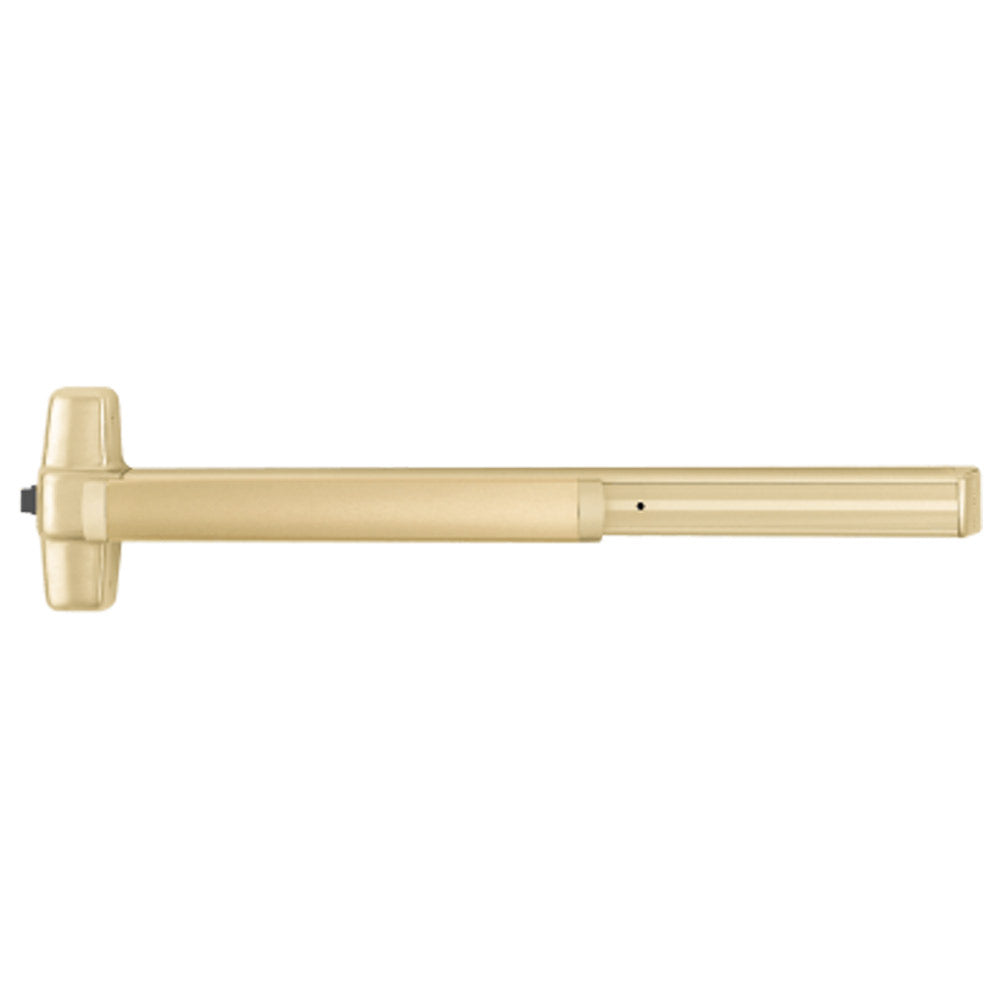

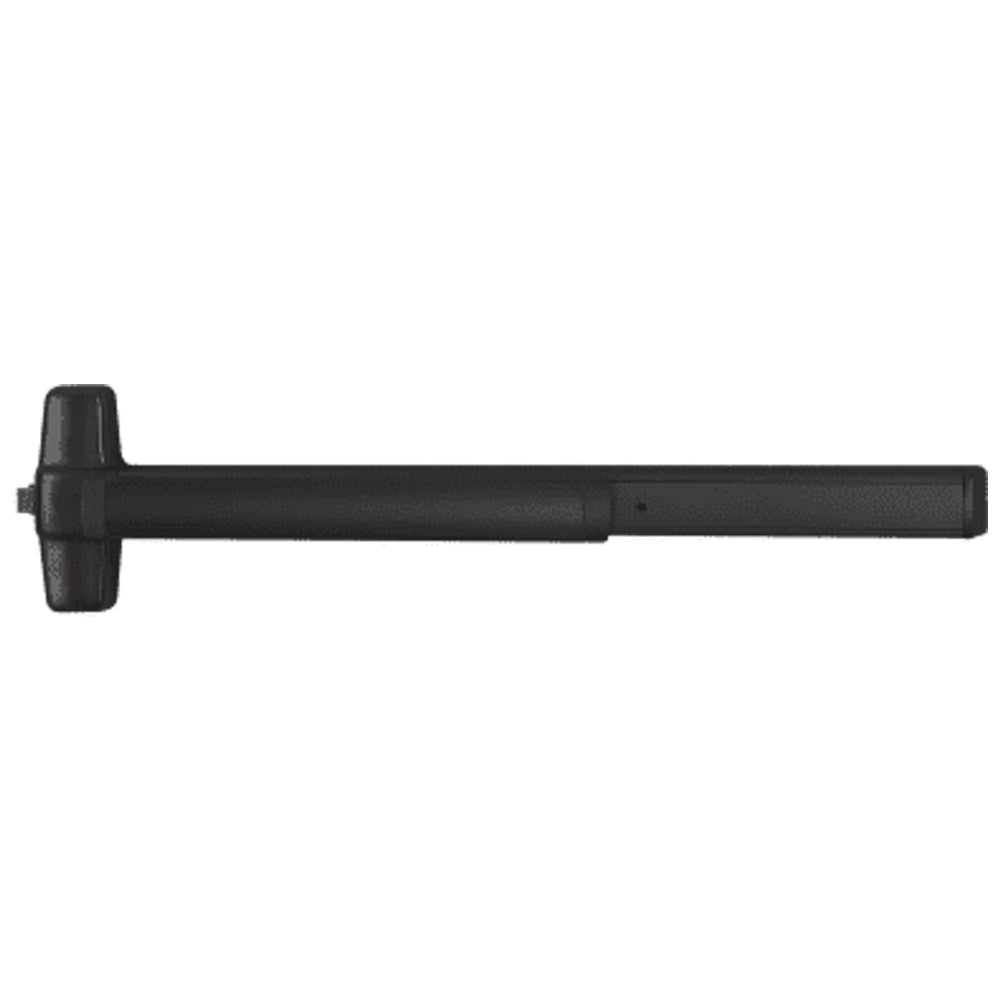

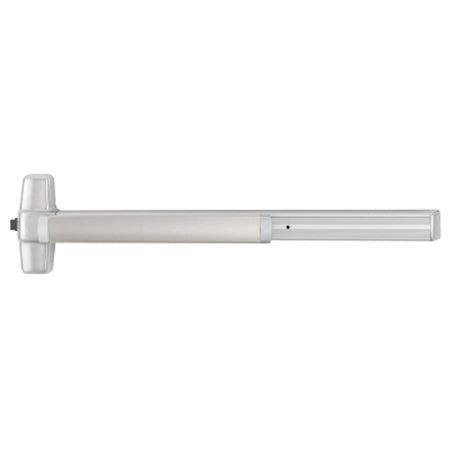

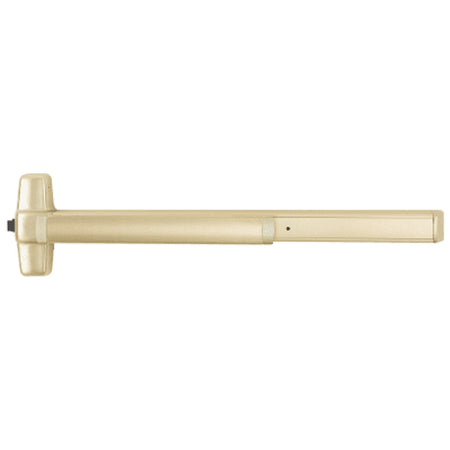

Von Duprin 9827EO-F/9927EO-F - Exit Only Surface Vertical Rod Device - Fire Rated

SKU: 9827EO-F-3-US26D
$ 2,398.00
The 98/99 Series are high-performance, wide stile heavy-duty devices featuring push pads that offer many customizable options.

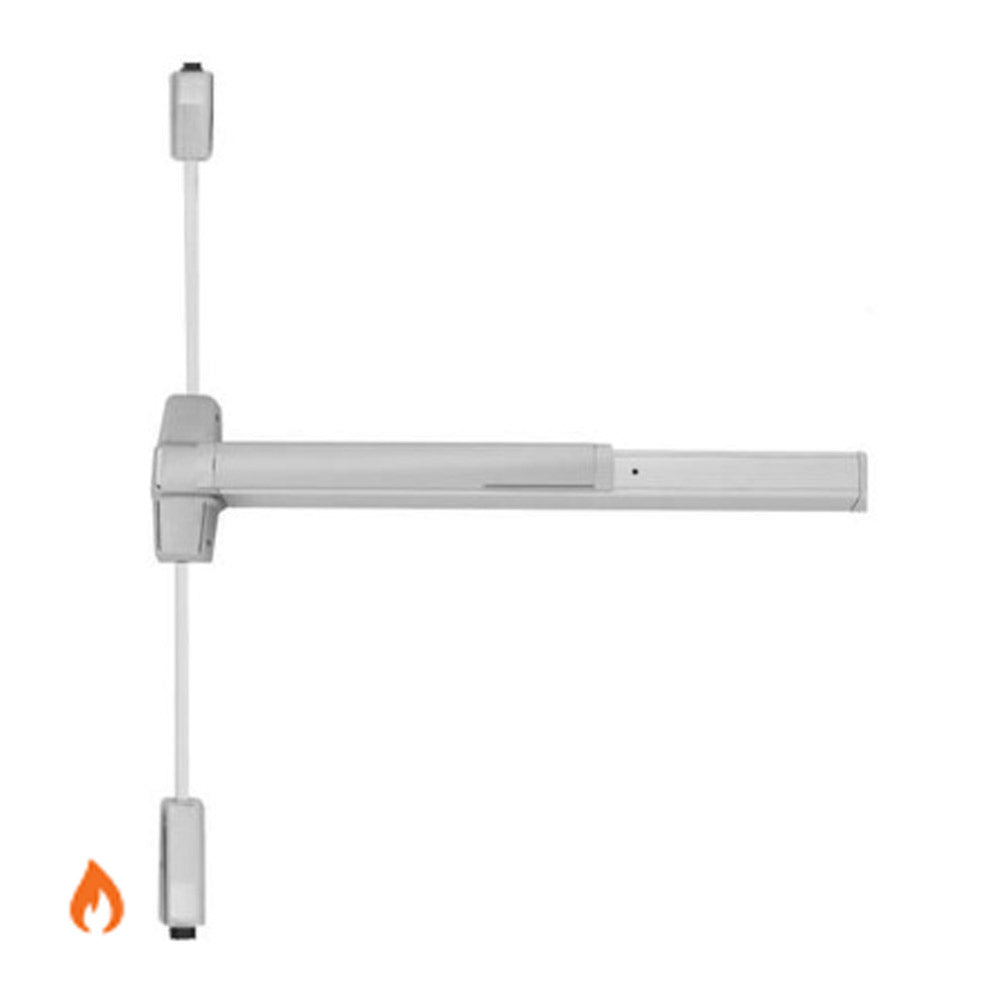

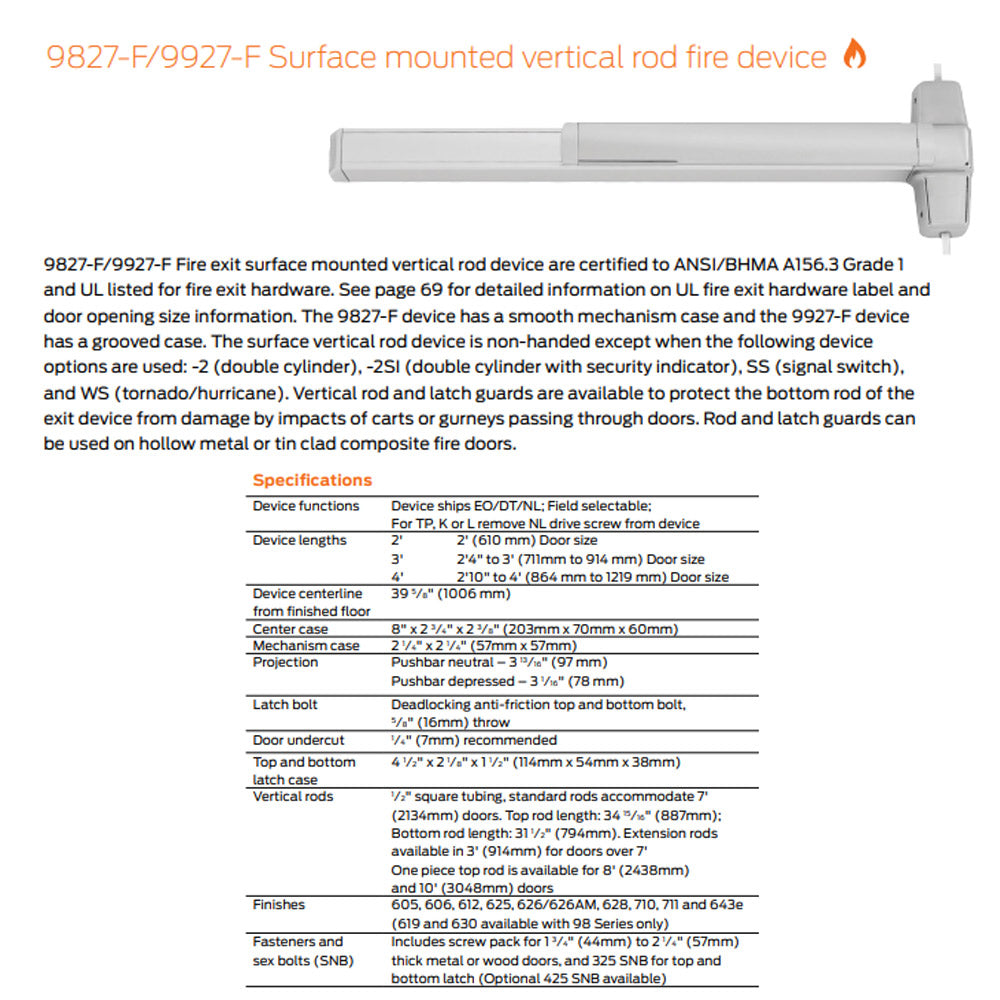

The 9827-F/9927-F Fire exit surface mounted vertical rod device are certified to ANSI/BHMA A156.3 Grade 1 and UL listed for fire exit hardware. The 9827-F device has a smooth mechanism case and the 9927-F device has a grooved case. The surface vertical rod device is non-handed except when the following device options are used: -2 (double cylinder), -2SI (double cylinder with security indicator), SS (signal switch), and WS (tornado/hurricane). Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors. Rod and latch guards can be used on hollow metal or tin clad composite fire doors.

Overview

The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others.

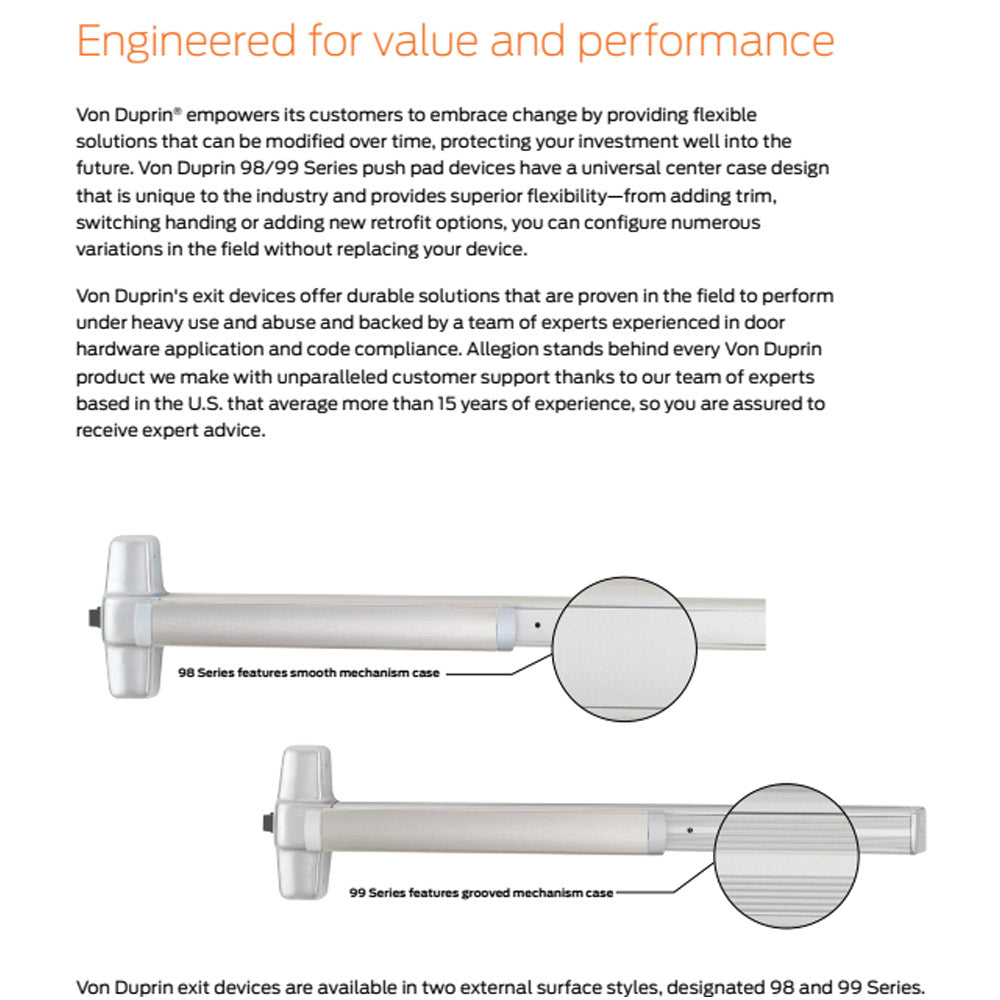

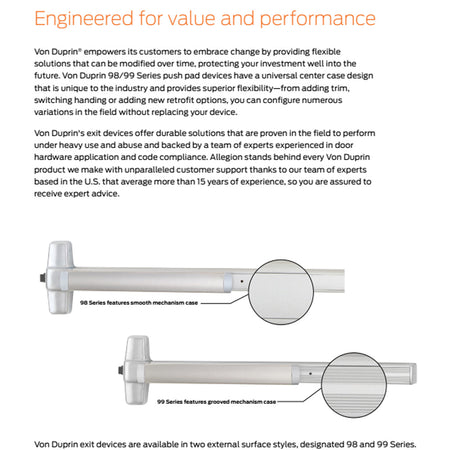

Architectural design elements differ between the 98 and the 99. The 98 Series device has a smooth mechanism case, while the 99 Series has a grooved mechanism case.

  • Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs
  • Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
  • A variety of field-configurable options and retrofit kits available
  • ANSI/BHMA A156.3 2014 Grade 1 certified
  • ANSI/UL 10C (fire-rated only)
  • ANSI/UL 305
  • CAN/ULC-S104 (fire-rated only)
  • CAN/ULC-S132

The 98/99 Series offers a solution for most single, double and double egress door applications.  Below are the available device types:

  • Rim, no suffix
  • 27: surface-mounted vertical rod (SVR)
  • 47: concealed vertical rod (CVR)
  • 47WDC: wood door concealed (WDC)vertical rod
  • 48: concealed vertical rod (CVR) (bottom latch has longer throw)
  • 49: concealed vertical cable (CVC)
  • 50WDC: wood door concealed (WDC)vertical cable
  • 52: 1-point concealed vertical cable (pool exit hardware)
  • 57: 3-point latching
  • 75: mortise lock devices

Devices can be ordered fire-rated by adding  “-F” to the suffix.

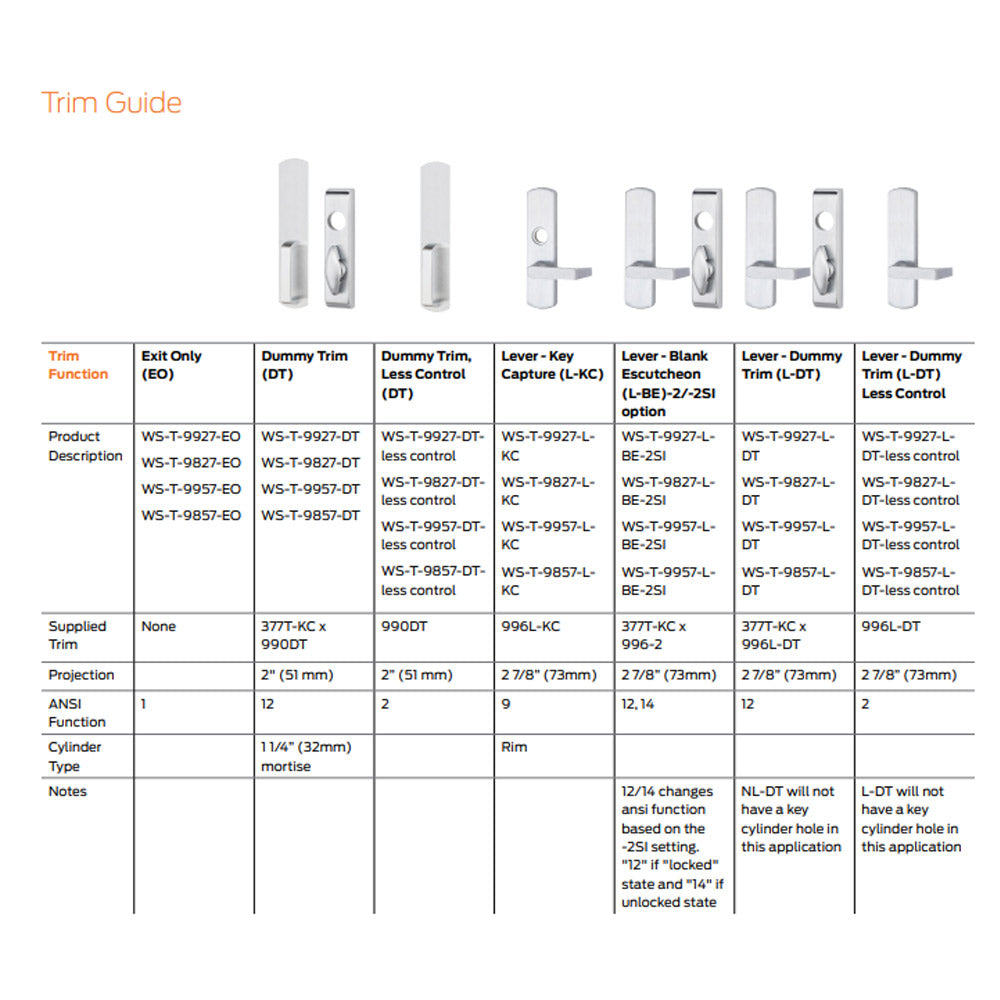

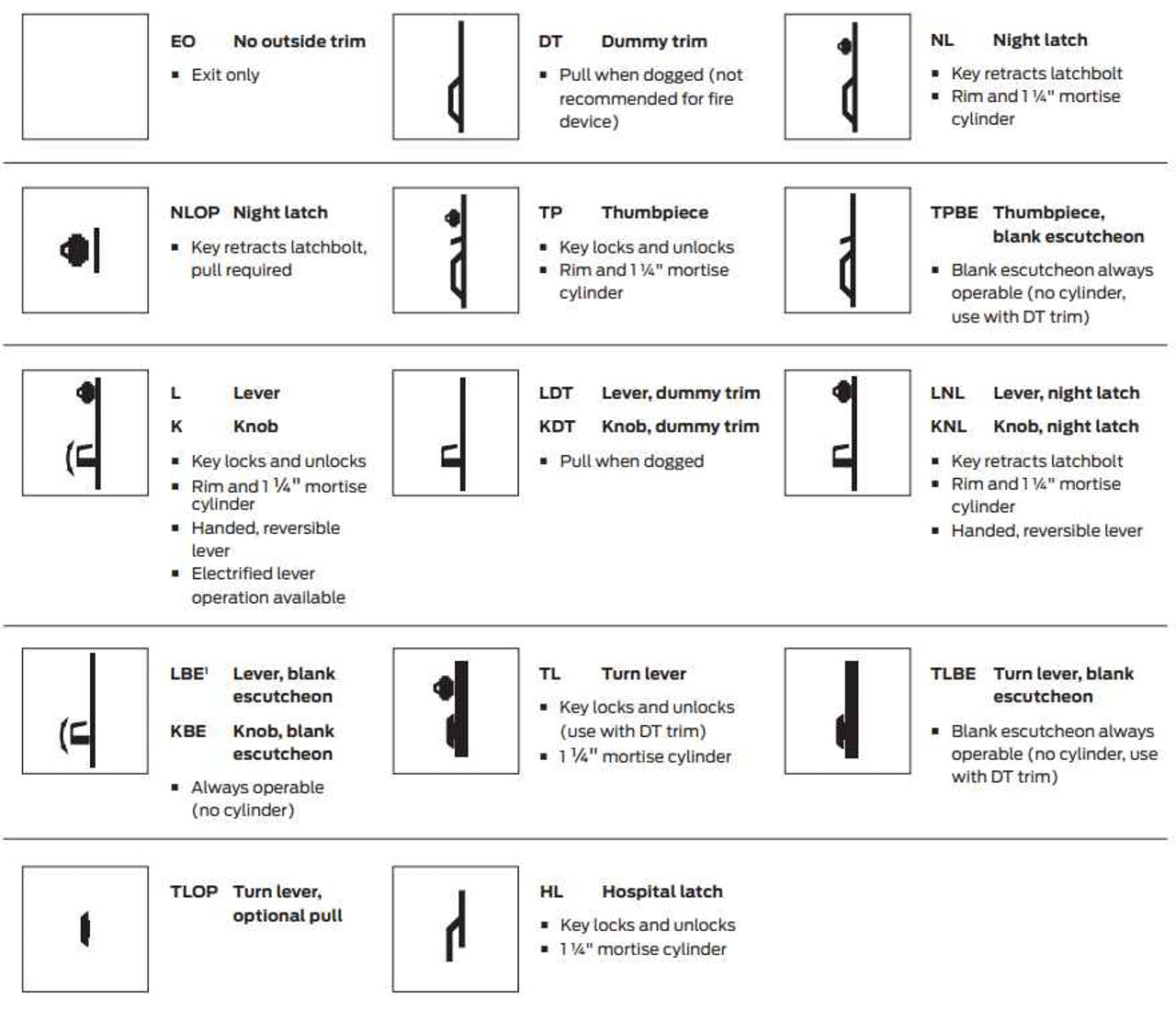

The 98/99 Series is available less control (LC), less trim (LT) and several versions of the exit trim models listed below:

  • 110
  • 374
  • 376
  • 392-7
  • 696
  • 697
  • VR910
  • 990
  • 996
  • Exit Only (EO)
  • Dummy trim (DT)
  • Knob (K)
  • Knob, blank escutcheon (KBE)
  • Knob, dummy trim (KDT)
  • Knob night latch, key retracts (KNL)

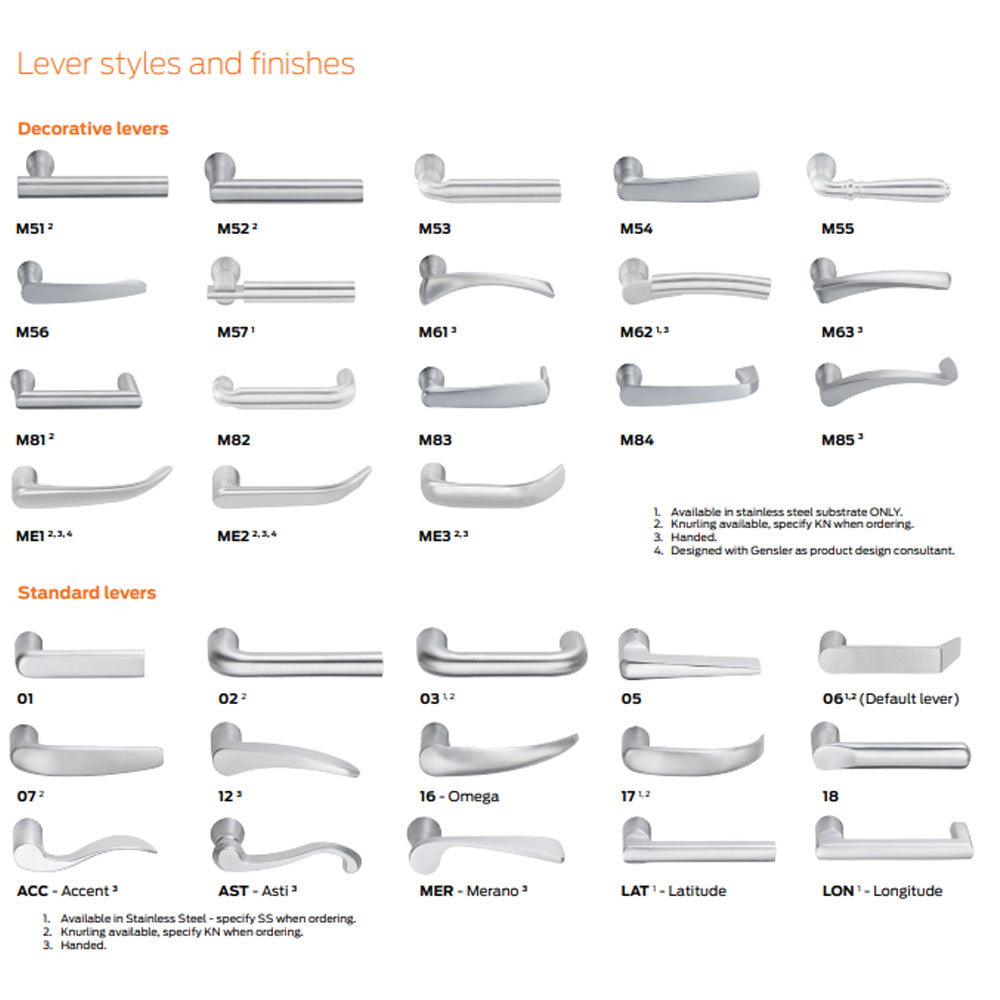

  • Lever (L)
  • Lever, blank escutcheon (LBE)
  • Lever, dummy trim (LDT)
  • Lever-key capture (LKC)
  • Lever, night latch, key retracts (LNL)
  • Night latch, key retracts (NL)
  • Night latch, optional pull (NLOP)
  • Turn lever (TL)
  • Turn lever, blank escutcheon (TLBE)
  • Turn lever, optional pull (TLOP)
  • Thumbpiece (TP)
  • Thumbpiece, blank escutcheon (TPBE)

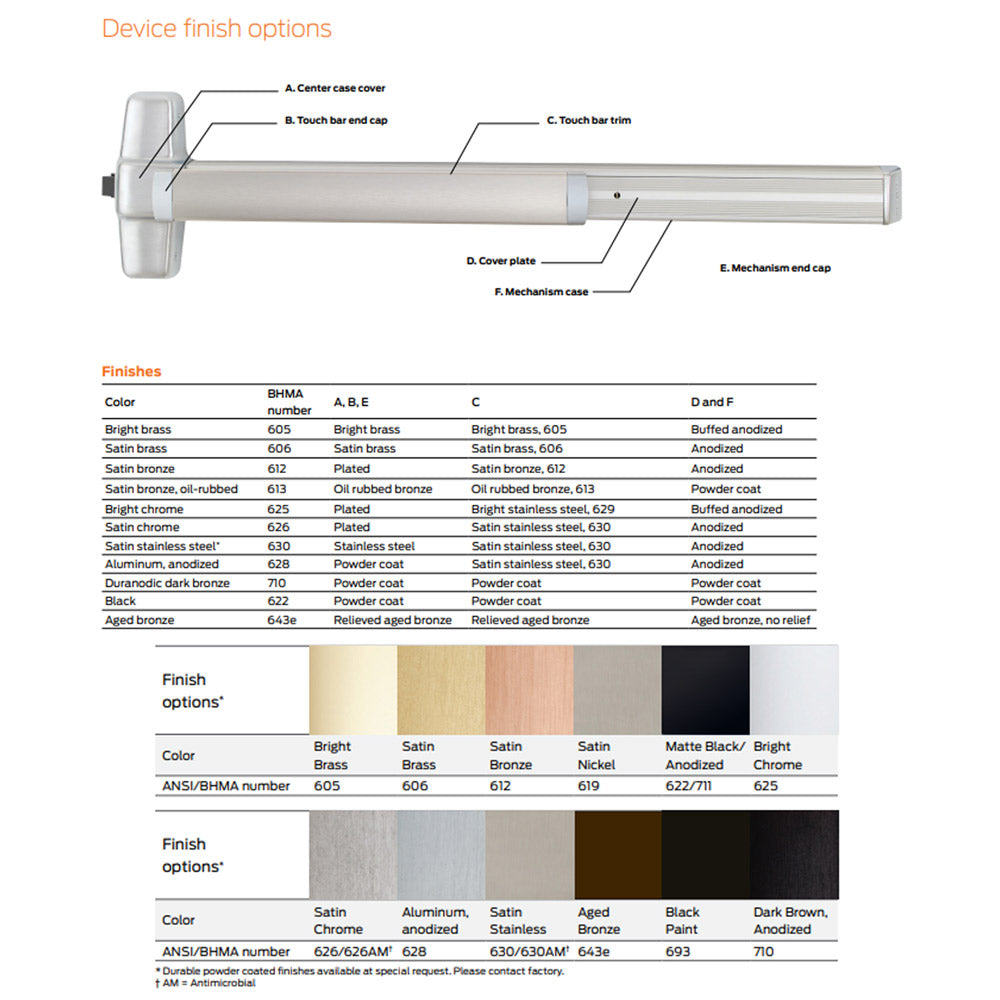

  • 605: Bright Brass
  • 606: Satin Brass
  • 611: Bright Bronze*
  • 612: Satin Bronze
  • 613: Satin Bronze, Oil-Rubbed
  • 619: Satin Nickel
  • 625: Polished Chrome
  • 626: Satin Chrome
  • 626-AM: Satin Chrome, Antimicrobial*
  • 628: Anodized aluminum
  • 630: Satin Stainless Steel
  • 630-AM: Satin Stainless Steel, Antimicrobial*
  • 643E: Aged Bronze
  • 710: Duranodic Dark Bronze
  • 711: Black

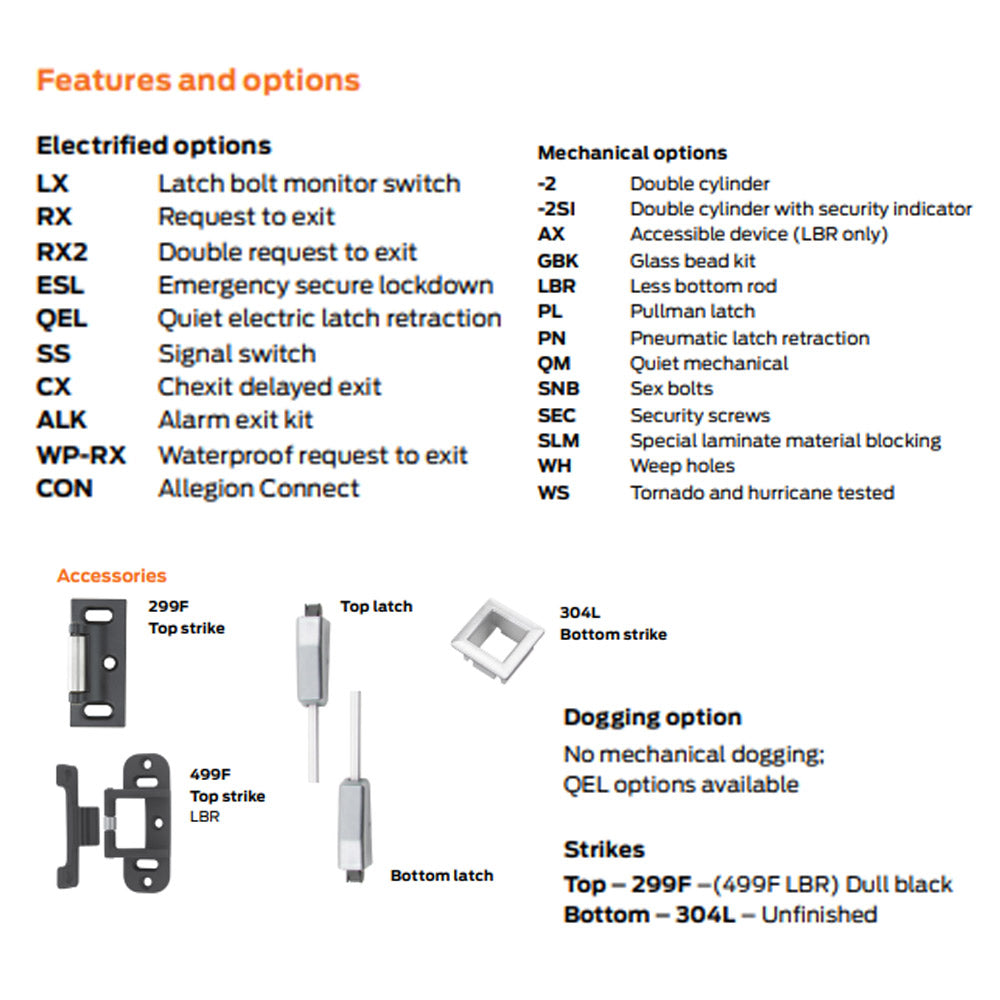

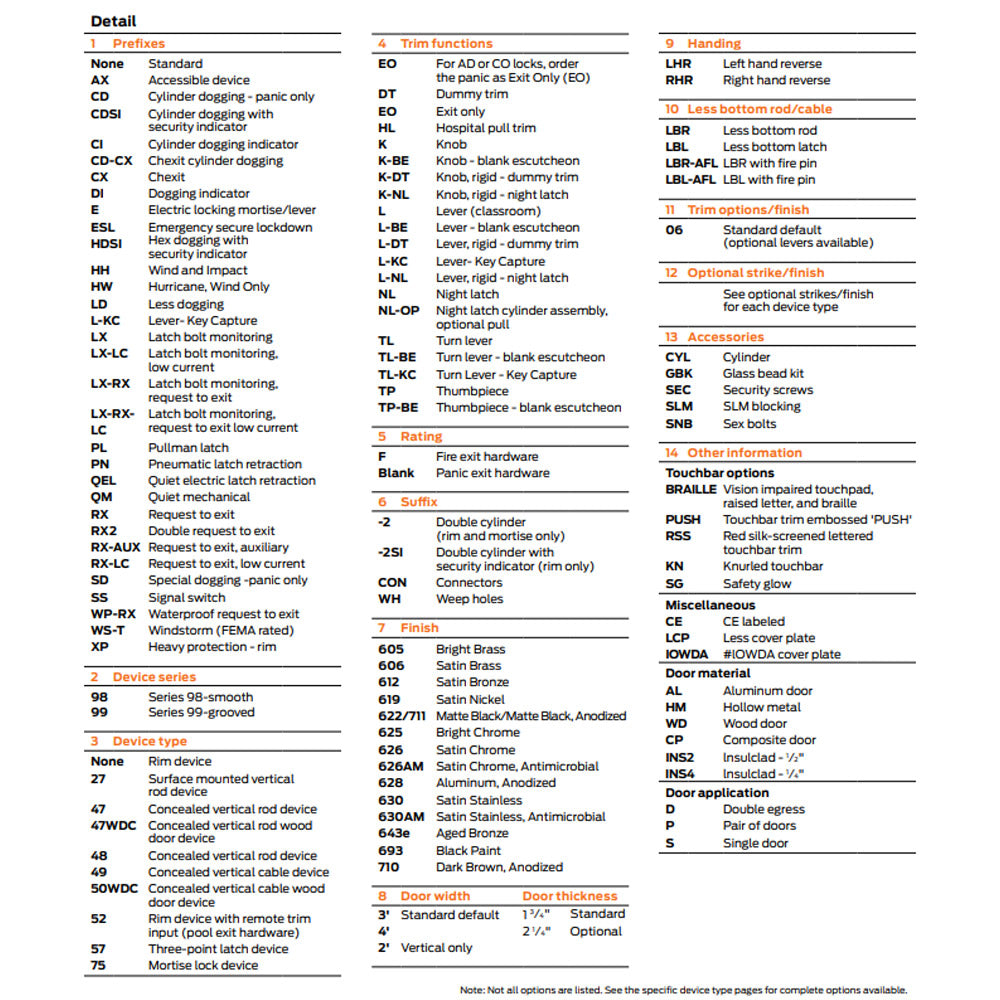

The 98/99 Series can be customized with several mechanical, electronic and finish options to meet any facility needs. A few common options are below:

Mechanical Options

  • CD: Cylinder dogging (panic only)
  • CI: Cylinder dogging indicator
  • DI: Dogging indicator
  • HD: Hex dogging
  • LD: Less dogging
  • SD: Special dogging
  • -2/-2SI: Double cylinder (-2) or double cylinder with security indicator (-2SI), allows users to lock the outside trim from inside the room, while still allowing free egress.
  • CDSI: Cylinder dogging security dogging indicators provides at-a-glance verification of the panic device status
  • HDSI: Hex key dogging security indicator provides at-a-glance verification of the panic device status
  • PN: Pneumatic latch retraction, for areas where electrical devices banned
  • QM: Quiet mechanical options, provides damper-controlled relatching of device
  • WH: Weep holes, drainage (weep) holes in mechanism case
  • HH: Wind and impact- Hurricane rated
  • HW: Wind only - Hurricane rated
  • AX: an accessible device that is certified to meet the 5 lb. force requirements for the 2010 American Disabilities Act (ADA) (Chapters 404.2.7 and 30934) and 2013 California Building Code (Chapter 11B-309.4)
  • PL: Pullman latch, latches are always extended

Touch bar trim

  • RSS: Red silk screen
  • PUSH: Touchbar trim embossed PUSH
  • SG: Safety glow, Self-illuminating touchpad glows brightly during low or no light conditions
  • KN: Knurled touchbar, tactile warning applied to device
  • BRAILLE: Braille for visually impaired

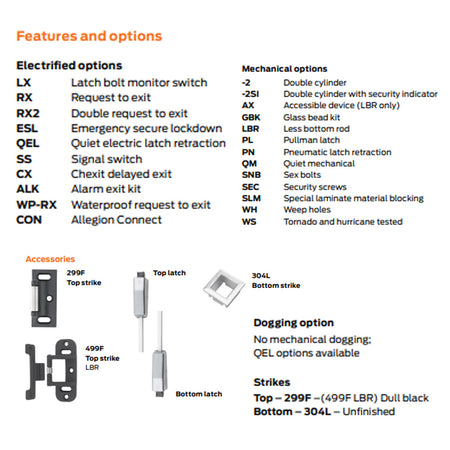

Electromechanical options

Switches an be used as part of an access control system or in a standalone application.

  • LX:  Latchbolt monitoring signals use of an opening
  • RX: Request to exit
  • SS: Signal switch monitors pushpad and latchbolt
  • EL: Electric latch retraction enables remote unlatching
  • QEL: Quiet electric latch retraction,  electronic latch retraction with limited operational noise
  • ESL: Emergency secure lockdown, allows local lockdown where access control is present on large classrooms.
  • CX: Chexit delayed egress, meets NFPA and IBC requirements for delayed egress; a standard device keeps doors secure for 15 seconds after a request to exit while a nuisance alarm sounds
  • ALK: Alarm kit, unauthorized opening triggers horn
  • CON:  Allegion Connect, Common connectors to connect various door hardware all the way to the power supply
  • E996: Electric locking and unlocking trim, remains latched while unlocked
  • E7500: Electric mortise lock device
  • XP: patented 2-O 23 piece latchbolt design, available for 98/99 Series panic and fire applications
