22 Series Rim Exit Device – Von Duprin
- Available for rim and surface-mounted vertical applications
- Several trim and electronic options
- Non-handed design
- ANSI/BHMA A156.3-2014 Grade 1 certified
- ANSI/UL 10C (fire rated only)
- ANSI/UL 305
- CAN/ULC-S104 (fire rated only)
- CAN/ULC-S132
Certifications and specifications are specific to each configuration. Refer to the 22 Series catalog for more details.
The 22 Series offers the following device types:
- Rim, panic
- 27: Surface mounted vertical rod (SVR)
Devices can be ordered fire-rated by adding “-F” to the suffix.
The 22 Series is available less trim (LT) and several versions of the exit trim models listed below:
-----------------------------------------------
Simplex 5000 Series
**REVERSIBLE - NON HANDED**
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex 5000 Series provides exterior access by combination, while allowing free egress. This fully mechanical lock elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door. The lock is available in a wide range of configurations. See the table below for the available options.
Model 502x
- Combination Entry
- Key Override
- Exterior Combination Change
- Knob Available
Model 503x
- Combination Entry
- Key Override
- Interior Combination Change
- D.O.D. Compliant
- Knob Available
Model 504x
- Combination Entry
- Key Override
- Exterior Combination Change
- Passage
- Knob Available
Model 505x
- Combination Entry
- Key Override
- Interior Combination Change
- D.O.D. Compliant
- Passage
- Knob Available
Model 5066
- Combination Entry
- Key Override
- Exterior Combination Change (only)
Model 5067
- Combination Entry
- Key Override
- Deadbolt
- Lockout
- Exterior Combination Change (only)
Model 5068
- Combination Entry
- Key Override
- Passage
- Exterior Combination Change (only)

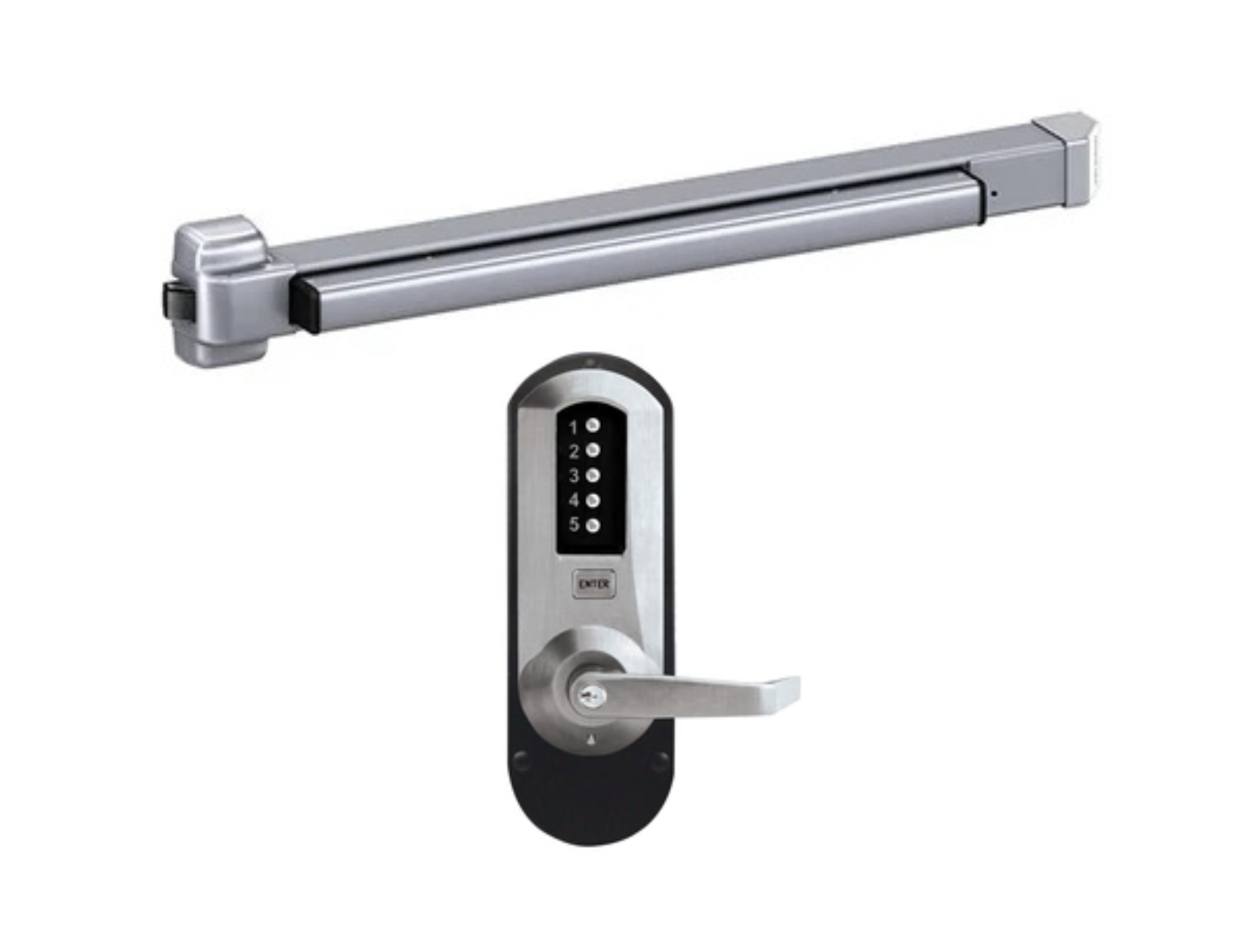

Model 5010
- Combination Entry
- Key Override
- Exterior Combination Change (only)
- Egress with Exit Device (not supplied)
Operation Modes:
- Single access code
- Passage (select models)—allows access without using the lock access code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
- Exit Trim—may be "dogged" if Exit Device allows
- Lockout (select models)—disables the lock from the inside so that the access code cannot be used to gain access. Access is permitted using the key override only when in this mode (5067 model only).
