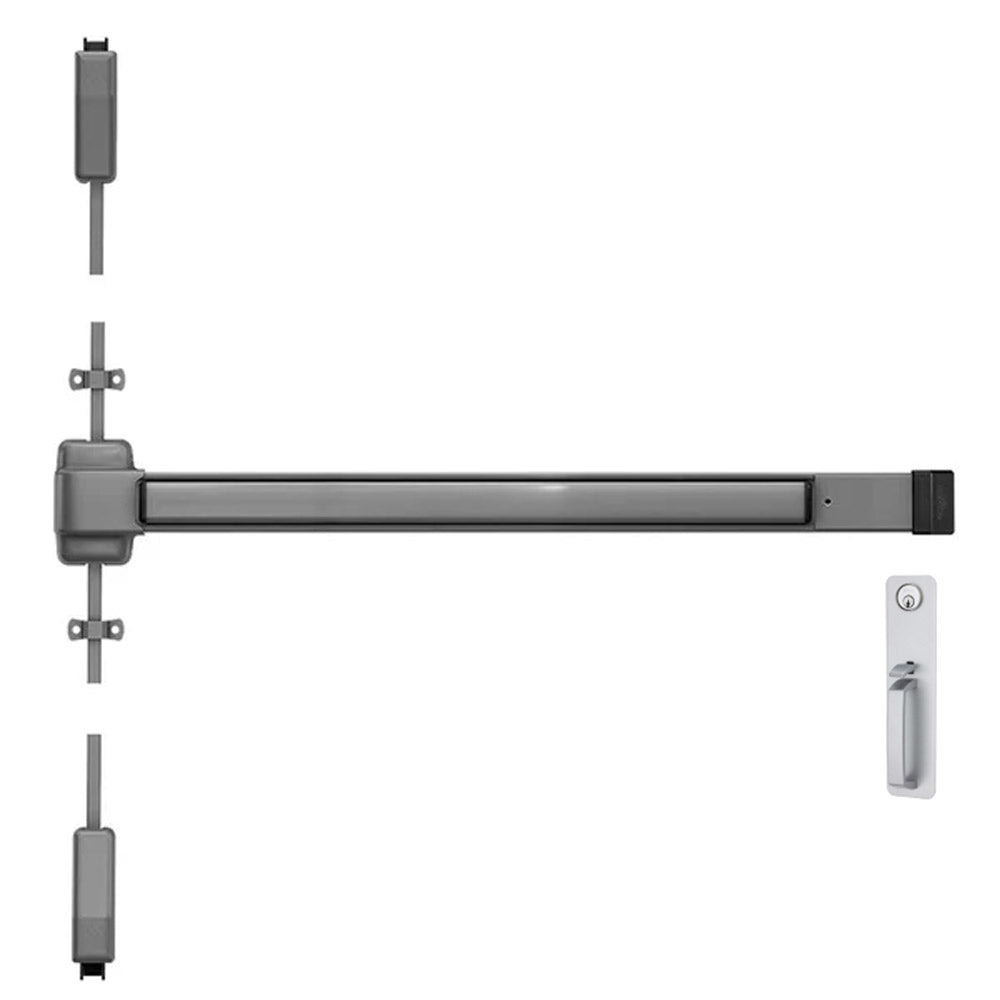

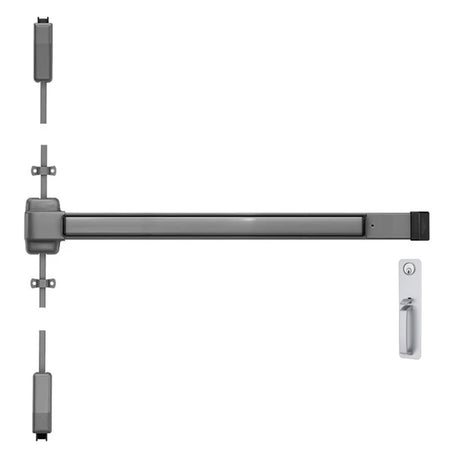

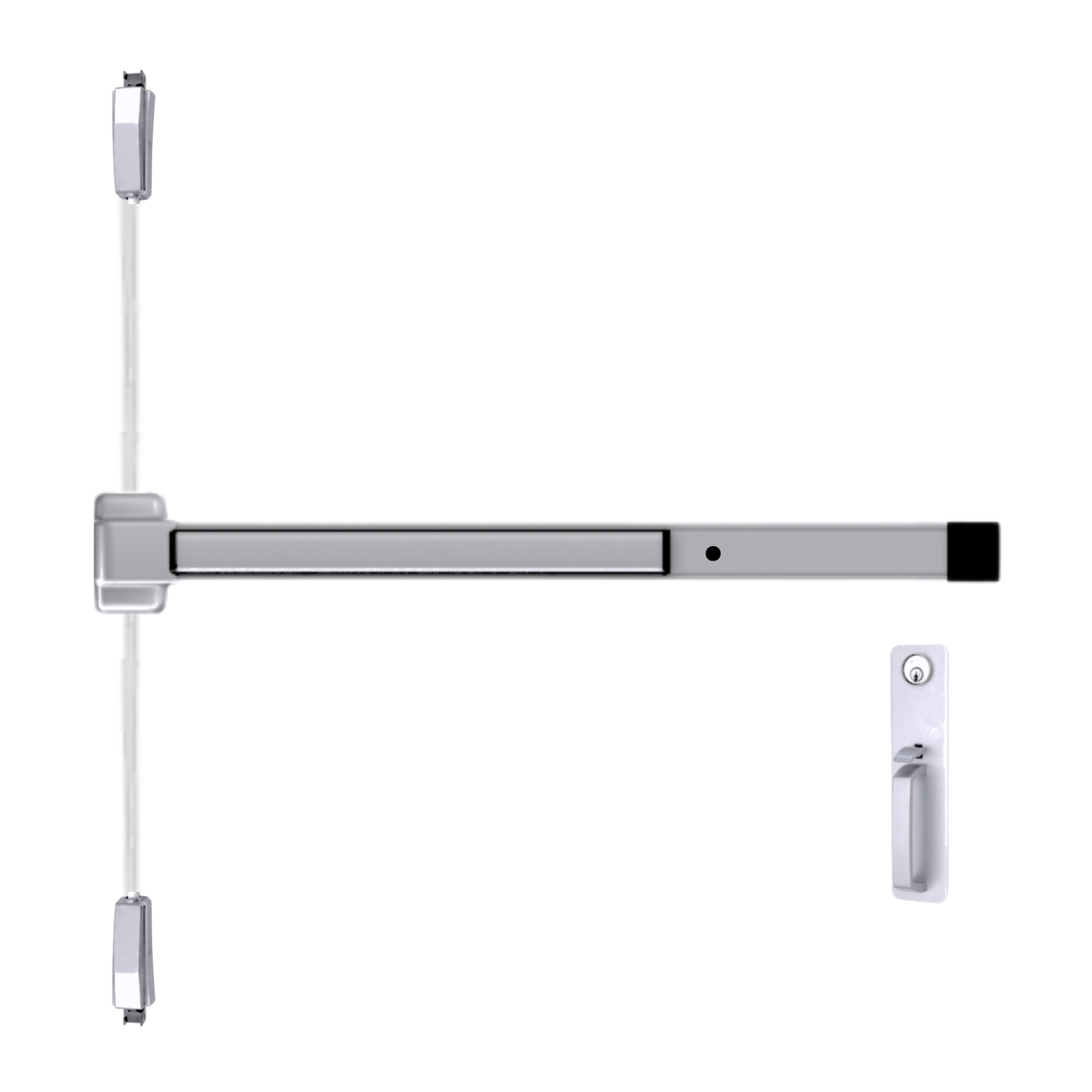

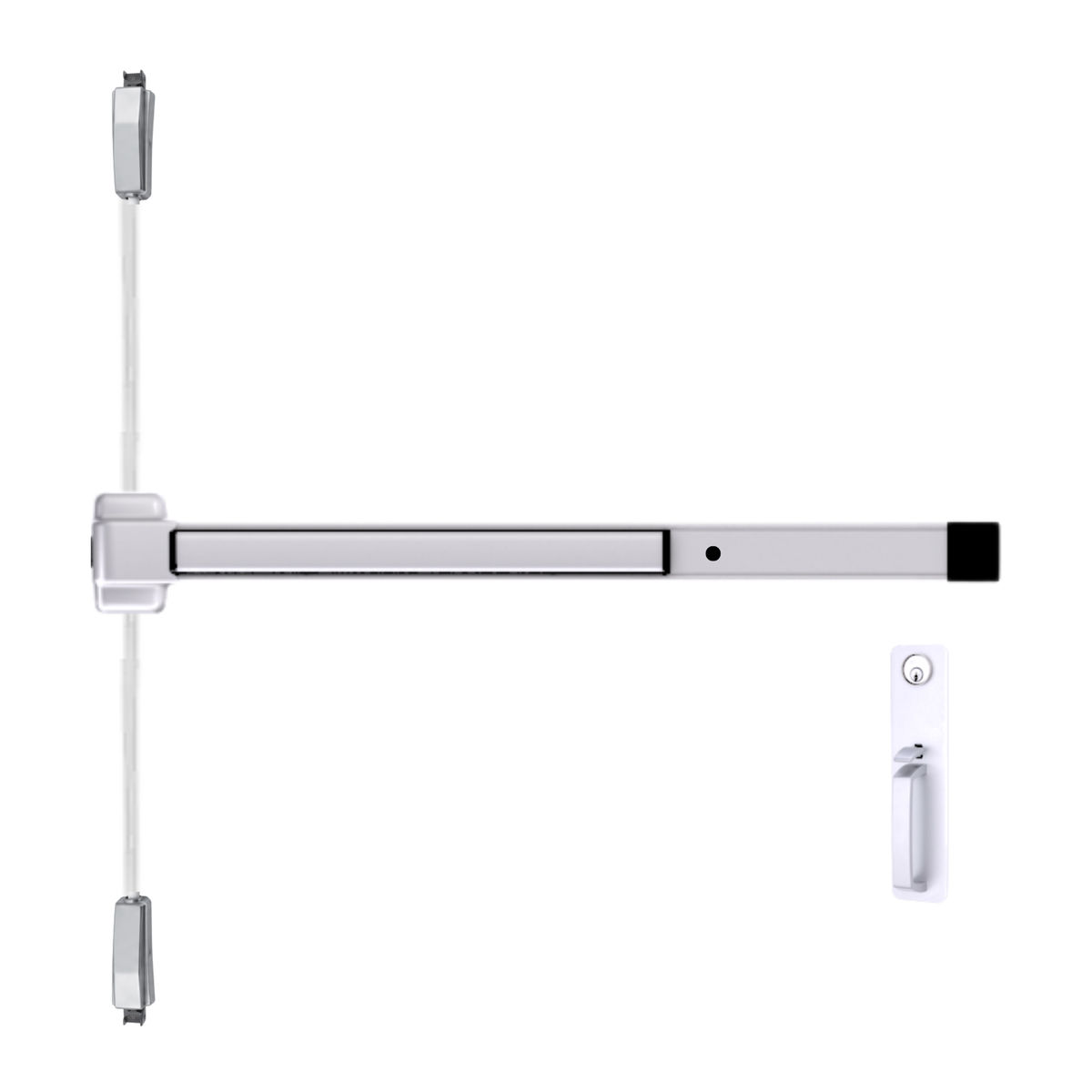

Von Duprin 2227TP - Thumbpiece Surface Mounted Vertical Rod Device Von Duprin 22 Series

SKU: 2227TP-3-689
$ 747.00

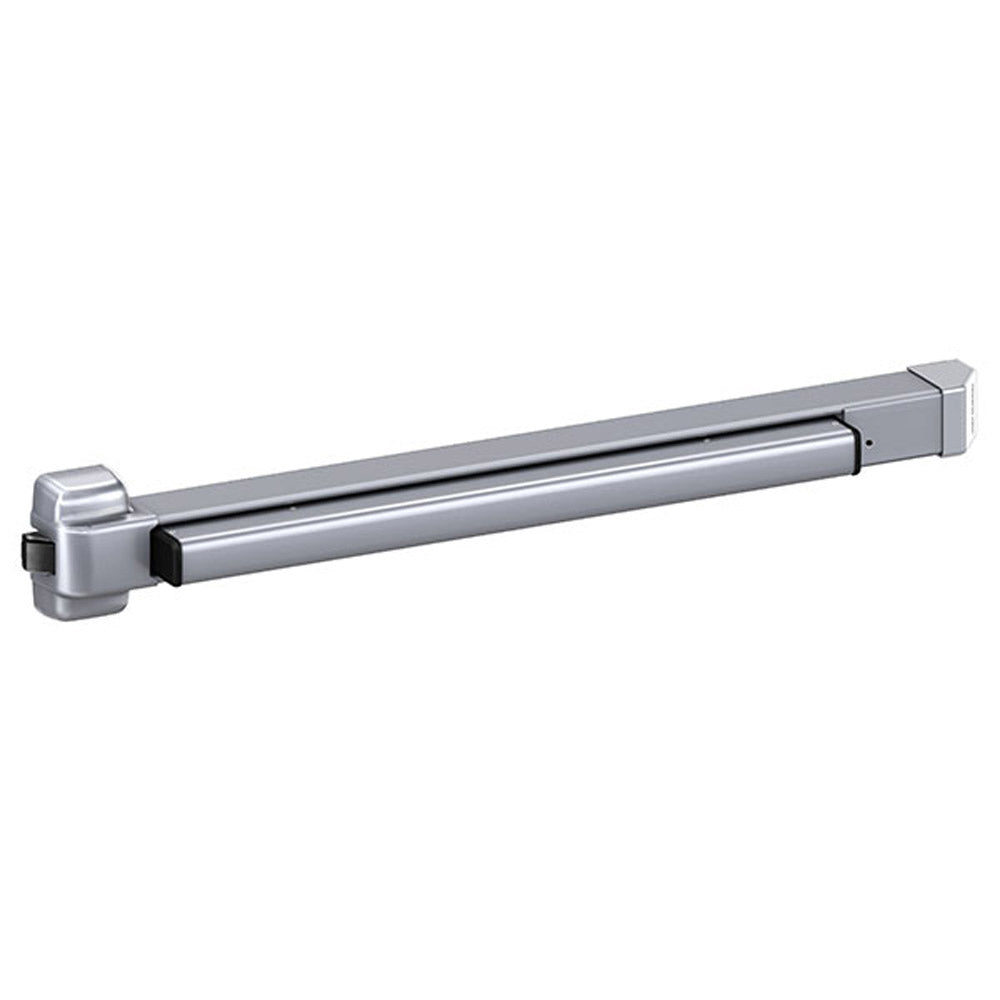

Von Duprin 2227 Series Rim Exit Device

Durable. Versatile. Code-Compliant.

The Von Duprin 2227 Series surface-mounted vertical rod exit device delivers reliable performance and rugged durability, making it an ideal choice for securing single and double doors with a mullion. Designed with modern touchbar styling, the 2227 is UL listed for both Panic and Fire Exit Hardware and meets ANSI/BHMA A156.3-2014, Grade 1 standards for high-traffic commercial applications.

This non-handed device fits door stiles as narrow as 3 5⁄8" (92 mm) and supports door sizes up to 8' x 10' (2438 mm x 3048 mm) with optional extension rods.

Key Features:

  • UL Listed: Panic and Fire Exit Hardware

  • Meets ANSI A156.3 – 2014, Grade 1

  • Non-handed design for ease of installation

  • Compatible with narrow stile doors (minimum 3 5⁄8")

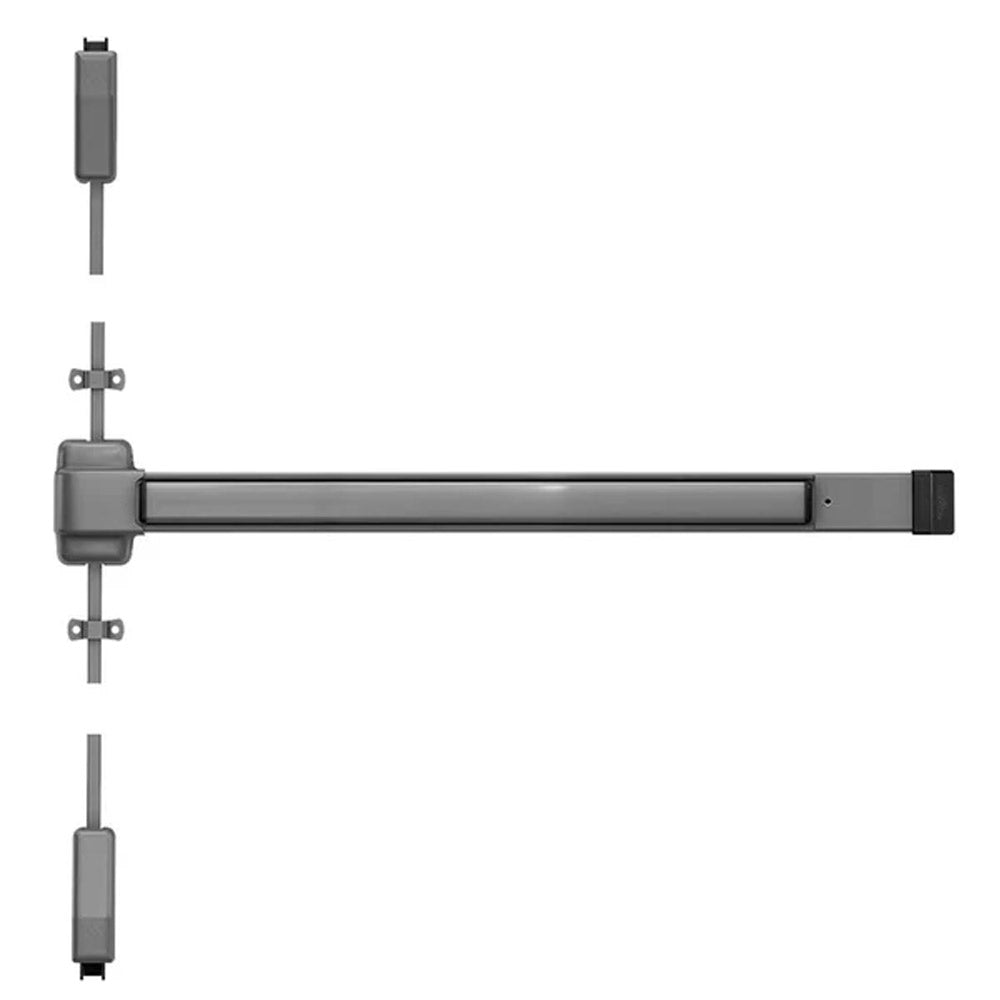

  • Surface-mounted vertical rods (top and bottom)

  • Deadlocking, anti-friction top and bottom latch bolts with 5⁄8" (16 mm) throw

  • Recommended 1⁄4" (7 mm) door undercut from finished floor

  • Projection: 3 11⁄16" (neutral), 2 7⁄8" (depressed)

  • Device centerline from floor: 39 13⁄16" (1011 mm)

Device Lengths:

  • 3' (914 mm)

  • 4' (1219 mm)

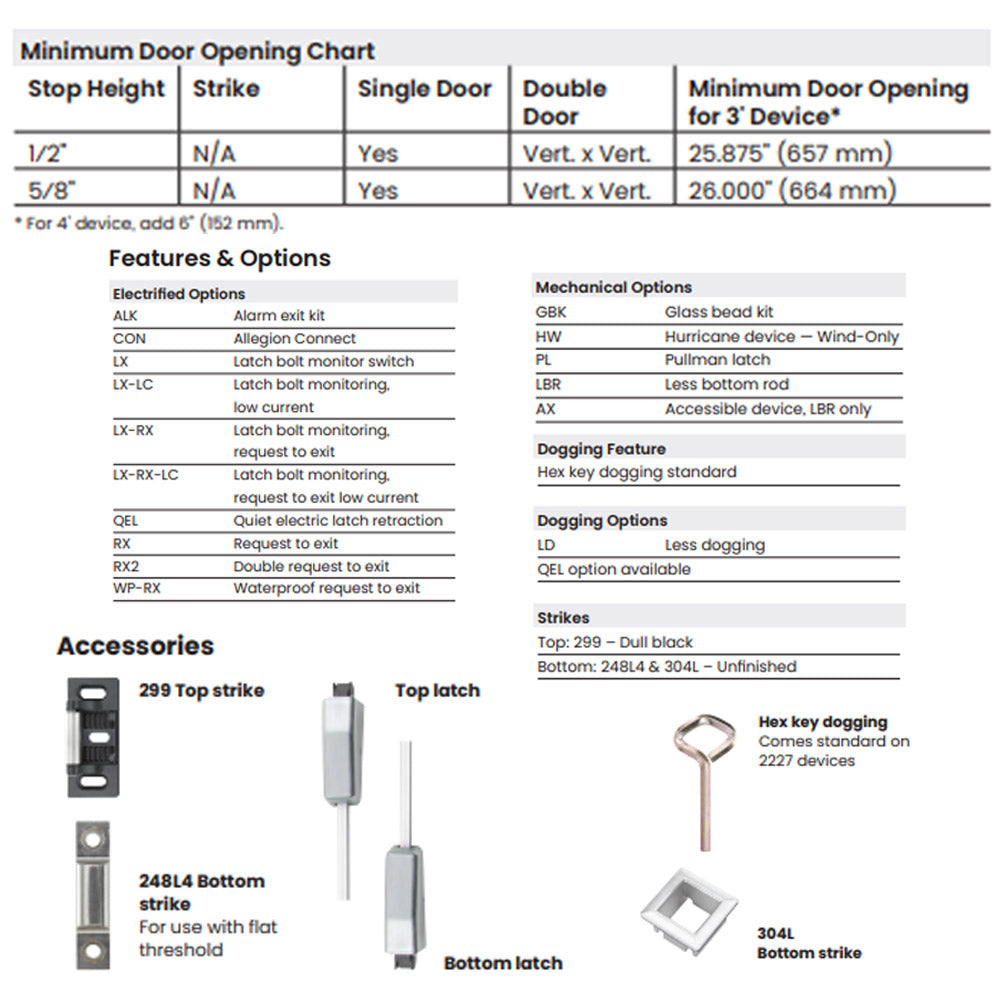

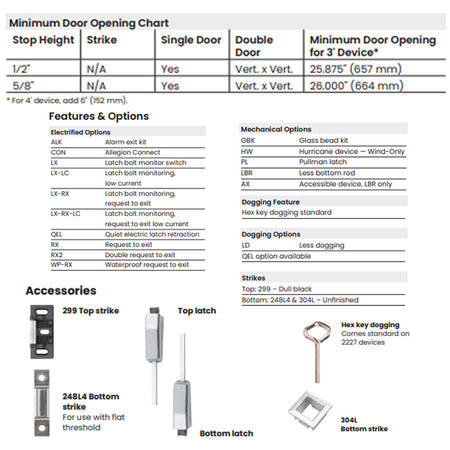

    (Refer to minimum door opening chart for compatibility)

Standard Door Height: 7' (2134 mm)
Extension Rods Available for doors up to 10' (3048 mm)

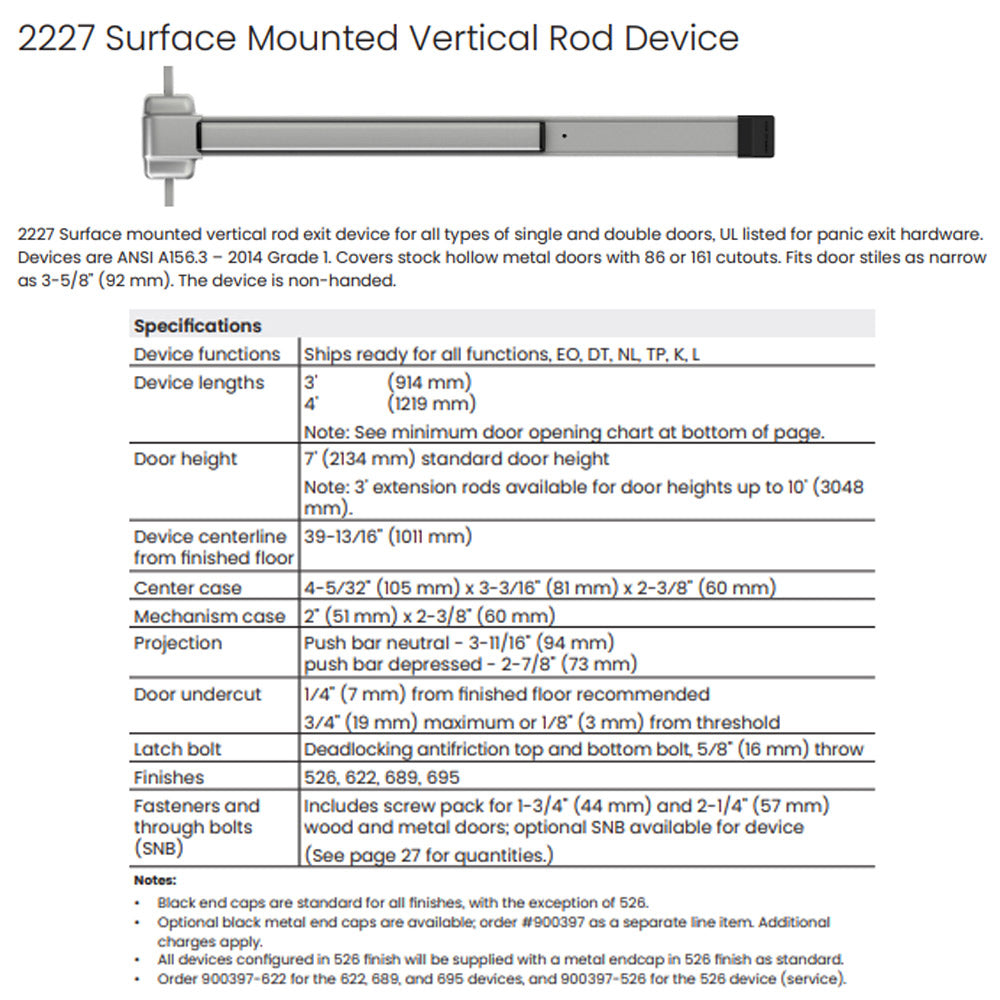

Device Dimensions:

  • Center case: 4 5⁄32" x 3 3⁄16" x 2 3⁄8" (105 x 81 x 60 mm)

  • Mechanism case: 2" x 2 3⁄8" (51 x 60 mm)

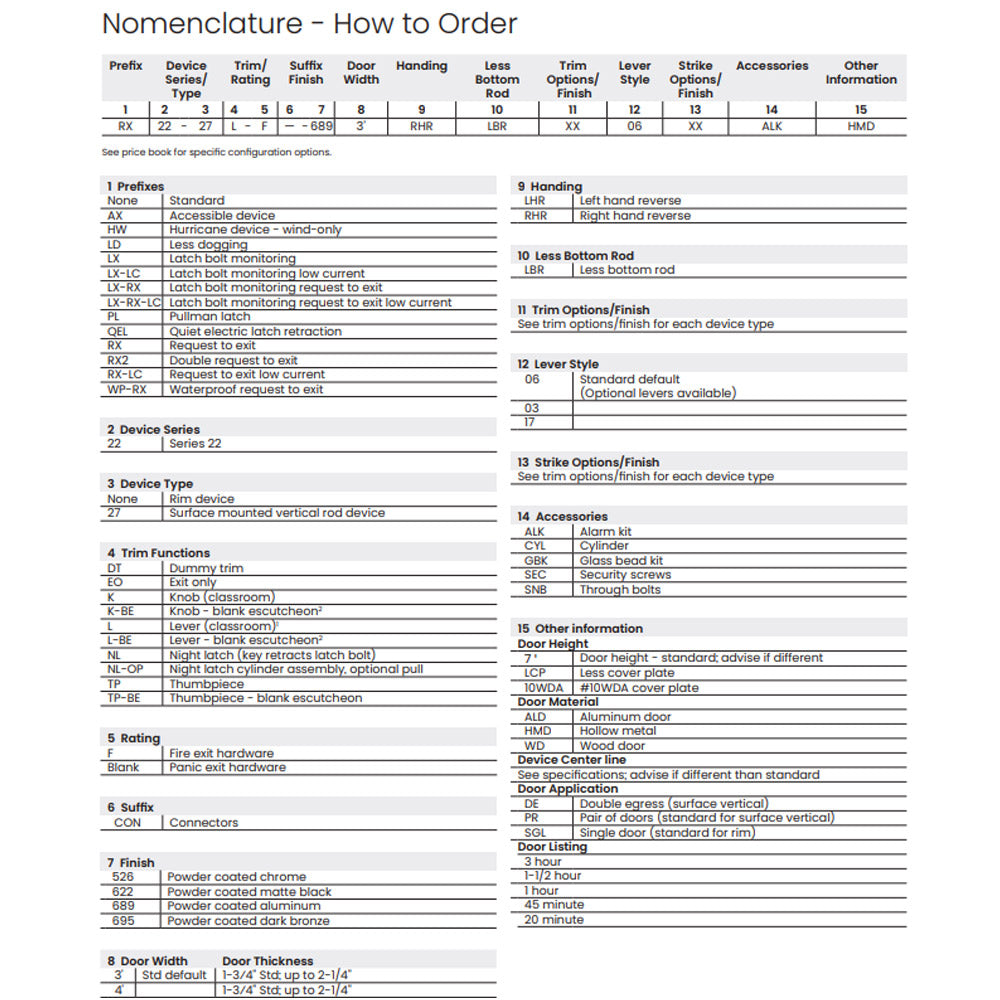

Function Options (pre-configured):

  • EO (Exit Only)

  • DT (Dummy Trim)

  • NL (Night Latch)

  • TP (Thumbpiece)

  • K (Knob)

  • L (Lever)

Electrified Options:

  • ALK: Alarm Kit

  • CON: Allegion Connect

  • QEL: Quiet Electric Latch Retraction

  • RX / RX2 / WP-RX: Request to Exit (Standard, Double, Waterproof)

  • LX / LX-LC: Latch Bolt Monitor (Standard, Low Current)

  • LX-RX / LX-RX-LC: Latch Bolt Monitor with Request to Exit (Standard / Low Current)

Mechanical Options:

  • GBK: Glass Bead Kit

  • HW: Hurricane Wind-Only Rated

  • LBR: Less Bottom Rod

  • AX: ADA-Compliant (LBR only)

  • No mechanical dogging (QEL provides electric dogging option)

Strikes:

  • Top Strike: 299F (499F for LBR), Dull Black

  • Bottom Strike: 304L, Unfinished

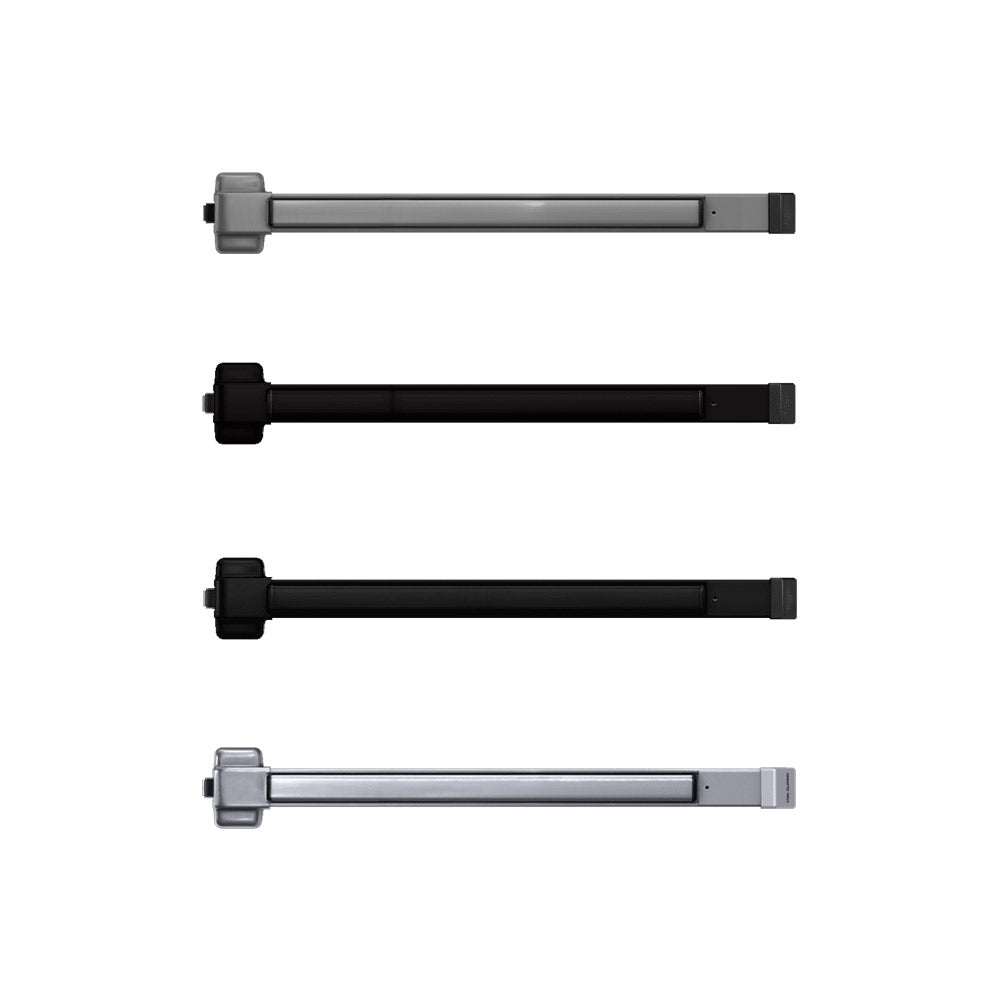

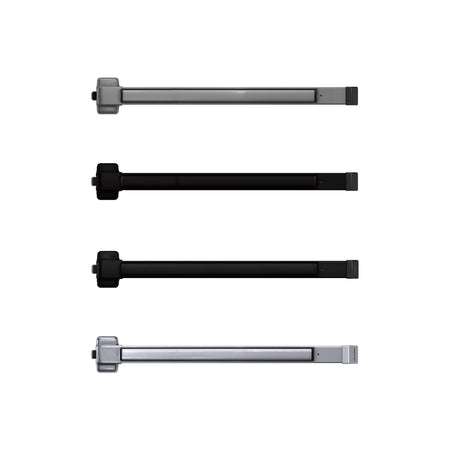

Available Finishes:

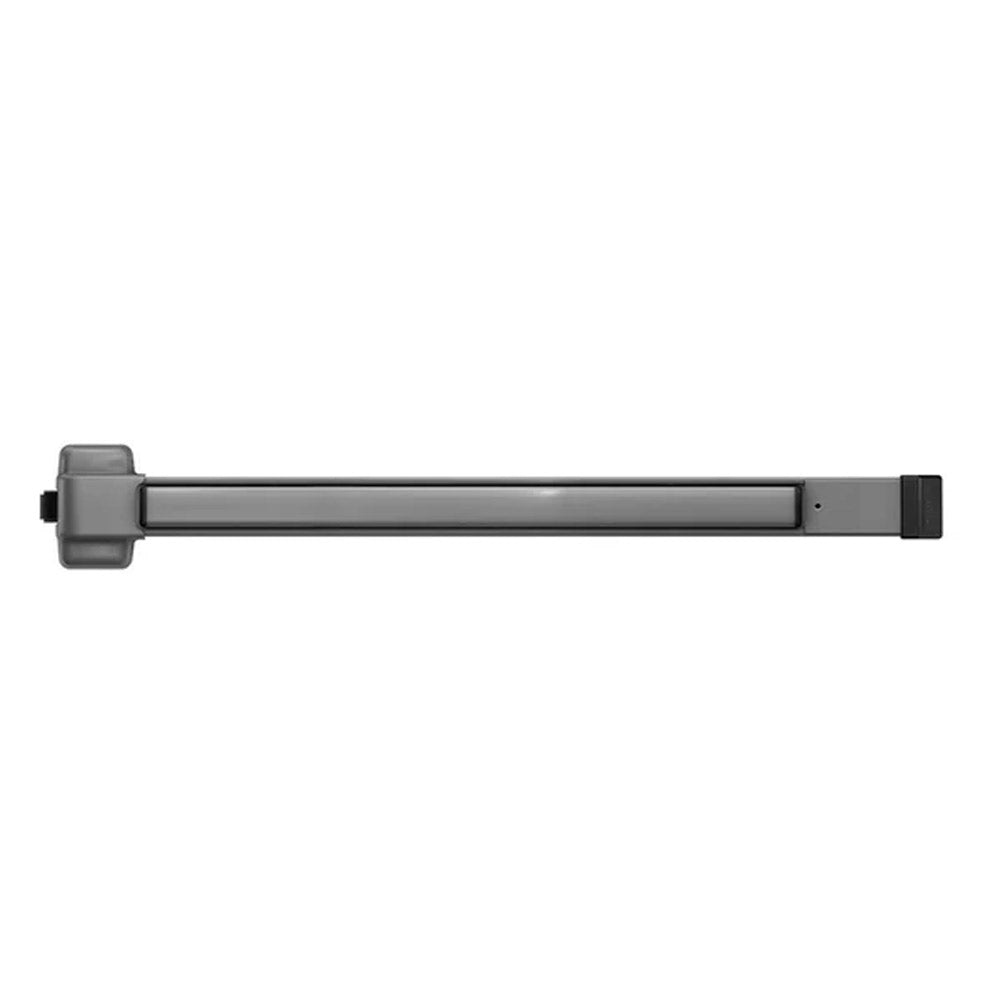

  • 689: Anodized Aluminum

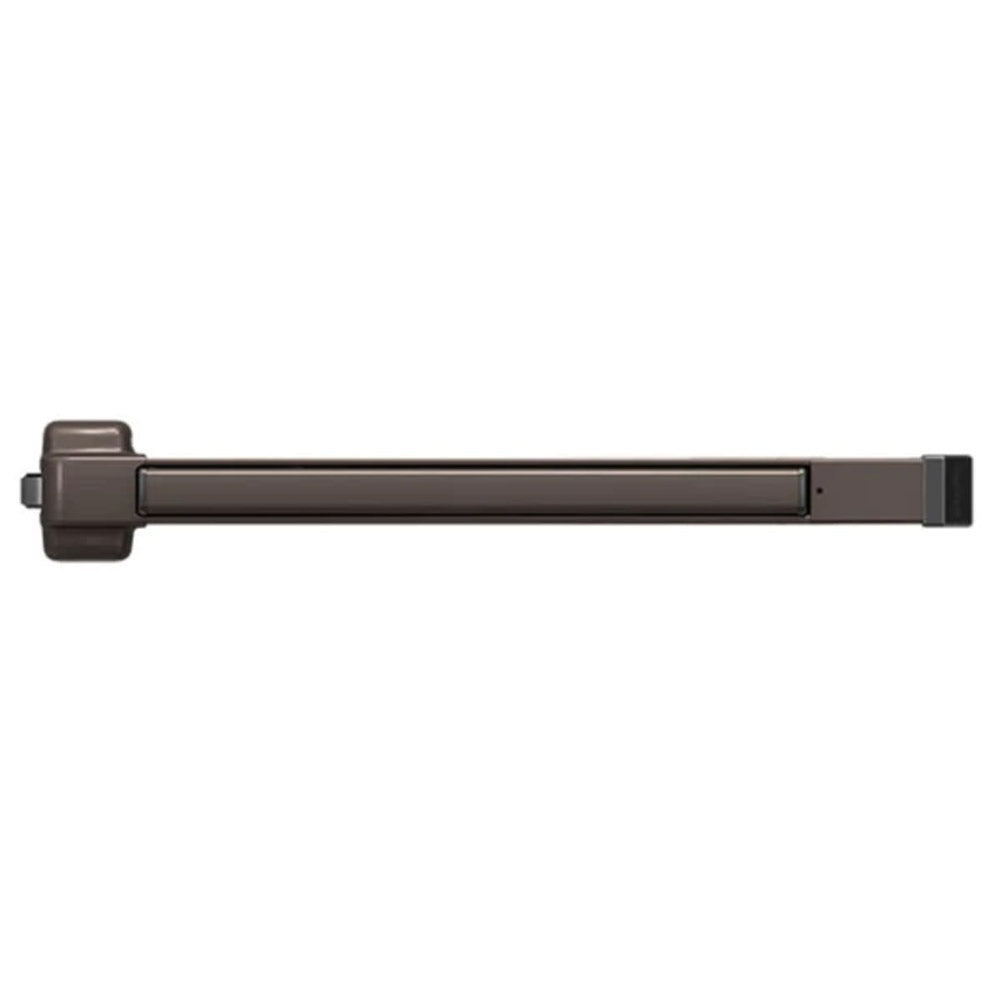

  • 695: Bronze

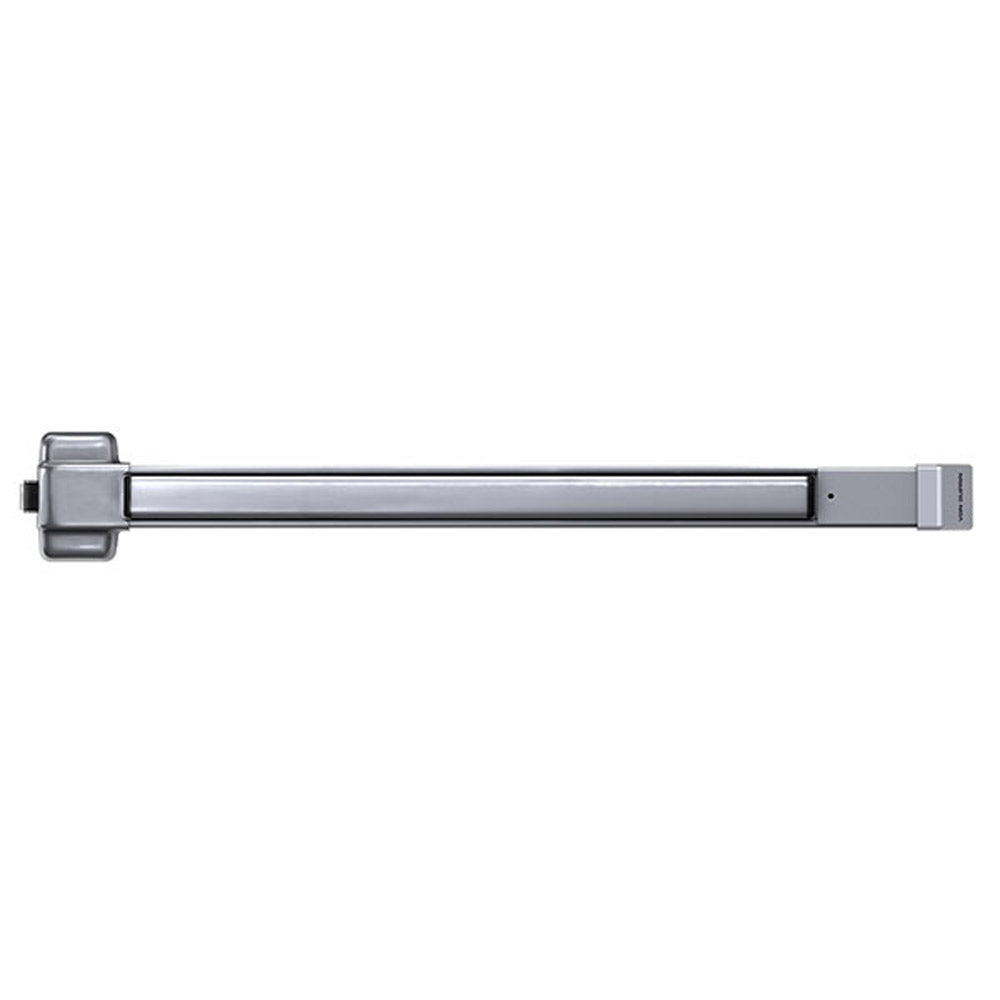

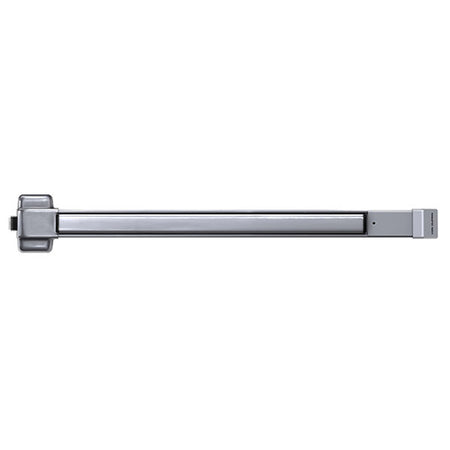

  • 526: Chrome

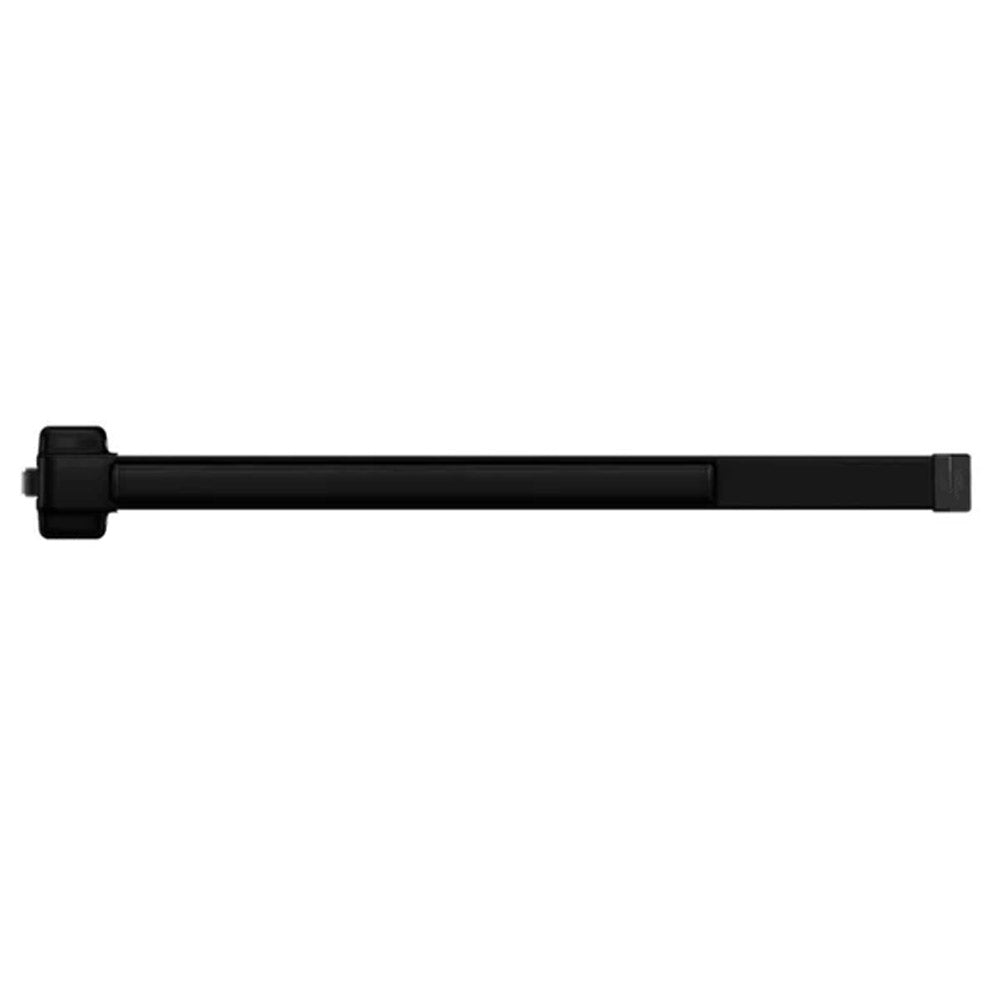

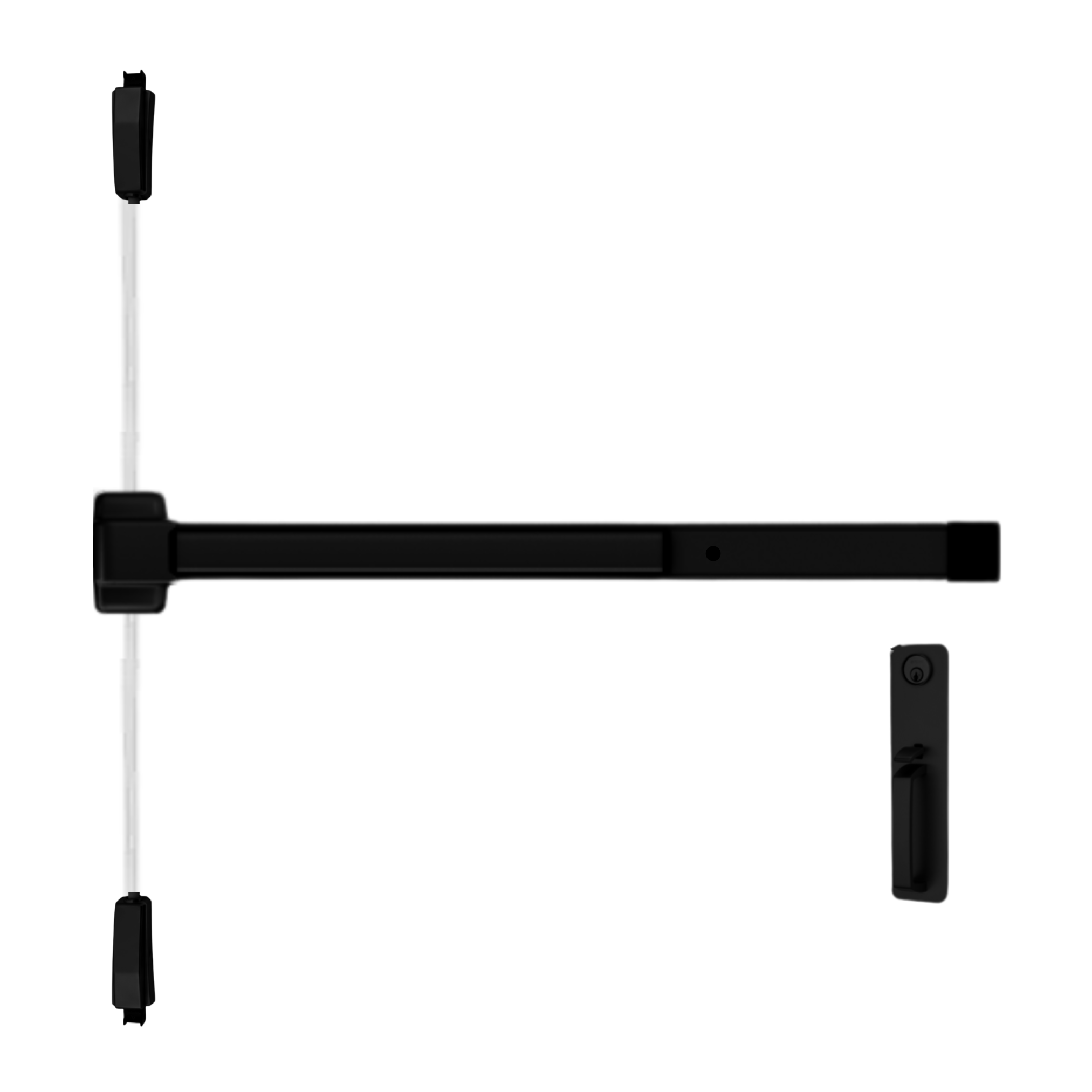

  • 622: Black
