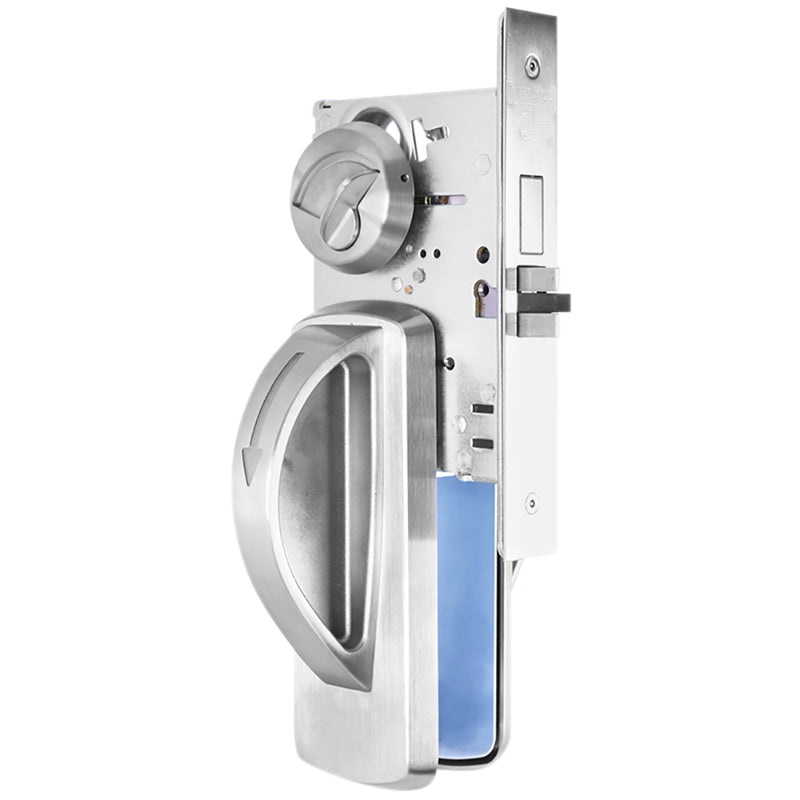

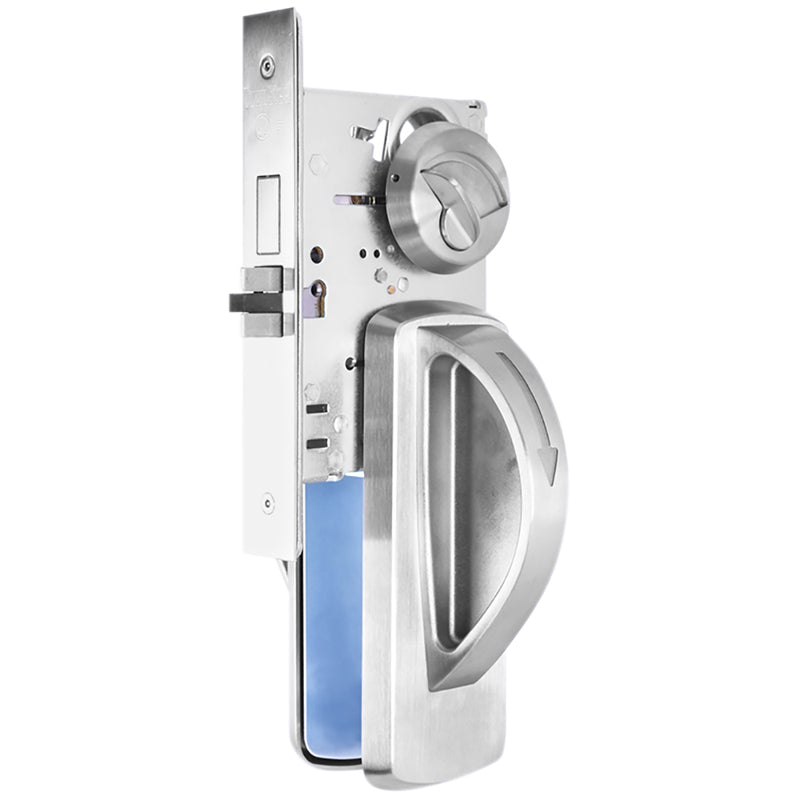

Ligature Resistant Mortise Lockset, Grade 1, Privacy, Non Keyed, ANSI, Arch Trim, Right Hand or Left Hand, Satin Stainless Steel
| Manufacturer | TownSteel |
| SKU | MRX-A-02-630-RH - MRX-A-02-630-LH |
| Grade | Grade 1 |
| Installation | — |
| Origin | — |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Limited Warranty | 5 Years |
| ADA Compliance | Yes |
| Finish | |
| Finish |
|
| Finish Description | Satin Stainless Steel |
| Technical Specs | |
| Function |
|
| ANSI Function |
|
| Lever/Knob Design |
|
| Handing | RH or LH |
| Door Thickness | 1-3/4 In. |
| Std. Latch Type | Spring Latch (Unguarded) |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 8 In. x 1-1/4 In. |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Mortise Lock |
