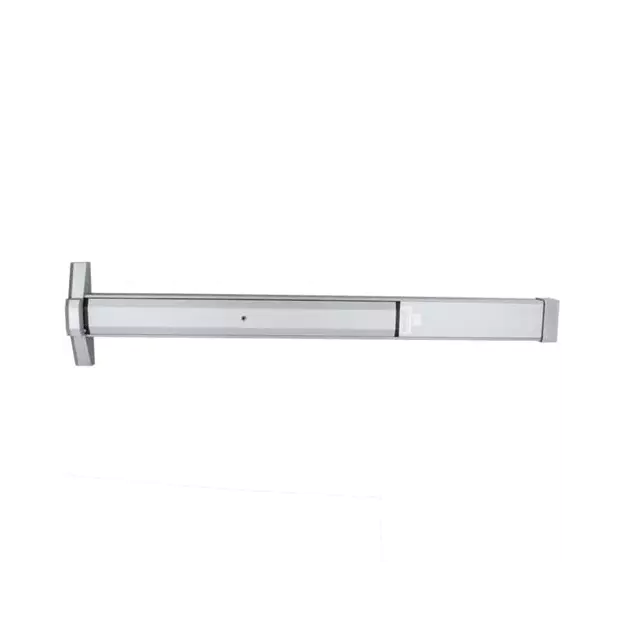

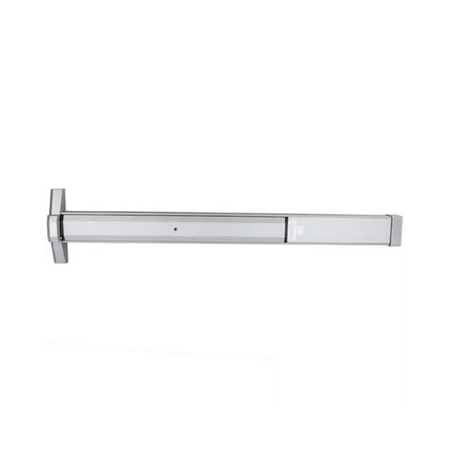

Taco TH1100-STED Rim Narrow Stile Exit Device With Cylinder

SKU: TH1100-STED36-AL
$ 290.00

NARROW STILE PANIC EXIT DEVICES TH1100STED
Global Series TH1100-STED Narrow Stile “Rim Type” style exit devices are suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. Manufactured of extruded anodized aluminum, the TH1100-STED is durable enough for the most demanding applications. A rim cylinder is included.

Grade - ANSI A156.3 Grade 2
Warranty - 10 years

Specifications:

  • NARROW STILE
  • CYLINDER: Includes Rim Cylinder
  • Underwriters' Laboratories Inc. Listed - Panic Hardware
  • Requires a 2” mounting surface for typical use with narrow, medium and wide stile aluminum doors, hollow metal or wood doors.
  • HANDING: Non-handed, for LH or RH doors.
  • Latch bolt throw 5/8”
  • DOGGING: Dogging by Hex key in touch bar
  • Outside unlatching with standard rim cylinder
  • DOORWIDTH: Standard units for 36" and 48" door widths (can be field sized)
  • Can be used on 30" wide doors.
  • FINISHES: Aluminum and Duronotic

NARROW STILE CONCEALED VERTICAL ROD TH1100STEDCVR
Global Series TH1100-STEDCVR Narrow Stile “Concealed Vertical Rod” style exit devices are suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. Manufactured of extruded anodized aluminum, the TH1100-STEDCVR is durable enough for the most demanding applications. A Mortise cylinder and a cylinder mounting pad with locking ring is included.

Grade - ANSI A156.3 Grade 2
Warranty - 1 Year mechanical and finish warranty

Specifications:

  • NARROW STILE
  • CYLINDER: Includes Mortise Cylinder and Cylinder Mounting Pad with Locking Ring
  • Underwriters' Laboratories Inc. Listed - Panic Hardware
  • For use with narrow, medium and wide stile Aluminum doors.
  • HANDING: Non-handed, Field reversible for LH or RH doors
  • DOGGING: Outside unlatching and dogging by cylinder key or dogging by Hex key in touch bar
  • Top steel toggle latch and bottom steel rod latch bolt
  • Unit uses standard mortise cylinder with MS type cam and TH1100-BC cylinder
  • Mounting pad
  • DOORWIDTH: Standard units for 36" and 48" door widths (can be field sized) and up to 84" in height.
  • Can be used on 30" wide doors.
  • FINISHES: Aluminum and Duronotic
