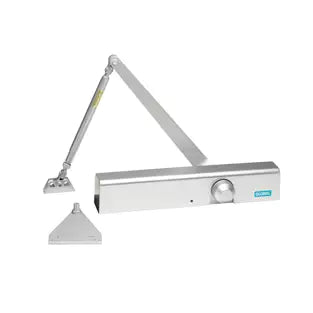

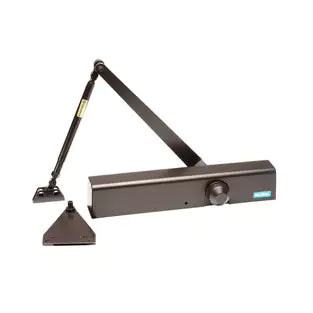

The TC400/500 are recommended for use on commercial, architectural and institutional applications. These models are ideal for business, new construction and renovations. Both models have a full selection of accessories to accommodate the requirements of any door control installation. Fully compliant with opening force requirements for ADA and ANSI/BHMA standards.
Cross Reference
TC400
Norton 8301
Dorma 8600
Falcon SC80
Rixson M2220PH
Sargent 1330
Yale 3301
Arrow 5000
TC400
8301
8600
SC80
M2220PH
1330
3301
5000
TC500
Norton 8501
Falcon SC81
Rixson M2220
Sargent M30
Yale 3501
Arrow 5000
TC500
8501
SC81
M2220
M30
3501
5000
Options: Specify when ordering
Hold open - HO
Delayed action - TC411DA
Finish - AL, DU

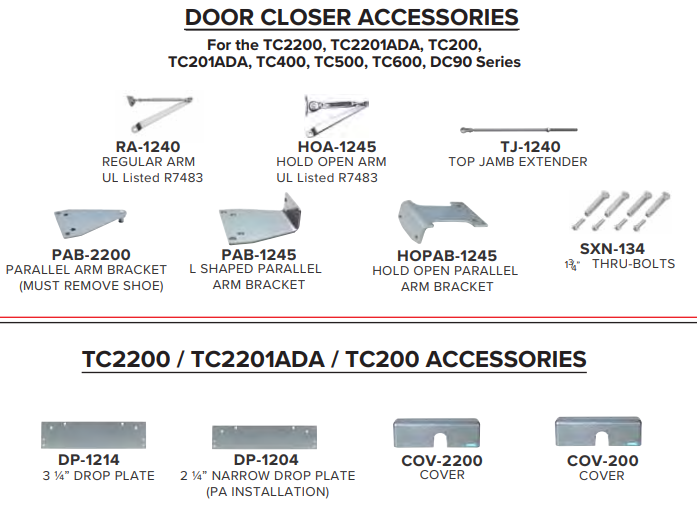

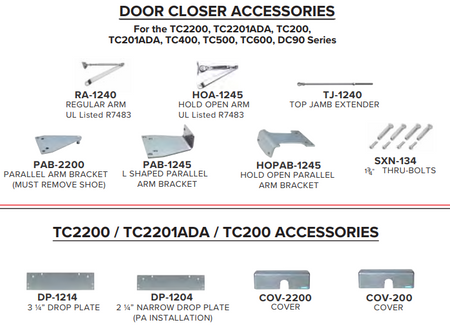

Note - For hold open parallel arm mount - must order HOPAB-1245 Specifications:
Grade 1 certified, ANSI/BHMA A156.4
UL listed complies with UL10C for positive pressure
Aluminum alloy shell
Non-handed
Narrow cover - 400 slimline series

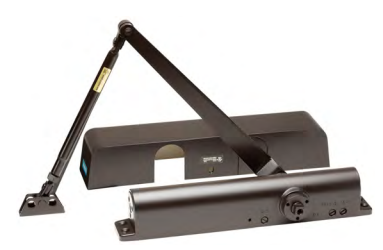

Full cover - 500 standard series
Multi-size spring models- 411/511 adjustable power 1- 6 ADA barrier free
Three independent regulating valves - control sweep and latch closing speeds, also backcheck cushion
Installation Instructions TC400 & TC500
