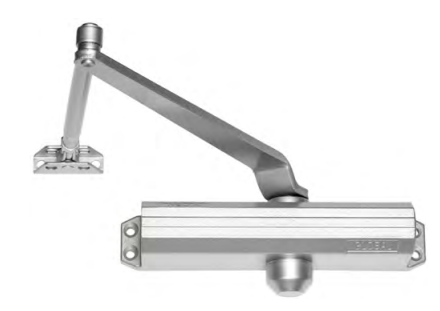

The TC200 is recommended for use on all aluminum store front doors, wood or hollow metal commercial applications. It is a versatile utility closer that provides narrow styling and has a full selection of accessories to accomodate the requirement of any field installation. In this series, our TC201 is a multi-size spring model that offers adjustable power with a choice of range sizes 2-5 where high rates of closing force are required. Our TC201ADA model also offers adjustable spring power sizes 1-4 for use on interior doors requireing less than 5 lbs. of opening force and exterior doors requiring less than 8.5 lbs. This complies with ADA handicap codes and ANSI/BHMA standard requirements. Both models will retrofit most full size closers with a 9 1/16? industry standard hole patten to update any opening for code compliance. Also available in sizes 2, 3, & 4. Options: Specify when ordering: Backcheck – BC Parellel mount – PA Hold open – HO Finish – AL, DU Note – For hold open parallel arm mount – must order HOPAB-1245 Specifications: Grade 1 certified, ANSI/BHMA A156.4 UL Listed #R7483 (mfg. DC200) compliant UL10C for positive pressure Aluminum alloy body Non-handed – reversible Spring size closers 2, 3, 4 Multi-size closers 1- 4 & 3- 6 TC201ADA conforms to handicap code requirements Two independent valves control sweep and latch closing speeds – backcheck optional Packed standard for regular & top jamb mounting Supplied with both wood and machine screws Finish: AL- Aluminum, DU- Duronotic
5 Year mechanical warranty
Grade 1 certified, ANSI/BHMA A156.4
UL Listed R7483
Aluminum Alloy body
Non-handed / reversible
Spring size closers # 2, 3, 4
Three independent valves control sweep, latch
and backcheck closing speeds
Packed for standard and top jamb mounting
Supplied with both wood and machine screws
5 year mechanical warranty
Finish: AL, DU
TC201ADA- conforms to handicap code
requirements
Multi-size closers 1-4 (TC201ADA) 2-4 (TC201)
Parallel Mount - PA
Hold Open Arm- HOA
Hold Open Parallel Arm Bracket - HOPAB-1245
(order separately)
