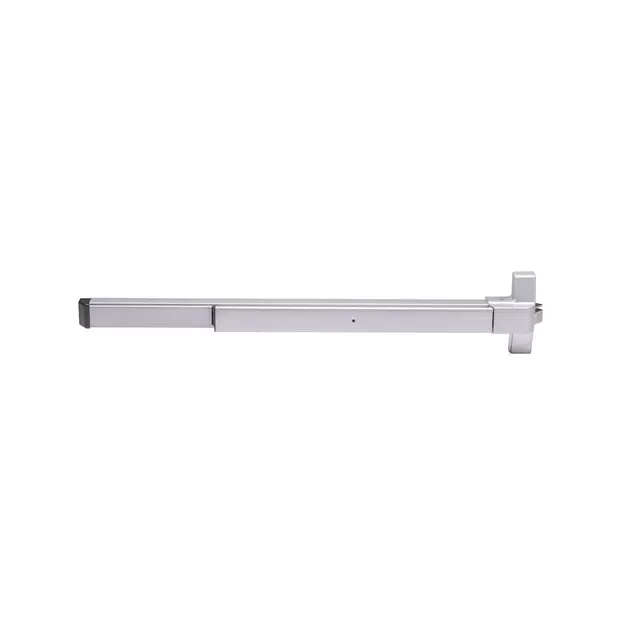

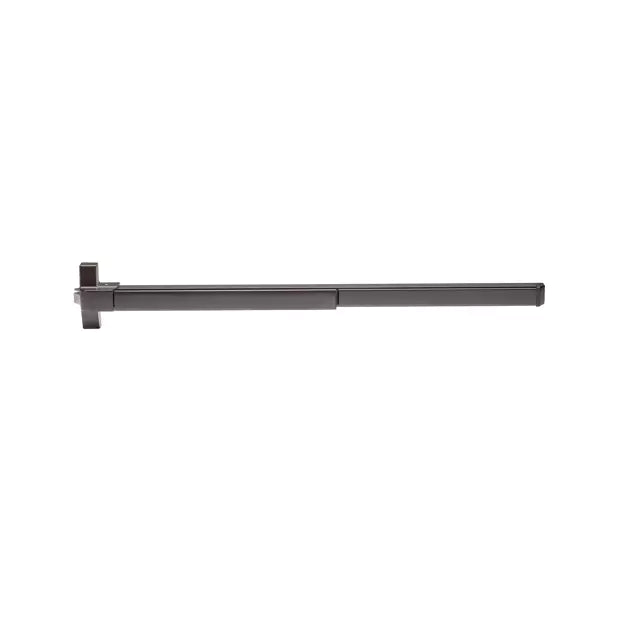

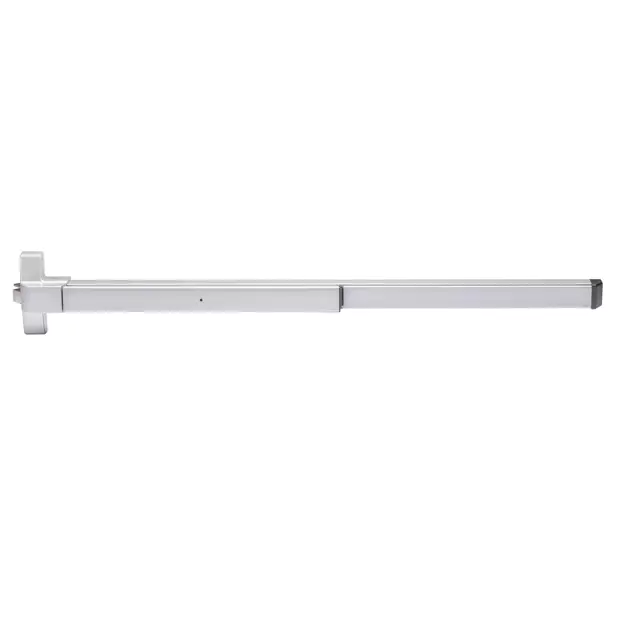

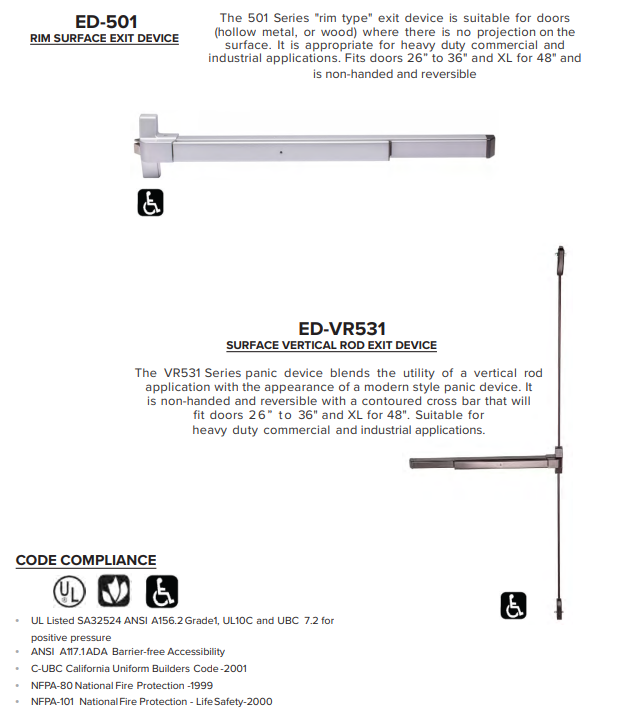

The ED501 series “rim type” exit device is suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. It is appropriate for all heavy duty commercial and industrial applications. Fits doors up to 36" and XL for 48".
Specifications ED501 ANSI A156.3 Grade 1 ED-F501: UL10C Fire rated; barrier Accessories Non-handed EAK500: Alarm kit Door width: up to 36" Available in XL for 48" Comes with standard strike and shim Dogging standard ONLY on non-UL fire rated Warranty: 1 Year mechanical and finish warranty Finishes: AL, DU, US32D
The EDVR531 panic device blends the utility of a vertical rod application with the appearance of a modern style panic device. It is non-handed and reversible with a contoured cross bar that will fit doors up to 36"-48". Suitable for heavy duty commercial and industrial applications.
Specifications EDVR531 ANSI A156.3 Grade 1 Accessories EDFVR531: UL10C Fire rated; barrier Door width: 36" XL: doors up to 48" EAK500: Alarm kit Comes with standard strike and shim Doors height: 7' 12" Extension Rod available Dogging standard ONLY on non-UL fire rated Warranty: 1 year Finishes: AL, DU
