SDC Z7700 Series Motorized Latch Retraction & Solenoid Controlled Mortise Locks

SDC 7700 Series Motorized Latch Retraction & Solenoid Controlled Mortise Locks

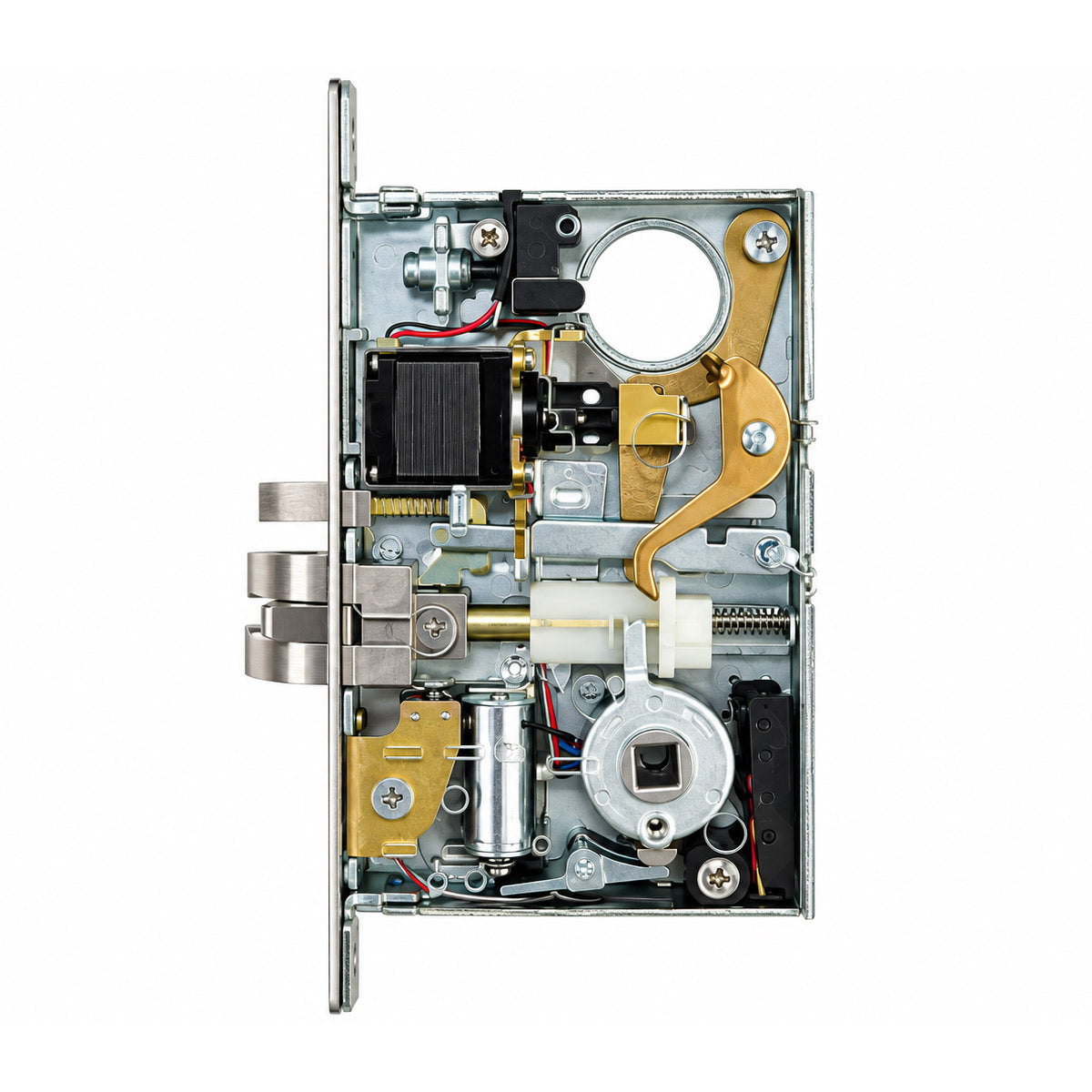

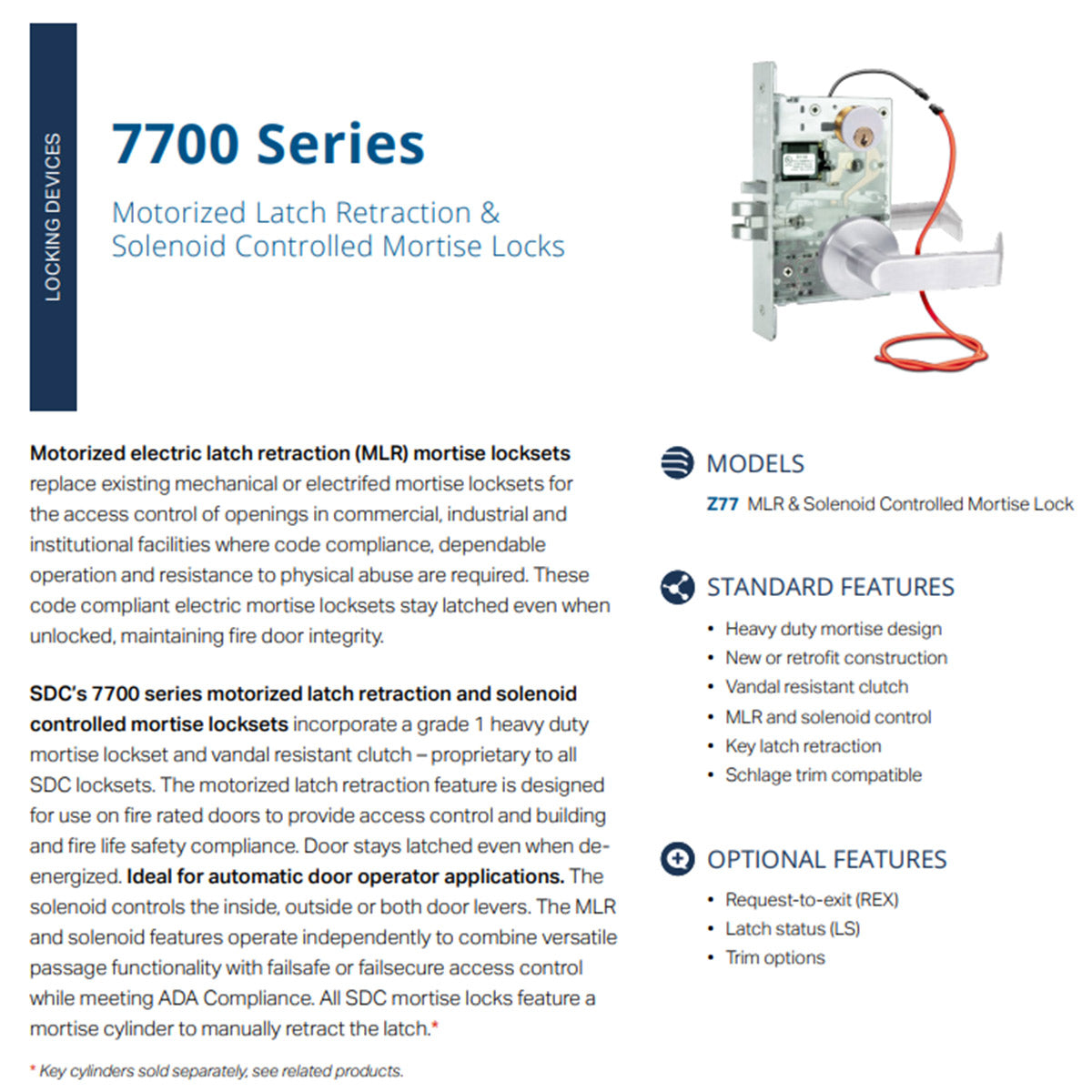

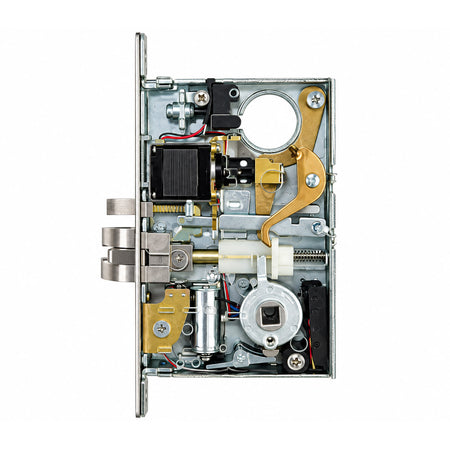

The SDC 7700 Series Motorized Latch Retraction & Solenoid Controlled Mortise Locks combine motorized electric latch retraction and independent solenoid lever control in a heavy-duty Grade 1 mortise lockset. Designed for commercial, industrial, and institutional applications, the 7700 Series provides flexible access control while maintaining a secure latched condition for improved fire door integrity.

The Motorized Latch Retraction (MLR) function electronically retracts the latch for controlled access and is designed for use with fire-rated doors and automatic door operators. The lock remains latched when de-energized, supporting building and fire life safety requirements.

The integrated solenoid control independently controls the inside, outside, or both door levers. Because the MLR and solenoid functions operate independently, the 7700 Series can provide versatile passage configurations combined with fail-safe or fail-secure access control. This combination also supports ADA-compliant door operation.

Built with SDC's proprietary vandal-resistant clutch, the 7700 Series is engineered to withstand demanding commercial environments while providing dependable long-term operation. A mortise cylinder allows the latch to be manually retracted when required.

Key Features

• Motorized Latch Retraction (MLR) for electronic access control
• Independent solenoid-controlled lever operation
• Controls the inside lever, outside lever, or both
• Grade 1 heavy-duty mortise lockset
• MLR and solenoid functions operate independently

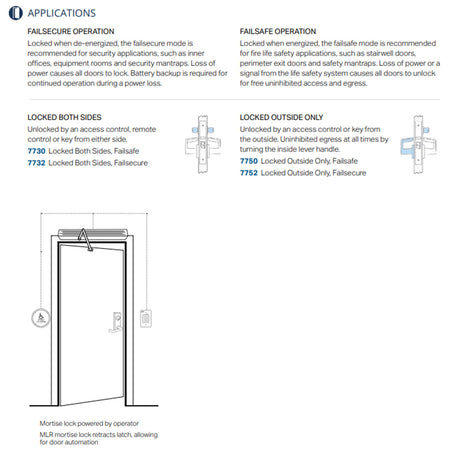

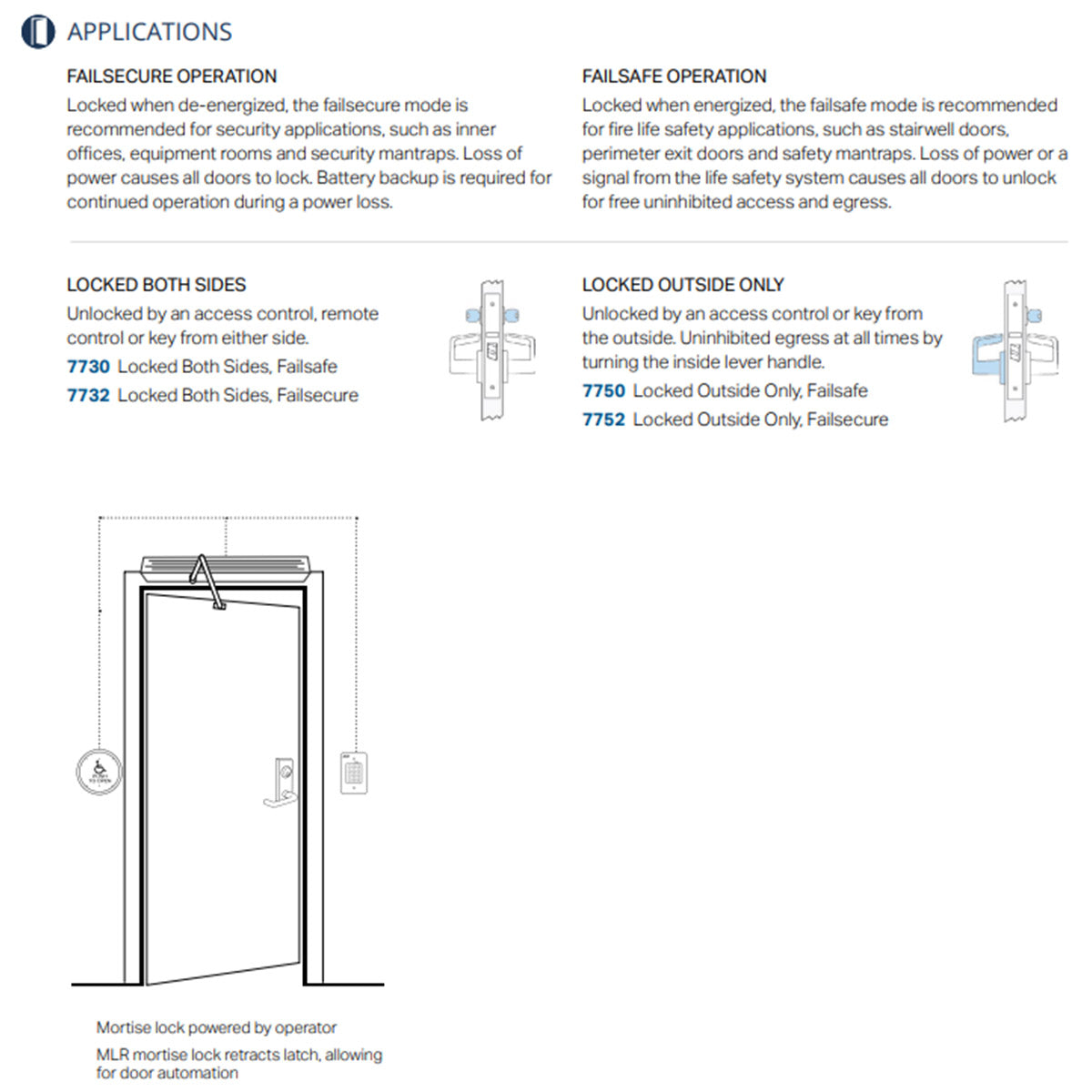

• Supports fail-safe or fail-secure access control
• Maintains a latched condition when de-energized
• Designed for fire-rated door applications
• Helps maintain fire door integrity
• Vandal-resistant clutch for enhanced durability
• Suitable for new construction or retrofit applications
• Key-operated latch retraction
• Schlage trim compatible
• Ideal for automatic door operator applications
• Supports ADA-compliant access control applications

Optional Features

• Request-to-Exit (REX) monitoring
• Latch Status (LS) monitoring
• Additional trim options

Versatile Access Control & Passage Functions

The 7700 Series is designed for applications requiring more than basic electric mortise lock control. Independent MLR and solenoid operation allows the lock to provide flexible passage functionality while maintaining the desired access-control mode.

This makes the 7700 Series suitable for commercial buildings, institutional facilities, industrial facilities, controlled entrances, fire-rated openings, and automatic door operator applications.

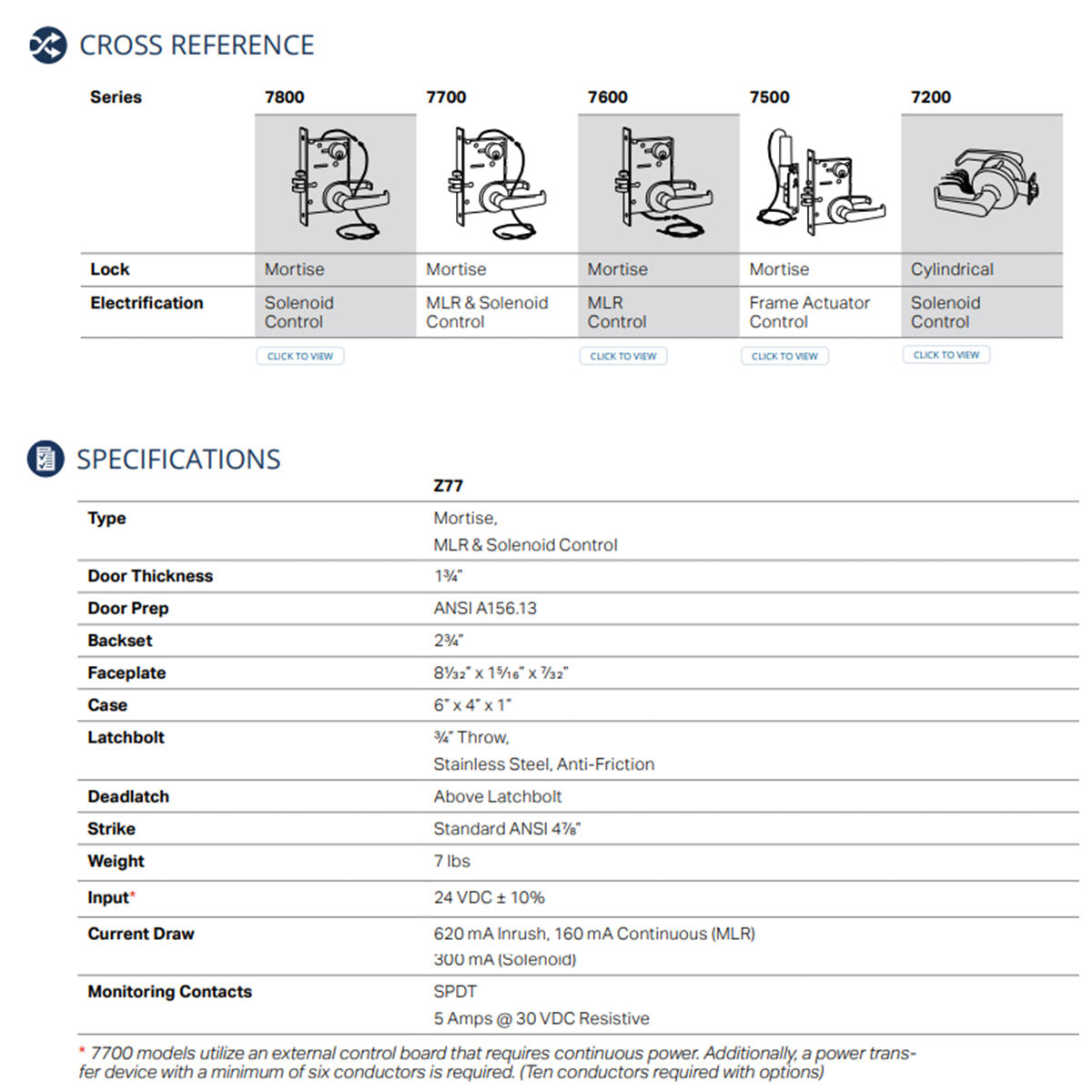

Product Specifications

Built for Demanding Access Control Applications

With motorized latch retraction, independent solenoid control, Grade 1 construction, and a vandal-resistant clutch, the SDC 7700 Series provides a versatile electric mortise lock solution for openings requiring reliable access control, fire door integrity, and flexible passage operation.

Key cylinders are sold separately.
