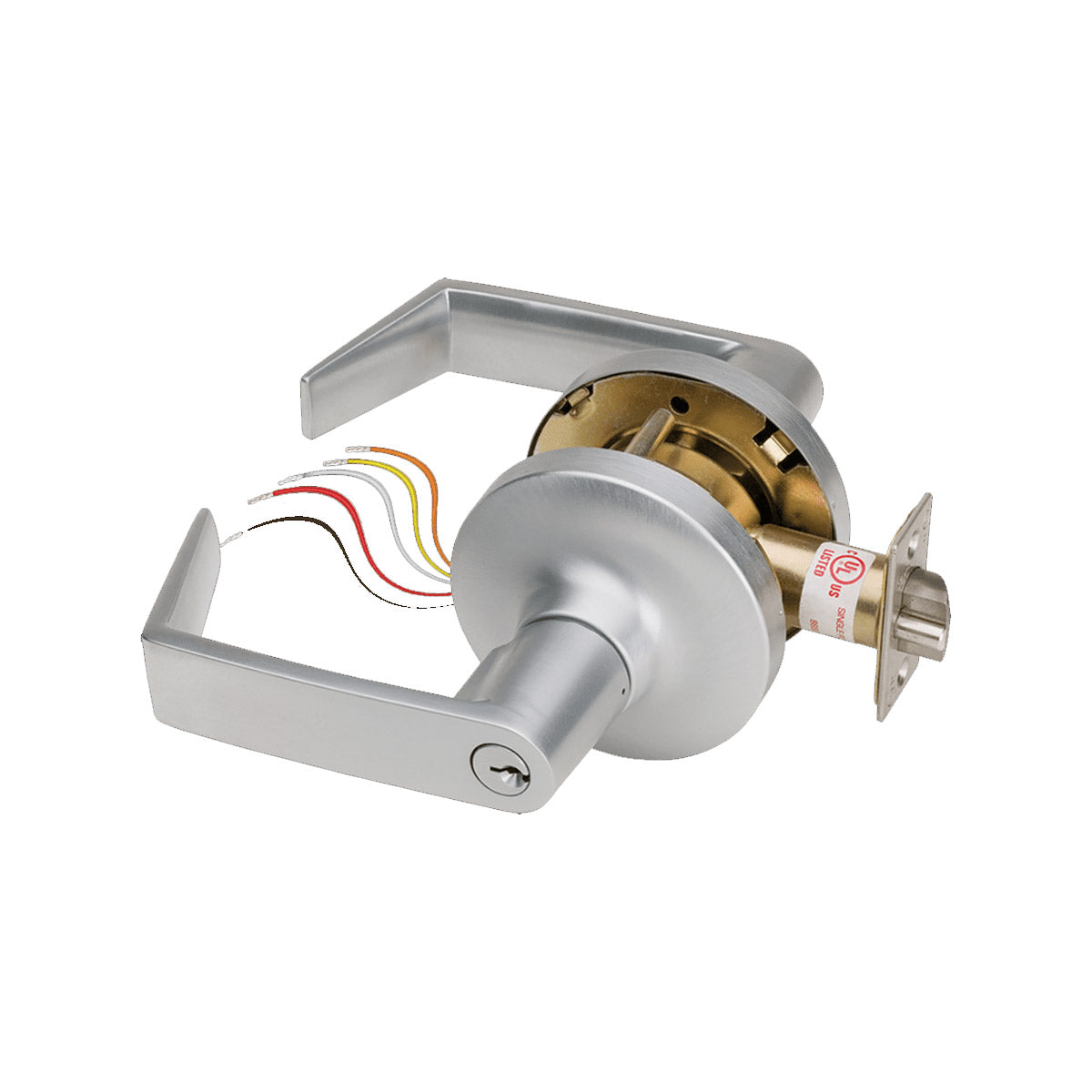

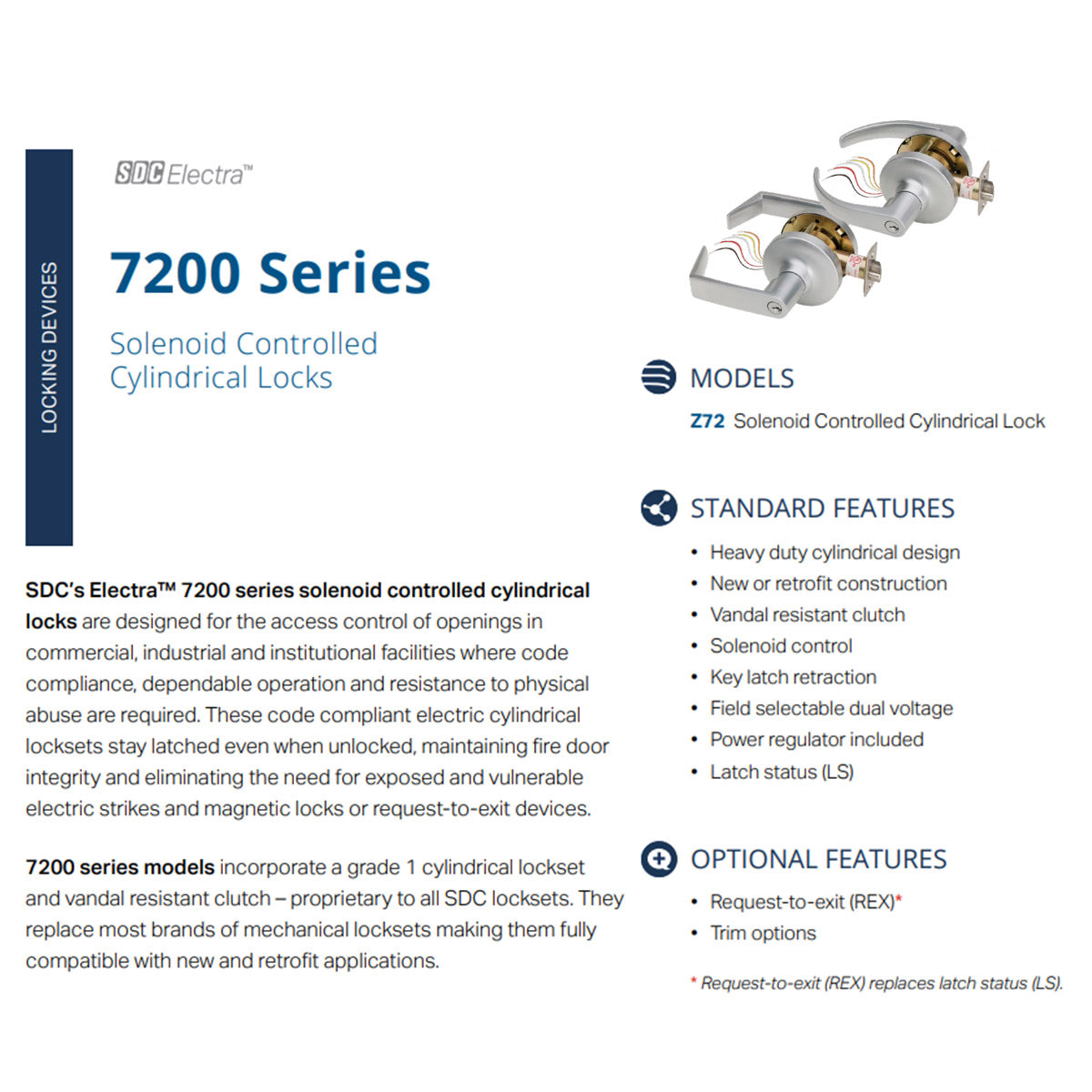

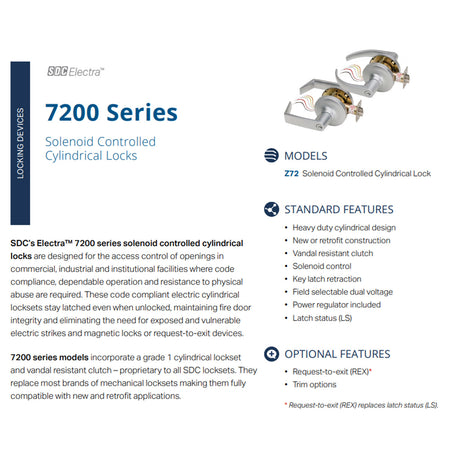

SDC 7200 Series Solenoid Controlled Cylindrical Locks

The SDC Electra™ 7200 Series Solenoid Controlled Cylindrical Locks are heavy-duty electronic cylindrical locksets designed for commercial, industrial, and institutional access control applications where dependable operation, code compliance, and resistance to physical abuse are essential.

Unlike systems that rely on exposed electric strikes or magnetic locks, the 7200 Series remains latched even when electrically unlocked. This design helps maintain fire door integrity while providing controlled access through solenoid operation. The integrated locking design also eliminates the need for exposed electric strikes, magnetic locks, or separate request-to-exit devices in applications where the lock's integrated functionality meets the project requirements.

The 7200 Series combines a Grade 1 cylindrical lockset with SDC's proprietary vandal-resistant clutch, providing durability for demanding commercial environments. Designed for both new construction and retrofit applications, these electronic cylindrical locks can replace most brands of mechanical cylindrical locksets, simplifying integration into existing openings.

Key Features

• Electra™ solenoid-controlled cylindrical lock
• Heavy-duty cylindrical lockset design
• Grade 1 cylindrical lockset
• Designed for commercial, industrial, and institutional applications
• Suitable for new construction and retrofit installations
• Vandal-resistant clutch — proprietary to SDC locksets
• Solenoid-controlled access
• Key latch retraction for convenient mechanical operation
• Field-selectable dual voltage
• Power regulator included
• Integrated Latch Status (LS) monitoring
• Remains latched when electrically unlocked
• Helps maintain fire door integrity
• Eliminates the need for exposed electric strikes in suitable applications
• Compatible with most brands of mechanical cylindrical locksets
• Optional Request-to-Exit (REX) capability
• Optional trim configurations available

Integrated Access Control Design

The SDC 7200 Series provides an integrated alternative to conventional access control methods that use separate electric strikes or magnetic locks. Because the lock remains mechanically latched when access is electronically granted, it helps maintain the security and integrity of the door while allowing authorized users to enter.

This makes the 7200 Series well suited for controlled-access commercial doors, institutional facilities, industrial buildings, and other high-use openings.

Grade 1 Construction & Vandal-Resistant Clutch

Built around a Grade 1 cylindrical lockset, the 7200 Series is engineered for demanding applications where durability and dependable operation are important. SDC's proprietary vandal-resistant clutch helps protect the lockset from physical abuse while maintaining smooth operation.

New & Retrofit Applications

The 7200 Series is designed to replace most brands of mechanical cylindrical locksets, making it a practical choice for both new installations and retrofit access control projects. Field-selectable dual voltage and the included power regulator further simplify integration with access control systems.

Optional Features

• Request-to-Exit (REX)
• Various trim options

* REX availability depends on model/configuration.

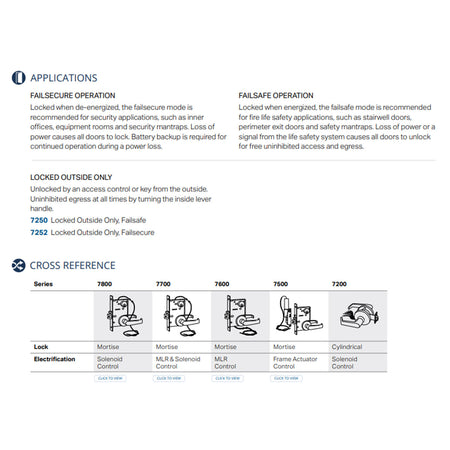

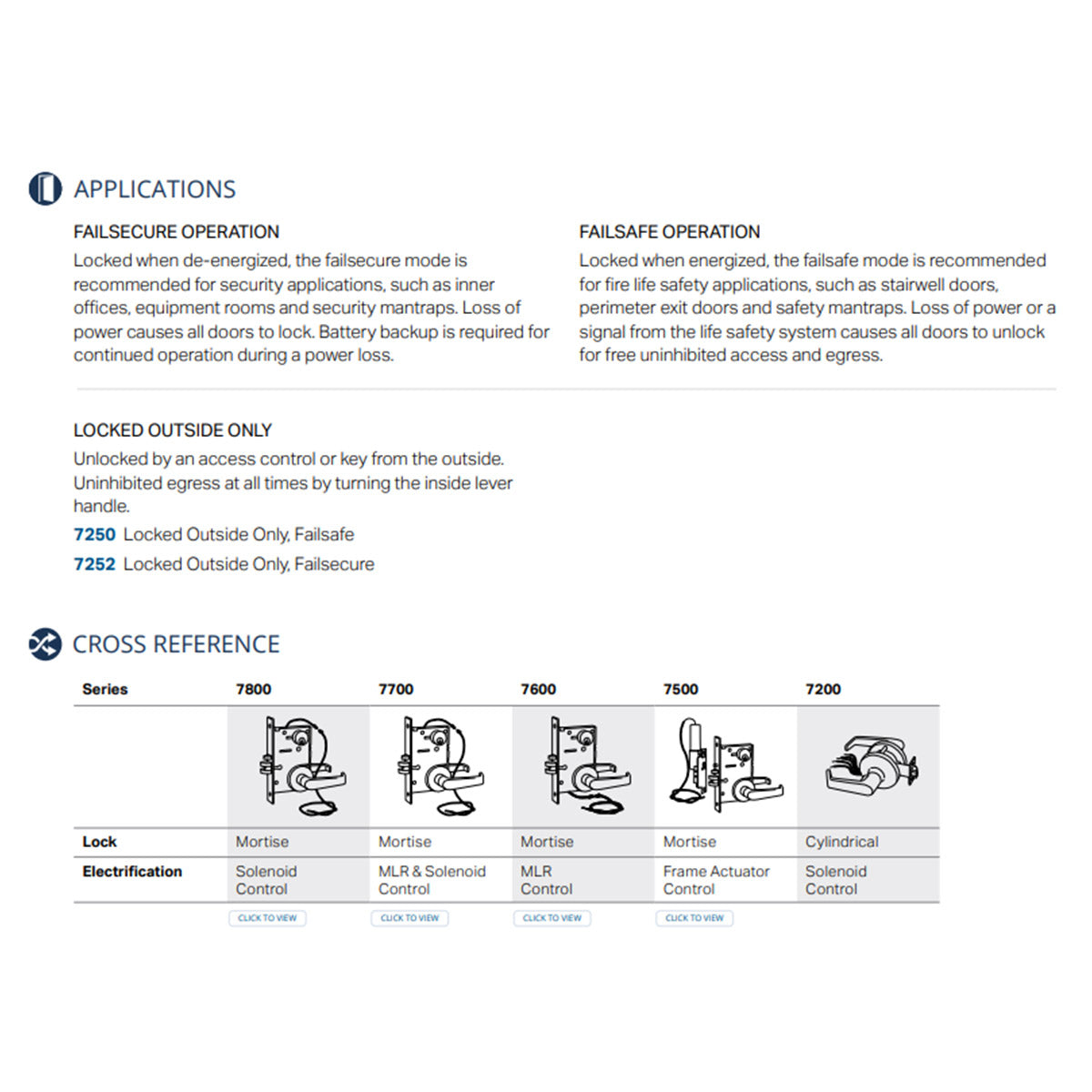

Applications

The SDC Electra 7200 Series is ideal for:

• Commercial buildings
• Industrial facilities
• Institutional facilities
• Access-controlled interior and exterior openings
• New construction projects
• Mechanical lockset retrofit applications
• High-use commercial doors
• Fire-rated door applications where the specified configuration is code compliant

Upgrade to Electronic Access Control

The SDC 7200 Series Solenoid Controlled Cylindrical Lock combines Grade 1 cylindrical lock construction, electronic solenoid control, latch status monitoring, and a vandal-resistant clutch in a durable access control lockset. With support for new and retrofit applications, it provides a clean, integrated solution for commercial electronic locking requirements.

Choose SDC Electra 7200 Series locks for dependable, code-conscious access control and heavy-duty commercial door security.
