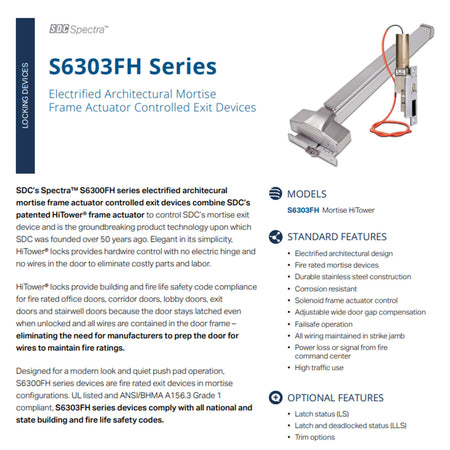

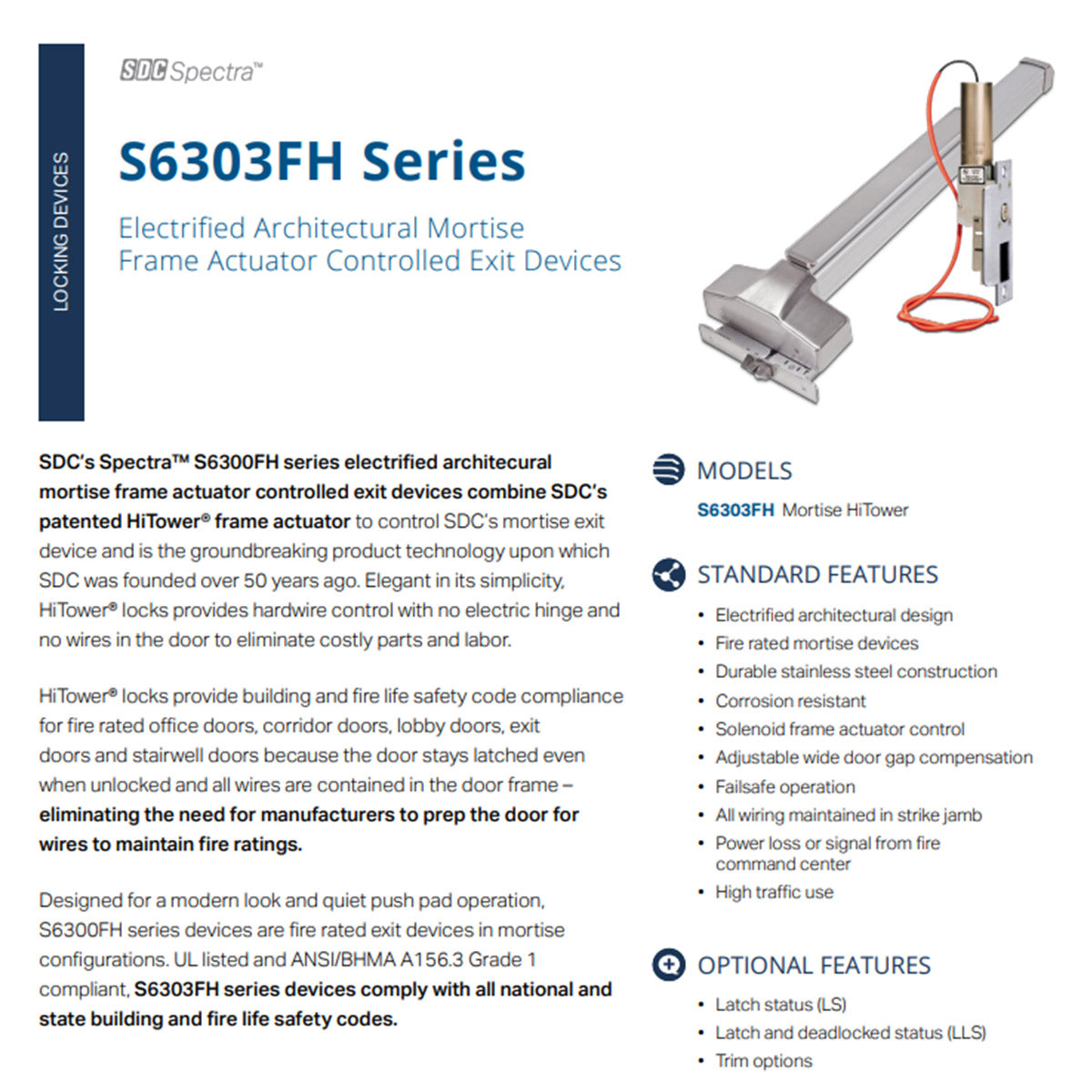

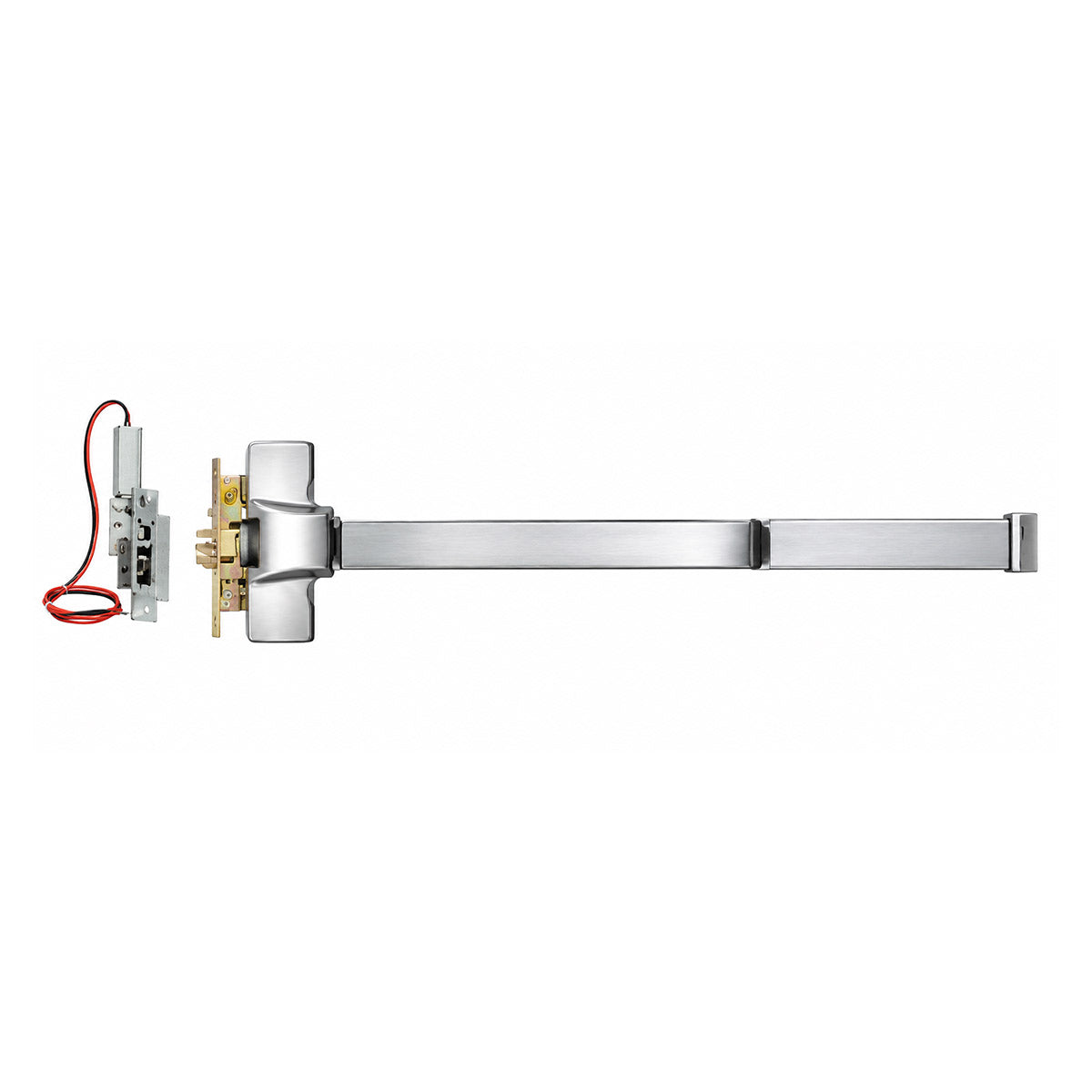

SDC S6303FH Series Electrified Architectural Mortise Frame Actuator Controlled Exit Device
The SDC Spectra™ S6303FH Series combines architectural mortise exit hardware with SDC's proven HiTower® frame actuator technology, providing a unique electrified access control solution without requiring an electric hinge or wiring through the door. Designed for fire-rated commercial and institutional openings, the S6303FH uses a solenoid-controlled frame actuator to control the mortise exit device while keeping all wiring within the door frame.
HiTower® technology eliminates the need for electrical wiring in the door, helping reduce installation complexity, parts, and labor while preserving the integrity of fire-rated door assemblies. The door remains latched even when electrically unlocked, supporting fire and life-safety requirements for applications such as office doors, corridor doors, lobby doors, exit doors, and stairwell doors.
The S6303FH features a modern architectural appearance, quiet push pad operation, durable stainless steel construction, and ANSI/BHMA A156.3 Grade 1 performance. Its fire-rated mortise configuration provides dependable egress and access control for demanding, high-traffic environments.
Key Features
- Electrified architectural mortise exit device
- SDC HiTower® frame actuator controlled technology
- No electric hinge required
- No electrical wiring in the door
- All wiring is maintained within the strike jamb/door frame
- Helps eliminate costly door wiring and specialized electrical hinge components
- Fire-rated mortise exit device
- ANSI/BHMA A156.3 Grade 1 compliant
- UL Listed
- Durable stainless steel construction
- Corrosion-resistant design
- Quiet push pad operation
- Solenoid frame actuator control
- Adjustable wide door gap compensation
- Fail-safe operation
- High-traffic construction
- Compatible with fire and life-safety applications
HiTower® Frame Actuator Technology
The S6303FH incorporates SDC's HiTower® frame actuator, a patented technology that electrically controls the mortise exit device directly from the door frame.
Unlike conventional electrified exit devices that may require wiring through the door, the HiTower® design keeps the electrical wiring in the door frame. This eliminates the need for an electric hinge and avoids wiring through the door, helping simplify installation and reduce associated labor and component costs.
The mortise exit device remains mechanically latched even when electrically unlocked, making the S6303FH particularly suited to fire-rated doors and life-safety applications where maintaining the latched condition is important.

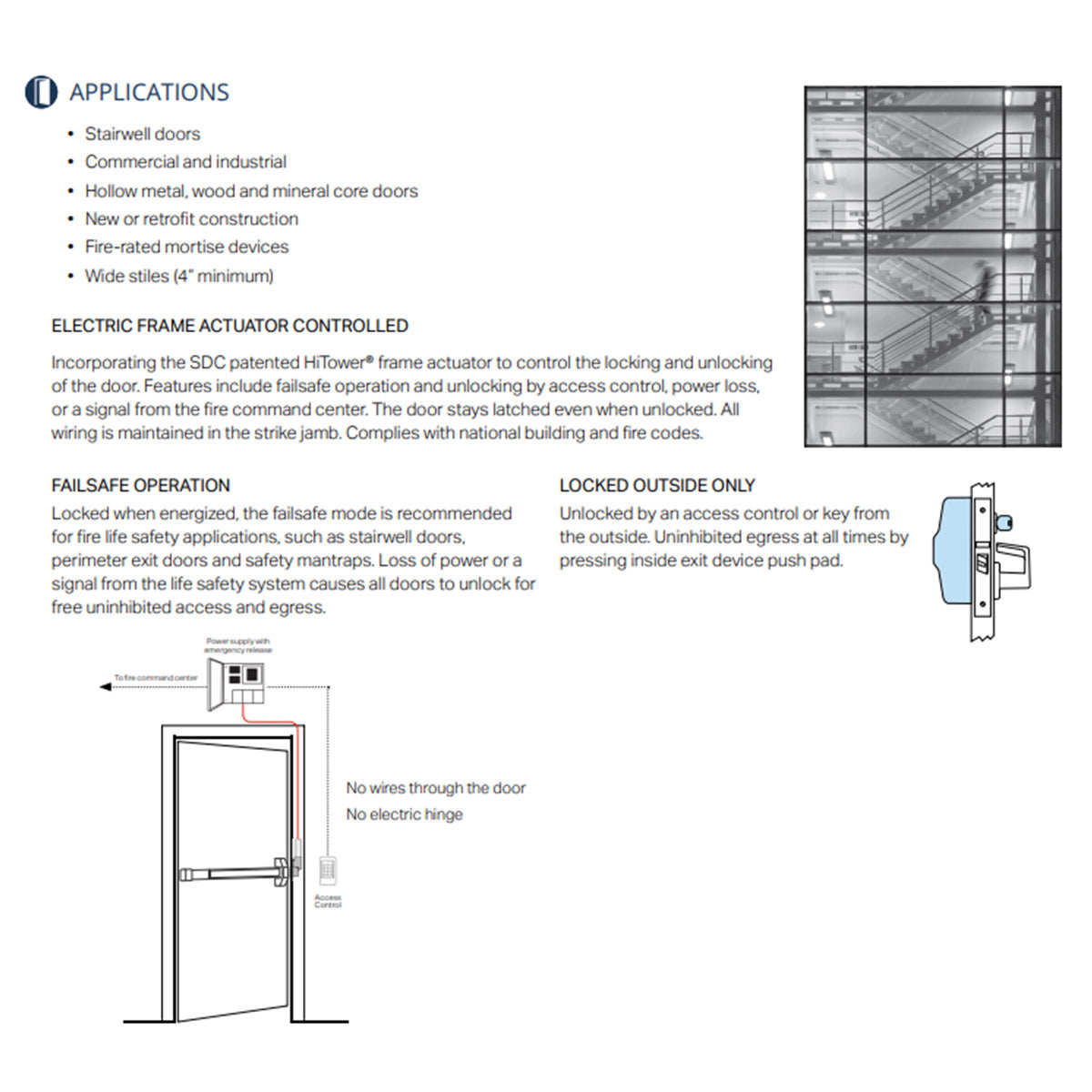

Fire & Life-Safety Applications
The S6303FH is designed for applications where access control must be integrated without compromising the requirements of a fire-rated opening.
Suitable applications include:
- Fire-rated office doors
- Corridor doors
- Lobby doors
- Exit doors
- Stairwell doors
- Commercial buildings
- Institutional facilities
- Government buildings
- Educational facilities
- Healthcare facilities
- High-traffic commercial openings
Standard Features
- Electrified architectural design
- Fire-rated mortise device
- Durable stainless steel construction
- Corrosion resistant
- Solenoid frame actuator control
- Adjustable wide door gap compensation
- Fail-safe operation
- Wiring contained in the strike jamb
- Power loss or signal from fire command center
- High-traffic use
- Quiet push pad operation
Optional Features
Configure the S6303FH with additional monitoring and hardware options:
Latch Status (LS)
Provides monitoring of the exit device latch position for compatible access control and security systems.
Latch & Deadlocked Status (LLS)
Provides monitoring of both latch and deadlocked conditions for applications requiring enhanced door status information.
Trim Options
Multiple trim configurations are available to accommodate different architectural and access control requirements.
Specifications
| Specification | S6303FH Series |
|---|---|
| Brand | SDC |
| Series | Spectra™ S6303FH |
| Product Type | Electrified Mortise Exit Device |
| Control Method | HiTower® Solenoid Frame Actuator |
| Configuration | Mortise |
| Construction | Stainless Steel |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Listing | UL Listed |
| Rating | Fire Rated |
| Operation | Quiet Push Pad |
| Electrical Wiring | Contained in Door Frame |
| Electric Hinge | Not Required |
| Door Wiring | Not Required |
| Operation | Fail-Safe |
| Monitoring Options | LS / LLS |
| Door Gap | Adjustable Wide Door Gap Compensation |
| Application | Access Control & Life Safety |
| Use | High Traffic |
Why Choose the SDC S6303FH?
The SDC Spectra™ S6303FH Series provides a streamlined approach to electrifying fire-rated mortise exit devices. Its HiTower® frame actuator eliminates the need for an electric hinge and wiring through the door, while the door remains latched when electrically unlocked.
With Grade 1 construction, UL listing, stainless steel durability, fire-rated performance, fail-safe operation, and optional latch monitoring, the S6303FH is designed for demanding commercial and institutional applications where reliable access control and fire-life-safety performance are essential.
SDC S6303FH — architectural mortise exit hardware with frame-mounted electrification and HiTower® technology.
