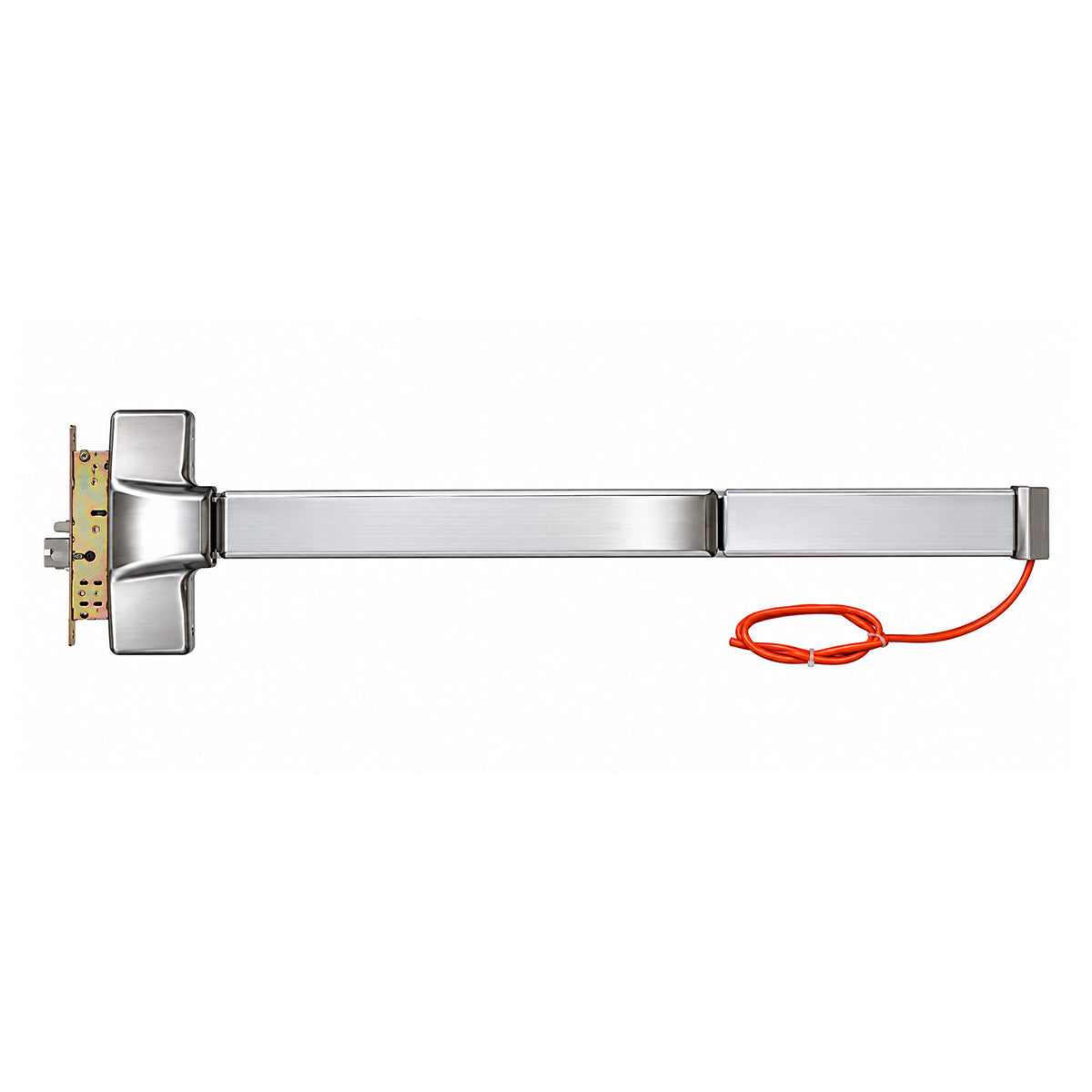

SDC S6300 Series Electrified Architectural Mortise Exit Devices

The SDC Spectra™ S6300 Series provides a modern, durable solution for electrified architectural mortise exit applications. Designed for commercial, institutional, and high-traffic environments, these Grade 1 exit devices combine a clean architectural appearance with reliable access control and life-safety functionality.

The S6300 Series offers multiple electrified options to integrate with access control systems and accommodate a wide range of door applications. With durable stainless steel construction, corrosion resistance, and quiet push pad operation, the S6300 Series is built for demanding environments where performance, appearance, and dependable emergency egress are essential.

These UL Listed exit devices comply with ANSI/BHMA A156.3 Grade 1 requirements and are available in panic and fire-rated configurations.

Key Features

• Electrified architectural mortise exit device
• Modern architectural styling
• ANSI/BHMA A156.3 Grade 1 compliant
• UL Listed

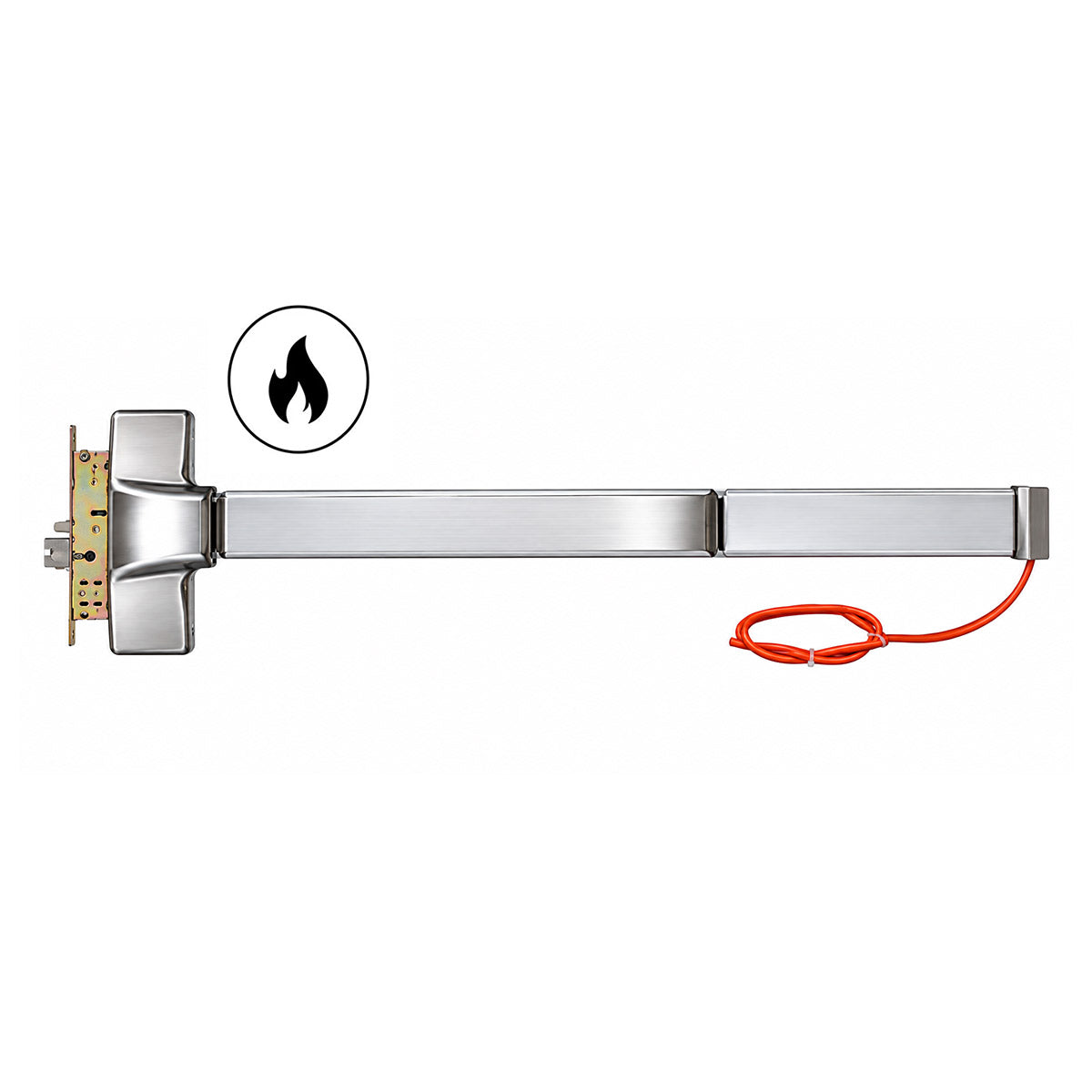

• Available in panic and fire-rated configurations
• Durable stainless steel construction
• Corrosion-resistant design
• Suitable for high-traffic applications
• Quiet push pad operation
• Multiple electrified options for access control integration
• Designed for commercial, institutional, and industrial applications

Optional Electrified & Monitoring Features

The S6300 Series can be configured with a variety of options to meet specific access control and monitoring requirements:

Request-to-Exit (REX)

Provides request-to-exit monitoring for integration with access control systems.

Latch Status (LS)

Provides monitoring of the exit device latch condition for compatible access control applications.

Motorized Electric Latch Retraction & Dogging

Allows the exit device latch to be electrically retracted and dogging to be controlled for authorized access and automatic door applications.

Motorized Electric Latch Retraction & Dogging – External Module

Available with an external module configuration for applications requiring motorized latch retraction and dogging functionality.

Electric Dogging

Provides electrically controlled dogging for applications requiring the exit device to remain mechanically retracted during authorized periods.

Alarmed Exit – Battery Powered

Provides a self-contained alarmed exit solution for applications requiring local alarm notification.

Alarmed Exit – Hardwired

Provides a hardwired alarmed exit configuration for integration with building security and access control systems.

Electrified Case – Fail-Secure Outside Lever

Provides controlled outside lever operation while maintaining a fail-secure configuration.

Electrified Case – Fail-Safe Outside Lever

Provides controlled outside lever operation with a fail-safe configuration for applications requiring the outside lever to unlock when power is removed.

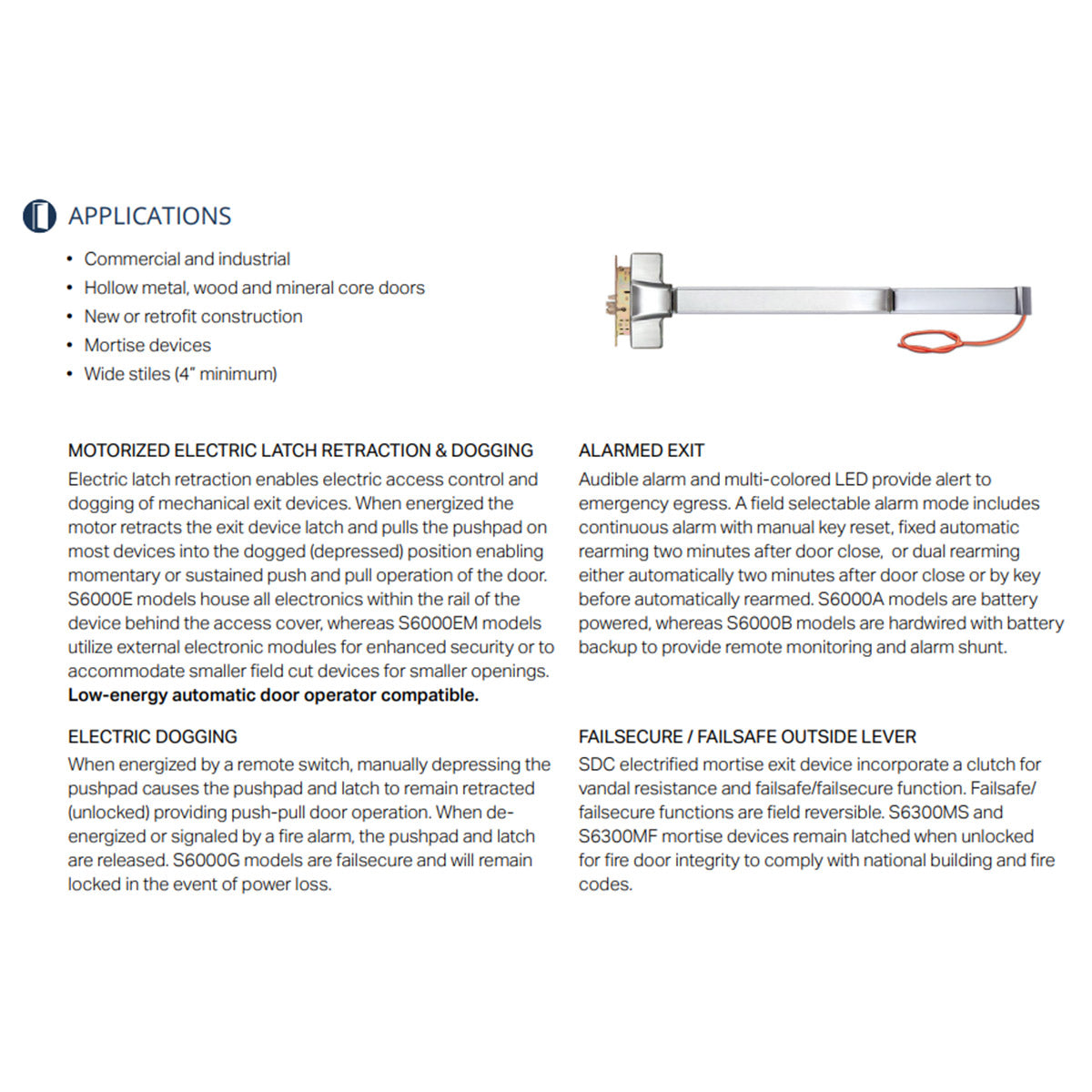

Applications

The SDC Spectra S6300 Series is well suited for:

• Commercial buildings
• Office buildings
• Retail facilities
• Educational institutions
• Healthcare facilities
• Government buildings
• Industrial facilities
• Institutional buildings
• High-traffic interior and exterior openings
• Access-controlled doors
• New construction and retrofit projects

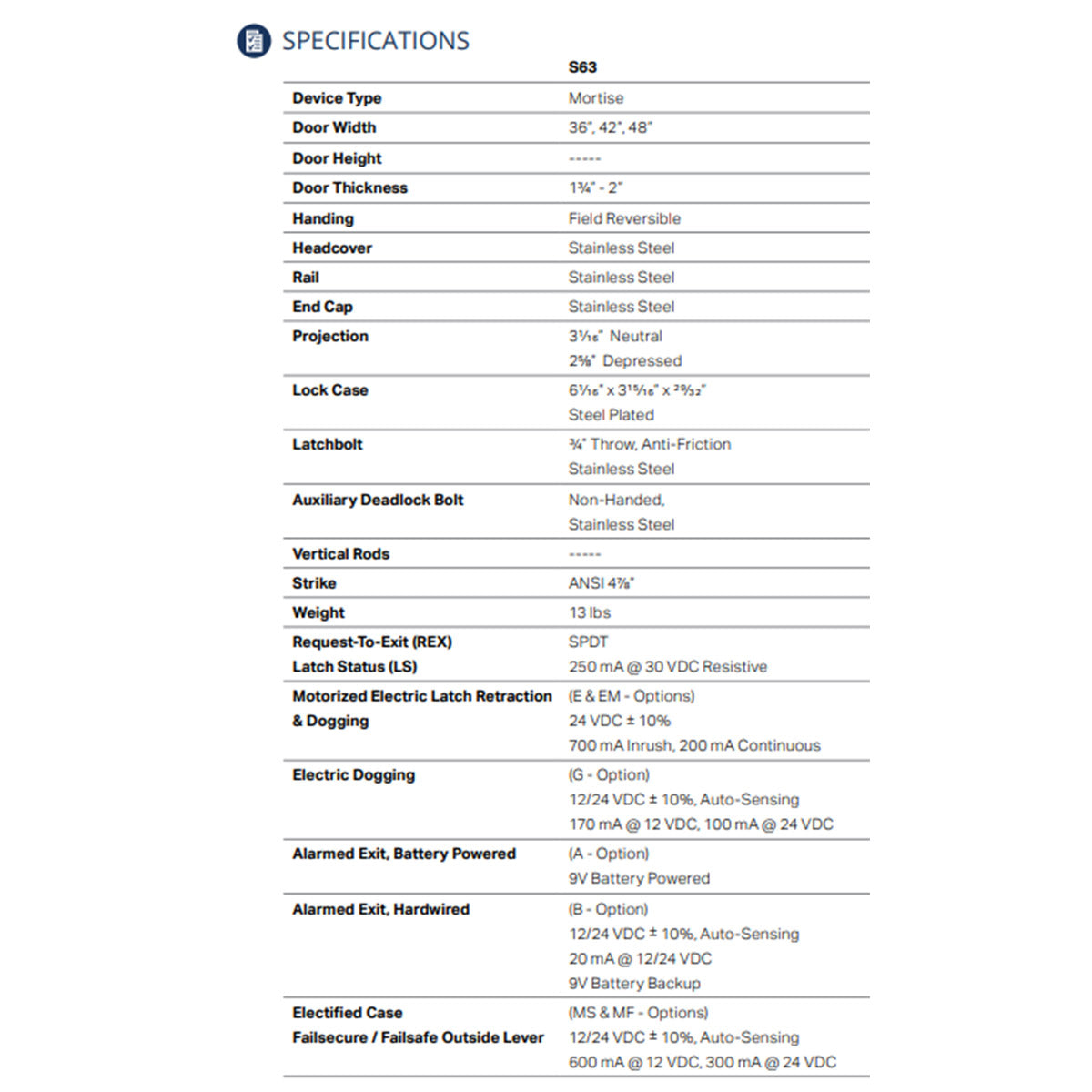

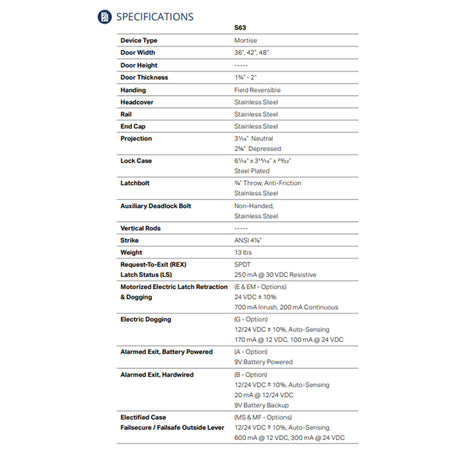

Specifications

SDC Spectra S6300 Series

The SDC Spectra™ S6300 Series Electrified Architectural Mortise Exit Device combines Grade 1 performance, stainless steel durability, modern architectural styling, and flexible electrified access control options.

With options including REX, latch status, motorized electric latch retraction, electric dogging, alarmed exit, and fail-safe or fail-secure electrified cases, the S6300 Series can be configured for a wide range of commercial access control and life-safety applications.

Choose the S6300 Series when your project requires a durable, architectural mortise exit device with dependable electrified access control capabilities.
