SDC S5000 Series Electrified Storefront Rim & Vertical Rod Exit Devices

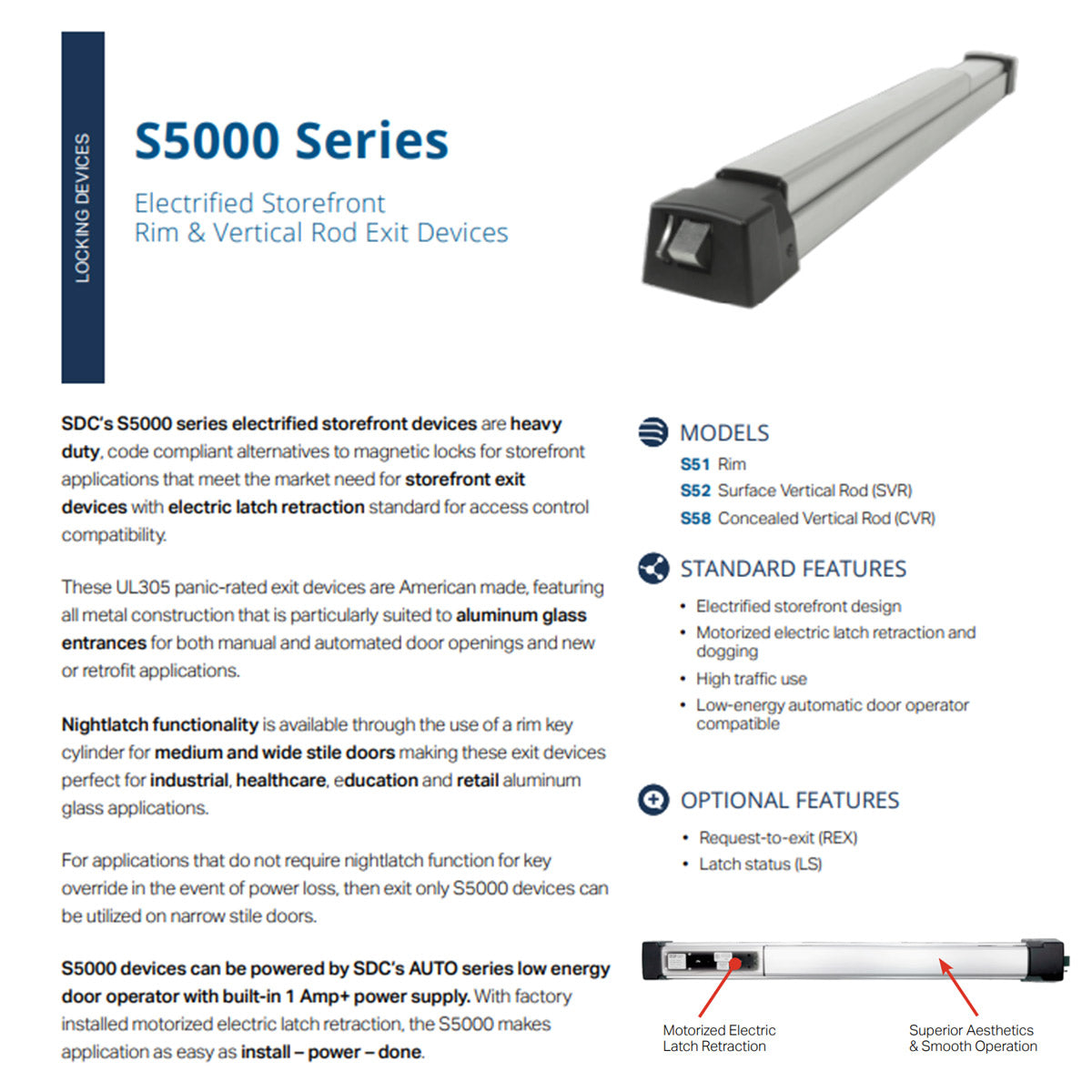

The SDC S5000 Series is a heavy-duty, code-compliant electrified storefront exit device designed as a reliable alternative to magnetic locks for aluminum and glass entrance applications. Built specifically for storefront doors, the S5000 combines motorized electric latch retraction and dogging with durable all-metal construction, providing a streamlined access control solution for new construction and retrofit applications.

Available in rim, surface vertical rod (SVR), and concealed vertical rod (CVR) configurations, the S5000 Series is ideal for high-traffic commercial environments including retail, healthcare, education, industrial, and institutional facilities.

These UL 305 panic-rated exit devices are manufactured in the USA and are particularly suited for aluminum-glass entrances used with both manual doors and low-energy automatic door operators. With factory-installed motorized electric latch retraction, installation is simplified to install, power, and operate.

Key Features

• Heavy-duty electrified storefront exit device
• Motorized electric latch retraction and dogging
• UL 305 panic-rated
• All-metal construction for demanding commercial applications
• Designed specifically for aluminum storefront doors and frames
• High-traffic use
• Compatible with low-energy automatic door operators
• Suitable for new construction and retrofit applications
• Access control compatible
• Available for single doors and pairs of doors
• Supports narrow, medium, and wide stile applications*
• Available in rim, surface vertical rod, and concealed vertical rod configurations
• Made in the USA

Available Models

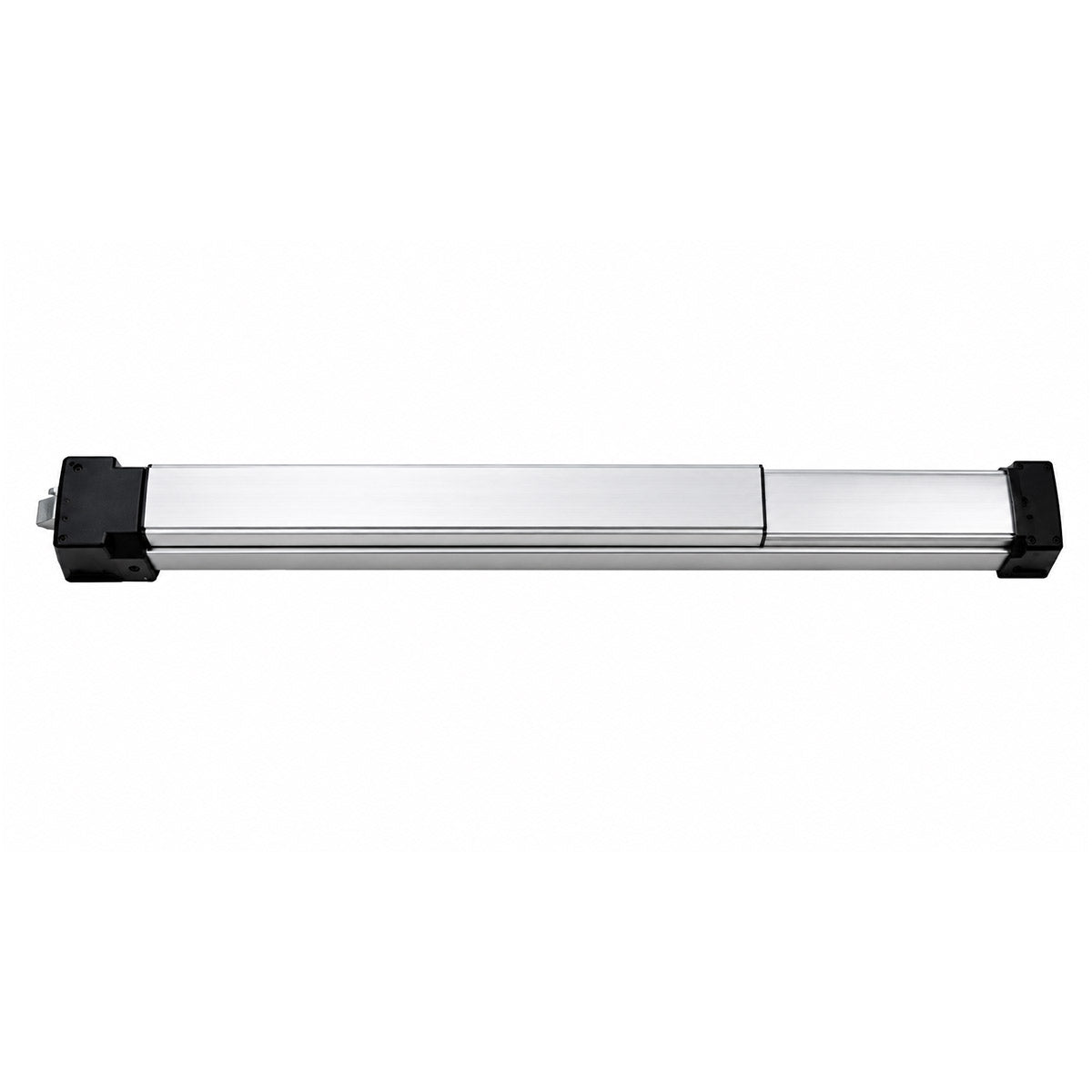

S51 — Rim Exit Device

A heavy-duty rim exit device designed for storefront applications where a single-point latch provides the required door security and exit functionality.

S52 — Surface Vertical Rod (SVR)

A surface-mounted vertical rod configuration designed for storefront applications requiring top and bottom latching.

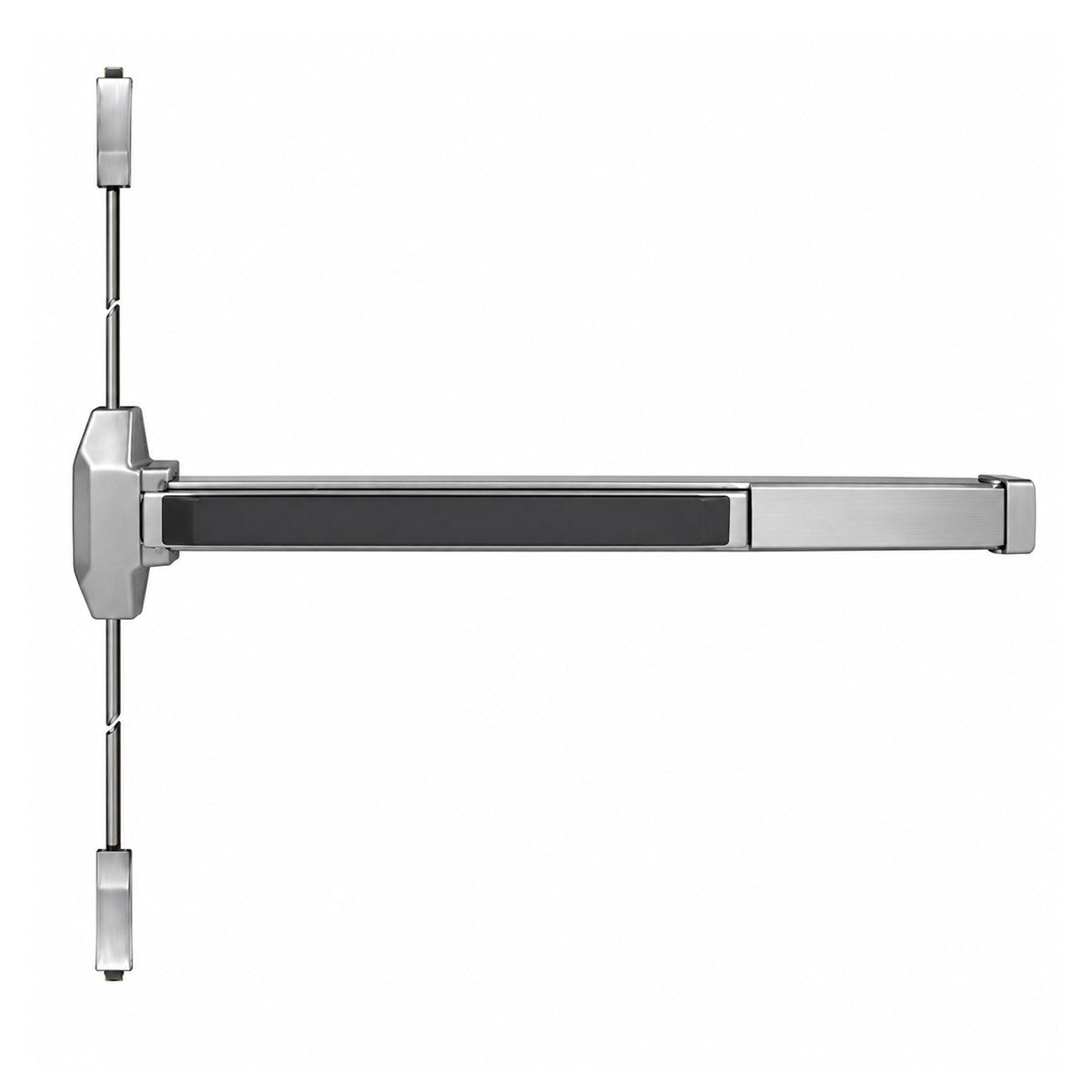

S58 — Concealed Vertical Rod (CVR)

A concealed vertical rod configuration that provides vertical rod latching while maintaining a cleaner appearance for aluminum-glass storefront entrances.

Access Control & Electrified Operation

The S5000 Series features factory-installed motorized electric latch retraction, eliminating the need for separate field-installed electrification components. When power is applied, the motor retracts the exit device latch to allow authorized access through the door.

S5000 devices can also be powered by an SDC AUTO Series low-energy door operator with an integrated 1 Amp+ power supply, making them well suited for accessible and automated entrance applications.

Optional Request-to-Exit (REX) and Latch Status (LS) monitoring provide additional integration capabilities for access control and security systems.

Nightlatch & Key Override

Nightlatch functionality is available through the use of a rim key cylinder on medium- and wide-stile doors. This provides a mechanical key override option for applications where key access is desired in the event of power loss.

For applications that do not require nightlatch functionality or key override, exit-only S5000 configurations can be used on narrow-stile doors.

Applications

The SDC S5000 Series is designed for:

• Aluminum and glass storefront doors
• Commercial storefront entrances
• Retail facilities
• Healthcare facilities
• Schools and educational facilities
• Industrial buildings
• Institutional facilities
• High-traffic entrances
• New construction
• Retrofit projects
• Manual doors
• Low-energy automatic door applications
• Single doors and pairs of doors

Door & Mounting Compatibility

• Rim exit devices
• Surface vertical rod (SVR) exit devices
• Concealed vertical rod (CVR) exit devices
• Narrow, medium, and wide stile doors*
• Hinge-mounted doors
• Center-pivot doors
• Offset-pivot doors**

Optional Features

REX — Request-to-Exit: Provides monitoring for exit requests and access control integration.

LS — Latch Status: Provides monitoring of the exit device latch position for security and access control applications.

Why Choose the SDC S5000 Series?

The S5000 Series provides a purpose-built electrified exit device solution for storefront entrances where traditional magnetic locks may not be the preferred choice. Its factory-installed motorized latch retraction, heavy-duty construction, storefront-specific design, and access control compatibility make it a practical solution for securing high-traffic aluminum-glass entrances.

With multiple exit device configurations and compatibility with low-energy automatic door operators, the S5000 Series provides flexibility for both new installations and retrofit applications.

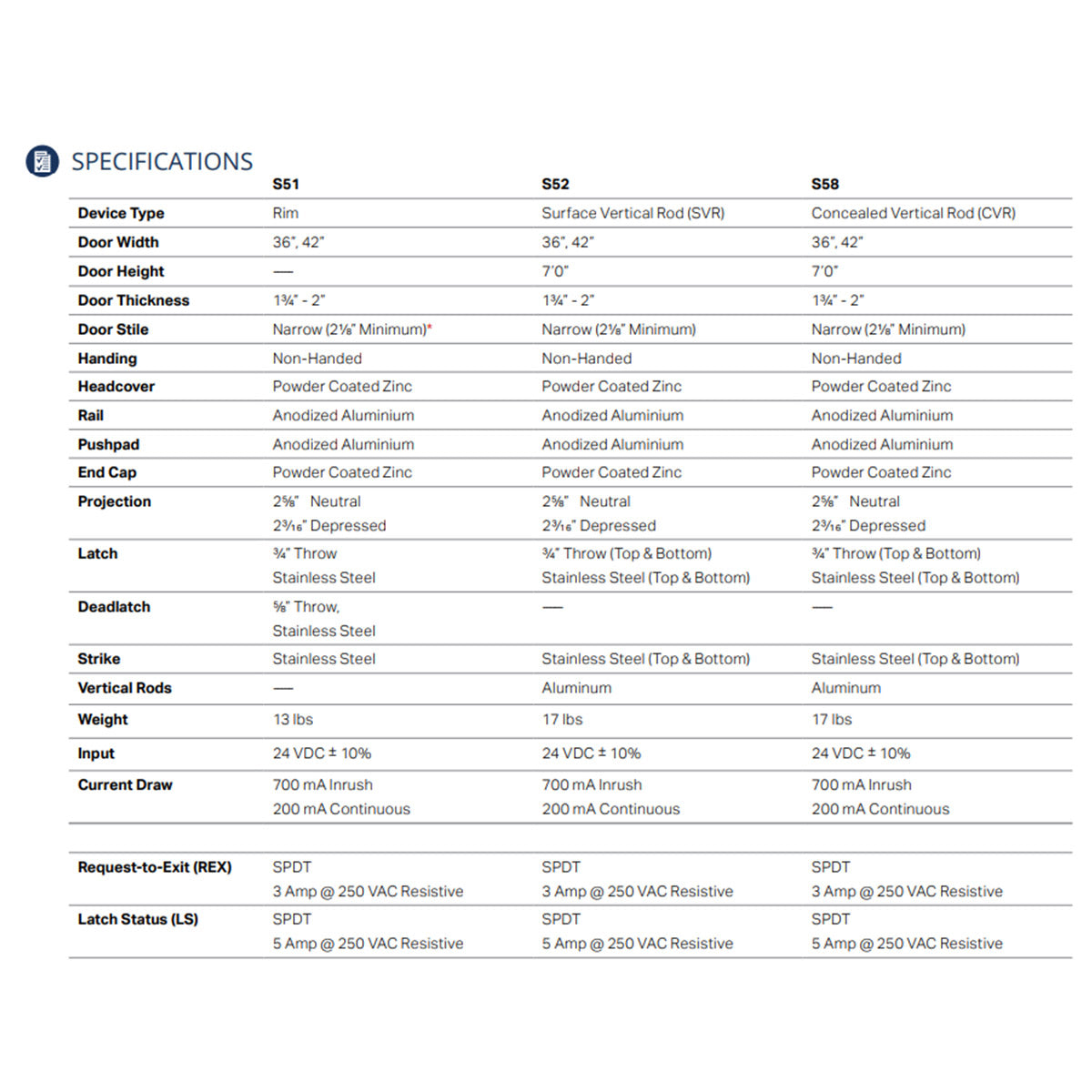

SDC S5000 Series Specifications

* Stile and cylinder compatibility should be verified for the specific door and configuration.
* Verify compatibility with the specific hinge or pivot arrangement before ordering.*
