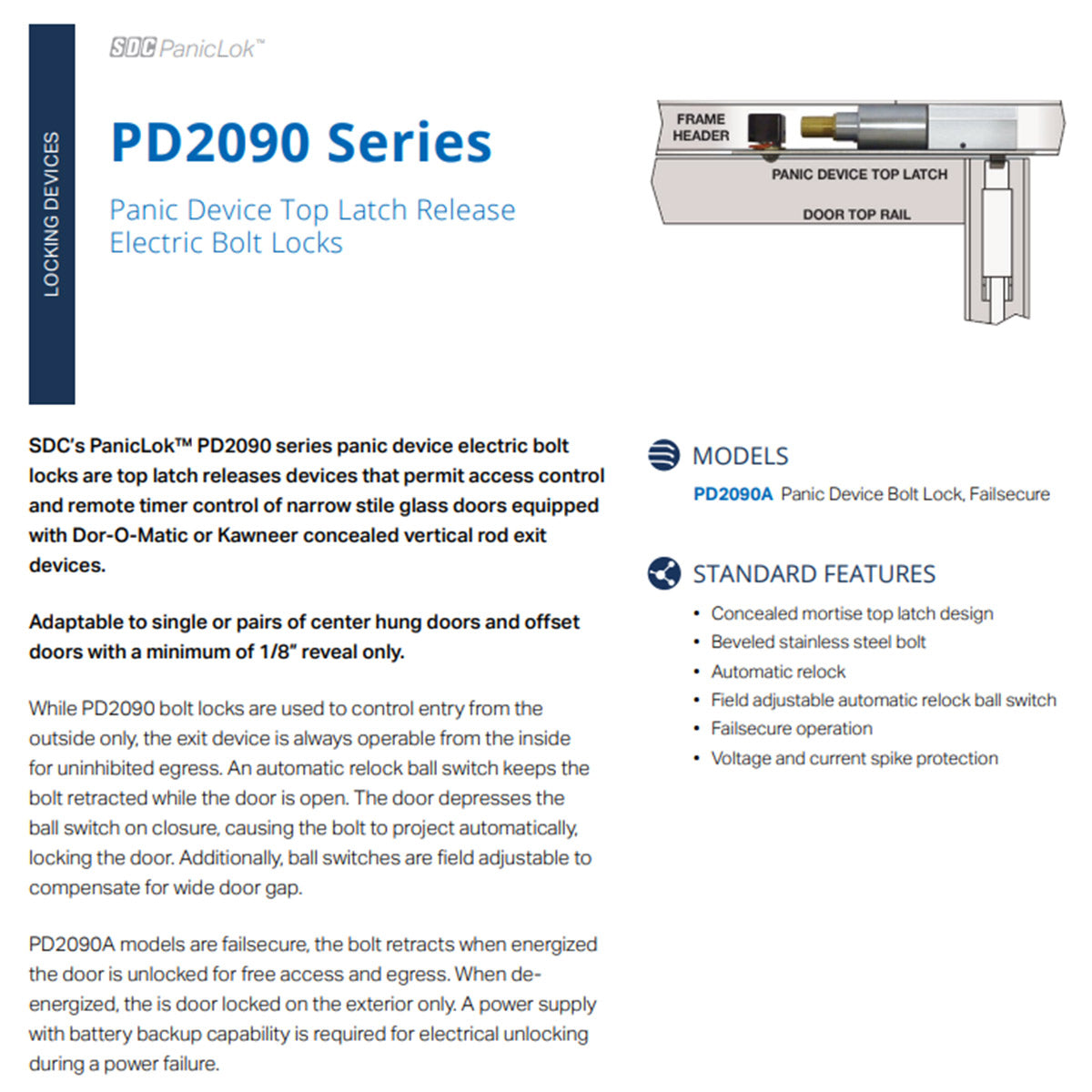

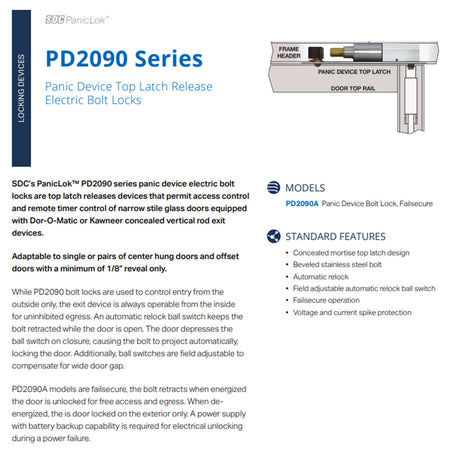

SDC PD2090 Series Panic Device Top Latch Release Electric Bolt Locks
The SDC PD2090 Series PanicLok™ Panic Device Electric Bolt Locks provide reliable electronic access control for narrow stile glass doors equipped with Dor-O-Matic or Kawneer concealed vertical rod exit devices. Designed as concealed top latch release devices, the PD2090 series allows authorized entry from the exterior while maintaining unrestricted exit through the existing panic device.
The PD2090 is suitable for single doors and pairs of center-hung or offset doors with a minimum 1/8-inch reveal. The electric bolt lock controls exterior access only, allowing the exit device to remain fully operational from the inside for safe, uninhibited egress.
Automatic Relock for Reliable Security
An integrated automatic relock ball switch keeps the bolt retracted while the door is open. When the door closes, it depresses the ball switch, causing the stainless steel bolt to automatically project and secure the door. The ball switch is field adjustable to compensate for wider door gaps, helping ensure dependable relocking in varying installation conditions.
Failsecure Operation
The PD2090A features failsecure operation. When energized, the bolt retracts and the exterior side of the door is unlocked for authorized access. When power is removed, the bolt projects and the exterior remains locked while the panic device continues to provide free egress from the inside.
For electrical unlocking during a power failure, the installation requires a power supply with battery backup capability.
Key Features
- Designed for narrow stile glass doors with concealed vertical rod exit devices
- Compatible with Dor-O-Matic and Kawneer concealed vertical rod exit devices

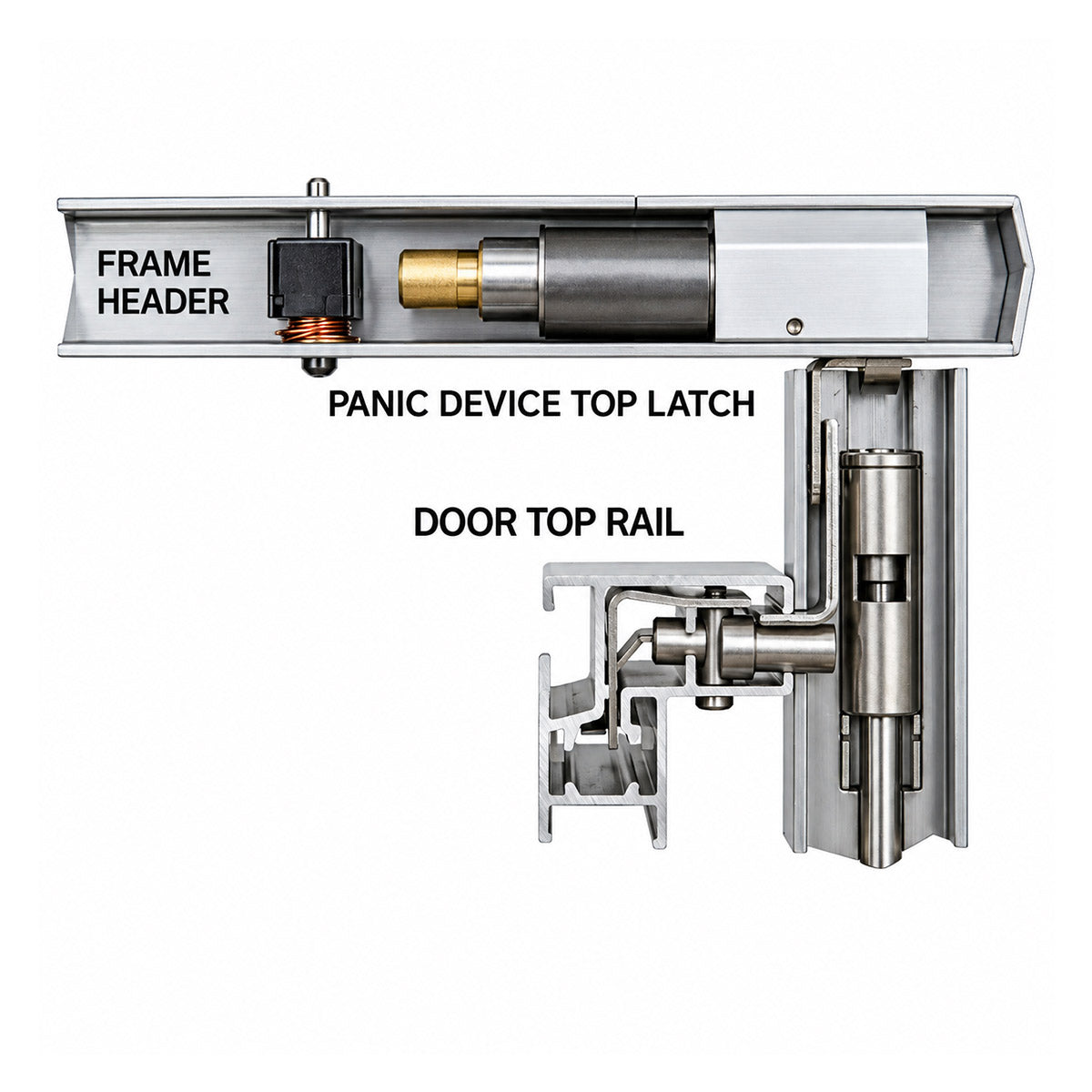

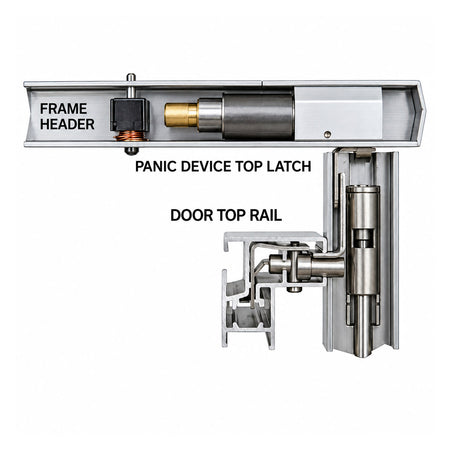

- Concealed mortise top latch design
- Beveled stainless steel bolt
- Automatic relock function
- Field-adjustable automatic relock ball switch
- Failsecure operation
- Controls exterior access while maintaining interior egress
- Suitable for single or pairs of center-hung and offset doors
- Minimum 1/8-inch door reveal required
- Voltage and current spike protection

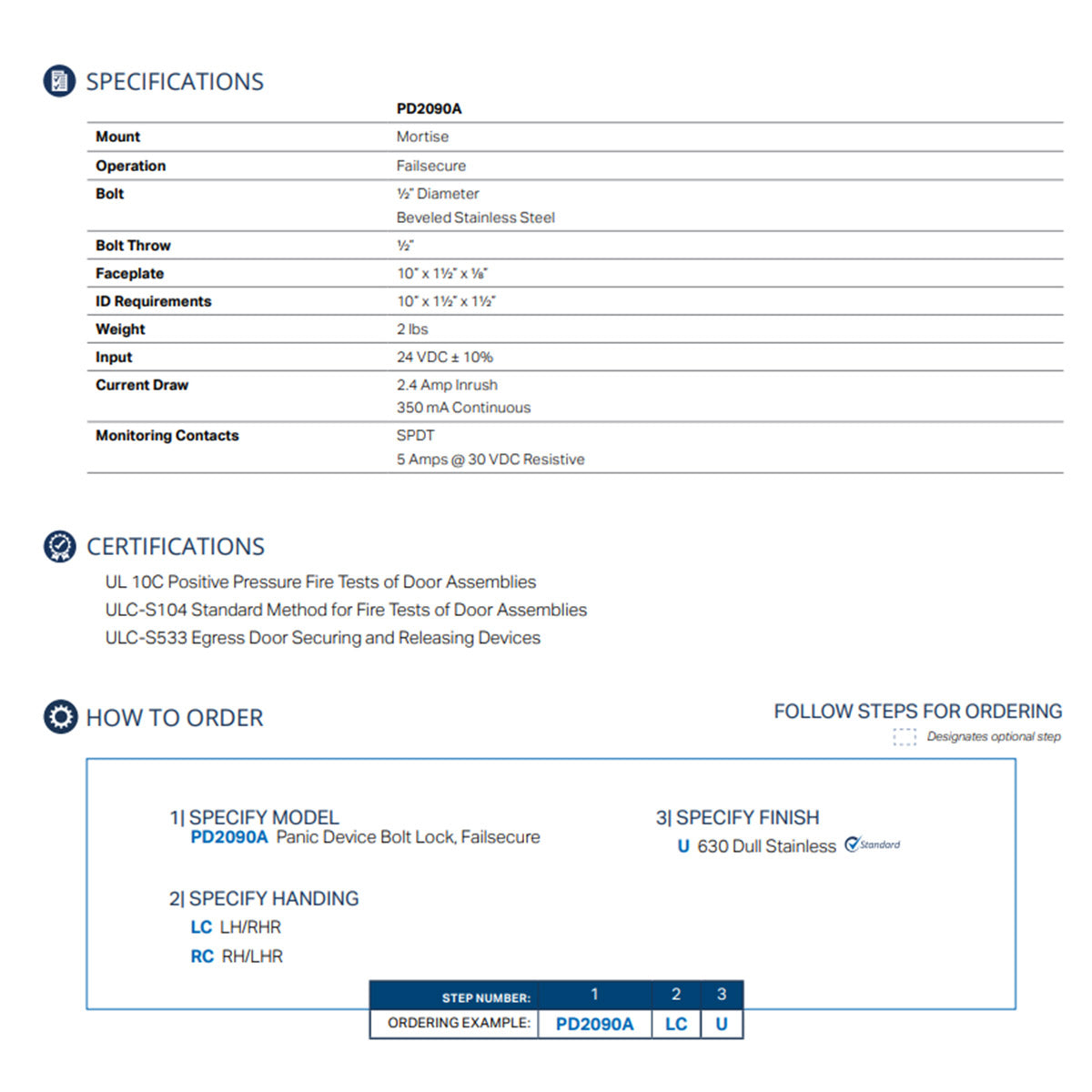

Available Model
- PD2090A – Panic Device Bolt Lock, Failsecure
Typical Applications
The SDC PD2090A is ideal for commercial storefronts, office buildings, retail facilities, institutional facilities, and other access-controlled openings using narrow stile glass doors and concealed vertical rod panic exit devices. Its concealed top-latch design provides electronic exterior access control without compromising emergency egress from the inside.
Installation Note
The PD2090 series is intended for compatible narrow stile glass door and panic device configurations. Verify the door construction, exit device, door reveal, and available power requirements before ordering. A battery-backed power supply is required where electrical unlocking must remain available during a power failure.
